Ekselans AP 1200 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

AP 1200
330003
Wireless Access Point
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP 1200 and is the answer not in the manual?

Questions and answers

Related Manuals for Ekselans AP 1200

Summary of Contents for Ekselans AP 1200

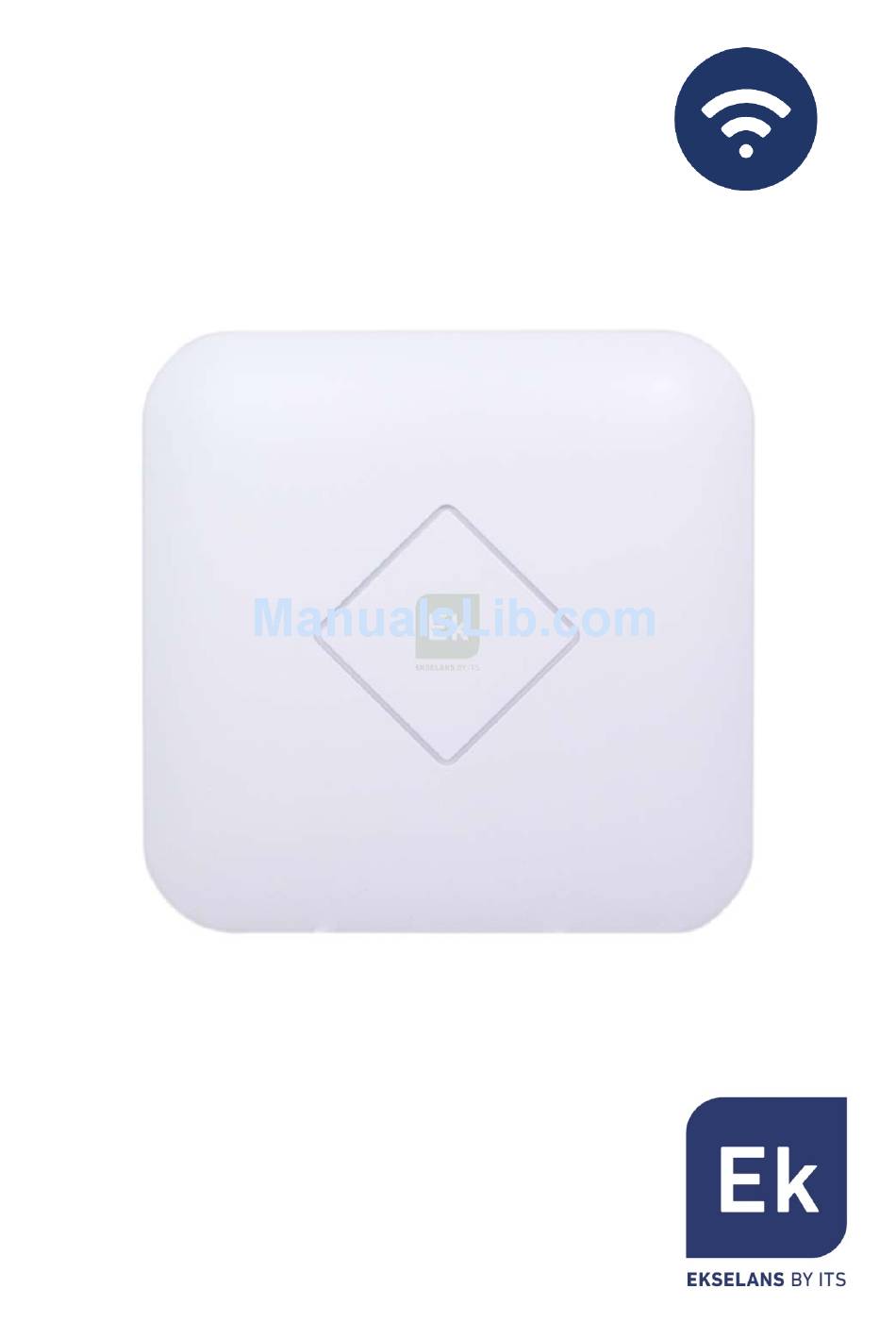

  • Page 1 AP 1200 330003 Wireless Access Point User manual...

  • Page 2: Table Of Contents

    Index AP 1200 Hardware interface …..…………...…………………..………..3 Installation diagram ………………………………………………………………3 Connect to AP 1200................4 AP 1200 Web interface ..............5 Advanced Settings .................17...

  • Page 3: Ap 1200 Hardware Interface

    AP 1200 Hardware interface • RST: Reset Button, it make AP revert to default data after press it 15 seconds. • WAN: WAN Port, connect with ADSL modem or Internet mainly. It will be LAN port under Wireless AP and Wireless Repeater operation mode.

  • Page 4: Connect To Ap 1200

    Connect to AP 1200 Note: The default SSID is Ek_2.4G Ek_5.8G with password 12345678 To connect to AP 1200 please follow these steps: 1. Connect to AP 1200 with Ethernet cable or wireless. 2. Set our Ethernet / Wireless adapter with Static IP: 3.

  • Page 5: Ap 1200 Web Interface

    AP 1200 Web interface After entering, the password will appear the main interface 1. Displays the Menu. 2. Language Selector can be English / Spanish. 3. Displays the Operational mode (AP Mode, Gateway Mode, and Repeater). 4. Displays the channel that the wireless is broadcasting.
  • Page 6 Wireless setting (Main Window 10 and 11) Clicking in the Wireless section will open the fast configuration menu for Wireless • Wireless Status: ON / OFF. • SSID: Name of the wireless. • Broadcast SSID: Enable - Show SSID, Disable – Hide SSID, •...
  • Page 7 The time to renew the IP for the connected devices. After filling the above values as we want, we can press “Apply” to save the changes for our LAN settings. Note: This window can change based on the Operational Mode AP 1200 is using.
  • Page 8 Location Information (Main Window 13) Clicking in the Location section will open the fast configuration menu for Location Information • AP Location: Set the AP Location, this is just information for the user to know. • AP Name: Set the identification name for our AP. After filling the above values as we want, we can press “Apply”...
  • Page 9 Wizard There are four-operation mode available. Putting the mouse over each mode will display a tip explaining the use of each mode. • Gateway Mode: Connect to the network through LAN cable and operate 1200 as router. • Repeater Mode: Connects to a SSID and broadcast a new SSID •...
  • Page 10 Wizard: Gateway Mode The Gateway Mode wizard will guide you through few step and few options to properly configuring the device. First Step Select the WAN connection mode: • DHCP: The WAN connection will get the IP value from a DHCP server •...
  • Page 11 Second Step Configure both Wireless settings for 2.4G and 5.8G • Wireless Status: ON / OFF. • SSID: Name of the wireless. • Channel: The channel that Wireless. • Encryption: Select the encryption wanted for the wireless SSID. • Key: The password for the SSID When you are done, press Next to continue.
  • Page 12 Wizard: Repeater Mode The Gateway Mode wizard will guide you through few step and few options to properly configuring the device. First Step Select which band we will be using as repeater 2.4G or 5.8G Select the SSID that we want to connect to by pressing Scan AP button. It will load a list of all the SSID in range.
  • Page 13 • Authentication: Encryption of the SSID selected. • Key: Input the SSID key for the SSID selected. • Band Width: The bandwidth of the SSID selected. When you are done, press Next to continue. It will guide you to the second step. Second step Select the WAN connection mode: •...
  • Page 14 Wizard: WISP Mode The WISP Mode wizard will guide you through few step and few options to properly configuring the device. First Step Select the SSID that we want to connect to by pressing Scan AP button. It will load a list of all the SSID in range.
  • Page 15 Wizard: AP Mode The AP Mode wizard will guide you through few step and few options to properly configuring the device. First step Set the values for the wanted SSID for 2.4G and 5.8G • Wireless Status: ON / OFF. •...
  • Page 16 Second step Specify how the AP 1200 is connected to your network. You can select either DHCP or Static IP • Set the IP for this device. • Subnet Mask: Set the Subnet Mask for this device. • Manage server IP: Set the network gateway for the device.

  • Page 17: Advanced Settings

    Advanced settings Device Status • Status: This tab displays the information regarding Software Version, Hardware Version and the time that the device is online. • 2.4G Wireless Status: Shows the current configuration for the Wireless, it also displays the connected users. It is the same for 5.8G. Client list button will show a pop up window showing the connected clients.

  • Page 18: Basic Settings

    Wireless 2.4G and 5.8G NOTE: The pictures below are for 2.4G Wireless. The options for 5.8G are the same as for 2.4G. Basic Settings This tab is used to configure all the Wireless basic settings. • Wireless Status: ON / OFF. •...
  • Page 19 Virtual AP In this tab we can create up to 3 more SSID, each Virtual AP 1 is a new SSID. Press apply to save the changes.

  • Page 20: Access Control

    1200. We can set the access control to: • MAC Access All: In this mode all the devices can connect to AP 1200. • Allow Listed: In this mode the all the MAC address on the Access Control List can access the 1200.
  • Page 21 Advanced Settings This tab is used to configure all the Wireless advanced settings. • Regional: Select the region • MODE: Select the standard for the Wireless N/AC • RF Output Power: Control the wireless output power. This affects the coverage range. •...

  • Page 22: Lan Settings

    Network LAN Settings • Access Type: Use DHCP to get automatically IP, Subnet Mask and Manage server IP or use Static IP to manually set the values. • Set the IP for this device. • Subnet Mask: Set the Subnet Mask for this device. •...

  • Page 23: System Time

    Management System Time Manage the device timezone. Auto restart function enables the device to be rebooted at the setup time. Logs This tab will display all the logs related to the device. • Remote Log Server: Enable to register the logs to a remote server. •...

  • Page 24: Upgrade Firmware

    Upgrade firmware Select the new firmware version file and press “Upgrade” to upgrade the device firmware. If selected restore factory setting the device will upgrade the firmware and also put the device back to factory default. System • Backup: Will save to disk the device configuration. •...
  • Page 25 User Change the default admin password for the device. is a registered trademark of Ekselans by ITS ITS Partner (O.B.S.) S.L. Av. Corts Catalanes 9-11 08173 Sant Cugat del Vallès (Barcelona) www.ekselansbyits.com...
