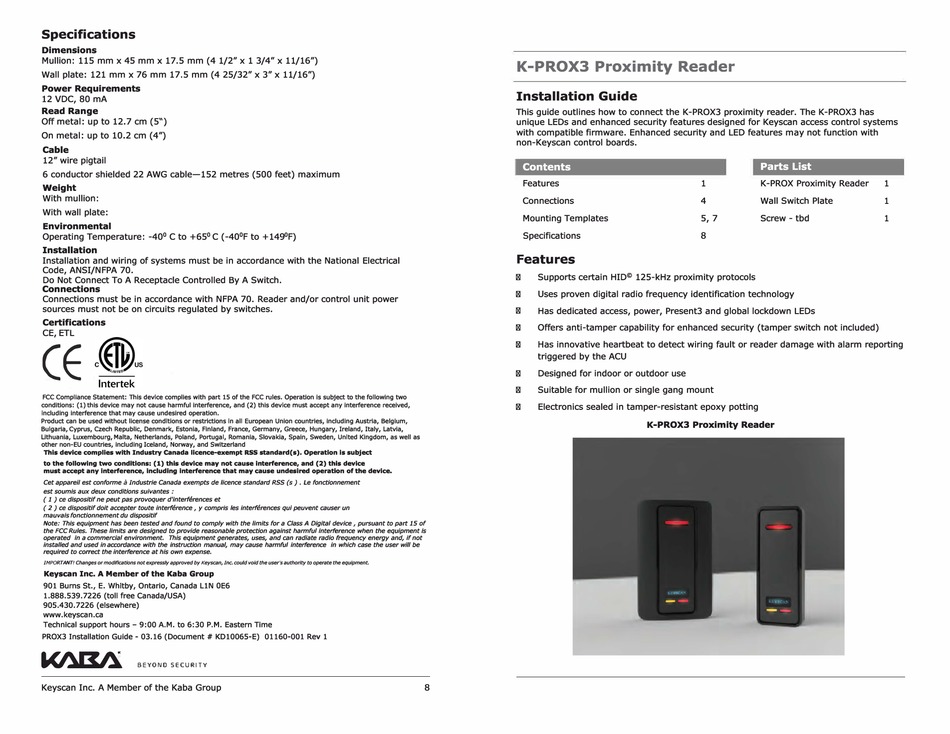

Specifications
Dimensions
Mullion: 115 mm x 45 mm x 17.5 mm (4 1/2" x 1 3/4" x 11/16")
Wall plate: 121 mm x 76 mm 17.5 mm (4 25/32" x 3" x 11/16")
Power Requirements
12 VDC, 80 mA
Read Range
Off metal: up to 12.7 cm (5")
On metal: up to 10.2 cm (4")
Cable
12" wire pigtail
6 conductor shielded 22 AWG cable-152 metres (500 feet) maximum
Weight
With mullion:
With wall plate:
Environmental
Operating Temperature: -40
0
C to +65
0
C (-40
Installation
Installation and wiring of systems must be in accordance with the National Electrical
Code, ANSI/NFPA 70.
Do Not Connect To A Receptacle Controlled By A Switch.
Connections
Connections must be in accordance with NFPA 70. Reader and/or control unit power
sources must not be on circuits regulated by switches.
Certifications
CE
CE, ETL
FCC Compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: {1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Product can be used without license conditions or restrictions in all European Union countries, including Austria, Belgium,
Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Poland , Portugal, Romania, Slovakia, Spain, Sweden, United Kingdom, as well as
other non-EU countries, including Iceland, Norway, and Switzerland
This device complies with Industry canada licence-exempt RSS standard(s}, Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
a
Cet appareil est conforme
Industrie Canada exempts de licence standard RSS ( s ) . Le fonctionnement
est soumis aux deux conditions suivantes :
ce
( 1 )
dispositif ne peut pas provoquer d'interferences et
,
( 2 )
ce
dispositif doit accepter toute interference
y compris les interferences qui peuvent causer un
mauvais fonctionnement du dispositif
Note: This equipment has been tested and found to comply with the limits for a Class A Digital device
the FCC Rules. These limits are designed to provide reasonable protection against harmful Interference when the equipment Is
operated In a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference in which case the user will be
required to correct the interference at his own expense.
IMPORTANT! Changes or modifications not expressly approved by Keyscan, Inc. could void the user's authority to operate the equipment.
K eyscan Inc. A Member of the Kaba Group
901 Burns St., E. Whitby, Ontario, Canada LlN OE6
1.888.539. 7226 (toll free Canada/USA)
905.430.7226 (elsewhere)
www.keyscan.ca
Technical support hours - 9:00 A.M. to 6:30 P.M. Eastern Time
PROX3 Installation Guide - 03.16 (Document # KD10065-E) 01160-001 Rev 1
�
K-
BEYOND SECURITY
Keyscan Inc. A Member of the Kaba Group
0
F to +149
0
F)
,
pursuant to part 15 of
K-PROX3 Proximity Reader
Installation Guide
This guide outlines how to connect the K-PROX3 proximity reader. The K-PROX3 has
unique LEDs and enhanced security features designed for Keyscan access control systems
with compatible firmware. Enhanced security and LED features may not function with
non-Keyscan control boards.
Contents
Features
Connections
Mounting Templates
Specifications
Features
Supports certain HID
li!l
Uses proven digital radio frequency identification technology
li!l
Has dedicated access, power, Present3 and global lockdown LEDs
li!l
Offers anti-tamper capability for enhanced security (tamper switch not included)
li!l
Has innovative heartbeat to detect wiring fault or reader damage with alarm reporting
li!l
triggered by the ACU
Designed for indoor or outdoor use
li!l
Suitable for mullion or single gang mount
li!l
Electronics sealed in tamper-resistant epoxy potting
li!l
8
Parts List
1
K-PROX Proximity Reader
4
Wall Switch Plate
5, 7
Screw - tbd
8
©
125-kHz proximity protocols
K-PROX3 Proximity Reader
1
1
1
