ST815
Illumination Sensor with LCD
The Illumination Sensor with LCD (refer to as Illumination Sensor hereafter) is a
TM
Z-Wave
enabled device which is fully compatible with any Z-Wave
TM
network. Z-Wave
enabled devices displaying the Z-Wave
used with it regardless of the manufacturer, and ours can also be used in other
TM
manufacturer's Z-Wave
enabled networks. Inclusion of this sensor on other
manufacturer's Wireless Controller menu allows remote operation of connected
modules when the sensor is triggered. Z-Wave node in the system also acts as a
repeater, so as to re-transmit the RF signal to ensure that the signal is received by
its intended destination by routing the signal around obstacles and radio dead
spots.
The Illumination Sensor is designed to monitor the current illumination of ambient
environment. The reading of illumination can be reported to you on a regular base
at your disposal. If illumination reaches set points, the sensor will send alerts to
associated devices for further execution (such as trigger on connected lightings).
The Illumination Sensor is suitable for use in darkness and outdoor.

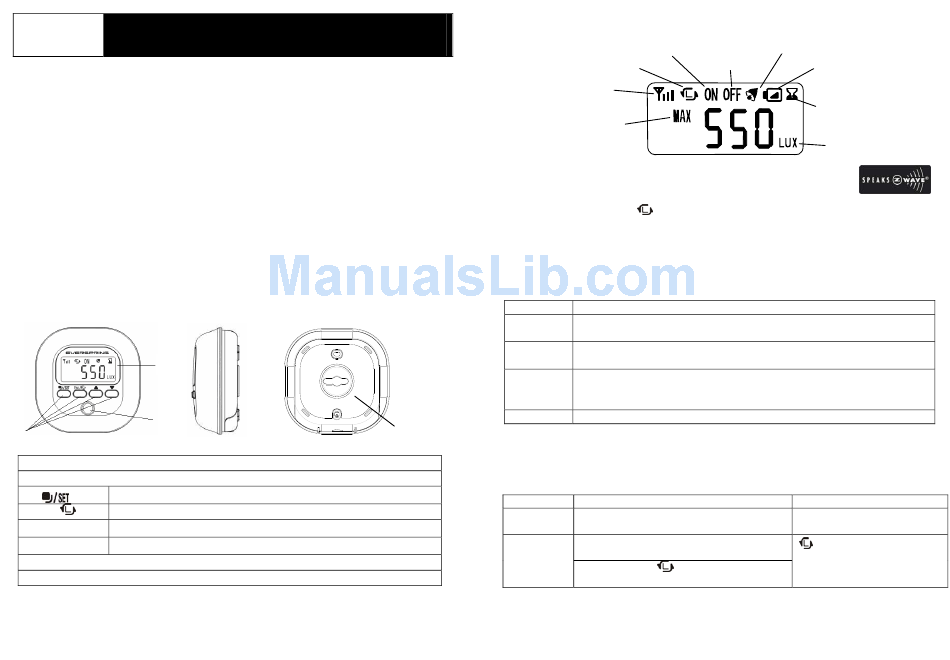

Product Overview
1
3
2
Front View
1
LCD Screen
2
Function Keys
Select modes/Change setting
Cancel setting/Returning to main display/Learning
ESC/
▲
Increase settings/enable RF & beep tone
▼
Decrease settings/disable RF & beep tone
3
Illumination Sensor
4
Mounting Bracket
TM
logo can also be
Side View
Rear View
LCD Display
Radio Frequency
TM
enabled
Lux value reaches
3000 LUX
Include to or Exclude from Z-Wave
One of function key (
and reset. When the sensor is first powered up, the reading in RF mode is 00
which implies that it hasn't been allocated a node ID and cannot work with Z-Wave
enabled devices. The Illumination Sensor will stay "awake" for 10 minutes when
power is first applied to allow time for configuration. Please get familiar with the
terms below before starting the operations.
Function
Inclusion
Exclusion
Association
Reset
4
The table below lists an operation summary of basic Z-Wave functions. Please
refer to the instructions for your Z-Wave
the setup function, and to include/exclude/associate devices.
Function
No node ID
Inclusion
1
Beep tone ON
LUX Trigger ON
LUX Trigger OFF
Linking Signal
Status
TM
Network
) is used to carry out inclusion, exclusion, association
ESC/
Description
Add a Z-Wave enabled device (e.g. Illumination Sensor) to Z-Wave
network.
Delete a Z-Wave enabled device (e.g. Illumination Sensor) from the
network.
After inclusion, you have to define the relationship between devices.
Trough association, device can be assigned as master/slave, and specify
which slave is going to be controlled by which master.
Restore Illumination Sensor to factory default.
TM
Certificated Primary Controller to access
Description
The Z-Wave Controller does not allocate a
node ID to the sensor.
1. Have Z-Wave Controller entered
inclusion mode.
2. Pressing
key 3 times within 1.5
ESC/
seconds will enter inclusion mode.
Low Battery
Countdown Timer
Unit of Illumination
LED Indication
The RF reading displays 00
(MODE 5)
flashes
Advertisement
Table of Contents
Summary of Contents for Evespring ST815
- Page 1 LCD Display ST815 Illumination Sensor with LCD Beep tone ON LUX Trigger ON LUX Trigger OFF Linking Signal Low Battery The Illumination Sensor with LCD (refer to as Illumination Sensor hereafter) is a Radio Frequency Z-Wave enabled device which is fully compatible with any Z-Wave...
-
Page 2: Choosing A Suitable Location
Function Description LED Indication Plastic Wall Plug Exclusion 1. Have Z-Wave Controller entered flashes exclusion mode. 2. Pressing key 3 times within ESC/ 1.5 seconds will enter exclusion mode. Node ID has been excluded. The RF reading displays 00 (MODE 5) Reset Long beep tone is sounded as 1. -
Page 3: Operation
illumination. All icons are displayed with LCD backlight illuminates 3 seconds. Insert 3 AA-size 1.5V alkaline batteries to the battery compartment, ensuring Press any key will beep once and extend the backlight for another 12 seconds. correct polarity is put. The illumination detecting range is from 0 to 3000 LUX. - Page 4 1500 lux If lux of ambient light is greater than preset trigger-OFF value, Illumination Sensor will emit RF signal to the nodes of Grouping 2. The screen of sensor will return to MODE 1 and the icon is flashing with backlight illuminates and 4 continuous Restriction Clear beeps sound for 1 second.
- Page 5 Note: light during this 2 minutes period MUST be higher than the preset trigger-ON value, If no key has been pressed, it will return to MODE 1 automatically after 12 otherwise the sensor will keep recounting the 2 minutes before it can be triggered seconds.
- Page 6 ALARM_REPORT and BATTERY_REPORT_COMMAND ALARM_REPORT Command: Grouping 2 includes BASIC_SET [Command Class Alarm, Alarm Type = 0x01, Alarm Level = 255(0xFF)] 1-1 Grouping 1 (Max. Node = 1) The users can also enquire the battery status of the sensor by sending BATTERY_ GET command via controller.
- Page 7 to set up the sensor. Default Set/ The sensor can be set to emit report of lux status to the nodes of Grouping 1 Parameter Function Size Value Unit Factory Description automatically once the ambient light changing exceeds set value. The lux (Byte) Default difference range can be set from 30 to 1000 LUX.
-
Page 8: Troubleshooting
* COMMAND_CLASS_SENSOR_MULTILEVEL that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined Troubleshooting by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Symptom Possible Cause...
