Summary of Contents for Sports Attack TOTAL ATTACK
-

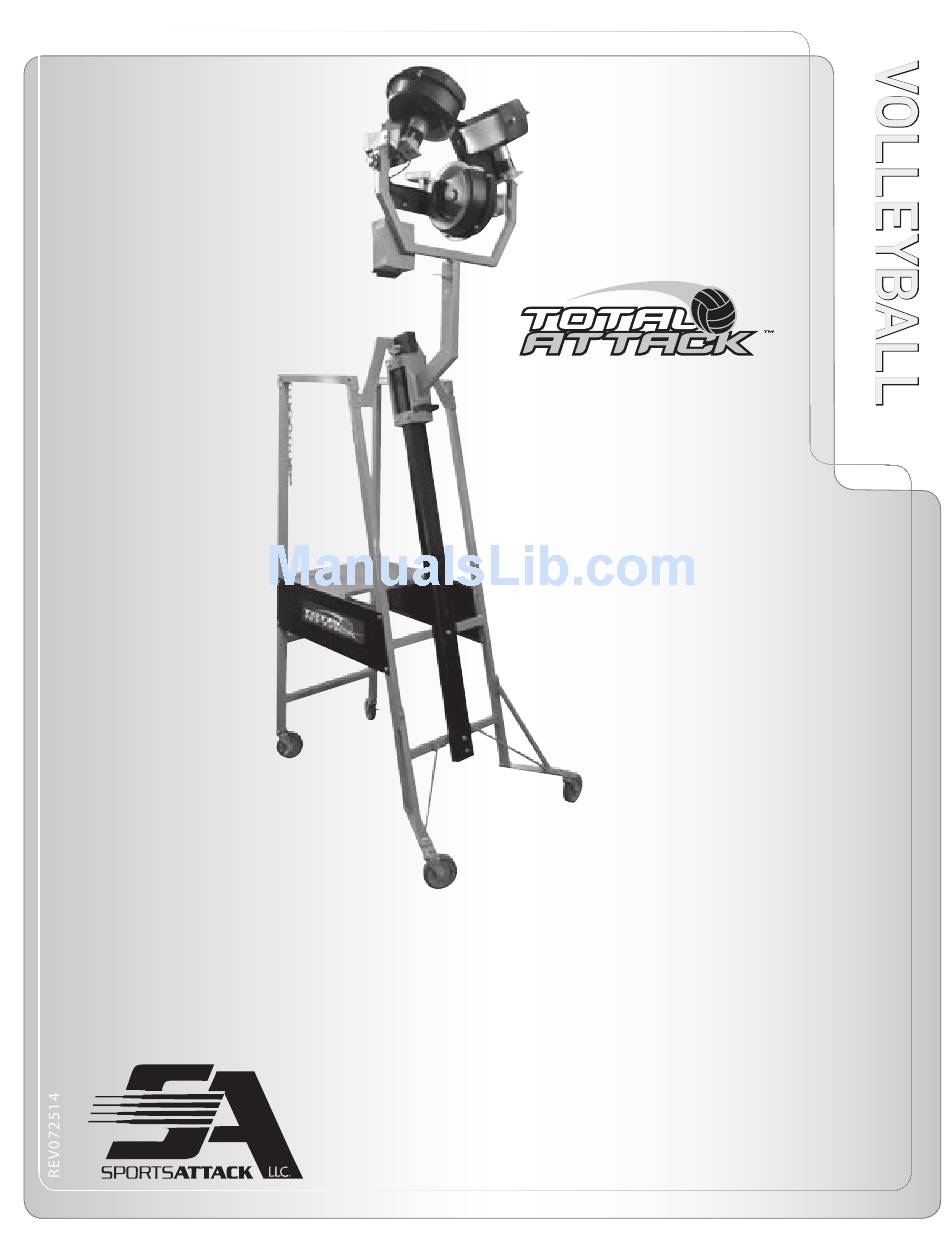

Page 1: Instruction Manual

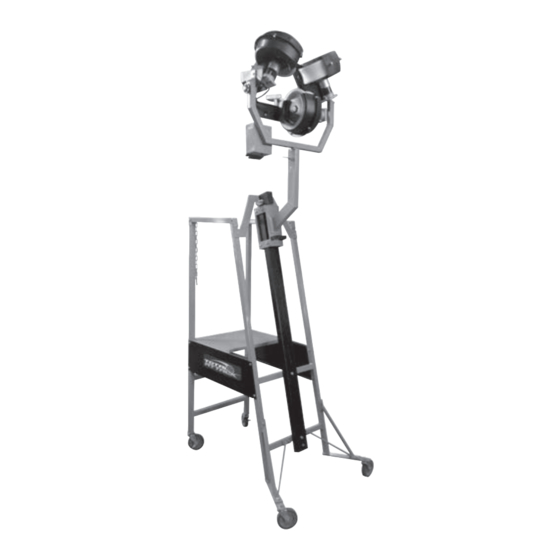

VOLLEYBALL MACHINE TOTAL ATTACK™ VOLLEYBALL MACHINE PATENTS APPLIED FOR INSTRUCTION MANUAL Includes: OPERATION · SETUP · USE & CARE · SERVICE S P ORTS AT TAC K , LLC. 8 00-717 -4 251 sport sattack .c om • •... - Page 2 Verdi, NV 89439 Throwing Wheel Motors are warranted for one (1) year. Should such equipment be found to be defective, Sports Attack, LLC. will, at its option For repairs and service after the and sole discretion provide at no cost to the purchaser new or rebuilt replacements for defec-...
-
Page 3: Table Of Contents
This manual contains the information needed to properly setup the Total Attack, and to use, care for and maintain the Total Attack in a manner which will ensure their optimum performance. -
Page 4: Safety Instructions
4. Use the Total Attack only for their intended purpose. • 5. Do not operate the Total Attack with a damaged cord or plug, if the machine Carefully check machine for malfunctions or has been damaged. -
Page 5: Assembly Instructions
Lay out all parts and check them against the parts list on page 17. Call customer service EQUIPMENT DAMAGE immediately if any parts are missing. Please have applicable part numbers as shown on parts list. Failure to use the special tool TOTAL ATTACK™ provided to install the casters PART NO. DESCRIPTION QTY PER could result in equipment damage. - Page 6 IMPORTANT: as you assemble the machine, leave bolts very loose. Tighten only after the Total Attack machine is completely assembled. CAUTION PERSONAL INJURY HAZARD Failure to use the special tool STEP TWO provided to install the casters Lay out rear frame assembly, front frame assembly and right- and left-hand panels.
- Page 7 STEP THREE With bolts from Step Two still loose, set platform in place and tighten bolts securely see below. CAUTION Now go back and tighten bolts from Step Two assembly. PERSONAL INJURY HAZARD 3/4” Failure to use the special tool provided to install the casters could result in personal injury.
- Page 8 STEP FIVE Bolt arm assembly onto rolling tray as shown below. Again do not tighten bolts until all four are in place. 3/4” ” x 18 x ” Bolts ” USS Washers ” Nuts STEP SIX Lay machine on the ground to attach right and left brace tube caster assembly. Bolt right and left brace tube caster assembly as shown below.
- Page 9 STEP SEVEN CAUTION Hand tighten locking casters to the rear frame as shown below and unlocking casters to the frame PERSONAL INJURY HAZARD legs shown below. Casters are pre-applied with red locktite Failure to use the special tool provided to install the casters could result in personal injury.
-
Page 10: Installing Ball Bag
STEP 6 You may now tie the ball bag straps to the platform frame. To order additional parts, like a ballbag, please contact: Sports Attack Customer Service Dept. 800-71 7-4251 775-345-2883 Step 5 Both arms are securely in place. Step 6 Tie ball bag straps. -
Page 11: Operation
VOLLEYBALL OPERATION WARNING The Total Attack Volleyball Machine is a total practice machine. No special training PERSONAL INJURY HAZARD other than the complete, careful reading of this manual is required to operate the machine. Never reach down near throwing Many coaches have broadened and refined their own coaching skills by its use. -
Page 12: Shutting Down
TURNING TOTAL ATTACK “OFF” 1. Set each speed control dial to “0. ” 2. Turn the on/off switch “OFF.” 3. Unplug Total Attack from the power source. TRANSPORTING 1. Turn the machine “OFF” and unplug. 2. Lower throwing head to the lowest position on the sliding tray. The locating pin will snap into place. -
Page 13: Maintenance
M.E.K container. EXAMINE THE MACHINE FIRE HAZARD Examine Total Attack for condition and completeness before every use: Methyl Ethyl Ketone (M.E.K) 1. Throwing wheels must be tight on the motor shafts. Check that the keyway retaining M.E.K. is flammable. Do not use bolts are tight. -
Page 14: Component Replacement
COMPONENT REPLACEMENT THROWING WHEEL REPLACEMENT 1. Turn the throwing wheels “OFF” and unplug the power cord. Remove four bolts holding the wheel guard to the motor-side wheel guard. 2. Hold the wheel so that it cannot move. Turn the keyway retaining bolt counter-clockwise using a box end wrench (See Figure 9). -
Page 15: Controller
COMPONENT REPLACEMENT (cont’d) CONTROLLER REPLACEMENT 1. Turn the on/off switch “OFF” and unplug the power cord. 2. Remove the four screws holding controller faceplate. Note the position of the main power and motor wires on the controller, then disconnect the wires. Reassemble in reverse order. -
Page 16: Tension
INCREASING TENSION INSTRUCTIONS STEPS IN INCREASING TENSION ON THROWING HEAD (LOCATED AT A) 1. Stretch cord approximately 12” (this distance can be adjusted as required) 2. Using vise grips as shown, clamp tightly to hold shock absorber cord. 3. Loosen knot and slide it down to top of vise grips. 4. -
Page 17: Parts
COMPONENT PARTS 1- Wheel Guard Outside 2- Wheel Guard Inside #280-4002 #280-4001 4- Throwing Wheel #531-0007 3- Throwing Head Frame 10- Motor #530-4033 90V - #530-1015 180V - #530-1016 5- Controller 90V - #530-0032 180V - #530-0033 11- Yoke Assembly #533-4034 9- Shock Absorber Cord, ”... -
Page 18: Parts List
TOTAL ATTACK PARTS LIST To order additional parts, please contact: TOTAL ATTACK™ Sports Attack Customer Service Dept. PART NO. DESCRIPTION QTY PER 800-71 7-4251 775-345-2883 280-4002 Wheel Guard Outside 280-4001 Wheel Guard Inside HARDWARE KIT 530-4033 Throwing Head Frame Item# 520-9000... -
Page 19: Sports Attack
JUNIOR HACK ATTACK SOFTBALL (shown with optional solo feeder) Please visit our web site sportsattack.com for information about Sports Attack sports training products, or call 800-717-4251 for complete information and specifications. TOTAL ATTAC K ™ VO L LEYB ALL MACH INE S P ORT S AT TAC K , L L C . - Page 20 SOCCER SKILL ATTACK STRIKE ATTACK Please visit our web site sportsattack.com for information about Sports Attack sports training products, or call 800-717-4251 for complete information and specifications. TOTAL ATTAC K ™ VO L LEYB ALL MACH INE S P ORT S AT TAC K , L L C .
