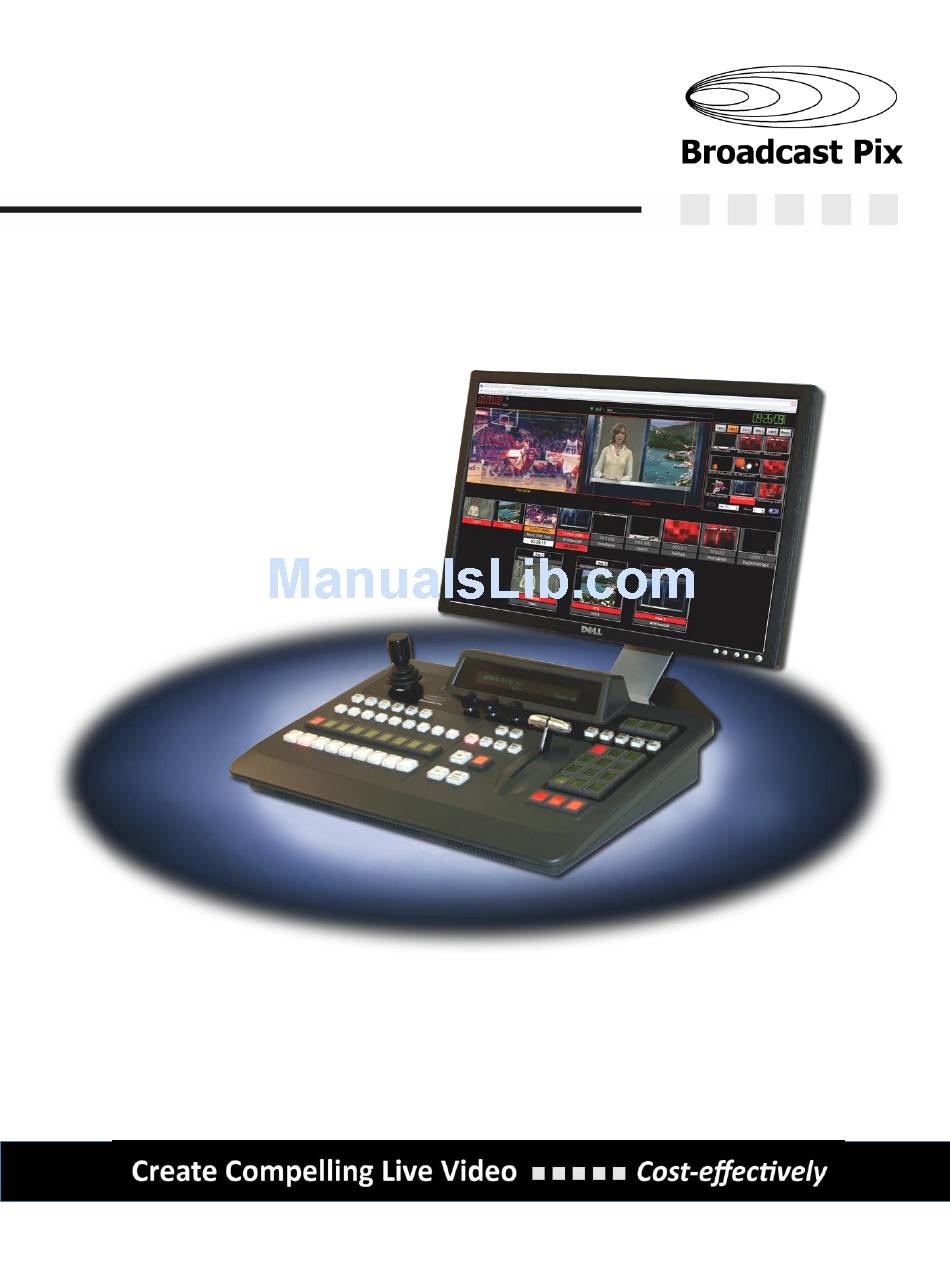

- Page 1 Slate 1000G Installation Planning Guide Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012...
- Page 2 © 2012 Copyright Broadcast Pix, Inc. Broadcast Pix, Slate, PixButtons, PixPad, AutoAspect, and SoftPanel are trademarks of Broadcast Pix, Inc. Other trademarks are owned by their respective companies. Specifications are subject to change. Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012...
-
Page 3: Table Of Contents
Quad Monitor Card Option Audio-Follow-Video Option Sony Camera Control Option (RS-232C) Sony Camera Control Option (RS-422) Hitachi Camera Control Panasonic Camera Control More Options System Delay Slate Specifications Contact Information Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012... -
Page 4: Introduction
Introduction The Broadcast Pix™ Slate™ 1000G is a live, integrated production system that incorporates a Production Switcher, Multi-View monitoring, HD Character Generator, HD Clip Stores and HD Still Stores. In addition, it can control external audio mixers, cameras and video servers. Having complete control room functionality allows a single operator to run all aspects of a sophisticated HD or SD production, resulting in a more polished and engaging production. -
Page 5: Standard Features
Always know what content will appear on air once a button is pushed on a Broadcast Pix Slate system; no other switcher on the market has this functionality. - Page 6 Device Controls - Clips - CG - Stills - Logo - Fx - Keyer Program/ - Camera Control Preview - DDR Control - Mems/Macros Next Transition 9-18 input buttons Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012...
-
Page 7: System Components
Although Slate can accept both genlocked and non-genlocked sources, the main Slate I/O card in the workstation requires an analog black burst reference signal. Broadcast Pix Slate 1000G 1 M/E Control Panel Broadcast Pix G Series Workstation Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012... -
Page 8: Control Panel Specifications
Power supplies Serial port (Redundant for panel upgrades supplies optional) 18.5 in Top View Bottom View 47 cm 12.5 in 31.8 cm 12.5 in 31.8 cm 18.5 in 47 cm Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012... - Page 9 Provides greater visibility of PixButtons. Cut-out installation of control panel Rear View 1.9 in 4.8 cm 9.5 in / 23.9 cm 5.36 in 13.6 cm 17.5 in 44.5 cm Cut-out Dimensions Page 9 Broadcast Pix Slate 1000G Installation Planning Guide - 2012...
-
Page 10: Workstation Specifications
The workstation runs the BPSwitcher application, which is necessary to operate the system with all its features. (Applications from vendors other than Broadcast Pix should not be added to the system, unless approved by Broadcast Pix, or they will affect system performance and invalidate the warranty.) - Page 11 Slate Video I/O 1000Ga 1000Gd 1000Gh Slate Slate Analog Digital Slate 1000Gaa 1000Gda 1000Gdd Analog Digital Slate Analog Slate Analog Digital Digital Slate Page 11 Broadcast Pix Slate 1000G Installation Planning Guide - 2012...
- Page 12 Multi Analog Slate House Slate Multi Digital Network View Network View 1000Ghh Multi House Slate View Network * HD Models are shown with optional DVI input and output board. Page 12 Broadcast Pix Slate 1000G Installation Planning Guide - 2012...
-
Page 13: Slate 1000G Wiring Diagram
The DVI input uses input 4 on an HD board in Slot 2, and input 8 on an HD board in Slot 3. Output D is in place of out D on slot 2 & output E is in place of out E on slot 3. Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012... -
Page 14: File Inputs
Not only do you know that a clip channel is on air, you know exactly what clip is on air and how much time is left on that clip. The Broadcast Pix Slate system takes file inputs a step further displaying the actual file name on the control panel. -
Page 15: Autoaspect
While aspect treatment of inputs is standard on all Slate systems, you can also simultaneously output 16:9 and 4:3 versions of the same 16:9 show with a Slate 1000Ghh. 4:3 & 16:9 Sources Slate 1000Ghh 16:9 output 4:3 output Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012... -
Page 16: Team Operation
The Slate system is highly scalable, and can easily accommodate multiple users. A common setup up for a Broadcast Pix studio is a technical director, switching and calling the camera shots plus a second operator changing graphics and clips as needed. Both users are controlling the same Broadcast Pix workstation, the technical director with the 1 M/E control panel, and the graphics operator with a keyboard, mouse and dedicated graphics monitor. -
Page 17: Multi-View Monitoring
On a Slate 1000G all 8 of your external live sources will monitor in full motion. The Broadcast Pix Multi-View is intended for a director/producer to verify camera shots, input signals and overall composition. It is not, however, meant to monitor signal quality. For the highest quality monitoring, and fail-safe monitoring, we recommend connecting a ‘glass’... -
Page 18: Quad Monitor Card Option
VGA are included). The top connector is monitor output 1 and 3 and the bottom connector is monitor output 2 and 4. Optional Quad Monitor Card Wall Monitors for Producers/Directors Primary Monitor for CG Technical Director Monitor Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012... -
Page 19: Audio-Follow-Video Option
This option does not have to replace an audio operator, it can assist him. For example, when a clip from the internal Broadcast Pix clip store plays on air, it can automatically turn on the sliders for the clip store audio on the mixer, and when it goes off air the sliders turn off. - Page 20 Sony BRC-300, BRCH-700, EVI-HD1 and many others. The Broadcast Pix software can control up to 9 cameras, with 6 presets each, directly from the 1 M/E control panel. It uses the joystick to pan/tilt/zoom and knobs in the Device Control to adjust focus, iris and other settings.
- Page 21 TXD (A) - RXD (B) + RXD (A) - TXD (B) + RXD (A) - TXD (B)+ RXD (A) - TXD (B) + TXD (A) - RXD (B) + TXD (A) - Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012...
-
Page 22: Hitachi Camera Control
Hitachi Camera Control Option #801 (RS-485) The Broadcast Pix Slate system can also control larger box-style cameras with the Hitachi camera control through the Eagle Pan/Tilt heads and protocol. Up to 9 Cameras are connected to the workstation using a serial RS-485 connection, which has a maximum length of 1,200 meters (4,000 feet). -
Page 23: Panasonic Camera Control
1,200 meters (4,000 feet). All cameras are configured in a daisy chain configuration where all control cables are connected back at the Broadcast Pix workstation. Note that the AW-PH300 & AW-PH300A are only controlled through a RS-232C configuration using the Panasonic AW-CA28T9 control cable, which needs to be purchased through Panasonic. -
Page 24: More Options
#945 – 3G Upgrade: Send in working 1 M/E Slate G Series system (except panel) to be upgraded to a 1 M/E Slate 3G Series with 3Gb/s 1080p internal processing. Call Broadcast Pix for availability. #50 – DVI – I/O: Provides 2 DVI-I inputs and 2 DVI-I outputs on all HD systems. When in use, it reduces the number of HD-SDI outputs, and the number of rapidly moving source monitors on the multi-view. - Page 25 #788 VOX Voice-Automation: 1 RU box with 8 audio inputs and software. VOX box connects the Broadcast Pix systems with a serial connection. VOX box detects active microphones and then fires off an appropriate Fluent-Macro. See the 4 page VOX datasheet for more and specifics, including a wiring diagram.
-
Page 26: System Delay
The same is true if using the HD I/O card for HD up- conversion, and only using a SD-SDI or Analog card for input with no HD signals. Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012... -
Page 27: Slate Specifications
Type of connector DMS-59, breakout cables to DVI-I included with VGA adaptors 1 input & 1 output/card. 2 cards max per system Number of inputs/outputs Only available on High Definition systems. Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012... - Page 28 Audio I/O Balanced line level analog Format Type of connector Number of inputs 1 channel Stereo (Left/Right), for clip ingest Number of outputs 2 channel Stereo (Left/Right), for clip playout Page 28 Broadcast Pix Slate 1000G Installation Planning Guide - 2012...
- Page 29 Power 500 watts 1 M/E Control Panel Specifications 18.5x12.5x8 inches / 47x31.8x20 centimeters Dimensions Weight 21.8 Lbs / 9.9 Kg Power (1) 50 watt power supply (redundant one optional) Page 29 Broadcast Pix Slate 1000G Installation Planning Guide - 2012...
-
Page 30: Contact Information
Contact Information Toll Free: +1-866-914-9484 Phone: +1-978-600-1100 Technical Support: +1-978-600-1098 Fax: +1-978-663-2811 Website: www.broadcastpix.com Support E-mail: support@broadcastpix.com Corporate Mailing Address: Broadcast Pix 3 Federal Street Billerica, Massachusetts 01821 Page Broadcast Pix Slate 1000G Installation Planning Guide - 2012...
