Ringder RC-112E User Manual

Q r ' R I N G D E R
R I N G D E R .
i i . - n w t i v m i i U i t t K i i - 1 1 • • • i n i i i i i n i i m i . - . - 3mmmmmmr. .nnwi>:- • •

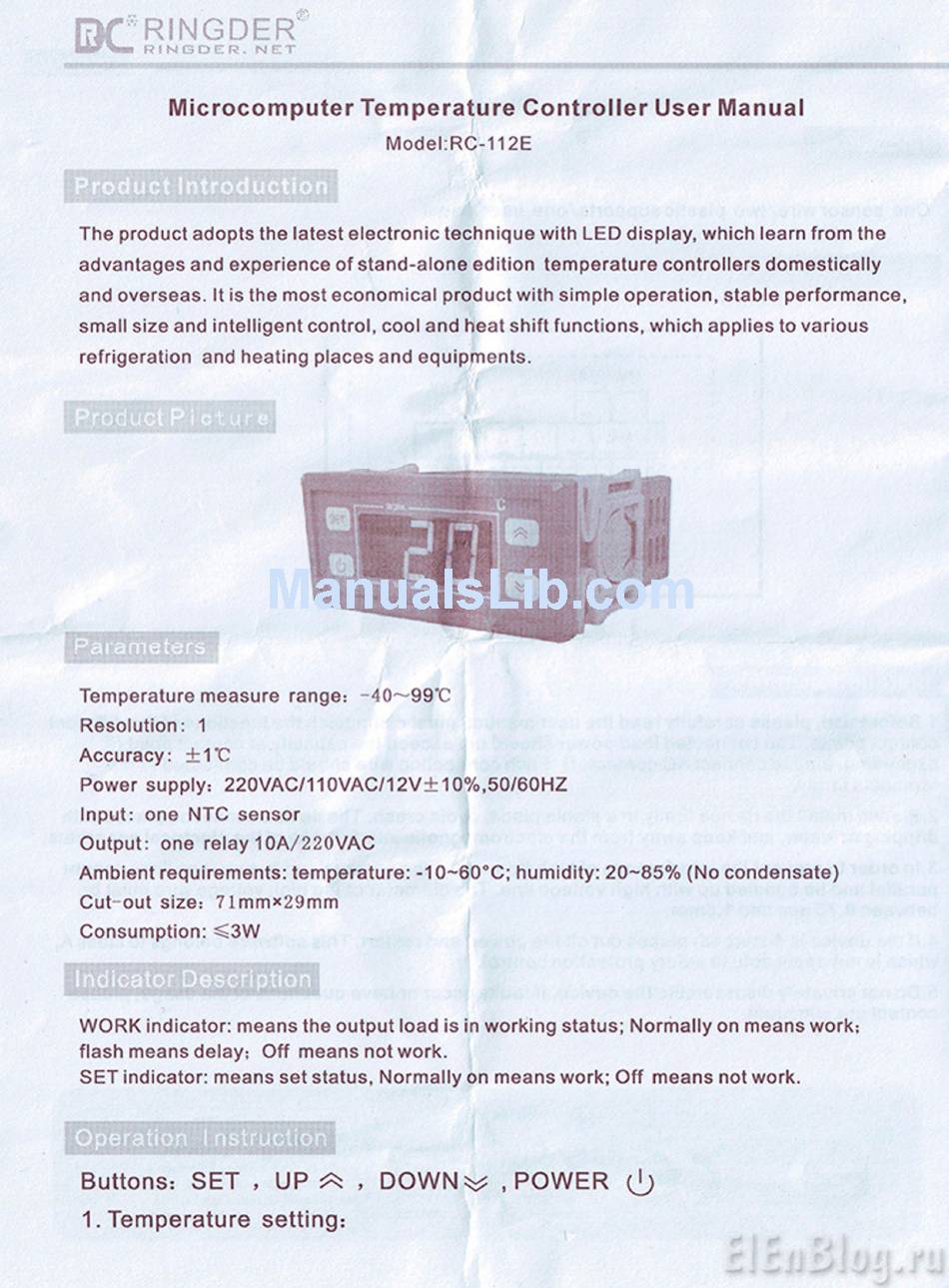

Microcomputer Temperature Controller User Manual

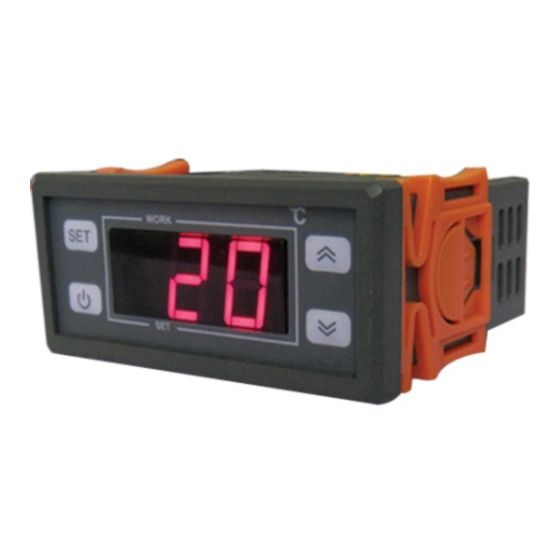

The product adopts the latest electronic technique with LED display, which learn from the
advantages and experience of stand-alone edition temperature controllers domestically
and overseas. It is the most economical product with simple operation, stable performance,
small size and intelligent control, cool and heat shift functions, which applies to various
refrigeration and heating places and equipments.
Temperature measure range:
Resolution: 1
Accuracy: ±1*0
Power supply: 220VAC/110VAC/12V±10%,50/60HZ
Input: one NTC sensor
Output: one relay 10A/220VAC
Ambient requirements: temperature: -10~60°C; humidity: 2 0 - 8 5 % (No condensate)
Cut out size: 71mmx29mm
Consumption:
E H I
WORK indicator: means the output load is in working status; Normally on means work:
flash means delay: Off means not work.
SET indicator: means set status, Normally on means work; Off means not work.
Operation Instruction
Buttons: SET , UP

1. Temperature setting:

N E T
Model:RC-112E
- 4 0 ~ 9 9 ' C
B
, DOWN ^
^
: t r a w
, POWER (J;
• >—•m»i m m — « • • ! » • i«i »:
