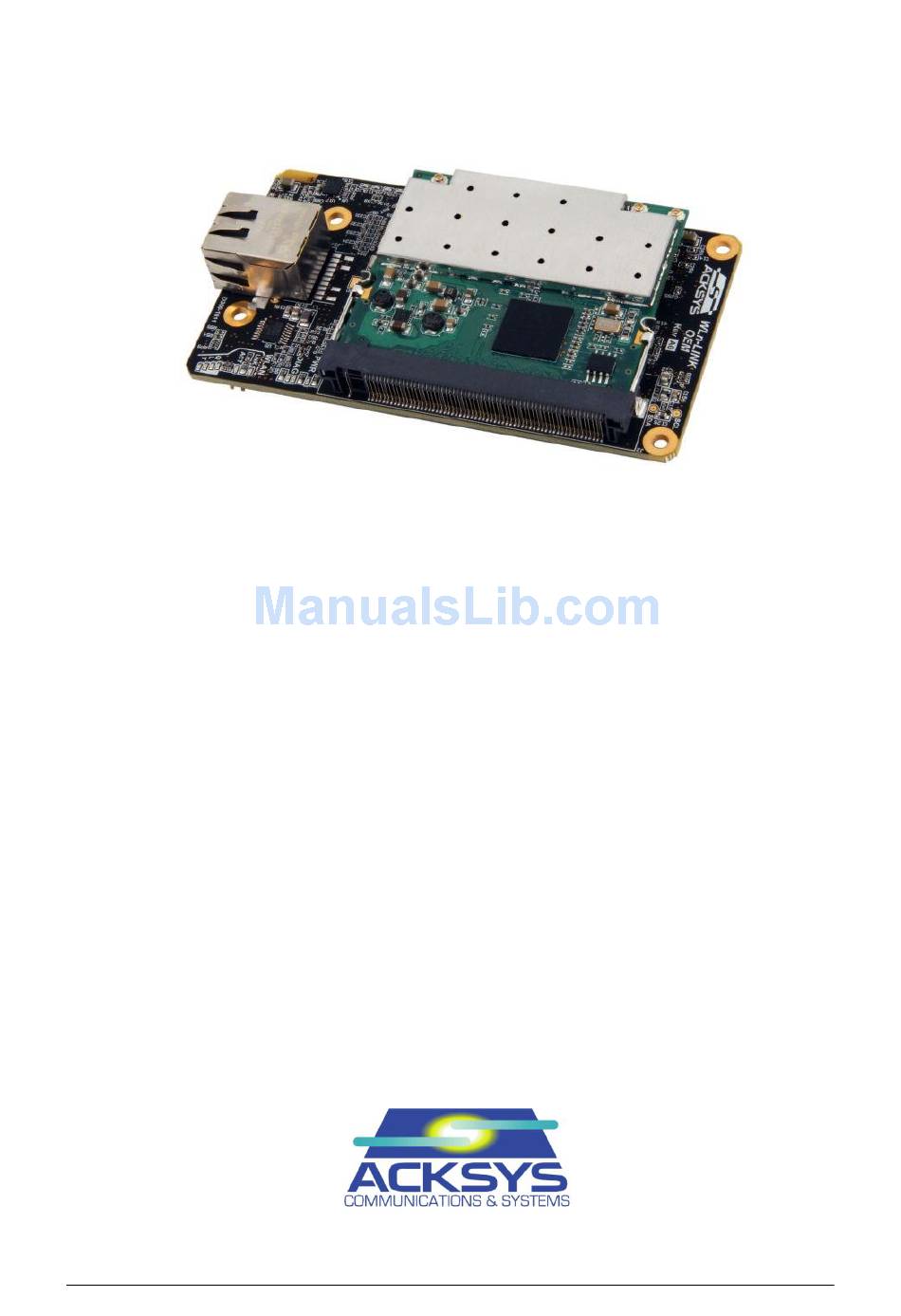

- Page 1 WLn-LINK-OEM HARDWARE MANUAL DTUS066 rev A1 March 21, 2012...
- Page 2 ACKSYS ® will in no case be held responsible for any errors that may be contained in this document, nor for any damage, no matter how substantial, occasioned by the provision, operation or use of the equipment.
-
Page 3: Table Of Contents
Page 3 / 26 TABLE OF CONTENTS INTRODUCTION ............................. 4 MECHANICAL DIMENSIONS ........................6 BOTTOM VIEW ............................6 II.1 II.2 FRONT VIEW ............................7 LEDS AND BUTTON ............................8 III.1 LEDS................................8 SIGNALS RELOCATION ........................8 III.2 III.3 RESET ..............................10 IV EVALUATION BOARD .......................... -
Page 4: Iintroduction
INTRODUCTION This hardware documentation applies to the following products: WLn-LINK-OEM-RJ (100mW radio card, 3T/3R, 2 streams, -20 +70°C) WLn-LINK-OEM-RJ/3 (400mW radio card, 3T/3R, 2 streams, -40 +75°C) WLn-LINK-OEM-TTL (100mW radio card, 3T/3R, 2 streams, -20 +70°C) WLn-LINK-OEM-TTL/3 (400mW radio card, 3T/3R, 2 streams, -40 +75°C) - Page 5 Information in this document is subject to change without notice and does not represent a commitment on the part of ACKSYS. ACKSYS provides this document “as is”, without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose.
-
Page 6: Mechanical Dimensions
Page 6 / 26 MECHANICAL DIMENSIONS Bottom view II.1 All dimensions in mm ± 0.1 Mounting holes : 4 x Ø3.2mm DTUS066 rev A1 March 21, 2012... -
Page 7: Ii.2 Front View
Page 7 / 26 Front view II.2 All dimensions in mm ± 0.1 DTUS066 rev A1 March 21, 2012... -
Page 8: Leds And Button
Page 8 / 26 LEDS AND BUTTON III.1 Leds The leds and the button are directly available on the WLn-LINK-OEM: Power Diag WLAN State WLAN Activity WLAN Strength Ethernet 100/1000 Ethernet Link/Activity III.2 Signals relocation All the leds and button are also made available to the host motherboard via the P-GEN and P-LED connectors (see information in the following chapters) in order to be used in your own way. - Page 9 Page 9 / 26 III.2.4 WLAN Activity Flashing BLUE when there is activity on WLAN (sending or receiving) or during the search for a Wi-Fi access point (only in "Bridge Mode") III.2.5 WLAN Strength Only available in "Bridge Mode" (4 leds OFF in "Access Point Mode") 4 leds GREEN to indicate the strength of Wi-Fi signal:...
-
Page 10: Iii.3 Reset
Page 10 / 26 III.3 Reset The Reset button allows you to re-start the product or reconfigure it to default factory settings (see "WLn products user guide DTUS065" for more information) DTUS066 rev A1 March 21, 2012... -
Page 11: Evaluation Board
Page 11 / 26 EVALUATION BOARD In order to evaluate this module, you can use the WLn-LINK-OEM-EVAL : The "Quick start for WLn-LINK-OEM-EVAL - DTFRUS050" describes the configuration and use of this equipment. DTUS066 rev A1 March 21, 2012... -
Page 12: Vwiring Connectors
Page 12 / 26 WIRING CONNECTORS Pinout Top view Bottom view "Fixation pads" are isolated from GND DTUS066 rev A1 March 21, 2012... -
Page 13: P-Gen
Page 13 / 26 P-GEN HE10/HE13/HE14/Strip Male Header 2.54mm pitch, 2x5 pins - Compatible with HE10/HE13/HE14 Female Receptacle (ex: SAMTEC Series BCS, BSW, ESQ, ESW...) (ex: ANTELEC Series APC104, FT2...) Function Voltage Max current LED Ethernet 100 BaseT active at 3.3V 2 mA 1V8 (for feeding the Ethernet transformer on the TTL... -
Page 14: Rj Connector
Page 14 / 26 RJ CONNECTOR LAN-Transformer RJ45 10/100/1000 BaseT Only available with RJ version It allows connecting a classical Ethernet cable (cat 5e or cat 6 for 1000 BaseT) P-ETH HE10/HE13/HE14/Strip Male Header 2.54mm pitch, 2x5 pins Only available with TTL version - Compatible with HE10/HE13/HE14 Female Receptacle (ex: SAMTEC Series BCS, BSW, ESQ, ESW... - Page 15 Page 15 / 26 Example 1 : with Transformer and RJ separated Example 2 : with Transformer included in RJ DTUS066 rev A1 March 21, 2012...
-
Page 16: P-User
- This connector is not needed for common use of the WLn-LINK- OEM. It only provides some additional functions. I²C and UART1 should be only used with ACKSYS authorization. Their incorrect use could irremediably corrupt the product and void all pertaining guaranty. - Page 17 Page 17 / 26 Example of wiring for UART (1 and/or 2) : The CKEY is an optional storage device used to save and restore the product configuration. relocate somewhere else in your system. It should be removed and inserted only when power supply source is OFF.
-
Page 18: Antenna Connector
Page 18 / 26 ANTENNA CONNECTOR With normal version : 3 x U.FL male connectors, from Hirose With /3 version : 3 x MMCX male connectors - Connect it three 2.4/5GHz antennas with 50ohms coaxial cable (with U.FL or MMCX female connector according to radio card) - You should use 3 antennas at the same time, else performance will be drop. -
Page 19: Mounting Of The Device
Page 19 / 26 MOUNTING OF THE DEVICE Not using P-USER VI.1 Usually, when not using signals from P-USER, you can plug the WLn- LINK-OEM at the height you want (minimum of 5mm), with the previously indicated connectors . > 5mm DTUS066 rev A1 March 21, 2012... -
Page 20: Vi.2 Using P-User
Page 20 / 26 VI.2 Using P-USER If you need P-USER, you should mandatorily mount WLn-LINK-OEM at the height of 5mm. To do this, you must use special connectors for P-GEN, P-LED and P- ETH, that will be bottom mounted, with bottom entry. ( ex : SAMTEC BSW-1xx-xx-L-D SAMTEC BCS-1xx-L-D-PE-BE ANTELEC Series FT2... -
Page 21: Vi.3 Wlg-Link-Oem Compatibility
Page 21 / 26 VI.3 WLg-LINK-OEM compatibility The WLn-LINK-OEM has kept some compatibility with the WLg-LINK- OEM as you can see below : Identical between WLn-LINK-OEM and WLg-LINK-OEM New with WLn-LINK-OEM Give up from WLg-LINK-OEM DTUS066 rev A1 March 21, 2012... -
Page 22: Default Configuration
- Auto-crossing - Wi-Fi : - Mode: Access Point - Wi-Fi: 802.11n, HT20, g band (2.4GHz) - Channel: 6 - SSID: acksys (broadcast) - Security: disabled - Web Server IP address: http://192.168.1.253 More information about configuration is provided in the document "WLn products user guide DTUS065". -
Page 23: Viii Technical Characteristics
L x l x h = 4.06 x 2.10 x 0.94 in Dimensions (w/o antennas) WLn-LINK-OEM-RJ/3 L x l x h = 103 x 68.7 x 27.7 mm L x l x h = 4.06 x 2.70 x 1.09 in WLn-LINK-OEM-TTL/3 L x l x h = 103 x 68.7 x 25.9 mm... - Page 24 Page 24 / 26 Software Automatic device discovery Built in web based utility for easy configuration from Device configuration any web browser (username/password protection & https) Firmware upgrade Yes (via web browser) SNMP SNMP V1, V2C (V3 not yet available) AP (Access Point)/ Repeater, Bridge/Client, Mesh, Operating mode AP mode only...
- Page 25 Page 25 / 26 Information given for 100mW standard radio card HT20 mode uses 20 MHz width channels HT40 mode uses 40 MHz width channels MCS is "Modulation and Coding Schemes" rates (0 to 7 for 1 stream, 8 to 15 for 2 streams) 802.11b 19 dBm 18 dBm @6-36M...
- Page 26 Page 26 / 26 Information given for high-power 400mW radio card 802.11b 27.8 dBm 27.8 dBm @6-24M 26.8 dBm @36M 802.11g 25.8 @48M 24.8 @54M 24.8 dBm @6-24M 23.8 dBm @36M 802.11a 22.8 dBm @48M 22.8 dBm @54M 27.8 dBm @MCS 0/8 to MCS 3/11 802.11n HT20 26.8 dBm @MCS 4/12 g band...
