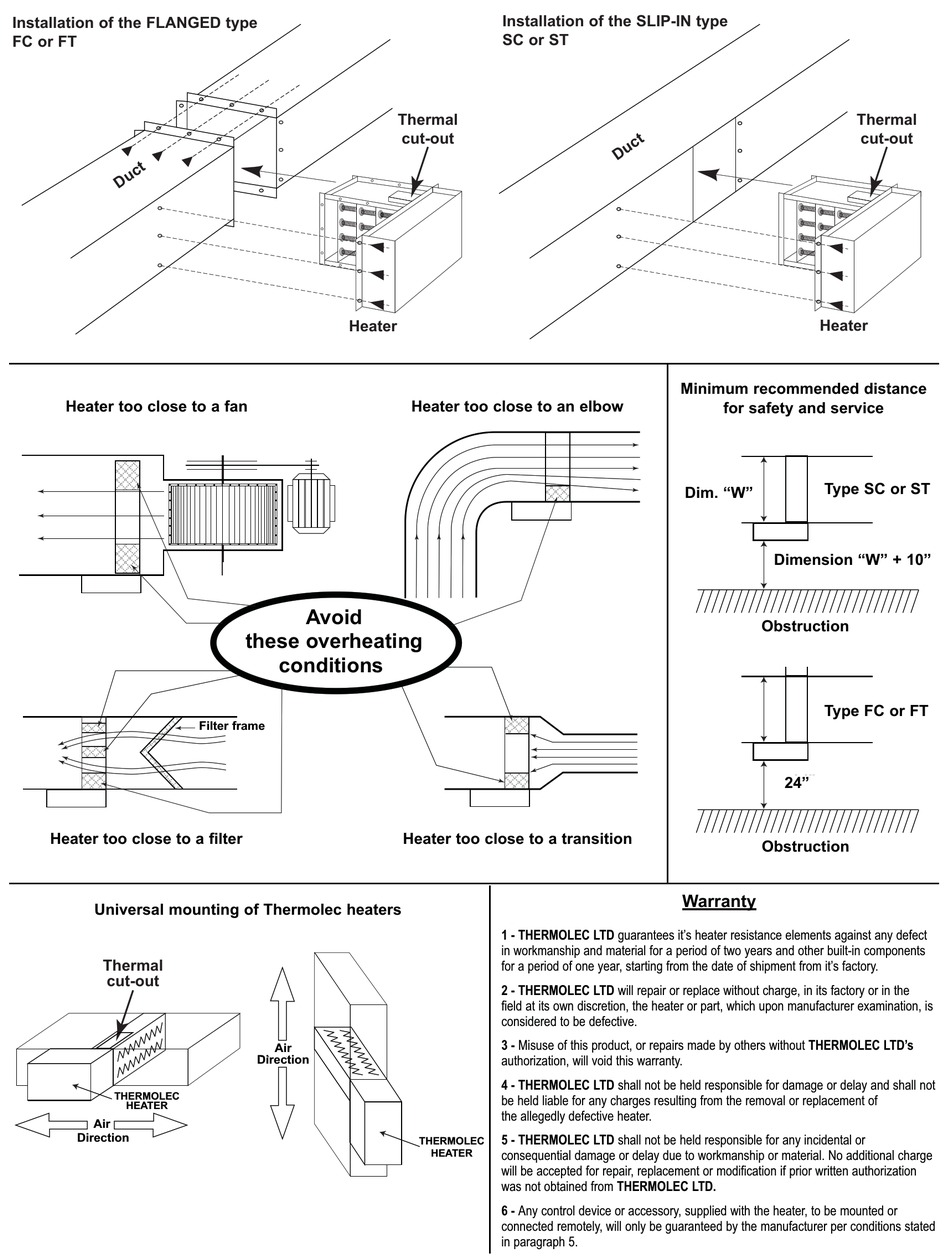

Thermolec FC Installation, Operating And Maintenance Instructions page 4

Installation of the FLANGED type
FC or FT
Heater too close to a fan
Heater too close to fan
Heater too close to a filter
Heater too close to filter
Universal mounting of Thermolec heaters
Thermal
cut-out
THERMOLEC
HEATER
HEATER
Air
Air
Direction Direction
Heater
Avoid
Overheating
these overheating
Conditions
conditions
Filter frame
Filter Frame
Air
Air
Direction
Direction
Installation of the SLIP-IN type
SC or ST
Thermal
cut-out
Heater too close to an elbow
Heater too close to elbow
Heater too close to a transition
Heater too close to transition
1 - THERMOLEC LTD guarantees it's heater resistance elements against any defect
in workmanship and material for a period of two years and other built-in components
for a period of one year, starting from the date of shipment from it's factory.
2 - THERMOLEC LTD will repair or replace without charge, in its factory or in the
field at its own discretion, the heater or part, which upon manufacturer examination, is
considered to be defective.
3 - Misuse of this product, or repairs made by others without THERMOLEC LTD's
authorization, will void this warranty.
4 - THERMOLEC LTD shall not be held responsible for damage or delay and shall not
be held liable for any charges resulting from the removal or replacement of
the allegedly defective heater.
5 - THERMOLEC LTD shall not be held responsible for any incidental or
THERMOLEC
THERMOLEC
HEATER
HEATER consequential damage or delay due to workmanship or material. No additional charge
will be accepted for repair, replacement or modification if prior written authorization
was not obtained from THERMOLEC LTD.
6 - Any control device or accessory, supplied with the heater, to be mounted or
connected remotely, will only be guaranteed by the manufacturer per conditions stated
in paragraph 5.
Thermal
Heater
Minimum recommended distance
for safety and service
Minimum recommended distance
for safety and service
Type SC or ST
Dim. "W" Dim. "W" Type SC or ST
Dimension "W" + 10"
Dimension "W" + 10"
Obstruction Obstruction
Type FC or FT
Type FC or FT
24"
24"
Obstruction
Obstruction
Warranty
cut-out
