V210 & V220 VINYL RAILING
INSTALLATION GUIDE
Check all local building codes for design load requirements for your railing application. FAIRWAY® V200 Series Vinyl Railing is manufactured to the
standards outlined in ASTM F964 and has been tested according to AC174-09 criteria and is approved to meet the requirements for Guardrails as
outlined for pertaining IRC (Residential) and IBC (Commercial) applications as documented in the Code Compliance Research Report, CCRR-0153.
x2
x2
x4
x4

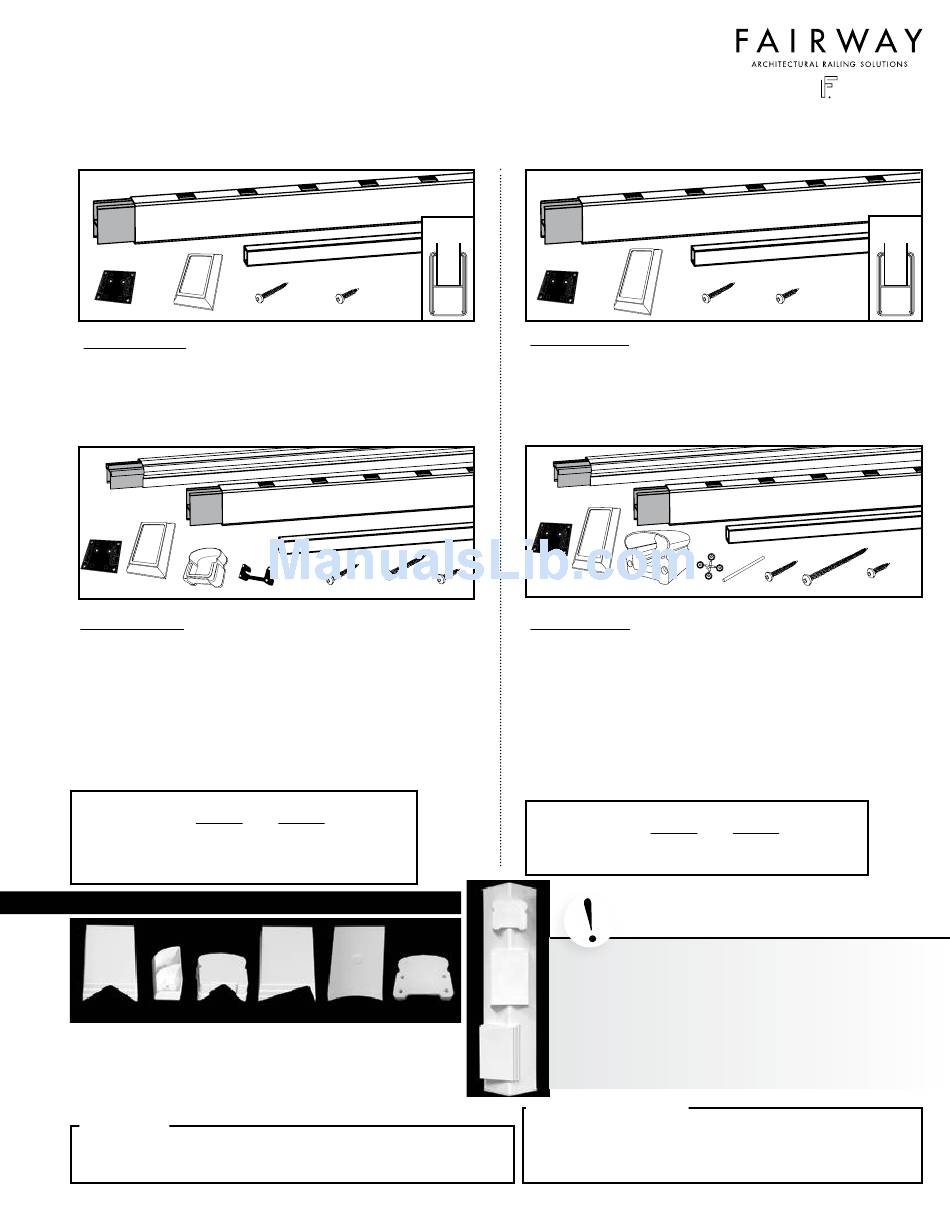

V210 LEVEL Vinyl Railing Kits Include:
2 ea. - 2" x 3-1/2" V210 Vinyl Rail
2 ea. - V210 Aluminum Insert
4 ea. - V210 Mounting Bracket (Bracket and Trim Ring)
1 ea. - Pack S.S. Mounting Screws
* Vinyl Baluster - see grid below
x1
x1
x1
x2
x2 x2
V220 LEVEL Vinyl Railing Kits Include:
1 ea. - V220 Vinyl Top Rail
1 ea. - 2" x 3-1/2" V210 Vinyl Bottom Rail
1 ea. - V220 Aluminum Insert (Top Rail)
1 ea. - V210 Aluminum Insert (Bottom Rail)
2 ea. -V220 Mounting Bracket (Bracket and Trim Ring)
2 ea. - V210 Mounting Bracket (Bracket and Trim Ring)
1 ea. - Pack S.S. Mounting Screws
* Vinyl Baluster - see grid below
* Number of Vinyl Balusters Included in Level Kits:
Square
6' Railing Kit
8' Railing Kit
10' Railing Kit
OPTIONAL FAIRWAY® RAILING BRACKET ADAPTERS
A B
A - 45º V210 Rail Bracket Adapter
B - 22.5º/45º Internal Bracket
C - 45º V220 Rail Bracket Adapter
D - 22.5º V210/V220 Contour Rail
Bracket Adapter
Cleaning
If your railing has any loose dirt on it from the installation, simply hose it off
or wipe with a soft cloth. To remove any stubborn dirt or stains use Simple
Green and #0000 steel wool.
909920-01
x*
x8
x16
#10 - 3/4" Stainless Steel Screw • #2 Square Drive
#10 - 1-1/2" Stainless Steel Screw • #2 Square Drive
x1
x2 x8
#10 - 2" Stainless Steel Screw • #2 Square Drive
#10 - 1-1/2 " Stainless Steel Screw • #2 Square Drive
Turned
13 14
18 19
22 24
C D E
E - V210 Round Column
Bracket Adapter (6"-10")
F -V220 Round Column
Bracket Adapter (6"-10")
x2
Baluster
Pocket
V210 STAIR Vinyl Railing Kits Include:
2 ea. - 2" x 3-1/2" V210 Vinyl Rail
2 ea. - V210 Aluminum Insert
4 ea. - V210 Stair Mounting Bracket (Bracket and Trim Ring)
1 ea. - Pack S.S. Mounting Screws
* Vinyl Baluster - see grid below
x1
x*
x2
x2
x8 x8
#10 - 3/4" Stainless Steel Screw • #2 Square Drive V220 STAIR Vinyl Railing Kits Include:
1 ea. - V220 Vinyl Top Rail
1 ea. - 2" x 3-1/2" V210 Vinyl Bottom Rail
1 ea. - V220 Aluminum Insert (Top Rail)
1 ea. - V210 Aluminum Insert (Bottom Rail)
2 ea. - V220 Stair Mounting Bracket
(3/16" S.S. Pins & Screw Plugs)
2 ea. - V210 Stair Mounting Bracket (Bracket and Trim Ring)
1 ea. - Pack S.S. Mounting Screws & Pins
* Vinyl Baluster - see grid below
* Number of Vinyl Balusters Included in Stair Kits
6' Railing Kit
8' Railing Kit
C
It is the responsibility of the installer to meet or exceed all code
and safety requirements, and to obtain all required building
A
permits. These instructions are only a guide and may not
F
address every circumstance. The deck and railing installer
should determine and implement appropriate installation
techniques for each situation.
D
Fairway Architectural Railing Solutions shall not be
held liable for improper or unsafe installations.
Suggested Tools
• Measuring tape
• Pencil
• Drill
• 5/32" drill bit
x2
x4
x4
x16
#10 - 3/4" Stainless Steel Screw • #2 Square Drive
#10 - 1-1/2 " Stainless Steel Screw • #2 Square Drive
x1
x1 x1
x2 x1 x2
#10 - 1-1/2 " Stainless Steel Screw • #2 Square Drive
Square Turned
12 13
17 18
Always use safety equipment
when installing these products.
• 7/32" drill bit
• #2 square drive bit
• Power miter saw
FA I RWAY ARCHITECTURAL RAILING SO LUTIONS ©2017
Baluster
Pocket
x*
x8
x*
x8 x4 x4
#10 - 3/4" Stainless Steel Screw • #2 Square Drive
:
• Carbide blade
• Plastic
speed square
