Monarch TSP 3 Owner's Manual

OWNER'S
MANUAL
PumpBiz.com
SAFETY WARNINGS
BEFORE OPERATING OR
INSTALLING THIS PUMP, READ
THIS MANUAL AND FOLLOW
ALL SAFETY RULES AND
OPERATING INSTRUCTIONS.
SAFETY
CAREFULLY READ THESE SAFETY
MESSAGES IN THIS MANUAL AND
ON PUMP.
CAUTION
DO NOT OPERATE THIS PUMP DRY!
•
• Review instructions before operating.
• Wear ear protection to reduce objectionable noise.
__________________________________________________
WARNING
• Turn off power before servicing.
• If fuel is spilled, avoid creating any source of ignition until the
fuel vapors have been cleaned up and removed.
This pump is suitable for installations where the vertical distance
from the pump to the water level does not exceed 25 ft. In off-set
BASED ON 5' SUCTION LIFT.
Pump Pump Solids 30
Model Size Handling
TSP 2 2" x 2" 1 1/8" 198
TSP 3 3" x 3" 1 1/2" 318
TSP 4 4" x 4" 2" 616
NOTE:
This trash pump can handle pumping stones, leaves,
mud and other debris of sizes up to the listed solids handling for
the pump and up to 25% of the flow by volume.
200162R3 0402

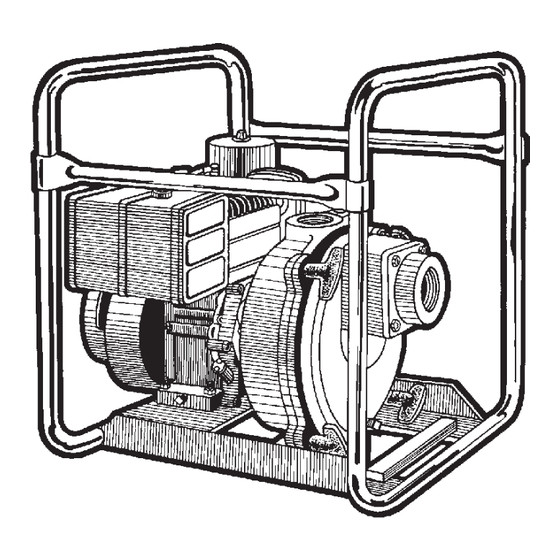

Self Priming Trash Pumps
Total Head in Feet
40 50 60 70 80
Capacity in U.S. Gallons per Minute
194 180 145 110 75
265 172 98 42
500 400 280 190 120
TSP SERIES
APPLICATION
installations, friction losses in the suction pipe must be taken into
consideration.
PERFORMANCE
90
Pump
Model
40
TSP 2
TSP 3
45
TSP 4
Total Head in Metres
9 12 15 18.5 21.5 23.5 27.5
Capacity in Litres per Minute
750 735 680 550
1205 1005 650 370
2330 1890 1515 1060 720
415 285 150
160
455 170
