Integrator Series Zone Mix 760
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zone Mix 760 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Symetrix Zone Mix 760

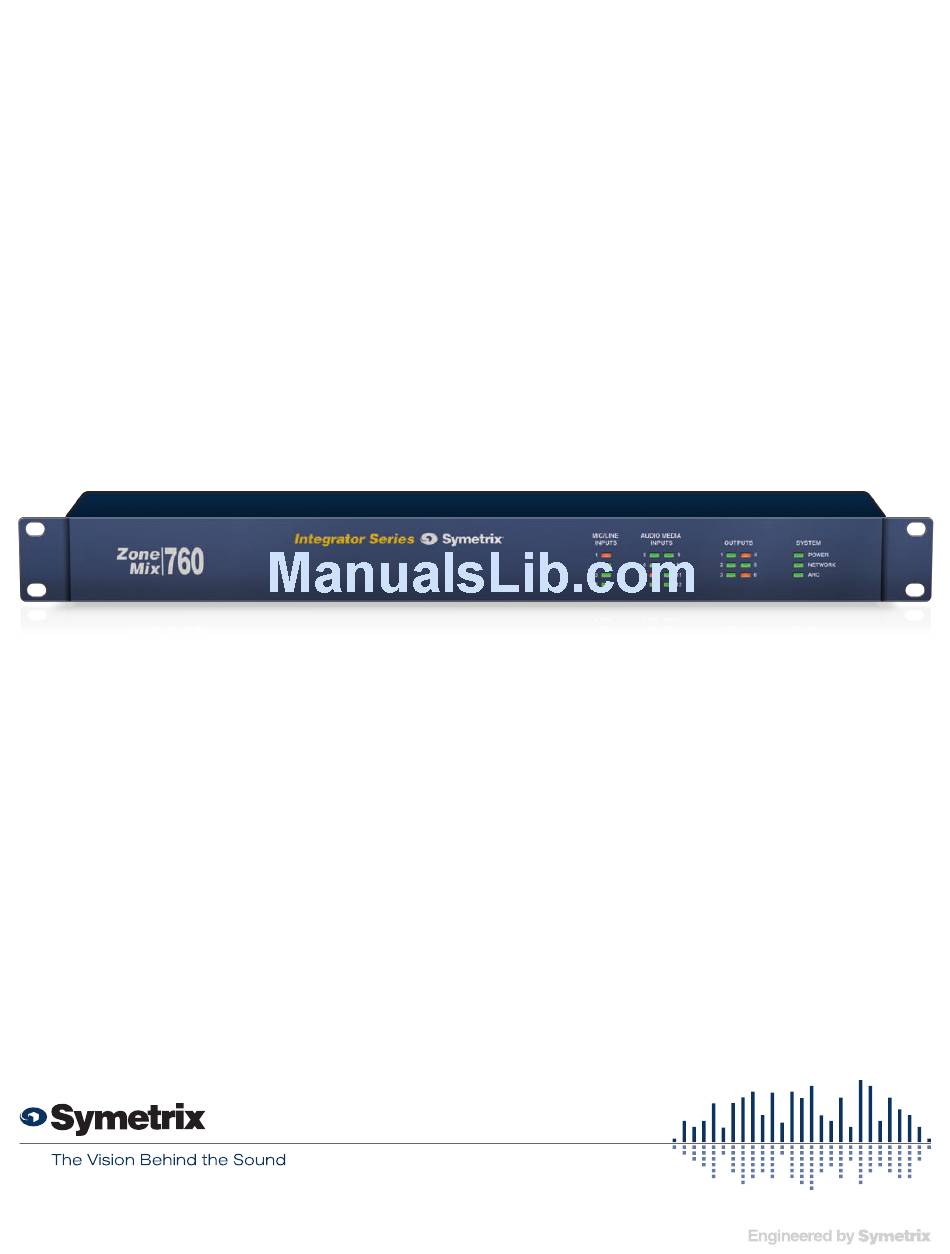

  • Page 1 Integrator Series Zone Mix 760 Quick Start Guide...
  • Page 2 Safety Quick Start Guide 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728 +1.425.778.7727 | www.SymetrixAudio.com...

  • Page 3: Getting Help

    CAUTION: To prevent electric shock, earthing connection. Do not defeat do not use the polarized plug supplied Zone Mix 760, the Windows application the safety purpose of the polarized or with the unit with any extension cord, that controls the hardware, includes a grounding-type plug.
  • Page 4 DO NOT plug the ARC connectors on Symetrix products into any RJ-45 connector labeled “SYMLINK” , “ETHERNET” or “COBRANET” The “ARC” RJ-45 connectors on Symetrix products can carry anywhere from 6 to 24 VDC which can damage SymLink, Ethernet and CobraNet circuitry.
  • Page 5 Introduction Integrator Series Zone Mix 760 Introduction 760 Features The first product in the Integrator Series is the Symetrix • Paging and music management zone mixer for Zone Mix 760, designed specifically to save the integrator Restaurants, Sports Bars, Fitness Clubs, Night Clubs, both time and money. Hotels, Retail Locations, Casinos. The 760 includes an optimal feature set and I/O count for • Four (4) Mic/Line Inputs: Paging from up to three (3)

  • Page 6: Mechanical Data

    Mechanical Data and Front Panel Quick Start Guide Mechanical Data Item Specifications Remarks Space Re- 1U (WDH: 48.02 cm x 22.15 cm x 4.37 cm / 18.91 in x 8.72 in x Allow at least 1 inch additional clearance for rear panel connections. Additional 1.72 in), depth is specified from front panel to back of connec- depth may be required depending upon your specific wiring and connections.

  • Page 7: Rear Panel

    Rear Panel Integrator Series Zone Mix 760 Rear Panel Item Description Comments IEC 3 prong jack Accepts power from detachable IEC power cable (100-240 VAC, 50-60 Hz, 25 Watts Power Input max). Connect only to a grounded power outlet. Two (2) 3-pin Euroblocks Allows real-time control of any volume using standard 10k Ohm linear potentiom- EXT CTRL 1 &...

  • Page 8: Hardware Connections

    Hardware Connections Quick Start Guide Power POWER INPUT Connect the IEC connector end of the supplied AC cord to the receptacle on the rear of the 760. Connect the AC connector end of the supplied AC cord to an AC power source that is of the correct voltage and frequency (100-240 VAC, 50-60 Hz).

  • Page 9: Mic/Line Inputs

    760 and the female end to an available RS- 232 port on your controlling device. Port settings: 57.6 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control. NOTE: Default settings can be changed via the Zone Mix 760 software application. Refer to the application’s help file for details. Outputs Using standard mic/line cables terminated on one...

  • Page 10: Signal Flow

    760 Signal Flow Quick Start Guide Ch.Fader Digi Trim MIC/LINE 1-3 Program Select 1 Noise Brit Comp/ 8 Band 1 of 3 Gain Set/ 1 of 3 Feedback Limiter Invert Mute Mute Fighter Zone Mix off Main Mix ARC Audio Input Ch.Fader Digi Trim Program Select 2...
  • Page 11 760 Signal Flow Integrator Series Zone Mix 760 Program Select 1 1 of 3 Zone 1 of 6 Mute Prog.1 Gain Zone Mix off Main Mix Ducker Zone 1 Zone 2 Zone 3 Zone Volume Program Select 2 Gain control...
  • Page 12 760 Signal Flow Quick Start Guide SpeakerManager OUTPUT 1 8 Band Gain Set Delay Limiter Parametric -10/+4 Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 Output Fader Speaker Manager Summer OUTPUT 2 Mute 8 Band Gain Set Delay Limiter Zone 1...

  • Page 13: Wiring Reference

    The wiring diagrams on these pages are included for Sleeve = (-) Minus and Ground information purposes only. Symetrix can not anticipate every connector type on non-Symetrix products. It is the user’s responsibility to determine what connection is needed. In addition, Symetrix accepts no responsibility for RCA Plug [unbalanced] injury or damage caused by user created wiring.
  • Page 14 Wiring Reference Quick Start Guide Unbalanced Connections: In this example, the unbalanced connector is sending signal to a balanced connector. When wiring this connection, Unbalanced out to balanced in use a shielded twisted pair cable. The balanced side wires The RCA connector and the 1/4” TS connector are the same as a standard, balanced connection.

  • Page 15: Network Configuration

    760 Networking Integrator Series Zone Mix 760 Network Configuration your PC with a static IP in the range of 169.254.x.x with a Subnet Mask of 255.255.0.0 in order to communicate with the 760 in a direct connect mode. However, if your PC is using the default network settings, it should also have automatically self-assigned a similar private IP address in the range of 169.254.x.x, and if this is the...
  • Page 16 4. Under “This connection uses the following items”, select 172.31.254.254 and a Subnet Mask of 255.240.0.0 “Internet Protocol (TCP/IP)” and press “Properties”. 2. 192.168.0.0/16 = IP Addresses 192.168.0.1 through 192.168.254.254 and a Subnet Mask of 255.255.0.0 3. 10.0.0.0/8 = IP Addresses 10.0.0.1 through 10.254.254.254 and a Subnet Mask of 255.255.0.0 Zone Mix 760 Host Computer & PC LAN IP: 10.0.0.2 IP: 10.0.0.3 SM: 255.255.0.0 SM: 255.255.0.0 GW: 10.0.0.1 GW: 10.0.0.1...
  • Page 17 760 Networking Integrator Series Zone Mix 760 5. On the “General” tab, you may select “Use the following 3. Open the “Network and Sharing Center”. IP address” to enter in the appropriate information if using static assigned addresses. (DNS server is not required for connection to a 760). Otherwise, leave set to “Obtain an IP address automatically” if using DHCP.
  • Page 18 760 Networking Quick Start Guide 6. Under “This connection uses the following items”, select 7. On the “General” tab, you may select “Use the following “Internet Protocol Version 4 (TCP/IPv4)” and press IPv4 address” to enter in the appropriate information “Properties”. if using static assigned addresses. (DNS server is not required for connection to a 760).
  • Page 19 Connection Wizard to get connected to your 760. Launch the software You can launch the Zone Mix 760 software via either the Start Menu or the Desktop icon. Once launched, the Zone Mix 760 software presents the following options:...

  • Page 20: Connection Wizard

    Connection Wizard Quick Start Guide The Connection Wizard opens with the following screen: The following screen displays a list of 760 devices found on your network. At the very least, you can select the device you wish to connect to and click the Next button. However, there are a few more functions on this screen worth mentioning...
  • Page 21 Connection Wizard Integrator Series Zone Mix 760 Refresh List: by setting up appropriate routing table entries to reach devices with 169.254.x.x addresses. Clicking the Refresh List button will re-scan the network for devices and refresh the list of devices. If at first your device 3. In the case of the first two methods (direct connection...
  • Page 22 Label Wizard Quick Start Guide Label Wizard Label your Inputs by typing directly in the scribble strip below the faders. These names correspond to the audio The Label Wizard allows the naming of Inputs, Zones, sources connected to the physical inputs (1-12) of the 760. Outputs and Page Stations.

  • Page 23: Going Online

    Label Wizard • Going Online Integrator Series Zone Mix 760 Label your Outputs by typing directly in the scribble strip You have just finished the Label Wizard. Click the Finish below the faders. These names correspond to the physical button to exit. outputs (1-6) of the 760.

  • Page 24: Upgrade Firmware

    You must be online with a unit to upgrade the firmware. To with a specific unit - if you already know the name and/or IP upgrade the firmware, launch the Zone Mix 760 Application address of the unit you wish to connect to and that unit is...

  • Page 25: Architects And Engineers Specifications

    Mountlake Terrace, WA, 98043 USA CE safety requirements. The unit shall be RoHS compliant. The chassis shall be constructed of cold rolled steel and aluminum, and mount into a standard 19” 1U E The authorized representative located within the European IA rack. The device shall be a Symetrix model Zone Mix 760. Community is: World Marketing Associates P.O. Box 100 St.

  • Page 26: Warranty And Service

    Symetrix may, at its via the web site: http://support.SymetrixAudio.com. option, require proof of the original date of purchase (dated copy of original retail dealer’s invoice).
  • Page 27 Integrator Series Zone Mix 760...
  • Page 28 Symetrix, Inc. If, however, your only means of access is electronic, permission to print one copy is hereby granted. The following are either Trademarks or Registered Trademarks of Symetrix, Inc.: Symetrix, SymNet, SymNet Designer, SymLink, CobraLink, AirTools and Lulcid. Windows is a...
