CP Electronics AR-SG-4SM-W Product Manual

The ar-sg-4sm-w is a stylish push-button wall plate that provides control of an an-10 system.

Advertisement

Quick Links

AR-SG-4SM-W
RF scene plate

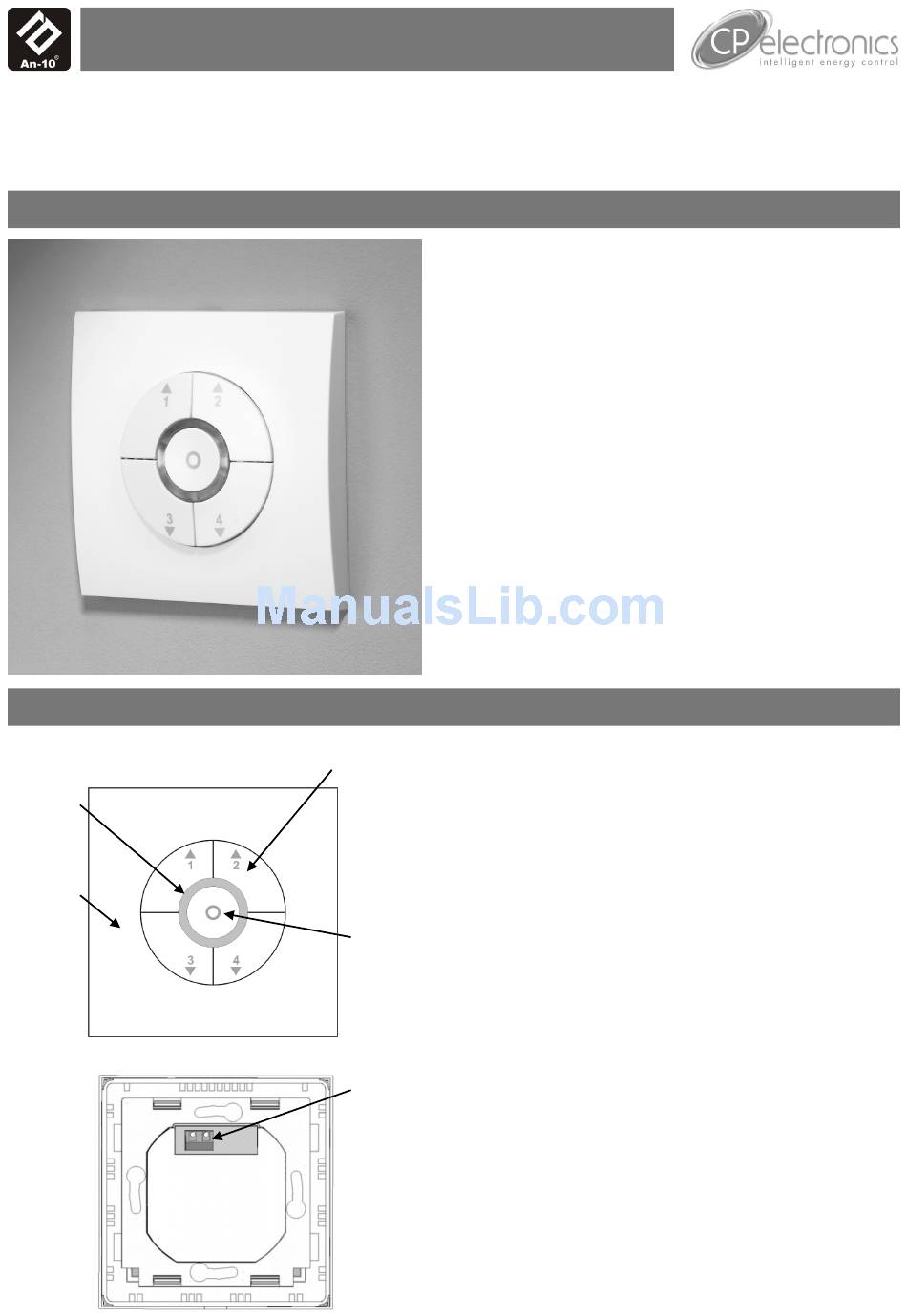

Front features
LED ring
Fascia
Back features
Product Guide
The AR-SG-4SM-W is a stylish push-button wall plate that
provides control of an An-10 system. Functions include.
Lights On / Off
Raise / Lower Light Levels
Scene Selection
Scene Programming
User programming mode for quick and easy scene
setting via infrared, RF (radio) or USB connection to
a PC running CP's ALC programming software.
Compact design allows installation into standard UK and
European backboxes.
Fascia also available in other finishes.
Scene buttons
Four buttons that offer 4 lighting scenes.
Scene buttons
Raise and lower function
Use either buttons 1 and 2 to raise the light level.
Use either buttons 3 and 4 to lower the light level.
Off button
Toggle between lights off and last selected Scene.
IR receiver
Receives control and programming commands from an
Off button
IR (infrared) handset.
LEDs
The LEDs flash to indicate the that a valid setting has been
received via IR and are also used in the programming of
scenes.
LED ring
Optional
IR mode
12Vdc
RF mode
Supply
USB mode Continuous
Terminal
USB port
Under the facia is a micro USB socket for use for
programming via a PC. See page 11 for details.
Optional 12Vdc supply terminal
To power the unit from an external supply, connect the
supply to this terminal ensuring correct polarity. Refer to
Technical Data on page 10 for power supply specification.
Fast flashing
Slow flashing
Overview
Features
