- Page 1 9361 Home Cell V2.0 4 Channel Small Cell Getting Started Guide...
- Page 2 Medical devices such as pacemakers and hearing aids may be affected when using this device. Please contact your General Practitioner for additional safety guidelines. EMERGENCY: The 9361 Home Cell V2 does not operate during instances of power loss. To make emergency calls, please use a mobile or land line phones.
- Page 3 AFETY OTES Model TX Output Power 9361 Home Cell V2.0 1900/850MHz 100mW 100mW 9361 Home Cell V2.0 1900/850MHz 20mW 20mW 9361 Home Cell V2.0 1700MHz 100mW 9361 Home Cell V2.0 1700MHz 100mW 100mW 9361 Home Cell V2.0 1700MHz 20mW 20mW...
- Page 4 9361 Home Cell V2 - Getting Started Guide AFETY OTES Industry Canada statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 5 Trademarks Alcatel-Lucent and the Alcatel-Lucent logo are registered trademarks of Alcatel-Lucent. All other trademarks are the property of their respective owners. 9361 Home Cell V2 - 4 Channel Small Cell Getting Started Guide: Edition 1, Published June 2011 www.alcatel-lucent.com...
- Page 6 Inside this packaging you will find - the 9361 Home Cell V2 (similar to a Wi-fi access point) an Ethernet cable, power adaptor, and wall mounting kit. Unlike a Wi-fi access point, the 9361 Home Cell V2 has a zero touch set-up process.
-
Page 7: Ethernet Cable

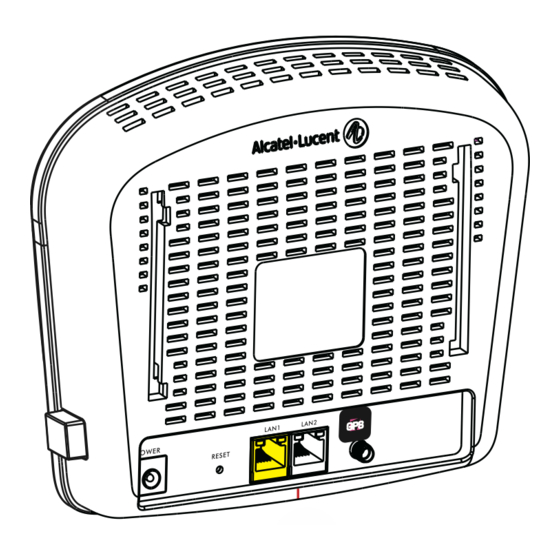

9361 H NPACKING Getting Started Guide (this document) 9361 Home Cell V2 4 Channel Small Cell 9361 Home Cell V2.0 4 Channel Small Cell Getting Started Guide Stand SIM Card (may be Cheese Head Screws ( 2 ) Wall Mounting... - Page 8 9361 Home Cell V2 - Getting Started Guide 9361 H VERVIEW OF THE Status Indicators On / Off Button SIM Card Slot Power GPS Antenna Reset Button Connector LAN2 Port LAN1 Port (connect to (connect to 3rd party device high-speed...
- Page 9 9361 H TATUS NDICATORS Status indicators only become visible when the Alcatel-Lucent 9361 Home Cell V2 is powered and the appropriate feature is operational. Power Status OFF: Device Powered Off ON: Device Powered On Blinking: Problem Detected IP Connection Status OFF: Device not connected to IP network.
- Page 10 If your mobile operator provided a SIM card to use with the 9361 Home Cell V2, make sure the 9361 Home Cell V2 is switched off and then insert the SIM card into the SIM card slot on the side as shown next. The end with the cut-off corner goes in first with the cut-off corner pointing down.
- Page 11 ETUP Step 3: Use Stand “OR” Mount on wall The 9361 Home Cell V2 can be either free standing on a flat, sturdy surface or wall mounted. For a free standing installation, place the 9361 Home Cell V2 in the wall bracket/stand with the back of the 9361 Home Cell V2 facing the taller part of the wall bracket/stand as shown.
- Page 12 9361 Home Cell V2 - Getting Started Guide UICK ETUP To wall mount the 9361 Home Cell V2, first fix the wall bracket/stand to the wall as Step 5: Broadband Connectivity shown in the below illustration. Use the stand’s screw holes as guidelines to drill 2 fixing points.
- Page 13 UICK ETUP Insert the legs of the stand/bracket into the slots on the back of the 9361 Home Cell V2 and pull down to lock into position. Note: The 9361 Home Cell V2 Base is less than 1 kg and can be easily mounted...
- Page 14 Switch on the 9361 Home Cell V2. After a few seconds the power status indicator lights up and the Ethernet port status indicators on both the 9361 Home Cell V2 and the broadband connection should light up green (flash green). If this does not happen,...
- Page 15 Step 6: Broadband Connectivity After approximately two minutes (for initial installation this may take up to 90 minutes if it is the first time you turn on), the 9361 Home Cell V2 connectivity and GPS indicators will begin to blink.
