NIPPON POP RIVETS AND FASTENERS PRL650-6S Instruction Manual

Rivet tool

Hide thumbs

Table Of Contents

Quick Links

Download this manual

PRL650-6S

Rivet Tool

PRL650-6S

Instruction Manual

This rivet tool is exclusively for pop rivets.

Read this manual thoroughly before using the rivet tool, and keep it in a handy place

where rivet operator can refer to it any time.

NIPPON POP RIVETS AND FASTENERS LTD.

Table of Contents

Need help?

Do you have a question about the PRL650-6S and is the answer not in the manual?

Questions and answers

mORRIS

June 21, 2025

HOW TO REMOVE RIVET

Summary of Contents for NIPPON POP RIVETS AND FASTENERS PRL650-6S

Page 1: Instruction Manual
Instruction Manual This rivet tool is exclusively for pop rivets. Read this manual thoroughly before using the rivet tool, and keep it in a handy place where rivet operator can refer to it any time. NIPPON POP RIVETS AND FASTENERS LTD.
Page 2: Table Of Contents
PRL650-6S Contents Safety Precautions ・・・・・１１．Name of parts ・・・・・３２．Out line ・・・・・４３．Dimensional drawing ・・・・・５４．Preparation for use ・・・・・６５．Precautions for use ・・・・・７６．How to use ・・・・・８７．Maintenance and Inspections ・・・・・１０８．Troubleshooting ・・・・・...
Page 3 PRL650-6S Ssfety Precautions (1/2) ● Read the following “Safety Precautions” thoroughly before using the rivet tool, and use the tool correctly, following the instructions included in the instruction manual. ● Cautions are divided into the following: WARNING Erroneous handling could cause death or serious injury.
Page 4: Safety Precautions
PRL650-6S Safety Precautions (2/2) CAUTION 1. When this tool is disassembled for maintenance and/or parts replacement, and then reassembled, be sure to separate the coupler or perform similar actions to stop supply of compressed air. ◇ If the tool is disassembled or reassembled while compressed air is being supplied, parts could pop out, oil could jet out, or the tool could move unexpectedly, resulting in an accident or injury.
Page 5 PRL650-6S 1. Names of Parts Inside Jaws Pulling head Jaw pusher Mandrel guide Jaw case Jaw pusher spring Collector Fill screw Shutter Nose housing Nose piece Mandrel Body Grip Trigger Rivet Handle front Handle Handle rear Exhaust vent Chamber Coupler (Plug)
Page 6: ２．Out Line

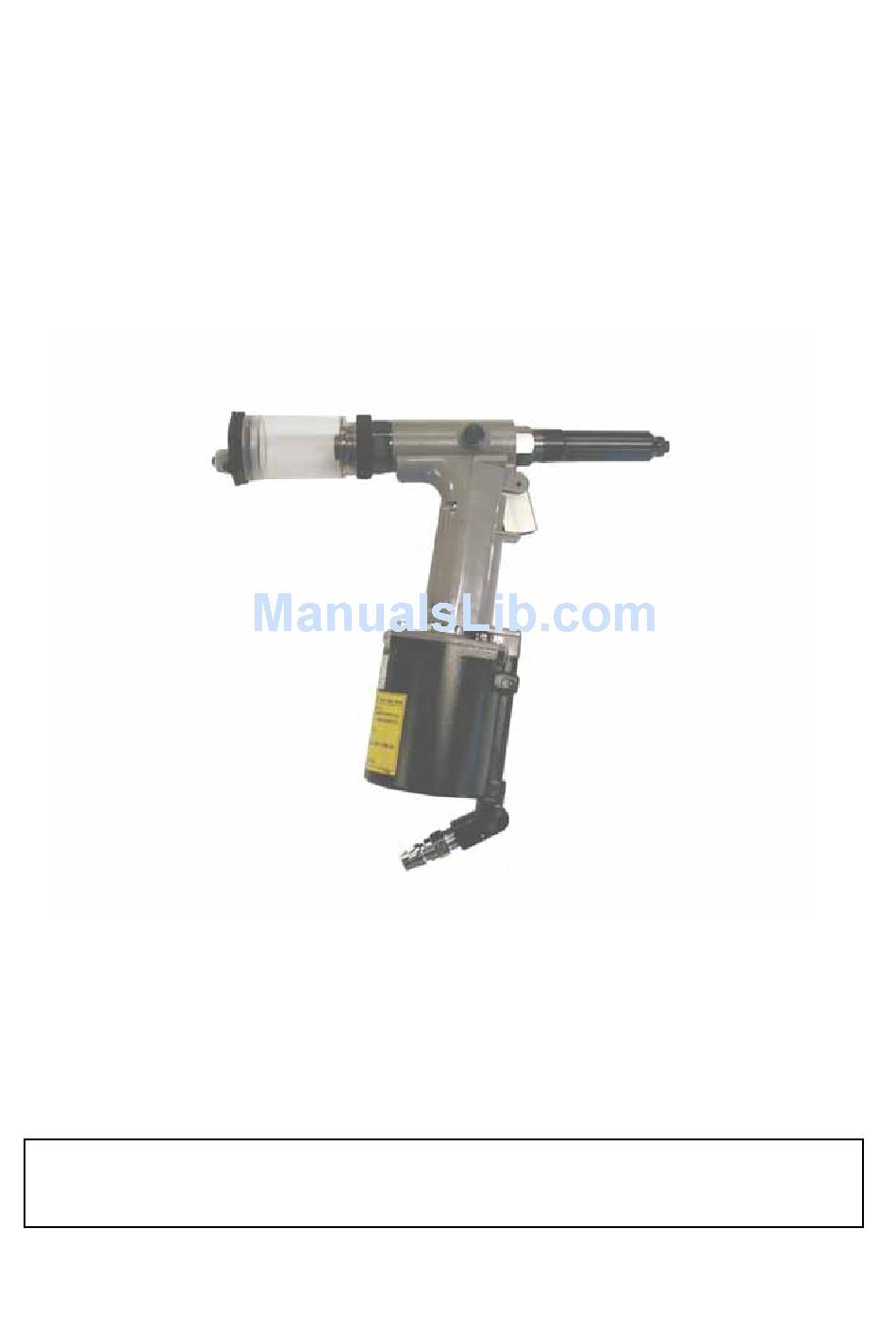

PRL650-6S 2. Out line The PRL650-6S series sre compact and light weight air-hydraulic rivet tools capable of setting POP rivets for φ4.0∼4.8mm. These tools are equipment with automatic vacuum Mandrel Collector. 1.Specification Select the model according to the rivet size and conditions of use.
Page 7: ３．Dimensional Drawing
PRL650-6S 3. Dimensional Drawing ＰＲＬ６５０−６ＳＰＲＬ６５０−６Ｓ−１５０ＬＰＲＬ６５０−６Ｓ−２００Ｌ Fig.3-1 - 5 -...
Page 8: ４．Preparation For Use
PRL650-6S 4. Preparation for use (1) Make sure that Nosepiece that suits the rivets used are attached: If incompatible parts are attached, replace them with those specified to suit the rivets used (see Table 2-2 on P. 4). (See P.14 for Replacing Nosepiece.) (2) Attach the coupler (AN500-72) to R-Joint block of rivet tool, to supply compressed air.
Page 9: ５．Precautions For Use
PRL650-6S 5. Precautions for use (1) Air pressure used Use the rivet tool with an air pressure of 0.5-0.6 MPa. If the specified air pressure is exceeded, the tool could break, resulting in an accident or injury. If the air pressure is lower than that specified, it may not be possible to setting rivets.
Page 10 PRL650-6S 6. How to use the PRL650 Nosepiece 6-1 Setting rivets (1) Insert mandrel into the nosepiece and attach a rivet, and then insert the rivet body into the hole Mandrel Base in the lower base metal. (Fig. 6-1) Body...
Page 11 PRL650-6S 6-2 Discard mandrel Discard mandrels collected in the collector before the accommodation capacity of Collector is not exceeded. (Table 6-1) (Table 6-1) The accommodation capacity of Collector Nominal dia. Mandrel dia. Accommodation capacity of rivet φ4.0 φ2.70 φ4.8 φ2.64 φ2.74...
Page 12: ７．Maintenance And Inspections
PRL650-6S 7. Maintenance and Inspections (Table 7.1) Item Purpose ･Maintains proper Jaws operation and extends the service life. Spraying lubricant into the Jaws ･To remove metal particles and prevent slippage of Jaws or being caught Cleaning the tip parts ･To prevent early wear on Jaws and Jaws case ･To remove metal particles and prevent slippage of Jaws or being caught...
Page 13 PRL650-6S 7-3. Greasing the Jaw case When Jaws slipping or catching occurs earlier in the spraying lublicant into the Jaws, grease inside of Jaw case. Catching: After a rivet is setting, the jaw is caught by the jaw case and does not open, and the mandrel cannot be ejected.
Page 14 PRL650-6S 7-4. Exchange of Hydraulic oil When hydraulic oil is down and the stroke is low (one trigger operation does not allow riveting), exchange the hydraulic oil by the following procedure: If stroke is low immediately after hydraulic oil is exchanged, seal has worn: Ask for repair.
Page 15 PRL650-6S (7) Loosen Fill screw about 3mm, push and hold Air piston. The hydraulic oil oozes out from Fill screw, and hold it, until this polluted hydraulic oil does not come out. (Fig. 7-9) (8) Pull out Air piston assembly, inject the hydraulic oil again according to (4), and tighten Fill screw temporarily.
Page 16 PRL650-6S 7-5. Replacing Nosepiece Use the specified Nosepiece to match the rivets used (see Table 2-2 on P.6). If Nosepiece is damaged, replace it. ＜Procedure＞ (1) Use spanner to remove Nosepiece from Nose housing. (Fig. 7-12) Remove Nose housing Nosepiece Fig.
Page 17 PRL650-6S ＜Procedure＞ (1) Cut off supply of compressed air by separating the coupler. (2) Remove Collector. Collector lock nut is held by the hand, turn Collector in the left, and remove it. (Fig. 7-13) Collector lock nut Remove Collector Fig. 7-13 (3) Remove Collector lock nut and Valve shutter.
Page 18: Troubleshooting
PRL650-6S 8. Troubleshooting (If you cannot fix the tool after checking the content of this secton, send it to your supplier or one of our offices for repair.) Symptom Cause Troubleshooting Replace the parts with compatible Rivet cannot be 1.Parts are incompatible.
Page 19 PRL650-6S 9. Parts List Product No. Product name Q’ty Product No. Product name Q’ty PRN614 Nose piece 28 PRL650-08 Pulling head PRL650-6S PRL650-01 Jaws 1set PRL650-08/150 Pulling head PRL650-6S-150L PRL600-01A Connector lock PRL650-08/200 Pulling head PRL650-6S-200L PRM530-53 Lock pin 29 PRL650-09/6S...
