DATA
Nominal operating voltage............................................................. 24 VDC
Allowed supply voltage.......................................................20.4-28.8 VDC
Maximum current consumption ..................................................... 80 mA at 24 VDC
Digital input.................................................................................... 12
Digital output, direct......................................................................... 9
Maximum current, reserve.......................................................... 1 A
Voltage ..........................................................................20.4-28.8 VDC
Digital output, potential-free ............................................................ 5
Maximum current........................................................................ 1 A
Maximum voltage ..................................................................... 30 VDC
Total maximum current, outputs...................................................... 5 A
Analog input..................................................................................... 2 4-20 mA
Analog output .................................................................................. 1 4-20 mA
Protection class ..........................................................................IP54
Ambient temperature ..................................................................0-50 ° C
Storage temperature .........................................................-20 to +60 ° C
Relative humidity ......................................................................10-80 %, non-condensing
SILHORKO-EUROWATER A/S
DK-8660 Skanderborg
Denmark

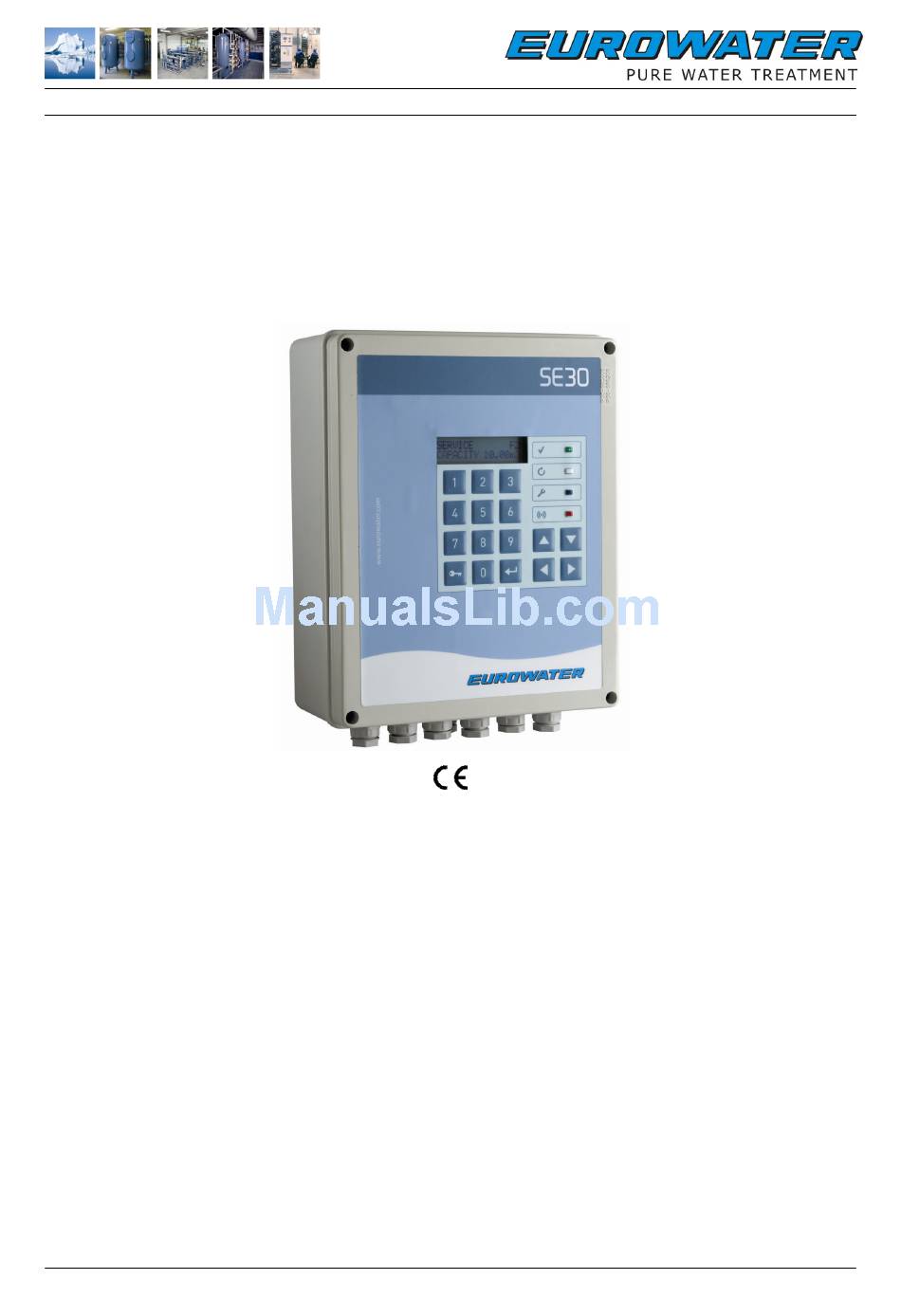

QUICK GUIDE

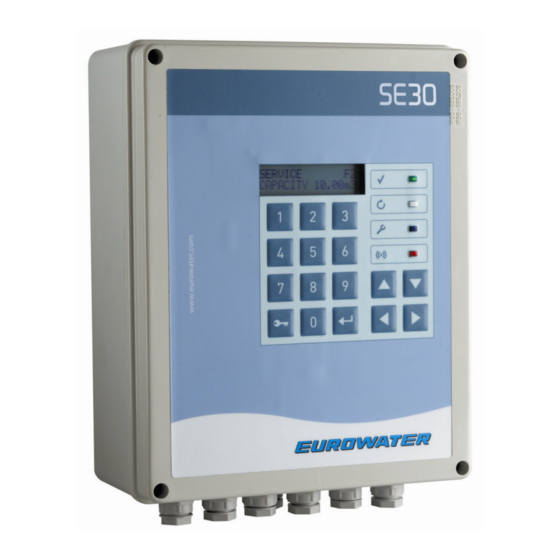

SE30 CONTROL PANEL
SOFTWARE VERSION 30ROS02___
Phone + 45 86 57 12 22
info@eurowater.com
www.eurowater.com
L30C-30A-UK-02-01
Our World is Water

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eurowater SE 30

  • Page 1: Quick Guide

    Analog output .................. 1 4-20 mA Protection class ................IP54 Ambient temperature ..............0-50 ° C Storage temperature ............-20 to +60 ° C Relative humidity ..............10-80 %, non-condensing SILHORKO-EUROWATER A/S Phone + 45 86 57 12 22 Our World is Water DK-8660 Skanderborg info@eurowater.com Denmark www.eurowater.com...
  • Page 2 ELECTRICAL CONNECTION AND INSTALLATION RUN: CPU is active CPU error I0-I11: Digital input O0-O15: Digital output F1 fuse for CPU (T1A 5 x 20 mm) F2 fuse for outputs (T5A 5 x 20 mm) L30C-30A-UK-02-01 May 2009...
  • Page 3 CONNECTION OF TANKS 0V+AN0: Conductivity input, analog A0+0V: Conductivity output, analog 0V+AN1: Available input, analog 1+2: Water meter 25+26: Sol 1 T1 3+4: LS min. 27+28: Sol 2 T1 5+6: LS max. 29+30: Sol 1 T2 7+8: External operation request 31+32: Sol 2 T2 9+10:...
  • Page 4: Configuration Menu

    CONFIGURATION MENU - setting and changing program parameters and plant functioning. Power on Regeneration, softening Call service Alarm 4 arrow keys Use the arrow keys to change between display level and setting level and to navigate between the various displays. To enter or change a numerical value, first press ENTER until the cursor blinks.
  • Page 5 L30C-30A-UK-02-01 May 2009...
  • Page 6 OPERATION AND DISPLAY MENU - display of operating status, alarms, and start/step of regeneration. Operation menu is shown during ordinary plant operation. The menu comprises several displays, see separate description. Alarm: During plant operation various alarms can occur. Alarms are shown as text on the display and as red LED alarm.
  • Page 7 DESCRIPTION OF DISPLAYS The below displays are the various displays that the control can show. In practice, the sequence varies. Operation menu RO start, pre-rinse: RO plant start is in progress and 8 minutes and 00 seconds of the pre-rinse remain. RO start: RO plant start is in progress and the actual conductivity is displayed.
  • Page 8 The control is fully operational and the service timer can be reset by our service technicians. Device blocked: If displayed, contact EUROWATER for further information. Low battery: Is displayed when the internal battery must be changed. Contact EUROWATER for further information.
  • Page 9 Softening, water meter: Set water meter type of the plant. Select 10, 100, or 1000 litres/pulse. Softening, regeneration delay: Set time for delayed performance of regeneration, i.e. after the preset volume has been reached. If a time is entered, regeneration will be carried out the first time the entered time is reached after the entered volume has been obtained.
  • Page 10 Softening, manual start/step of regeneration: It is possible to start regeneration by pressing the key "1". It is also possible to step to the next phase be pressing "2". In operation menu, the same is possible as fast path by pressing the keys "0" and "1" or "0"...
  • Page 11 L30C-30A-UK-02-01 May 2009...
  • Page 12 International Service EUROWATER has an international sales and service organization with an experienced staff of engineers and service technicians at your service. For us, service involves both solutions to acute problems, maintenance, and preventive service. Our service is characterized by immediate identification and prompt solution of the problem.
