Mhouse MACU1 Installation And Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Mhouse - Alarm System
0682
Instructions and warnings for installation and operation manual
IS0096A00EN_13-05-2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MACU1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mhouse MACU1

Summary of Contents for Mhouse MACU1

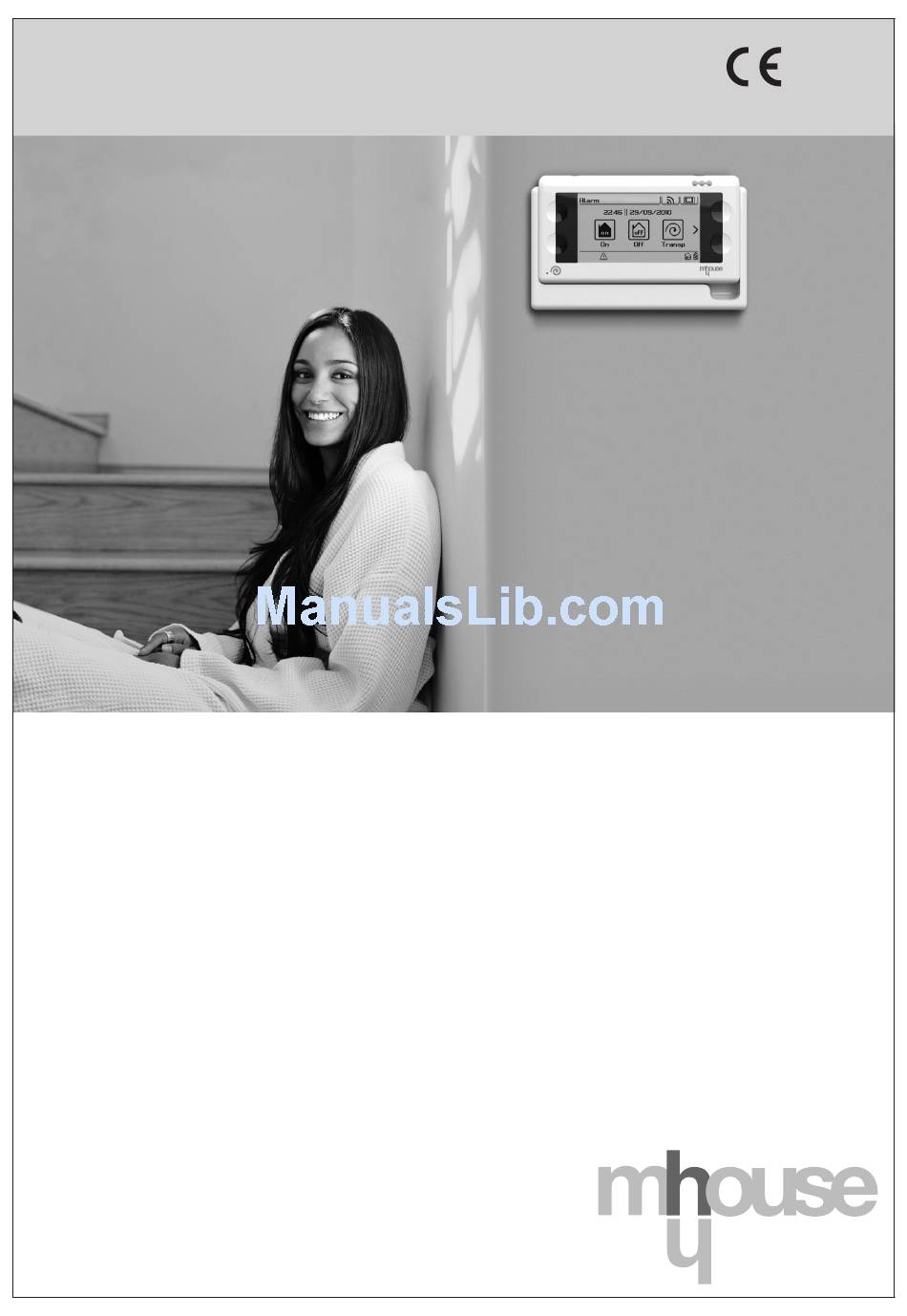

  • Page 1 Mhouse - Alarm System 0682 Instructions and warnings for installation and operation manual IS0096A00EN_13-05-2011...

  • Page 3: Setting The Alarm System

    Step by step guide to system set-up Setting the alarm system 1 - Read the general warnings chap. 1 2 - Place all devices on a table 3 - Ensure full understanding of the specific application of each device chap. 2.1 4 - Draw up the layout of the house chap.

  • Page 4: Technical Glossary

    • This manual describes how to set up a complete and optimal alarm system, using all devices belonging to the Mhouse alarm system. Some devices and accessories specified in the manu- al are optional and may not be present in the kit. For a complete overview of the devices, request the information from your local retailer.

  • Page 5: Product Description And Intended Use

    2 - PRODUCT DESCRIPTION AND INTENDED USE The products in this kit are part of the Mhouse alarm system designed for transmission on 2 separate radio frequencies: 433 MHz and 868 MHz.

  • Page 6: Control Unit

    It is equipped with a transponder badge reader to enable rapid activation and deactivation of the alarm system. It can also be used to control Mhouse automations such as a gate, shutter, awning etc. As well as the controls on display, a further 4 buttons are available for direct and immediate control of the automations.
  • Page 7 12 - “Technical Specifications”. are present; if necessary, during installation, reduce sensitivity of the sen- • The product may only be integrated with Mhouse devices (not supplied sor or position it with the directional joint supplied. in the pack.
  • Page 8 • coverage of the GSM telephone network (only if equipped with the C and D - To enable use of the telephone system integrated in the control MACU1 control unit, with GSM dialler) (point D). unit and the relative services available, the control unit should be posi- A - The control unit operates by transmitting and receiving low power tioned in an area equipped with the fixed telephone line.
  • Page 9 4 - PRELIMINARY PROGRAMMING PROCEDURES (Dividing the alarm area into “zones”) 4.1 - Dividing the entire environment into “ZONES” for • zone B = door and window opening detectors (MAD1); • zone C = indoor volumetric detectors (MAD2). subsequent total or partial activation of the alarm system Benefits: freedom of movement within the home, with perimeter protection against intrusion from outside (zone C off;...
  • Page 10 5 - STANDARD PROGRAMMING OF THE ALARM SYSTEM The following sections describe how to program the system for standard 06. Close the touchscreen cover (to install the control unit, see paragraph operation. 7.3.2). Before proceeding with programming all devices, the touchscreen must first be programmed and associated with the control unit (para- The other system devices can now be programmed;...

  • Page 11: Touchscreen Settings

    MAIN MENU A - Screen header (read only). B - Enables updates to the alarm system status bar (I) . C - Accesses the Settings menu exclusively for the touchscreen. D - Displays the local time (read only). E - Displays the date (read only). F - Accesses the macro-screen for automation management.
  • Page 12 Main subjects Commands Gates Blinds Lights Alarms Codes Menu: see detailed list below Messages List LIST OF ITEMS PRESENT IN THE ALARMS MENU ADMINISTRATOR USER Page ò ò Devices Access codes page 13 (5.4.1) ò ò Remote controls page 13 (5.4.2) ò...
  • Page 13 5.4 - Alarm system programming 04. Touch “OK” to confirm 05. Touch “OK” again and then, on the remote control, press the keys Warning – Perform all programming procedures described in “On” and “Off” at the same time. The control unit emits a confirma- tion beep (3 beeps indicate that the remote control is already pres- this paragraph in the specified sequence.
  • Page 14 Programming a detector: Indoor siren (MASI1): 01. Access the programming menu 01. Insert the batteries in the siren. 02. Touch “Devices”, then touch the zone to be associated with the de- 02. Within 60 seconds, use the touchscreen or remote control to acti- tector: “Alarm zone A”, B, or C.
  • Page 15 5.4.9 - Programming numbers in the phone book 05. Touch “OK” again and then, on the remote control (or keypad) the icon ; press and hold the required emergency or deter- This procedure enables memorisation of the telephone numbers of the rence alarm key for 10 seconds (the control unit emits a confirma- persons receiving the previously set voice and text messages.

  • Page 16: System Settings

    5.5 - System settings unit signals the event by activation of the siren and delivery of technical text message no. 3. This menu enables configuration of some parameters to adapt operation 01. Access the programming menu of the control unit to specific applications. 02.
  • Page 17 6 - USING THE TOUCHSCREEN AS A REMOTE CONTROL FOR AUTOMATIONS The touchscreen can also be used as a remote control for different types of automation in the Mhouse range (gates, doors, awnings, shutters, lights etc.). 6.1 - Creating commands on the touchscreen Up to 16 commands can be programmed.
  • Page 18 6.4 - Memorising commands in the automation To disable a command: receiver 01. Turn on the touchscreen and on the main menu, touch the icon “Commands” After creating the required commands, memorise each of these in the re- 02. Scroll to the right through the icons by touching the symbol ceiver of the automation to be controlled.
  • Page 19 (PSTN), invia automaticamente anche una chiamata di sicurezza utilizzando il collegamento GSM. Traditional telephone line Telephone line with broadband wall-mounted wall-mounted telephone MACU1-MACU2 telephone line control unit line connection MACU1-MACU2 connection...
  • Page 20 7.2 - Touchscreen (MATS1) 7.2.1 - OPERATION (fig. 8) MATS1 is powered by 2 batteries (the factory supplies non-rechargeable versions). On insertion of the batter- ies, the touchscreen switches on automatically, ready for immediate use (see paragraph 7.2.2 for initial activa- tion).

  • Page 21: Using The Touch Screen

    7.2.4 - USING THE TOUCHSCREEN To understand how to use and navigate the touchscreen menus, refer to chapter 5. 7.2.5 - USING THE INTEGRATED BADGE READER (transponder badge) The touchscreen has a transponder badge reader that can be set to two modes: “always active” or “temporarily active”. When the reader is active the icon appears at the bottom left of the display, which can be enabled and disabled as required.

  • Page 22: Special Warnings

    7.3 - Control unit (models MACU1 - MACU2) 7.3.1 - SPECIAL WARNINGS - To ensure correct installation, read chapter 3. - Before proceeding with installation, associate the touchscreen with the control unit as described in chapter 5 - paragraph 5.1.

  • Page 25: Operation

    7.4 - Door and window opening detector (MAD1) 7.4.1 - OPERATION MAD1, detects opening doors and windows (by separation of the magnet from the sensor) and transmits the event to the associated control unit. It is also possible to connect an additional detector by cable (e.g. a sensor for shutters). Equipped with LED indicator visible from the outside and 6 dip switches for programming.
  • Page 26 Dip-switch Tamper 1 2 3 4 5 6 MAD6 7.4.4 - INSTALLATION Before proceeding with installation, the detector must be programmed on the control unit. MAD1 comprises a sensor (a - fig. 26), a magnet (b - fig. 26), a cover (c - fig. 26), 2 types of support (d/e - fig. 26) and 2 types of spacer (f/g - fig. 26).

  • Page 27: Battery Replacement

    7.4.5 - BATTERY REPLACEMENT Only replace the batteries when signalled by the detector and control unit. Use a 9 V alkaline battery (GP1604A). 01. In the main menu of the touchscreen, touch the icon , scroll through the list with the arrow icon and select 02.
  • Page 28 7.5 - Infra-red detector with volumetric lens (MAD2) 7.5.1 - OPERATION MAD2 signals movement of persons in the protected area; thanks to the directional joint the system avoids detecting the movement of small pets in the protected area. It is also possible to connect an additional detector by cable (e.g. a sensor for shutters) or a mag- netic contact.
  • Page 29 At this point, MAD2 can be programmed on the control unit: 01. In the main menu of the touchscreen, touch the icon , scroll through the list with the arrow icon and select 02. Enter the “ADMINISTRATOR CODE and touch “OK” to confirm. 03.
  • Page 30 7.5.5 - BATTERY REPLACEMENT Only replace the batteries when signalled by the detector and control unit. Use a 9 V alkaline battery (GP1604A). 01. In the main menu of the touchscreen, touch the icon , scroll through the list with the arrow icon and select 02.
  • Page 31 7.6 - Infra-red detector with vertical curtain lens (MAD3) 7.6.1 - OPERATION MAD3 is a detector used for the protection of door or window perimeters. Thanks to the curtain effect lens, it detects the movement of persons located inside its operating radius. It is also possible to connect an additional detector by cable (e.g. a sensor for shut- ters) or a magnetic contact.
  • Page 32 If a second detector is required, connected by cable, see paragraph 7.6.3. At this point, proceed with installation (paragraph 7.6.4). 7.6.3 - CONNECTING A SECOND DETECTOR (BY CABLE) Caution! – Before connecting an additional detector by cable, MAD3 must be programmed on the control unit (see paragraph 7.6.2). Connection of a magnetic contact detector (NC) or a pulse counter detector for shutters: 01.
  • Page 33 7.7 - Detector of glass breakage (MAD4) MAD4 is a detector suitable to detect glass breakage; suitable for normal glass, double glazing or security glazing. The detector is equipped with a microphone calibrated to recognise the sound of breaking glass. It contains an anti- tamper device, and a signalling led visible from the exterior.
  • Page 34 05. Close the box (fig. 47-F); 06. Perform the operation test, by producing a sudden noise in front of the detector (clapping hands or knocking two metal objects together) the led should flash briefly twice. These noises do not trigger the alarm. Caution! – If the LED does not flash after the noise test the battery may be dis- charged or the device may be faulty.

  • Page 35: Special Warnings

    7.8 - Fine combustion powder detector (MAD5) 7.8.1 - SPECIAL WARNINGS Caution! – The detector must not be considered a total protection but simply a support in the protection against combustion risks. The device is not a fire detector and does not comply with any regulations on fire detection. •...
  • Page 36 7.8.5 - TEST The detector is equipped with a test button to verify efficient operation of the detector. Press the button for about 1 second to test the sensor; if it is in good working order the led should flash, the buzzer should emit acoustic tones and the alarm signal should be transmitted.
  • Page 37 7.9 - Flooding detector (MAD6) MAD6 comprises 2 electric contacts which must be positioned at approx. 1 mm from the ground. It must be connected by cable to a compatible detector (e.g. MAD1). In the event of flooding, when the two electric contacts are wet, MAD6 sends a signal to the connected detector, which transmits it via radio to the control unit.
  • Page 38 7.10 - 4-channel radio transmitter (MATX4) 7.10.1 - OPERATION MATX4 uses 64 bit rolling code transmission technology. Each key is factory set with a precise function (Table 7) and some of these can be programmed differently as required. The transmitter is bidirectional, and led L1 (fig. 52) shows the event in progress. Table 7 (fig.
  • Page 39 7.11.1 - OPERATION MATX8 is equipped with 8 keys divided into two groups with different functions: 4 keys (X, Y, Z, W - fig. 54) used for the control of Mhouse alarm sys- tems and 4 keys (1, 2, 3, 4 - fig. 1) used for the control of any automation in the Mhouse range.
  • Page 40 7.12 - Indoor siren (MASI1) 7.12.1 - SPECIAL WARNINGS Install the product in a location difficult to reach, to avoid inadvertent damage, possibly in a location where the sound pro- duced can be propagated to the various other rooms. If necessary, fit additional sirens. 7.12.2 - OPERATION MASI1 signals intrusion with a powerful acoustic alarm.
  • Page 41 7.13 - Outdoor siren via radio (MASO1) 7.13.1 - OPERATION MASO1 signals intrusion with a powerful acoustic alarm. On each alarm command sent by the control unit, it emits an alarm signal last- ing approx. 3 minutes; the alarm signal terminates when the control unit is disarmed. If the siren housing is opened, an alarm signal is activated, lasting approx.

  • Page 42: Recording Voice Messages

    7.13.4 - RECORDING VOICE MESSAGES MASO1 emits the 2 voice messages in two ways; these depend on the type of programming set by the control unit and associated with the siren (see chapter 8 - Further details): 1) pre-alarm signal: voice message MSG1 lasting a maximum of 10 seconds and replacing the siren pre-alarm beeps; the high power siren sound then follows for 3 minutes.
  • Page 43 7.14 - Control keypad (MADS1) 7.14.1 - OPERATION This enables partial or total activation and deactivation of the control unit using one of the ACCESS CODES (5 digits) previously programmed. IMPORTANT! – On MADS1, the ADMINISTRATOR and USER codes cannot be used. Maximum transmission security is guaranteed thanks to encrypting using a Rolling Code system.

  • Page 44: Wall-Mounted Installation

    06. Touch “OK” again and then, on the keypad, press and hold for 10 seconds to generate the emergency or deterrence alarm (the control unit emits a confirmation beep; 3 beeps indicate that the code is already present). 07. Touch “OK” to confirm. 7.14.3 - WALL-MOUNTED INSTALLATION Warning - Install the product in an easily accessible location (for example close to the main entrance).

  • Page 45: Further Details

    (= MSG present). 9 - PRODUCT MAINTENANCE In general devices in the Mhouse alarm system do not require special main- cific indicator for this purpose (see chapter 7 for details). This signal is also sent to the control unit and is displayed on the touchscreen.
  • Page 46 - Sensor dirty: dirt increases the risk caused by humidity. • For all devices in the Mhouse alarm system Virtually all products are fitted with protection against opening and re- moval; this system normally acts on the cover and base of the product. In- adequate fixture or incorrect closure of the covers could cause a tamper alarm signal;...

  • Page 47: Technical Specifications

    12 - TECHNICAL SPECIFICATIONS The kit is produced by Nice S.p.a. (TV) IT, MHOUSE is a company in the group NICE S.p.a. WARNINGS: • All technical specifications specified herein refer to an ambient temperature of 20°C (± 5°C). • NICE S.p.a reserves the right to apply modifications at any time as deemed necessary, while maintaining the same functionality and intended use.
  • Page 48 Keys: 4 in the factory and managed in self-learning mode n Encoding: “Mhouse Alarm” on keys X, Y, Z, W (fig. 1), 64 bit rolling-code, n Radiated power: 1 dBm e.r.p. n Power supply: 3 V; +20% -40%; with 1 lithium battery type CR2032 “Mhouse Automations”...

  • Page 49: Ec Declaration Of Conformity

    EC declaration of conformity Declaration in accordance with Directive 1999/5/EC MACU1, MACU2, MAD1, MAD2, MAD3, MAD4, MAD5, MATX4, MATX8, MADS1, MATS1, MASO1, MASI1 are produced by NICE S.p.a. (TV) I MHOUSE is a commercial brand name of Nice S.p.a Note - The contents of this declaration correspond to declarations in the official document deposited at the registered offices of Nice S.p.a. and in particular to the last revision available before printing this manual.

  • Page 50: Alarm Management

    USER’S GUIDE –– Alarm management –– This section describes the general operation of the control unit and system: operation depends on the devices present and type of settings made during installation. 1 - Activating or deactivating the alarm by remote control •...

  • Page 51: Automation Control

    TABELLA A Listen to ambient noise (interrupts listening if pressed again) Query control unit status: 3 beeps = system activated, 1 beep = system deactivated 0 Q 1 # Total activation: confirmed by 3 beeps 0 Q 2 # Partial activation (zones A+B only): confirmed by 1 long beep 0 Q 0 # Disarming and vocal confirmation: 1 beep Interrupt call cycle...
  • Page 52 TABLE B Note On display Meaning date/time of event date/time of call (name) name of call recipient (stored in PHONE BOOK) alarm ALL VOC voice alarm ADMIN access to menu with administrator code OPEN door/window open BATT battery low CANC deletion Transponder badge access code...
  • Page 53 Cut out the coupon and use as a quick guide to manage your system by telephone Managing the alarm system by telephone Managing the alarm system by telephone Calling the control unit on the PSTN land line Calling the control unit on the PSTN land line 01.
  • Page 54 TABLE TABLE Listen to ambient noise (interrupts listening if Listen to ambient noise (interrupts listening if pressed again) pressed again) Query control unit status: 3 beeps = system Query control unit status: 3 beeps = system activated, 1 beep = system deactivated activated, 1 beep = system deactivated 0 Q 1 # 0 Q 1 #...
  • Page 55 Layout drawing of control unit MACU1/MACU2 to cut out and use for marking wall fixing points (to scale 1:1)
  • Page 57 Layout drawing of siren MASO1 to cut out and use for marking wall fixing points (to scale 1:1)
  • Page 60 Mhouse is a commercial trademark owned by Nice S.p.a. Nice S.p.a. Via Pezza Alta, 13 - Z.I. Rustignè 31046 Oderzo (TV), Italy Tel. +39 0422 20 21 09 Fax +39 0422 85 25 82...
