Related Manuals for Bush Classic WO268
Summary of Contents for Bush Classic WO268
-
Page 1: Instruction Manual

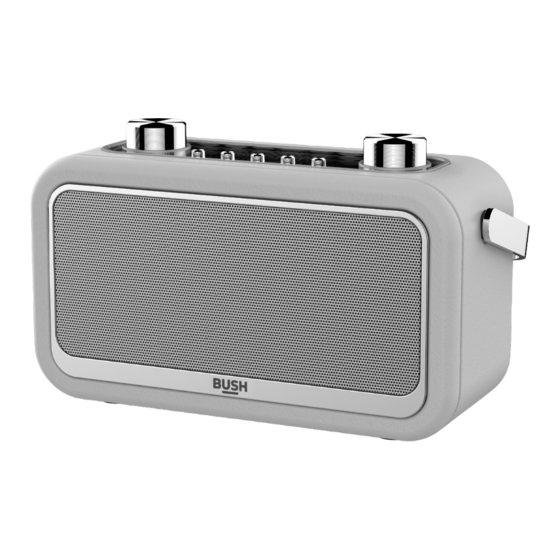

Instruction manual Stereo DAB/FM Radio WO268 Main Image (Position the product image. For further guides on placing product shots, please see pages 30-32 of the Bush Packaging Guidelines) - Page 2 You’ll soon be enjoying your new Stereo DAB/FM Radio. It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started. Help and Guidance We’re here to help you get the most from your Stereo DAB/FM Radio.
-
Page 3: Table Of Contents
Contents Safety information Safety information Getting to know your Stereo DAB/FM Radio Ready? Let’s begin... Power connection Initial set-up Adjusting the volume Time and date Change the mode Using headphones Using your Stereo DAB/FM Radio DAB Radio mode Telescopic aerial Changing DAB stations Scanning for DAB stations Prune DAB stations... - Page 4 Contents Tune to an FM preset station FM display information Setting the alarm Snooze Sleep timer Display backlight timeout Display language Software version Factory reset Other information Technical specification Product support Troubleshooting Help and assistance Guarantee...
- Page 5 This page is left intentionally blank section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021.
- Page 6 This page is left intentionally blank...
-
Page 7: Safety Information
Safety information... -
Page 8: Power Source
Safety information Important - Please read these instructions fully before installing or operating Power source • Only use the power supply that came with the product. Using an unauthorised power supply will invalidate your guarantee and may irrecoverably damage the product. •... -
Page 9: General Safety Information
Safety information Important - Please read these instructions fully before installing or operating Ventilation • Do not block or cover slots, holes or openings on the product by placing on soft furnishings such as carpets, rugs or beds as these are provided for functionality and/or ventilation to ensure safe operation of the product. - Page 10 Safety information Important - Please read these instructions fully before installing or operating • Do not attempt to open the product. This product does not contain any user serviceable parts. Unauthorised handling of the device may damage it and will void your warranty.
- Page 11 This page is left intentionally blank section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021.
- Page 12 This page is left intentionally blank...
-
Page 13: Getting To Know Your Stereo Dab/Fm Radio
Getting to know your Stereo DAB/FM Radio... -
Page 14: Ready? Let's Begin
Getting to know your Stereo DAB/FM Radio You’ll be up and running in no time Ready? Let’s begin... Please read these instructions carefully. They contain important information which will help you get the best from your product and ensure safe and correct installation and operation. - Page 15 Getting to know your Stereo DAB/FM Radio You’ll be up and running in no time Fig 1. Fig 2. 1. Handle 9. Preset 2. Backlit display 10. Scan 3. Tune/Select rotary control 11. Battery compartment. 4. Power on/Standby 4 x 1.5V C-size (LR-14) batteries 5.
-
Page 16: Power Connection
Getting to know your Stereo DAB/FM Radio You’ll be up and running in no time Power connection 1. Connect the mains power lead into the socket on the back of the Radio and fully extend the telescopic aerial in a vertical position to obtain the maximum signal strength. -
Page 17: Adjusting The Volume
Getting to know your Stereo DAB/FM Radio You’ll be up and running in no time Note: The DAB radio station list is stored in the memory and so the next time you switch your radio on, the station search does not take place. It is possible to scan manually for stations by pressing and releasing the Scan button. -
Page 18: Change The Mode
Getting to know your Stereo DAB/FM Radio You’ll be up and running in no time 6. Set date is displayed and the day will flash. Use the Tune control to scroll and press to select the day, month and year, using the same method as you used to set the time. When you confirm the correct date. - Page 19 This page is left intentionally blank section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021.
- Page 20 This page is left intentionally blank...
-
Page 21: Using Your Stereo Dab/Fm Radio
Using your Stereo DAB/FM Radio... -
Page 22: Dab Radio Mode
Using your Stereo DAB/FM Radio Let’s get started DAB Radio mode Check that your radio is in DAB mode. If you are not already in DAB mode, press and release the Mode button to go to DAB mode (check the display). The first time you use the radio or if the station list is empty, your radio will automatically begin to scan for DAB radio stations. -
Page 23: Prune Dab Stations
Using your Stereo DAB/FM Radio Let’s get started If you are not already in DAB mode, press and release the Mode button to go to DAB mode. 1. Press and release the Scan button to begin a search for stations. The display will change to ‘Scanning...’... -
Page 24: Tune To A Dab Preset Station
Using your Stereo DAB/FM Radio Let’s get started 3. Use the Tune/Select rotary control to scroll to the Preset location that you would like to store the radio station to (1-10). 4. Press the Tune/Select rotary control to select, the display will confirm ‘Preset X stored’ , where ‘X’... -
Page 25: Dynamic Range Control (Drc)
Using your Stereo DAB/FM Radio Let’s get started • Signal Strength An empty will appear on the second line of the display to indicate the minimum signal strength for acceptable listening. The row of solid rectangles indicate the actual signal strength that you are receiving. The stronger the signal, the further to the right the row of solid rectangles will be. -
Page 26: Fm Radio Mode
Using your Stereo DAB/FM Radio Let’s get started quietest sounds) of the reproduced audio signal. Changing the dynamic range can affect the ‘loudness’ and/or ‘quality of sound’ of the programme that you hear so that it will be more suited to your listening conditions and your own personal listening requirements. e.g. -
Page 27: Tuning To An Fm Station
Using your Stereo DAB/FM Radio Let’s get started Tuning to an FM station 1. Press and release the Scan button to scan up the frequency band. 2. Press and hold the Scan button to scan down the frequency band. 3. Use the left hand rotary control to fine tune each frequency in 0.05MHz steps, if necessary. -
Page 28: Storing An Fm Station Preset
Using your Stereo DAB/FM Radio Let’s get started Note: You may wish to select ‘Stereo’ if you are listening to your radio using headphones. 1. Press and hold the Menu/Info button until ‘FM <Scan setting>’ is displayed. 2. Use the Tune/Select rotary control to scroll to <Audio setting>. Press the Tune/Select rotary control to select. -
Page 29: Tune To An Fm Preset Station
Using your Stereo DAB/FM Radio Let’s get started Tune to an FM preset station In FM mode: 1. Press and release the Preset button. ‘Preset Recall <1: >’ is displayed and the name or frequency of the station stored there, or ‘(Empty)’ if no previous station has been stored. -
Page 30: Setting The Alarm
Using your Stereo DAB/FM Radio Let’s get started Setting the alarm Note: Check that the radio has the correct time and date before you set an alarm. In DAB or FM mode: 1. Press and hold the Menu/Info button to enter the menu options.. 2. -
Page 31: Snooze
Using your Stereo DAB/FM Radio Let’s get started Note: If you select ‘Once’ , you will then be prompted to set the date for your alarm. 11. Use the Tune/Select rotary control to set the volume for your alarm. Press the rotary Tune/Select control to select. -
Page 32: Sleep Timer
Using your Stereo DAB/FM Radio Let’s get started Turn off the Alarm Follow the steps for ‘Setting an Alarm’ and select ‘Off’ in step 12. Sleep timer You can set your radio to turn off automatically using the sleep timer. You can choose from Sleep off, 15, 30, 45, 60 and 90 minutes. -
Page 33: Display Language
Using your Stereo DAB/FM Radio Let’s get started 3. Use the Tune/Select rotary control to scroll to ‘<Backlight>’ . Press the Tune/Select rotary control to select. 4. ‘<Timeout>’ is displayed. Press the Tune/Select rotary control to select. Use the Tune/ Select rotary control to scroll through the available backlight timeout options of On, 10, 20, 30, 45, 60, 90,120 or 180 seconds. -
Page 34: Factory Reset
Using your Stereo DAB/FM Radio Let’s get started 3. Use the Tune/Select rotary control to scroll to ‘<SW Version>’ . Press the rotary control to select. The software version will be displayed and you may wish to make a note of it here: ................... - Page 35 This page is left intentionally blank section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021.
- Page 36 This page is left intentionally blank...
-
Page 37: Other Information
Other information... -
Page 38: Technical Specification
Other information Helpful technical information Technical specification Power adaptor: Output DC 5V 1.2A Input AC 100-240V 50/60Hz Batteries: 4 x 1.5V C size (LR14) (Optional, not supplied) Output: 2 x 2W RMS Frequency range: DAB: Band III, 174 MHz to 240 MHz 87.5 MHz to 108 MHz Other information... - Page 39 This page is left intentionally blank section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021.
- Page 40 This page is left intentionally blank...
-
Page 41: Product Support
Product support... -
Page 42: Troubleshooting
Product support Help is always at hand Troubleshooting If you are experiencing problems with your radio, there are some quick and easy checks that you can do, which may help to solve the problem. No sound / power: Adjust the volume using the rotary control on your radio. Check that the mains power wall socket is switched on, the power switch on the back of the radio is On and that your radio is not in Standby mode. - Page 43 Product support Help is always at hand Try a reset to factory defaults. See page 36. Note: All of your settings, including the radio station list and any presets will be deleted when you reset the Radio. section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021. Product support...
-
Page 44: Help And Assistance
Product support Help is always at hand Help and assistance If you require any technical guidance or find that your Stereo DAB/FM Radio is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021*. - Page 45 Product support Help is always at hand Disposal • This product should not be treated as normal household waste and it should be recycled. Please take it to your nearest collection facility or for further details contact your local council or visit www.recycle-more.co.uk •...
-
Page 46: Guarantee
Product support Help is always at hand Call us now and activate your 12 month guarantee Thank you for choosing Bush. Your new product is guaranteed against faults and breakdowns for 12 months. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates. - Page 47 This page is left intentionally blank section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021.
- Page 48 Contact: www.argos-support.co.uk Helpline: 0345 600 3021.
