Summary of Contents for EXTRA Computer Pokini F2

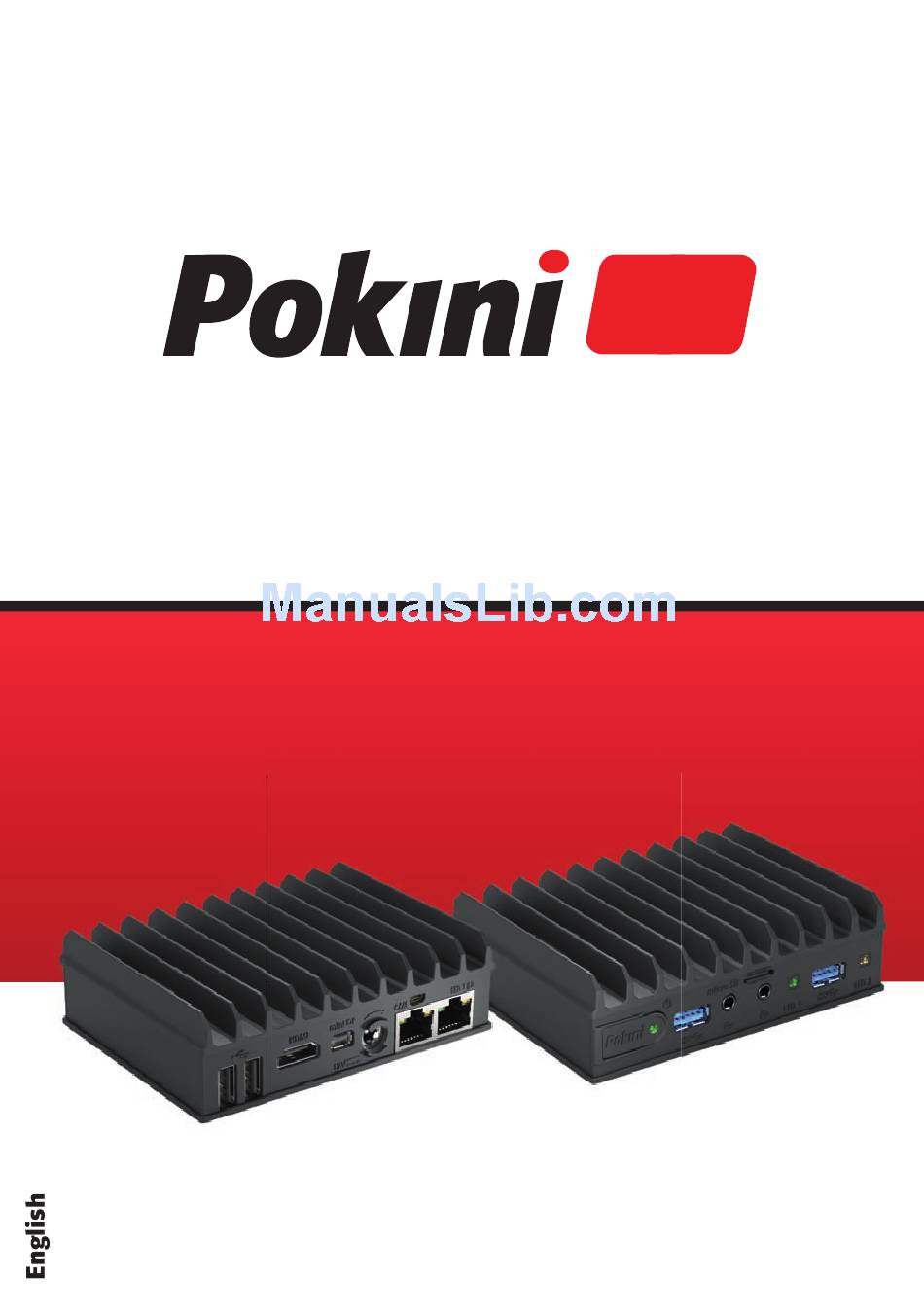

- Page 1 manual...
- Page 2 All rights reserved. Any use of extracts in any form (digital or print) must be approved in writing by EXTRA Computer GmbH. Pokini is a registered trademark of EXTRA Computer GmbH and is subject to copyright protection. This user guide has been prepared and published by:...
-
Page 3: Table Of Contents
Instructions Safety instructions Warrenties Disposal of old equipment CE marking Unpacking and installation Introduction 1.1 Package contents 1.2 Hardware specifications 1.3 Features Quick start guide 2.1 Connecting Pokini F 2.3 Booting Windows Service 3.1 Access to storage, SIM, miniPCIe and battery 3.2 To access RAM BIOS Drivers Support... -
Page 4: Safety Instructions
Safety instructions Please note the following safety instructions before using your new system: The socket, to which your PC is connected, should be protected with a maximum of 16A in the electro-installation. ATTENTION! Your computer contains a lithium battery. Incorrect replacement of the battery may result in a risk of explosion. - Page 5 The mains plug serves as a disconnect point to the supply network (220V). Therefore the socket should be close to the system (max. 1.5 m) and easily accessible. It is recommended to use a socket strip with overvoltage protection Peripheral devices. Please do not place any objects on the power cord and lay it over.
-
Page 6: Disposal Of Old Equipment
This applies in particu- lar to the two EU directives WEEE and RoHs. Since not every manufacturer can register in Germany beyond the national boundaries, EXTRA Computer GmbH has assumed the responsibility for the disposal in cases and registered with the EAR. -
Page 7: Ce Marking
CE marking This device complies with the requirements of the EG Directives: 2014/30/EU „Electromagnetic Compatibility“, 2014/35/EU „Low Voltage Directive“, 2009/125/EC „Ecodesign Directive“ and 2011/65/EU „RoHs Directive“. CE marking for devices with radio components This device complies with the requirements of EC Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications equipment and the mutual recognition of conformity. -
Page 8: Unpacking And Installation
Unpacking and installation ■ Check the contents of the package for any transport damage ■ Match the delivery with your purchase order In the case of transport damage, faulty deliveries or questions, please contact your local Pokini dealer immediately. The original packaging of the equipment should be kept for transport. - Page 9 ■ The device is not waterproof! Never immerse the appliance in the water and protect it from splashing water (rain, sea water). ■ The intended operation of the device is guaranteed only with a fully assembled housing and built-in covers for installation areas (electrical shock, cooling, fire protection, interference suppression).
-
Page 10: Introduction
Introduction 1.1 Package contents Pokini F2 computer 12V DC power supply Power cord with EU & UK adapter HDMI – DVI adapter WiFi-antennas (in Pokini WLAN models) 3.5 mm to RCA cable Mini-serial to DB-9 adapter cable To use Pokini, you need: ■... -
Page 11: Hardware Specifications
1.2 Hardware specifi cations Hardware Intel Apollo Lake (Atom | Celeron | Pentium) Dual-core or quad-core Memory 1x SO-DIMM 204-pin DDR3L SDRAM Bis zu 16GB Non-ECC DDR3L-1866 (1.35V) Storage 1x M.2 M-key 2242 | 2260 Optional eMMC Optional 2.5” HDD | SSD Display &... - Page 12 Software BIOS ? (Phoenix BIOS Unterstützte Bootmedien: USB thumb drive, USB hard disk, Netzwerk) Windows 10 Linux (andere Betriebssysteme können durch den Anwender installiert werden) Operating Conditions case 100% Aluminium / im Druckgussverfahren hergestellt measurement 112 mm x 84 mm x 34 mm weight 350g operating temperature...
-
Page 13: Features
Features miniDP RS232 2x USB 2.0 HDMI Power 2x GB LAN Audio Micro SD 2x USB 3.0 Pokini F has 2x USB 3.0 and 3x USB 2.0 Ports. Serial port RS232 mini-serial ports located on the back panel. Mini-serial to DB9 cable to connect to standard serial devices is supplied in the package... - Page 14 Videosignal The Pokini F2 has 1 HDMI connector and 1 mini-DP connector inclusive audio-support. Using an HDMI-to-DVI cable to run an DVI-display with the Pokini F2. Using an miniDP-to-DP cable to run an DisplayPort-display with the Pokini Audio There are 2 standard 3.5mm jacks on the front panel: Left: ■...
-
Page 15: Quick Start Guide
Quick start guide Connecting Pokini F Turn off the display and connect it to the Pokini HDMI connector ■ (use the HDMI to DVI adapter if needed). ■ Connect the USB keyboard and mouse to USB ports. ■ Plug the speakers in the line-out connector. Plug the Ethernet cable into the Ethernet connector. -
Page 16: Booting Windows
2.2 Booting Windows (for Pokini with Windows pre-installed) Upon first power-up, you will be guided through the Windows Welcome procedure which is selfexplanatory. Service Pokini F has no moving parts and requires no maintenance. The following operations could be done by the user. 3.1 Access to storage, SIM, miniPCIe and battery Open the bottom cover by un- Now Side panels and cover can be screwing 4 philips-head screws. -
Page 17: To Access Ram
3.2 To access SSD The M.2 SSD and the mi- ni-PCIe interface are located on the M.2 cooling plate. Loosen the three screws of the cooling plate and carefully pull the M.2 SSD including the cooling plate out of the interface. 3.3 To access RAM The RAM is located under the top cover of the Pokini... -
Page 18: Bios
Entering BIOS Setup Utility Turn off Pokini F. Turn on while holding down the Del key. Drivers All drivers can be find here: www.pokini.de → Produkte → Pokini F2 → Downloads Support You have technical questions? Please feel free to contact us via E-Mail: support@pokini.de... - Page 20 V 1.0 / 12-2017 Art.-No.: 105078 All rights reserved. © 2017 EXTRA Computer GmbH...
