2-Axis Force Platform
Included Equipment
2-Axis Force Platform
Required Equipment
PASPORT Interface
Optional Equipment
Handle Set
1
Compatible PASPORT interfaces include the Powerlink (PS-2001), Xplorer GLX (PS-2002), USB Link
(PS-2100), and others. See the PASCO catalog, visit www.pasco.com, or contact PASCO tech support for
more information. Xplorer (PS-2000) with firmware version 1.14 or earlier is compatible in computer-based
(non-logging) mode.
Introduction

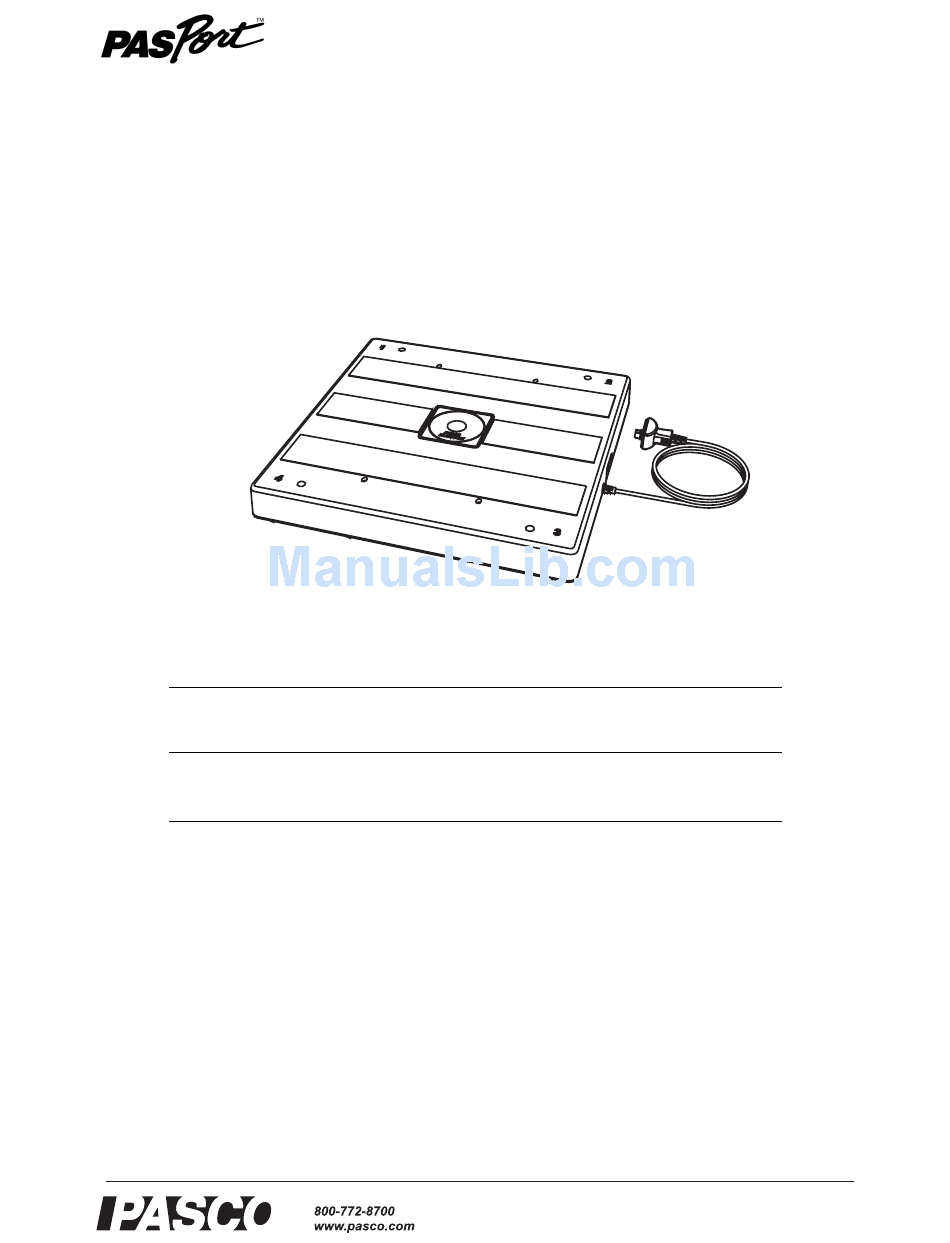

The PASPORT Force Platform, used with a PASPORT interface, continuously measures force applied to it in two
separate directions: normal to its surface (up to 4400 N) and along an axis parallel to its surface (up to 1100 N).
You can use the 2-Axis Force Platform to measure the static forces of a person standing or leaning on it, or the
dynamic vertical forces involved in moving and jumping. It has the measurement range and strength to accom-
modate people of all sizes and the sensitivity to measure smaller forces such as the weight of a ball. Put the plat-
form horizontally on the floor or a tabletop, or mount it vertically on a wall. With the optional handle set, you can
use the platform to measure both "pulling" and "pushing" force.
PS-2142
1
®
Part Number
PS-2142
See PASCO catalog or www.pasco.com
PS-2548
In s t r u c ti on M an u a l
0 1 2 - 0 9 1 1 3B
Advertisement
Summary of Contents for Pasport PS-2142
- Page 1 Introduction The PASPORT Force Platform, used with a PASPORT interface, continuously measures force applied to it in two separate directions: normal to its surface (up to 4400 N) and along an axis parallel to its surface (up to 1100 N).
-
Page 2: How It Works
2 - A x is F o r c e P l a t fo r m H o w It W o r k s How It Works When an object is placed on the platform, it applies a force normal to the platform's surface;... - Page 3 In t e r f a c e a n d S o f tw a r e S e t u p Interface and Software Setup Connect the platform's cable to a PASPORT interface. A green LED on the side of the platform lights to indicate that the unit is powered and ready to take data. Press the tare button to set the output to zero.
- Page 4 2 - A x is F o r c e P l a t fo r m Su g g e s te d A c ti v it ie s Vertical Jumping Stand on the platform and jump vertically. Look at a graph of force versus time to determine your “hang time,”...
- Page 5 M o d e l N o . P S - 2 1 4 2 S u g g e s te d A c ti v it ie s Force Distribution (With Two Platforms) Place two 2-Axis Force Platforms on the floor, and place two parallel boards (as pic- tured) to act as a bridge.
-
Page 6: Specifications
Trademarks PASCO, PASCO scientific, DataStudio, PASPORT, Xplorer and Xplorer GLX are trademarks or registered trademarks of PASCO sci- entific, in the United States and/or in other countries. All other brands, products, or service names are or may be trademarks or ser- vice marks of, and are used to identify, products or services of, their respective owners.
