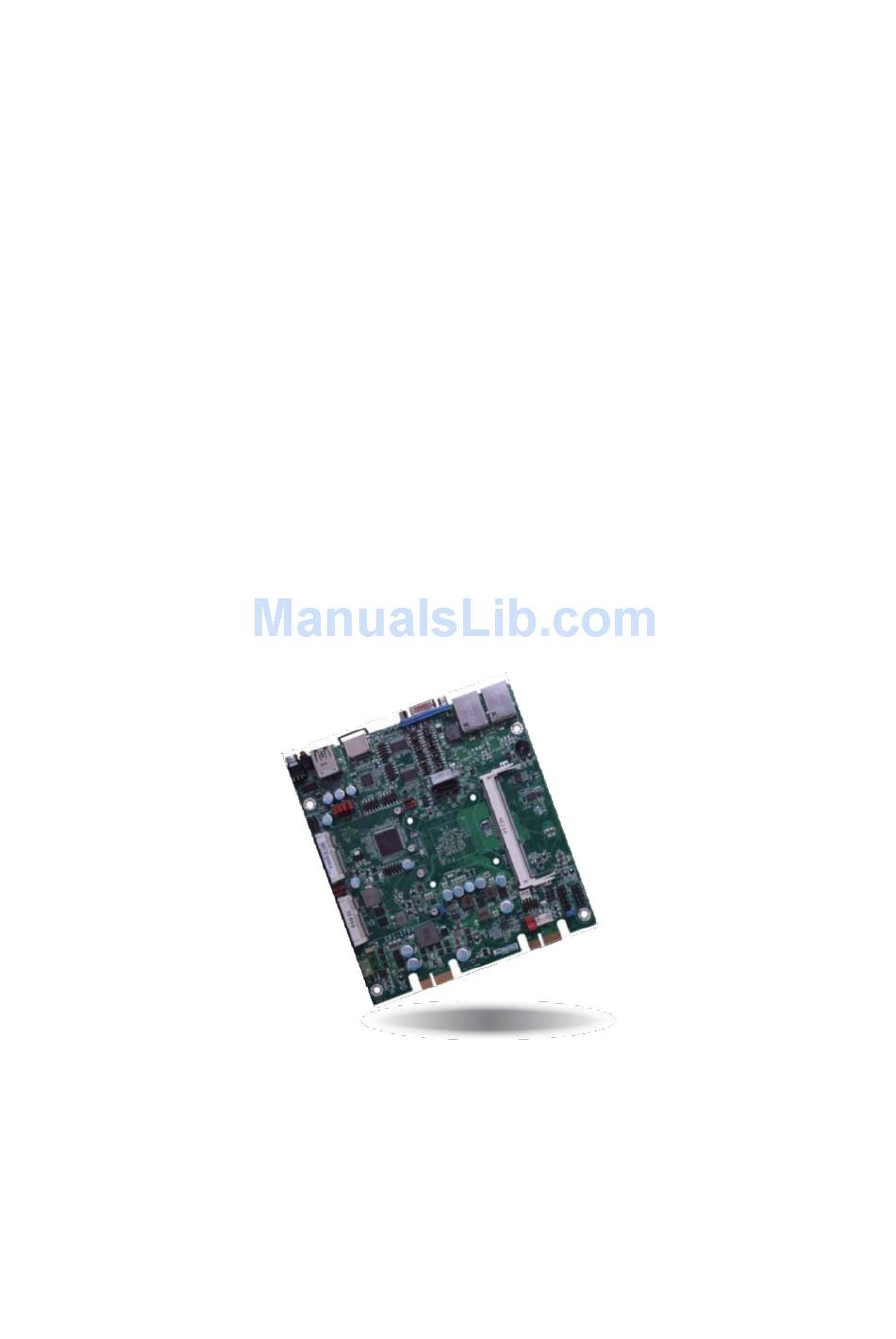

Page 1 EPI-I707 User’s Manual...
Page 2 Copyright The documentation and the software included with this product are copy- righted 2006 by ShenZhen JHC Technology Co., Ltd. All rights are reserved. ShenZhen JHC Technology Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice.
Page 3 Product Warranty (2 years) JHC warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by JHC, or which have been subject to misuse, abuse, accident or improper installation.
Page 4: Declaration Of Conformity
Declaration of Conformity This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from JHC. Please contact your local supplier for ordering information. Test conditions for passing included the equipment being operated within an industrial enclosure.
Page 5: Table Of Contents
Contents General Information ......................1 Introduction ....................... 2 Features ......................3 Specifications ....................3 1.3.1 General ....................3 1.3.2 Display ....................4 1.3.3 Ethernet ...................... 4 1.3.4 Power Consumption ................... 4 1.3.5 Power Requirement ..................4 1.4 Environmental Specifications ................4 1.5 Mechanical Specifications ..................
Page 6 3.5 Boot ........................33 3.5.1 Legacy ...................... 34 3.6 Exit ........................36 Driver Installation ......................37 4.1 Follow the sequence below to install the drivers: ..........38 4.2 Installation: ......................38 Watchdog Sample Code ....................39...
Page 7: General Information
General Information...
Page 8: Introduction
1.1 Introduction processor N2807: Processor • Intel ® Celeron ® Intel ® Celeron ® N2807, Dual Core, 1M Cache, up to 2.16GHz, 4.3W • BGA 1170 packaging technology • 22nm process technology • NCT6106/4Eh Super I/O Address System Memory • One 204-pin DDR3L SODIMM socket - up to 4GB system memory - single channel memory interface •...
Page 9: Features
Energy Efficient • Supports ErP Lot6 power saving Design • Supports ACPI • System Power Management • Wake-On-Events include: - Wake-On-USB KB/Mouse - Wake-On-LAN - RTC timer to power-on the system • AC power failure recovery Damage Free • Monitors CPU/system temperature and overheat alarm Intelligence •...
Page 10: Display
Serial Ports: – 2x RS-232, 2 x RS-232/422/485 DIO: – 8 bit DIO USB: – 4 x USB 2.0 compliant Ports ,1xUSB3.0 compliant port. Expansion Interface: Support up to 1 x full size Mini-PCIe Storage: – Supports 1 xmSATA – SATA: Support 4 x 3.5”...
Page 11: Mechanical Specifications
Vibration loading during operation: – With SSD/mSATA: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis Shock during operation: – With SSD/mSATA: 30 G, IEC 60068-2-64, half sine, 11 ms duration EMC: CE, FCC Class A 1.5 Mechanical Specifications EPI-I707 Dimensions:...
Page 13: Hardware Installation
Hardware Installation...
Page 14: Introduction
2.2 Jumpers and connectors 2.2.1 Setting Jumpers You can configure your EPI-I707 to match the needs of your application by setting the jumpers. A jumper is the simplest kind of electrical switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.
Page 15 Jumpers Jumper Name Description CMOS RAM Clear Function Setting 3-Pin Block USB power select 3-Pin Block USB power select 3-Pin Block USB power select 3-Pin Block USB power select 3-Pin Block JP10 DIO power Select 3-Pin Block JP11 DIO 4-7 output state 3-Pin Block JP12 DIO 0-3 output state...
Page 16: Jp2: Clear Cmos
Headers Header Name Description Front Audio Front panel audio header 9-pin block Front Panel Front Panel header 11-pin block USB2_3 USB header 5-pin block USB2_5 USB2_6/7 USB header 9-pin block COM1/COM2/ Serial port headers 9-pin block COM3/COM4 DIO Power DIO Power header 4-Pin block 2.3.1 JP2: Clear CMOS If you encounter the following,...
Page 17: Jp6/7/8/9 Usb Power Select
2.3.2 JP6/7/8/9 USB Power Select JP6, JP7, JP8 and JP9 are used to select the power of the USB ports. Selecting +5V_standby will allow you to use a USB device to wake up the system. Important: If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the+5V_standby power source of your power supply must support ≥1.5A.
Page 18: Com 1/Com 2 Rs232/422/485 Select
2.3.3 COM 1/COM 2 RS232/422/485 Select These jumpers allow you to configure the Serial COM ports to RS232, RS422 (Full Duplex) or RS485. JP14, JP15 and JP17 are used to configure the Serial COM port 1. JP18, JP19 and JP21 are used to configure the Serial COM port 2. The pin functions of Serial COM ports 1 and 2 will vary according to these jumpers’...
Page 20: Com 1/Com 4 Rs232/Power Select
2.3.4 COM 1/COM 4 RS232/Power Select JP16 (for COM 1) and JP20 (for COM 4) are used to configure the Serial COM ports to pure RS232 or RS232 with power. 2.3.5 Digital I/O Power Select...
Page 21: Digital I/O Output State
JP10 is used to select the power of DIO (Digital I/O) signal. 2.3.6 Digital I/O Output State Based on the power level of DIO (Digital I/O) selected on JP10, JP12 (DIO pin 0-3) and JP11 (DIO pin 4-7) are used to select the state of DIO output: pull high or pull low. When...
Page 22: Auto Power-On Select
selecting pull high, the power selection will be the same as JP10’s setting. 2.3.7 Auto Power-on Select JP22 is used to select the method of powering on the system. If you want the system to power-on whenever AC power comes in, set JP22 pins 2 and 3 to On. If you want to use the power button, set pins 1 and 2 to On.
Page 23: Front Panel Connector
The 8-bit Digital I/O connector provides powering-on function to external devices that are connected to the connector. 2.4.2 Front Panel Connector...
Page 24 HDD-LED - HDD LED This LED will light when the hard drive is being accessed. RESET-SW - Reset Switch This switch allows you to reboot without having to power off the system. PWR-BTN - Power Switch This switch is used to power on or off the system. PWR-LED - Power/Standby LED When the system’s power is on, this LED will light.
Page 25: Front Audio Connector
2.4.3 Front Audio Connector The front audio connector allows you to connect to the second line-out and mic-in jacks that are at the front panel of your system. 2.4.4 mini PCI-E Connectors Mini PCIe Slots The Mini PCI Express slots on the system board are used to install a half and/or full size Mini PCIe card such as network cards or other cards that comply to the mini PCI Express specifica- tions into the mini PCI Express slots.
Page 26: Sim Card
2.4.5 SIM Card...
Page 27: Cooling Fan Connectors
The SIM card socket on the system board is used to insert a SIM card. 2.4.6 Cooling Fan Connectors The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airflow throughout the chassis to prevent overheating the CPU and system board components.
Page 28: Dc-In 12~24V
2.4.8 DC-IN 12~24V This jack provides maximum of 100W power and is considered a low power solution. Connect a DC power cord to this jack. Use a power adapter with 12~24V DC output voltage. Using a voltage higher than the recommended one may fail to boot the system or cause damage to the system board.
Page 29: I/O Indication
2.5 I/O indication Rear view The rear panel I/O ports consist of the following: •2 RJ45 LAN ports •1 VGA port •1 HDMI port •1 USB 2.0 port...
Page 30 •1 USB 3.0 port •1 HDD LED •1 power LED •1 power button...
Page 31: Bios Setup
BIOS Setup...
Page 32 Overview The BIOS ROM stores the BIOS setup data. Even when the CMOS battery fails, the setup data still retains in the BIOS ROM. It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to enter the BIOS setup to modify the correct system time which is counted by the RTC clock and recorded in CMOS.
Page 33: Main
Submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. Insyde BIOS Setup Utility 3.1 Main The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Page 34: Advanced
3.2 Advanced The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. 3.2.1 Boot Configuration This section is used to configure Boot settings.
Page 35: Pci Express Configuration
Numlock Select the Numlock state: Power-on or Power-off. 3.2.2 PCI Express Configuration This section configures settings relevant to PCI Express root ports. PCI Express Root Port 1 to PCI Express Root Port 4...
Page 36: Miscellaneous Configuration
This field controls the function of the PCI Express Root Port. PCI Express Root Port This field is used to enable or disable the PCI Express Root Port. PCIE Port Speed Select the speed of the PCI Express Root Port: Auto, Gen1 or Gen2. 3.2.3 Miscellaneous Configuration This section enables or disables Misc.
Page 37: Security
State After G3 Specify what state to go to when the power is re-applied after a power failure occurs. (G3 state) Always Power On When power returns after an AC power failure, the system will automatically power-on. Always Power Off When power returns after an AC power failure, the system’s power is off.
Page 38: Power
3.4 Power 3.4.1 Advanced CPU Control This section controls various CPU parameters. Turbo Mode Enable the processor turbo mode and it also requires EMTTM enabled.
Page 39: Boot
3.5 Boot Boot Type Select the boot type. The options are Dual Boot Type, Legacy Boot Type or UEFI Boot Type. Network Stack Enable or disable the Network Stack supporting Windows 8 BitLocker Unlock, UEFI IPv4/IPv6 PXE, and Legacy PXE OpROM. USB Boot Enable or disable the booting for USB boot devices.
Page 40: Legacy
Disabled If the boot for the default device fails, it will pop the warning message then going the firmware UI. 3.5.1 Legacy The section configures settings relevant to the Legacy boot order. Normal Boot Menu Select the boot menu: Normal Boot Option Priority or Advanced Boot Option Priority. Boot Type Order This field is used to change the boot type order.
Page 41 This field is used to enable or disable the booting for USB boot devices.
Page 42: Exit
3.6 Exit Exit Saving Changes Select this field and then press <Enter> to exit the system setup and save your changes. Save Change without Exit Select this field and then press <Enter> to save your changes without exiting the system. Exit Discarding Changes Select this field and then press <Enter>to exit the system setup without saving your changes.
Page 43: Driver Installation
Installation Driver...
Page 44: Follow The Sequence Below To Install The Drivers
The EPI-I707 comes with a CD-ROM that contains all drivers and utilities that meet your needs. 4.1 Follow the sequence below to install the drivers: Step 1 – Install Chipset Driver Step 2 – Install VGA Driver Step 3 – Install LAN Driver Step 4 –...
Page 45: Watchdog Sample Code
Watchdog Sample Code...
Page 46 ; Software programming example: ;--------------------------------------------- ;(1) Enter Super IO Configuration mode ;--------------------------------------------- MOV DX,4EH MOV AL,87H OUT DX,AL OUT DX,AL ;------------------------------------------------------------------------------------------- ;(2) Configuration Logical Device 8, register CRF0/CRF1 (WDT Control/WDT timer) ;------------------------------------------------------------------------------------------- DX,4EH AL,07H ;Ready to Program Logical Device DX,AL DX,4FH AL,08H ;Select Logical Device 8...
