Summary of Contents for DIGITALas D-EyE

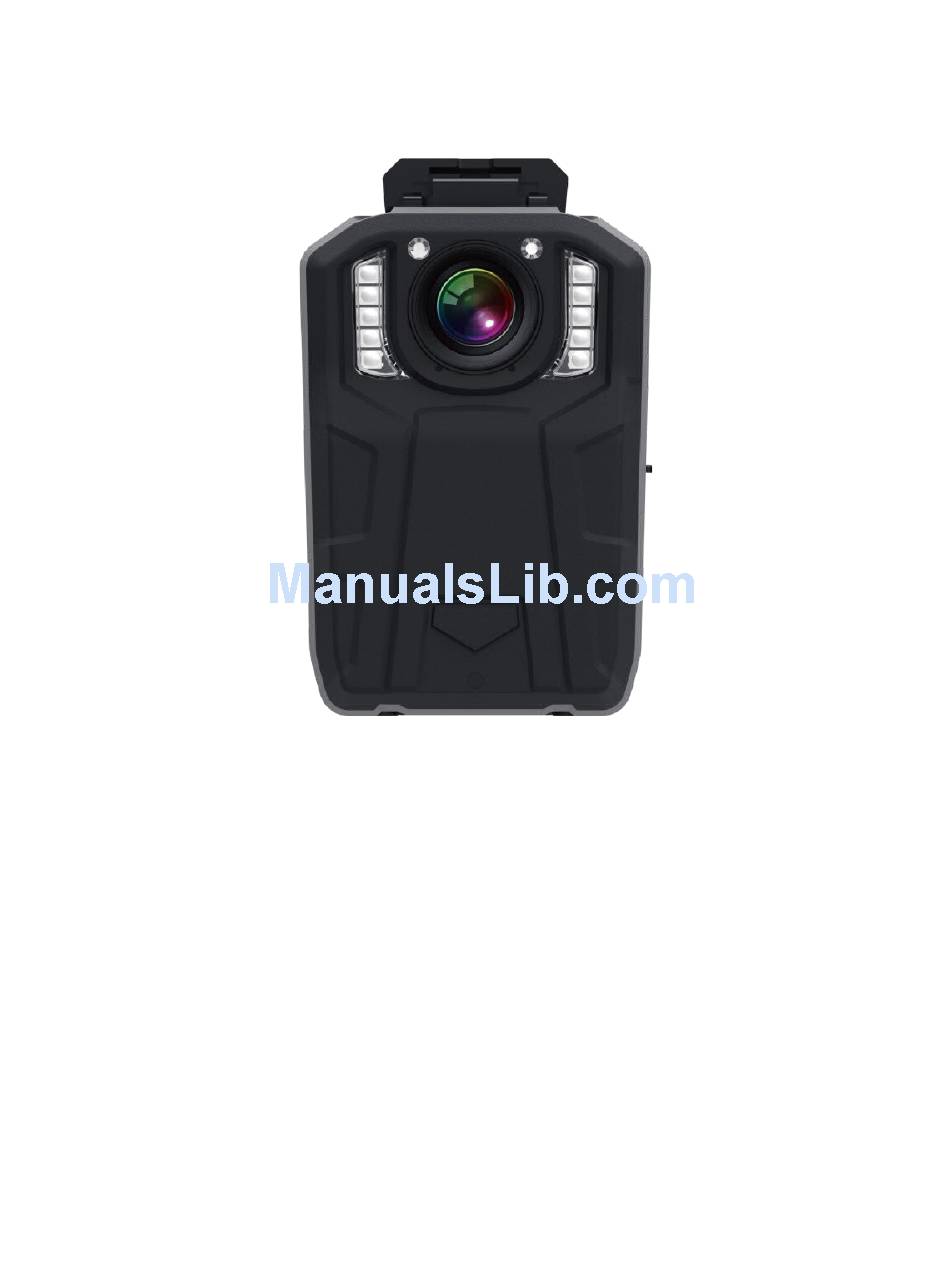

- Page 1 Single-Police law enforcement video and audio recorder D-EyE 3x1 body camera Product manual VER 2.0...
- Page 2 Foreword Thank you for choosing our company's law enforcement recorder. Please read this m anual carefully before using it. Please keep this manual carefully so that you can inqu ire when necessary. The final interpretation of the contents of this manual is owned by the Company and i s subject to change without notice.
-
Page 3: Description Of Key Function
-1- Description of key function... - Page 4 -2- Introduction of key Name Icon Method Effect Short In the shutdown state, short press has no effect; Power press In the boot state, the on / off screen saver function screen saver Long Press and hold for 3 seconds to turn on / off. keypad press Short...
-
Page 5: Functions And Characteristics
Short press to turn on / off the laser light (laser light is optional); Short After the local picture is zoomed in, the short press has the function of moving press laser light to the left. mark Long Voice / recording state, long press to add yellow five-star, mark this paragraph press recording / video as the key document. -
Page 6: Main Characteristics
Alarm function n, Number, product number, more legitimate interests; Long file name technology, including shooting time, police number, Product number, easy to search and level management; Password protection, with special software can set the password, unauthorized personnel can not tamper with and delete files;... - Page 7 5.2 Audio Recording After start on machine,will enter standby preview state.press “voice key” to start audio recording,machine short vibration twice,top yellow indicator light will long bright,on the machine screen prompts a recording state image,press the "voice key" again in the audio recording mode, will stop it and save the audio file. 5.3 Video recording After start on machine,will enter standby preview state.press “video key”...
- Page 8 5.11 Picture playback In the standby mode, press the "Local Play" button to enter the playback menu, select "Photo" to enter the photo playback mode, press the "up, down" button to select the photo to see, press the "OK" button to open the current choice to view the photo.When you set the slide in the system settings to "On", you can automatically play the photo in turn.
- Page 9 6.2 Video quality Video quality options are"high, good, normal" t. The default video quality is "high”. 6.3 Image size 36M、33M、16M、12M、8M、5M、3M”seven options,from 3 megapixels to 36 megapixels. The default “ pixel is "33M". 6.4 Picture quality There are three options“High、good normal”.The default photo quality is "high". 6.5 Burst photo shooting There are six options "turn off, 5, 10, 15, 20, 25"...
- Page 10 6.6 Time-operated camera There are six options "off, 3 seconds, 5 seconds, 10 seconds, 30 seconds, 60 seconds" . After setting 3 seconds , press the camera button, the machine automatically take a photo every 3 seconds, then press the camera button to close.
- Page 11 6.10 System time System time includes "year / month / day time", as long as the machine does not lose power, the system time will not change. The system time can return to the default time after power failure, can also be set to the current time.
- Page 12 6.14 Motion detection There are four options "off, low, medium and high" . When the machine is not moving, boot and then open the video button, when there is no moving objects in front of the camera , the machine keeps to prepared recorded , when there are moving objects, it starts recording automatically .It stops recording and save automatically at static state.
- Page 13 6.18 Automatic shutdown There are four options "off, 3 minutes, 5 minutes, 10 minutes" . Automatic shutdown means that the machine is turned off when there is not any operation. The default auto power off is "10 minutes". 6.19 Slideshow There are two options "off or open"...
- Page 14 6.22 Loop recording There are two options “off or on”.When the memory is full during recording and can no longer continue to save the recording, you can open the loop recording settings, the system will automatically delete the first five minutes recorded files, then continue to record.
-
Page 15: Software Installation And Use
6.26 Language You can choose “Simplified Chinese or English”.The default language is "English". -7- Software installation and use 1. Suggested that quit the anti-virus software from your computer before the installation, then confirm the system of the computer. The software compatible with Windows98/2000/XP/Windows7/8/10 etc. Under Win system you need put a patch before installation, Win8 or over Win8 need set “Disable driver forced digital signature”. - Page 16 3. Double click install,according to the guide,Click the "next" software to automatically install,picture show as below: 4. Click the “next” will appear Following interface, click ”finish” to finish the installation. 5. After click “Next”3 times,Software will appear automatically install surface,waiting a few seconds,Click again “Next”,after 5 times of “Next”...
- Page 17 PC software Log in----backstage management. Connect the police camera to the computer. The machine will “on” automatically, the double click the shortcut on your computer desk,then will appear the following surface:(The latest version is V1.09 version, showing as top left corner)
- Page 18 8. Initial password：000000 Customer type can be divided into:manager and domestic consumer Manager:Can manage all surface, can operate settings of machine “time,machine NO. and Number of police officers, modify login password,document function” etc. Domestic consumer:Just can read the U disk. Searching file, and operation of select upload path ,other settings will be displayed as gray.
- Page 19 11. Click “Yes” to enter U disk. Can find the removable disc from your computer, then can check the file of the machine. 12. Click to choose the upload path,can set the upload path of the machine. 13. Finishing the setting of path. Must confirm the path is OK before you upload the file, then click Search file, into the Search File.then click Search, Select All, Upload.
- Page 20 At the same time will remind delete the file inside the machine or not. Click “Yes” will delete, Click “No” will continue to have in the machine after you upload the file. 15. Click “Yes”! The file will uploaded to the path which you setted,After finished it,please click Yes to finish the operation of uploading.
- Page 21 -8- Common trouble shooting and solving Trouble phenomena Trouble diagnosis Trouble shooting running down of battery Full charge 3.5 hours Machine protection After press reset button,to reboot. Machine can not boot Using USB communication line to connect machine Machine protection computer,Several times plug...
