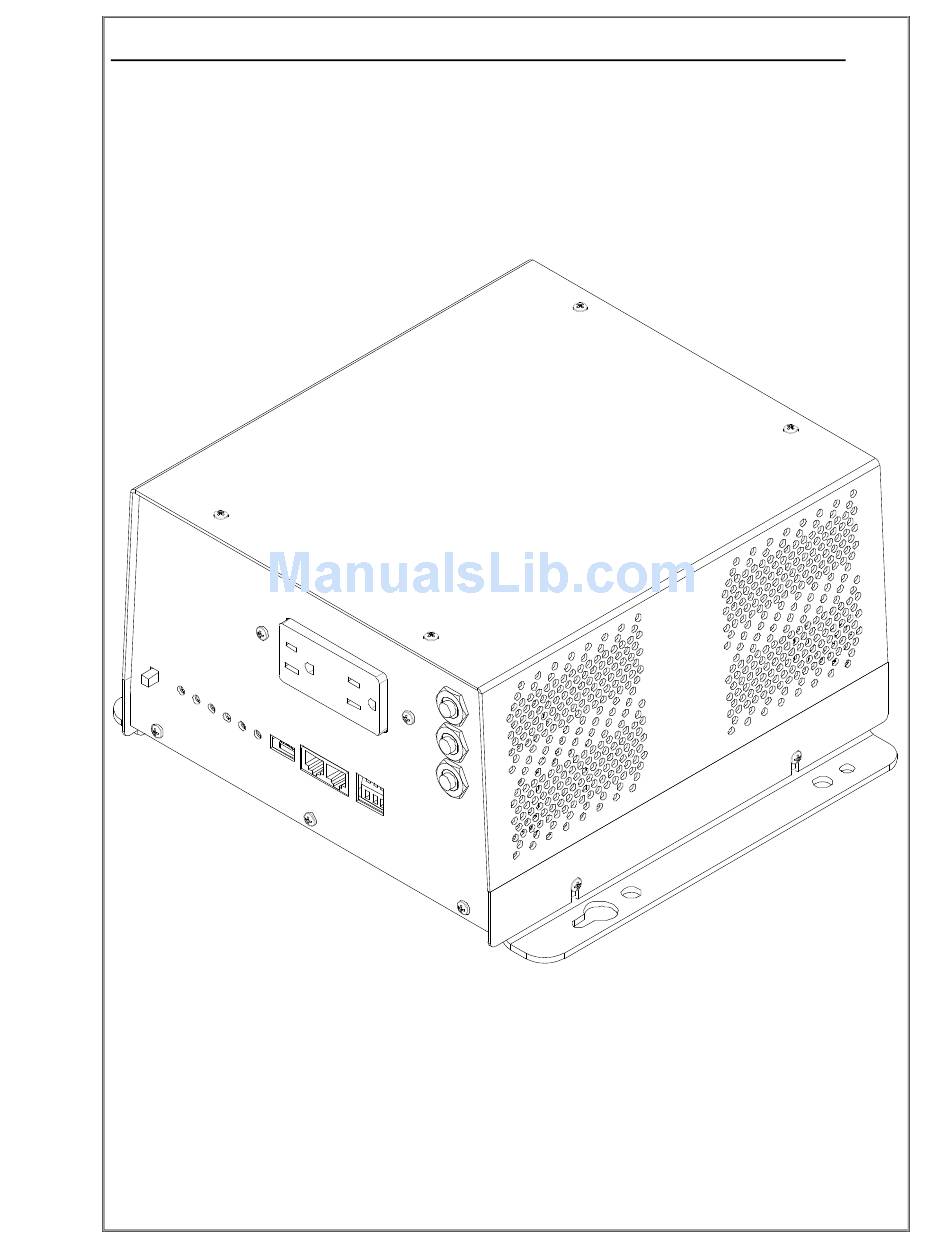

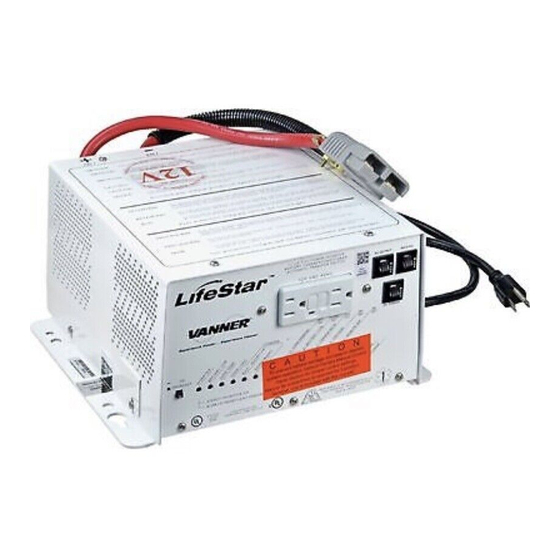

- Page 1 VANNER Owner’s Manual Incorporated LifeStar Ambulance Power Module Model 20-1050CUL-DC 20-1000TUL-DC LifeStar Owner’s Manual - 1 -...
-
Page 2: Table Of Contents
VANNER Owner’s Manual Incorporated Table of Contents Table of Contents ....................2 Section 1 : General Installation Diagram ..............3 Section 2 : Introduction ...................4 Section 3. Functionality ..................4 Inverter Function ....................4 Battery Charger ....................5 DC Power Output ....................5 Section 4: Specifications ..................6 Unpacking the Ambulance Power Module ............7... -
Page 3: Section 1 : General Installation Diagram
VANNER Owner’s Manual Incorporated Section 1 : General Installation Diagram LifeStar Owner’s Manual - 3 -... -
Page 4: Section 2: Introduction
Incorporated Section 2: Introduction Thank you for purchasing a Vanner Ambulance Power Module for your emergency vehicle. We are confident you will be satisfied with its performance. Vanner products are designed and manufactured by skilled professionals using the highest standards in workmanship, guaranteeing excellent performance and reliability for your emergency vehicle. -
Page 5: Battery Charger
VANNER Owner’s Manual Incorporated Battery Charger The 20-1050CUL-DC Battery Charger's superior design incorporates a multi-stage charger. This design enables the unit to automatically charge batteries, maintaining the battery's integrity and reducing the likelihood of premature failure. * Bulk Absorption Charge Mode While in the Bulk Charge mode, the unit continuously charges at a constant current of 55 Amps (high setting) this is the factory setting, or 15.0 Amps (low setting) The unit will charge until battery voltage... -
Page 6: Section 4: Specifications
VANNER Owner’s Manual Incorporated Section 4: Specifications Inverter 20-1050CUL-DC 20-1000TUL-DC Output at 120 VAC RMS (Continuous Power Rating) 1050 Watts Surge Capacity at 120 VAC (3 sec) 2100 Watts Input Voltage, VDC 12 VDC, Nominal (Deep Cycle Battery Recommended) 10.5 VDC min, 16.0 VDC max. -
Page 7: Unpacking The Ambulance Power Module
7. Connect DC Power Source terminal to DC loads Connect the output from the DC Power terminal on the front panel of the Inverter to equipment locations on the vehicle, 20Adc max. Max wire size is 12AWG, use the supplied “Vanner” screwdriver for this terminal. - Page 8 10. Select the charging rate. (20-1050CUL-DC only) In the high position, the output capability is 55 Amps. In the low position, it is 15 Amps. Vanner recommends the high position for all installations. The low charge rate can be used if there are NO additional DC loads on the vehicle.
-
Page 9: Inverter Lamp Description
VANNER Owner’s Manual Incorporated Inverter Lamp Description Inverter Light Action Description Steady Green Light Inverter in On and Operating. Inverter circuit is in Stand-by, Shore power is On and supplying AC power to the Single Blink Green Light AC loads. The Inverter will turn On and supply the load if shore power is lost. -
Page 10: Section 6: Installing The Inverter And Charger Remote Status Display Panels
VANNER Owner’s Manual Incorporated Section 6: Installing the Inverter and Charger Remote Status Display Panels Ø 0.110 (#35 Drill Bit) Hole (2 PLCS) Ø 1.875 (1 7/8) Hole Fault CHARGE INDICATOR POWER INVERTER 2.22 3.015 AC ON/ Fault Fault Maint. Charge 1.11... -
Page 11: Section 7: Operating The 20-1050Cul-Dc Ambulance Power Module
VANNER Owner’s Manual Incorporated Section 7: Operating the 20-1050CUL-DC Ambulance Power Module Use the following instructions to operate the 20-1050CUL-DC Inverter. Step 1: Install the 20-1050CUL-DC Unit. Completely install the inverter and charger using the instructions provided in Section 2 of this manual. -
Page 12: Section 8: Troubleshooting The 20-1050Cul-Dc
Incorporated Section 8: Troubleshooting the 20-1050CUL-DC The following are the most common questions heard by Vanner service professionals. If your situation does not apply to the following categories, please contact your local Vanner Inc Distributor. Vanner Inc Customer Service: 1-800-AC-POWER All of the LED’s on the front panel blink one at a time, in sequence. - Page 13 VANNER Owner’s Manual Incorporated Notes: LifeStar Owner’s Manual - 13 -...
- Page 14 VANNER Owner’s Manual Incorporated Vanner Incorporated 4282 Reynolds Drive Hilliard, Ohio 43026 1-800-AC POWER (1-800-227-6937) Tel: 614-771-2718 Fax: 614-771-4904 www.vanner.com e-mail: pwrsales@vanner.com Part Number D914588-H 8-4-2017 Printed in U.S.A. LifeStar Owner’s Manual - 14 -...
