Summary of Contents for David Clark A99-14CRG
-
Page 1: User Manual

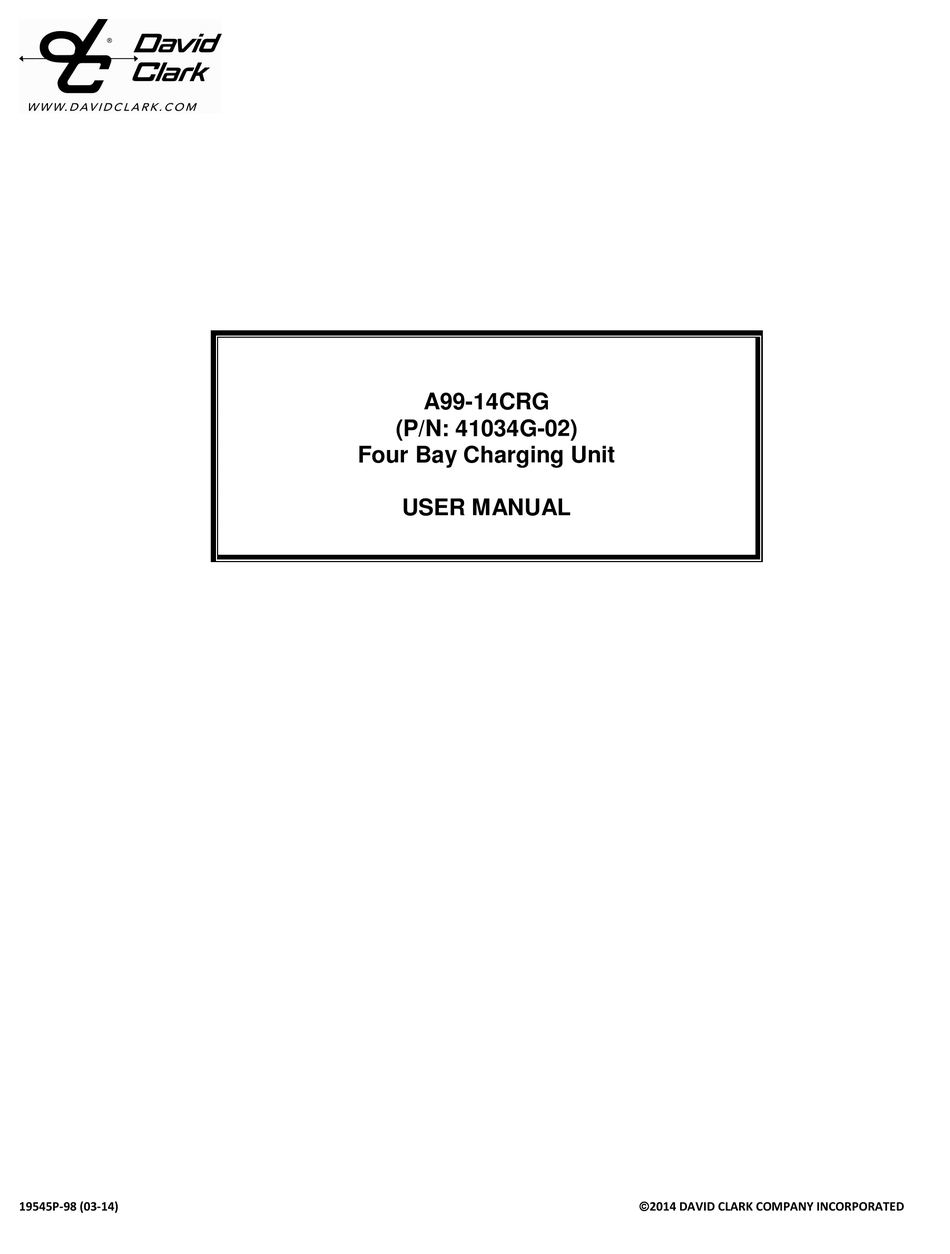

A99-14CRG (P/N: 41034G-02) Four Bay Charging Unit USER MANUAL 19545P-98 (03-14) 2014 DAVID CLARK COMPANY INCORPORATED... - Page 3 APPEARS DAMAGED. Upon unpacking your David Clark product, inspect the contents for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify your David Clark product supplier. ELECTRICAL HAZARD - Disconnect electrical power when making any internal adjustments or repairs.
- Page 4 Charge status is indicated by a multi-color LED next to each battery bay. The A99-14CRG is designed for home or office use only and is not intended to be used outside or anywhere excessive moisture or temperature extremes may exist.
- Page 5 Mounting Options The included mounting kit provides two methods of mounting the A99-14CRG. The rubber feet can be used for portable/desk use. The mounting brackets can be used for permanent installation. See Figure 2. Figure 2 Operation CAUTION! Use only David Clark supplied power adapters with this device. The charger will not function with other power adapters and damage to the charger may occur.
- Page 6 5. To remove batteries a. Disengage battery holder from top of battery b. Pull straight up as shown in Figure 4. Figure 4 Charge Cycle A completely discharged battery will come to a full charge in approximately 3 – 4 hours. There are three charge states indicated below in Table 1.
- Page 7 Each battery has a thermistor inside it which allows the A99-14CRG to monitor the temperature of the battery at all times. In addition, the A99-14CRG has a thermal monitoring device on the circuit board. Together these devices ensure that safe conditions are maintained throughout the charging process.
- Page 8 Troubleshooting • No Status LED No battery inserted into bay • Battery inserted incorrectly (see Figure 1) • Power Supply not connected to charger • Line cord not connected to power supply • Line cord not connected to AC mains •...
