Summary of Contents for SERVOSPOT 575

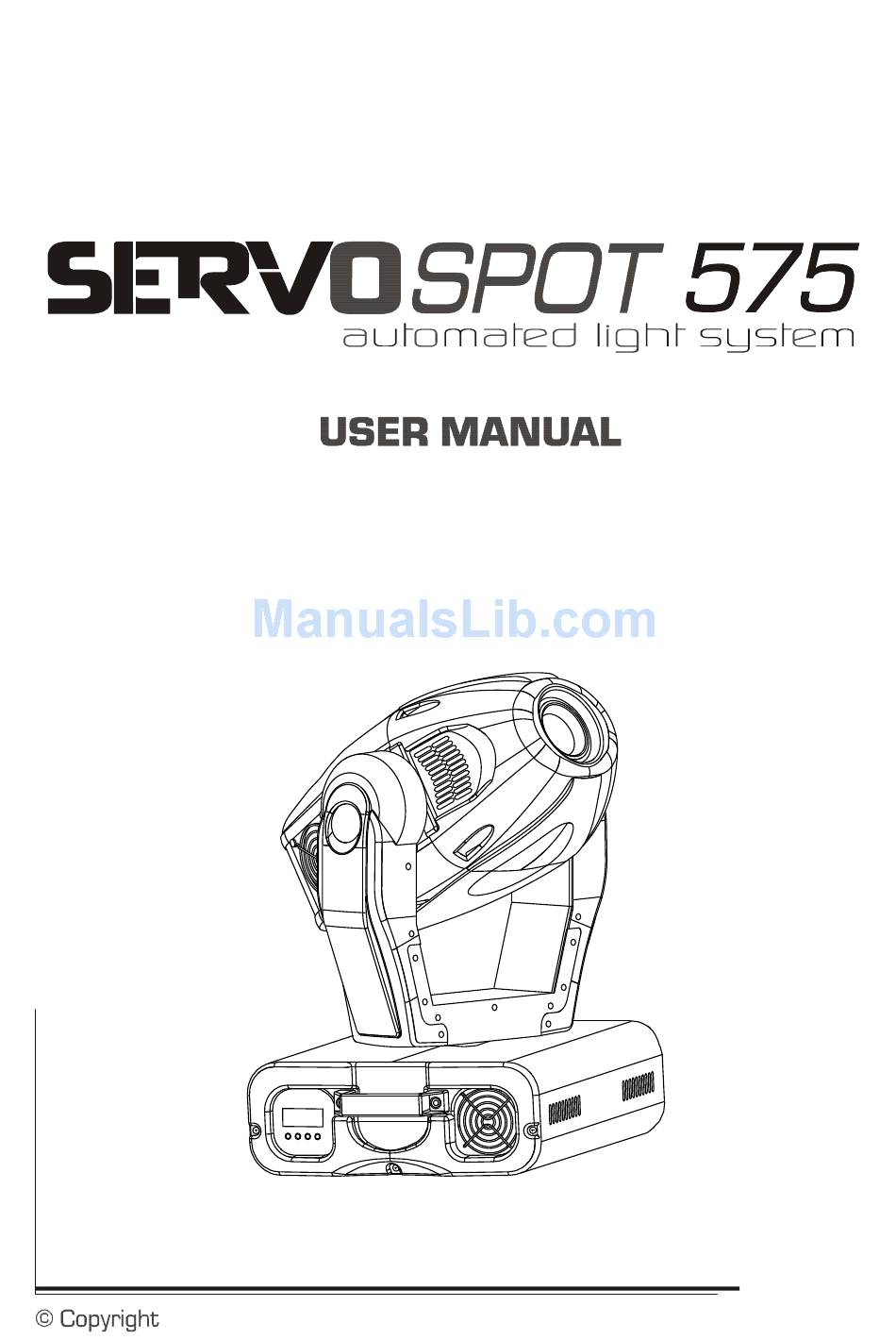

  • Page 1 Version 1.0...

  • Page 3: Table Of Contents

    Table of contents 1. Safety instructions ......................3 2. Operating determinations ..................... 4 3. Description of the device ....................5 4. Installation ........................6 4.1Fitting the lamp ......................6 4.2 Lamp adjustment: ...................... 7 4.3 Inserting/Exchanging rotating gobos ................. 7 4.4 Rigging the fixture .....................

  • Page 4: Safety Instructions

    CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START - UP! 1. Safety instructions Every person involved with installation and maintenance of this device have to: - be qualilfied - follow the instructions of this manual Caution ! Be careful with your operations.

  • Page 5: Operating Determinations

    2. Operating determinations This device is a moving-head spot for creating decorative effects and was designed for indoor use only. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

  • Page 6: Description Of The Device

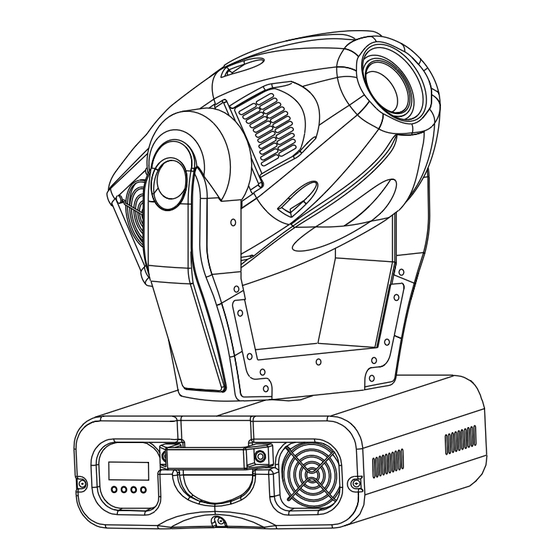

    3. Description of the device 1 - Moving head 2 - Yoke 3 - Carrying handles 4 - Base Rear panel: 5 - Power switch 6 - DMX output 7 - DMX input 8 - Power cord 9 - Fuse holder Front panel: 10 - Mode-button 11 - Enter-button...

  • Page 7: Installation

    Unplug from mains before ! To insert the lamp OSRAM HSR 575/2 95V/575W GX-9,5 or PHILIPS MSR 575/2 95V/575W GX-9,5 , MSD 575 95V/575W GX-9,5 loosen the lamp cover at the rear of head (see the drawings ) by remowing the 3 fastening screws which are marked "X,Y,Z".Carefully pull out the cover with the lamp socket assembly.If changing the...

  • Page 8: Lamp Adjustment

    4.2 Lamp adjustment: 3 adjustment screws "A,B,C" The ServoSpot 575 lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may improve light performance. Strike the lamp,open the shutter and the iris,set the dimmer intensity onto 100% and focus the light on a flat surface (wall).Center a hot-spot(the brightest part of the image) by using the 3 adjustment screws "A,B,C".Turn...

  • Page 9: Rigging The Fixture

    Make sure that the device is fixed properly! Ensure that the structure (truss) to which you are attaching the fixtures is secure. The ServoSpot 575 can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics (see the drawing).

  • Page 10: Connection To The Mains

    4.5 Connection to the mains Connect the fixture to the mains with the enclosed power-plug. The earth has to be connected! The occupation of the connection-cables is as follows: Cable International Brown Live Blue Neutral Yellow/Green Earth 4.6 DMX-512 connection/connection between fixtures The wires must not come into contact with each other, otherwise the fixtures will not work at all, or will not work properly.

  • Page 11: Dmx Protocol

    5. DMX PROTOCOL Channel Channel Value Function Type of control 16 bit 8 bit 0-255 Pan movement by 530° proportional Pan fine 0-255 Fine control of pan movement proportional Tilt 0-255 Tilt movement by 280° proportional Tilt fine 0-255 Fine control of tilt movement proportional Speed of PAN/TILT movement Max.
  • Page 12 Channel Channel Value Function Type of control 16 bit 8 bit 120-127 White step 128-255 Enable macro color function on channel 7 step 3-facet prism rotatin control,Prism macros Open position (no prism) step 1- 63 Forwards rotation from fast to slow proportional No rotation step...
  • Page 13 Channel Channel Value Function Type of control 16 bit 8 bit Rotating gobo index,rotating gobo rotation 0-127 Gobo indexing proportional 128-190 Forwards gobo rotation from fast to slow proportional 191-192 No rotation step 193-255 Backwards gobo rotation from slow to fast proportional Iris Open...

  • Page 14: Addressing

    The ServoSpot 575 is run with a PHILIPS MSD 575,MSR 575/2 or OSRAM HSR 575/2 lamp. A relay inside of the ServoSpot 575 allows you to switch On and Off the lamp via itself control board on the front panel of base or via your controller without affecting the rest of the lighting.

  • Page 15: Rotating Gobo Wheel

    7.10 Fan The ServoSpot 575 is cooled by three axial fans - two in the projector head and one in the base. The speed of the fan (and of course the noise) can be continuously reduced if very quiet performance is required.
  • Page 16 [Enter]-button. Power On time By this option you can read the total number of hours that the ServoSpot 575 has been powered On. Press [Enter] or [Mode] to return to the main menu. Switch On/Off the lamp Use the [Up] and [Down] keys to select "On"...

  • Page 17: Spec - Special Functions

    "Mod2" uses all ServoSpot 575 functions and therefore is good for a complete introduction of the fixture. Reset Function Press [Enter] key to run reset. This option enables the ServoSpot 575 to index all effects (functions) and return to their standard positions.
  • Page 18 Manual control of effects This function allows you to control manually the channel functions of the fixture. Use the [Up] and [Down] keys to select desired function and press [Enter] to adjust the effect or [Mode] to cancel and return to the menu. Lamp On automatically This menu allows you to turn the lamp On after switching the fixture On and switch On/Off the lamp light sensor.
  • Page 19 DMX values Readout DMX values of each channel received by the fixture. Use the [Up] and [Down] keys to select desired channel and press [Enter] to read its value coming to the fixture or [Mode] to cancel and return to the menu. Display adjusting This function allows you to adjust the display settings: Display intensity...
  • Page 20 PAN/TILT feedback This function allows to return the mowing head to the required position after changing the position by external force (e.g.by stroke). Use the [Up] and [Down] keys to select "On" if you wish to anable this function or "Off" if you wish not to return the mowing head to the required position and press [Enter] to confirm or [Mode] to cancel and return to the menu.
  • Page 21 ServoSpot 575 automatically switch from low to high the fan speed. continuous controlling of the fan speed without the DMX value This mode is similar to "reG", but the initial level of fan speed can´t be adjusted by the DMX.
  • Page 22 Adjusting the default positions of colour, gobo and effect wheels By this function you can calibrate and adjust the colour and gobo wheels to their standard/right positions. Use the [Up] and [Down] keys to browse through the adjusting menu - the display shows step by step these messages: "PAn, Tilt, SPEd, Col1, Col2, PriS, SGob, rGob, Grot, IriS, Foc, Stro, dimr, FCAL"...

  • Page 23: Error And Information Messages

    The message will appear on the display if the lamp doesn't ignite within 28 seconds. The ServoSpot 575 will store this information and automatically ignite the lamp when the 5 minutes period has expired. Caution: The message is disabled if the lamp light sensor (function "EnSn") is switched Off (only if the lamp was turned Off and On within 5 minutes,the message "HEAt"...

  • Page 24: Technical Specifications

    US-model:......100/115/208/230V AC, 50/60Hz ~ Fuse:........T 10A@115V Power consumption:..900 VA Lamp: -OSRAM HSR 575/2 95V/575W GX-9,5 750h ; PHILIPS MSR 575/2 95V/575W GX-9,5 750h or MSD 575 95V/575W GX-9,5 2000h Optical System: - High luminous-efficiency parabolic reflector, focus lens and multistep zoom lenses system(15°,18°,22°...
  • Page 25 Colours: Colour wheel 1: - 9 dichroic colour-filters plus white,colour-wheel with variable rotation speed in both directions Colour wheel 2: - 6 dichroic-colour filters,colour temperature filters 3200 K and 5600 K,UV filter plus white Static gobos: - 9 static metal-gobos plus an open position - static gobo wheel cont.
  • Page 26 Channel 11: Rotating gobos Channel 12: Gobo rotation, gobo indexing Channel 13: Iris Channel 14: Focus,multistep zoom Channel 15: Shutter, strobe Channel 16: Dimmer Pan/Tilt: -Pan movement range 530° -Tilt movement range 280° -8/16 bit movement resolution -Automatic Pan / Tilt position correction -Maximum PAN-movement 530°...

  • Page 27: Maintenance And Cleaning

    4) Replace the fuseholder in the housing and fix it. 12. Appendix We believe you will enjoy your ServoSpot 575. We assure you will enjoy this product for years if you follow the instructions given in this manual. If you have any questions and comments, please do not hesitate to contact us.
