User Manual TL-DA14-HD 1x4 HDMI Splitter & Distribution Amplifier All Rights Reserved Version: TL-DA14-HD_160926... - Page 2 TL-DA14-HD User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only; the actual product may vary. This manual is only for operation instruction only and not for any maintenance or repair.
-
Page 3: Safety Precautions
TL-DA14-HD User Manual SAFETY PRECAUTIONS To insure proper operation, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
TL-DA14-HD User Manual Contents 1. Introduction ......................... 1 1.1 Introduction to TL-DA14-HD ................1 1.2 Features ......................1 1.3 Package List ......................1 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 3. System Connection ...................... 4 3.1 Usage Precautions .................... -
Page 5: Introduction

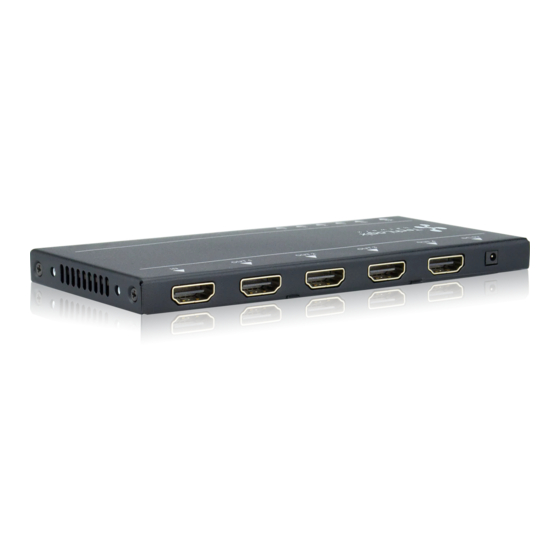

1. Introduction 1.1 Introduction to TL-DA14-HD The TL-DA14-HD is a 1x4 splitter featuring the capability to repeat HDMI or DVI source to two displays simultaneously. Compliant with HDMI 1.4 and HDCP 1.4, the TL-DA14-HD provides comprehensive resolution capacities up to 4K@30 and 1080p with 3D. -
Page 6: Panel Description
TL-DA14-HD User Manual 2. Panel Description 2.1 Front Panel FIRMWARE ① ② ③ ④ Name Description Power Illuminates red when properly powered on ① indicator Indicates the HDCP encryption status of the input signal Ø Iluminates green when the input signal is HDCP encrypted Input HDCP ②... -
Page 7: Rear Panel
TL-DA14-HD User Manual 2.2 Rear Panel ① ② ③ Name Description HDMI input port. Connects with an HDMI or DVI source device ① such as a DVD player or set top box. HDMI output ports. Connects to HDMI displays, automatically ②... -
Page 8: System Connection
Step2. Connect HDMI displays to the HDMI OUTPUT sockets of TL-DA14-HD with high-quality HDMI cables. Step3. Connect the DC 5V power adapter to the power port of TL-DA14-HD. Note: All the ports support hot-plug. Please note that hot plugging a display may result in screen splashing at the output ends. -
Page 9: Edid Management
(detecting from output 1 - 4). For example: when output 1 connects with a 1080p display, the TL-DA14-HD will select 1080p as output resolution and distribute 1080p signal to displays connected to output 1 - 4. -
Page 10: Specification
TL-DA14-HD User Manual 4. Specification I/O Connections HDMI Input One(1) HDMI Type A receptacle HDMI Outputs Four (4) HDMI Type A receptacle One (1) 2.35 mm outside diameter, 0.7 mm inside DC 5V Power diameter barrel (EIAJ-1) Firmware Update One (1) mini USB type B receptacle... -
Page 11: Supported Input Video Formats
TL-DA14-HD User Manual Power, ESD, Regulatory 3.6W Maximum Power Consumption 5V at 1A Power Supply 15KV ESD Protection CE, FCC Regulatory Other Standard Warranty 3 Year 1 Power, 1 Input status, 4 Output connection Indicators status Installation guide, Power adaptor, Mounting “L”... -
Page 12: Panel Drawing
TL-DA14-HD User Manual 5. Panel Drawing www.tlnetworx.com... -
Page 13: Troubleshooting & Maintenance
Static becomes stronger Check the grounding and when connecting the video Bad grounding make sure it is connected connectors well. If your problem persists after following the above troubleshooting steps, please contact your authorized reseller or TechLogix technical support. www.tlnetworx.com... -
Page 14: After-Sales Service
No certificate or invoice as the proof of warranty l Damage caused by force majeure l Non-authorized service 3) Technical Support: When contacting TechLogix support, please have the following information available: l Product part number l Installation and sale date l Detailed failure information www.tlnetworx.com...
