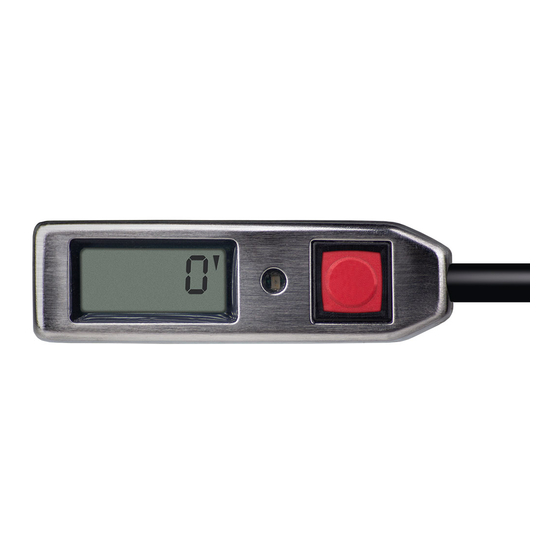

CYPRES 2 User Manual

Automatic activation device which meets all needs, requirements, and desires of today‘s skydivers
Hide thumbs Also See for 2:

Advertisement

Quick Links

Download this manual See also: Quick Manual
This English user's guide is the original us -
er's guide. It will not be further processed. The ac-
tual version of the manual can be downloaded at
w w w. c y p r e s . c c T h e l a t e s t r e v i s i o n i s a p p l i -
cable for all herein mentioned CYPRES 2 mod-
els only and replaces and supercedes all previous
applicable revisions*. See www.cypres.cc to verify /
obtain the latest revision. Subject to change without notice.
CYPRES 2 User Guide as revised 01 / 2017 Art.No. 991002.
*If your CYPRES does not have the latest upgrades / updates
installed it is possible that your unit does not have all options
available, which are stated in the newest English user's guide.
Dieses Handbuch ist in Deutsch erhältlich.
Ce manuel est disponible en français.
Dit Handboek is ook in het Nederlands verkrijgbar.
Este manual está disponivel em Português.
Este manual está disponible en español.
Questo manuale è disponibile in italiano.
Ez a kézikönyv magyar nyelven kapható.
Tento manual je k dostání v èeštinì.
Ta instrukcja jest dotstêpna w jêzyku polskim.
Эта инструкция имеется на русском языке.
Türkçe kullanici el kätabi bulunmaktadir.
このマニュアルは英語版もあります。
.
提供中文版说明书
‫ھﺬا اﻟﺪﻟﯿﻞ اﻟﺘﺸﻐﯿﻠﻲ ﻣﺘﻮﻓﺮ ﺑﺎﻟﻠﻐﺔ اﻟﻌﺮﺑﯿﺔ‬
CYPRES 2 User's Guide
CYPRES 2
- english version -
Reliability made in Germany
Congratulations on your choice of CYPRES, the
safest and most accurate AAD currently available.
Like most skydivers, you probably assume you will
always have time to deploy your reserve canopy
yourself, and that situations requiring the use of
an automatic activation device always happen
to others. We do hope you will never have such
trouble, and that your CYPRES will never have to
try to save your life.
Should CYPRES ever decide to cut your reserve
closing loop, it will most likely happen at a moment
which, no matter how experienced and cautious
you are, justifies that you haven't left your safety
to chance.
Airtec GmbH & Co. KG Safety Systems
- CYPRES 2 User's Guide -
page 1
