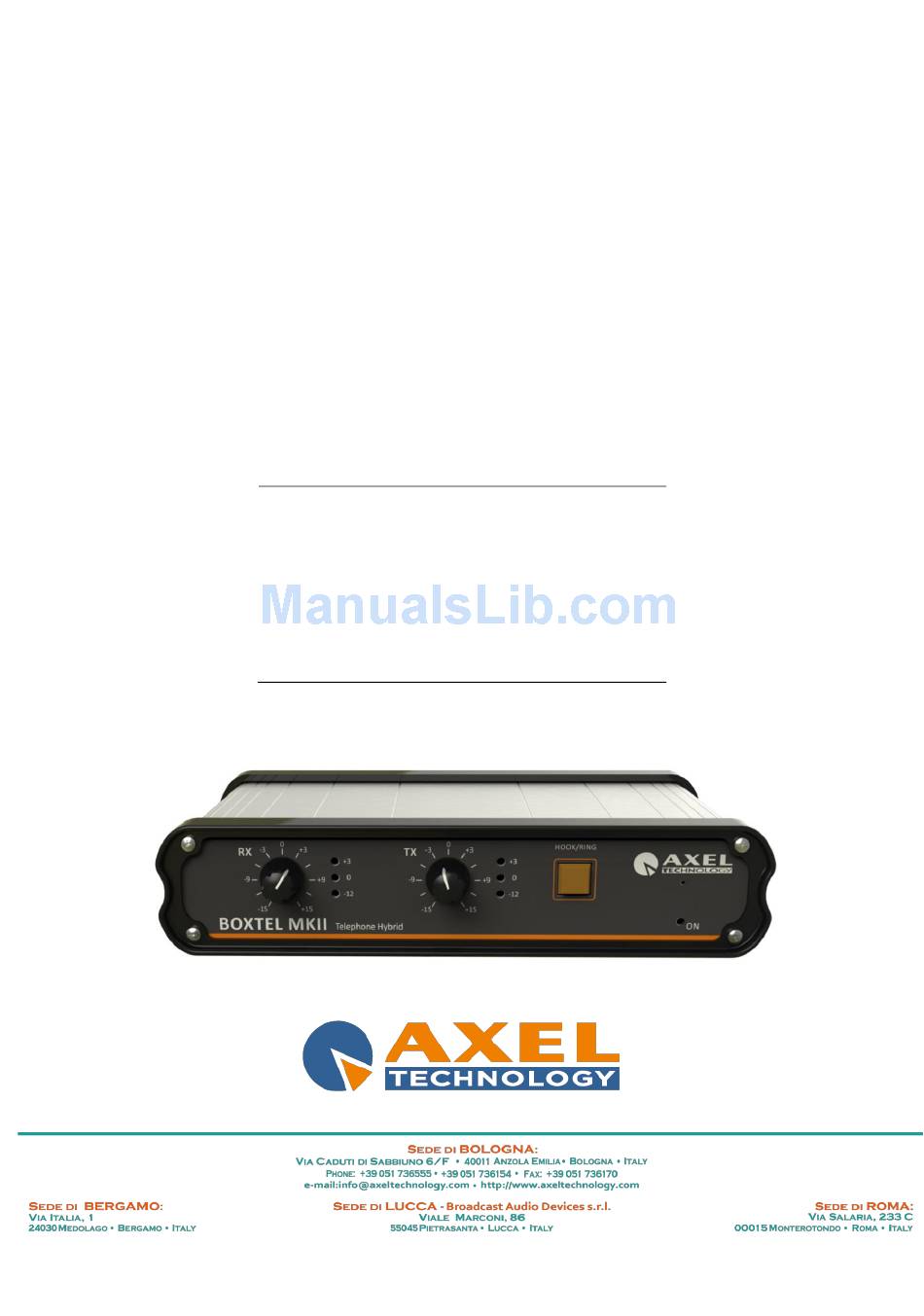

- Page 1 BoxTel MKII BoxTel MKII GSM User Manual Compact telephone hybrid, one PSTN/POTS or one GSM line (1.3 ENG)
-
Page 2: Table Of Contents
CONNECTION OF BOXTEL MKII WITH BROADCAST CONSOLE ..............25 12.5 AUDIO CONNECTION TO BOXTEL MKII WITHOUT BROADCAST CONSOLE ..........26 12.6 CONNECTION OF BOXTEL MKII GSM WITH BROADCAST CONSOLE ............27 12.7 CONNECTION OF BOXTEL MKII GSM WITH NON-BROADCAST CONSOLE ..........28 12.8 CONNECTION OF BOXTEL MKII TO A DIGITAL OR VOIP -1 LINE .............. -
Page 3: Introduction
1.2 USE OF THIS MANUAL This manual is for the BoxTel MKII and BoxTel MKII GSM products. The manual is common to both devices as the BoxTel MKII GSM product is directly derived from the BoxTel MKII with the addition of a Gateway GSM DualBand device that converts a Wireless line (GSM DualBand) into a POTS/PSTN telephone line. -
Page 4: Description

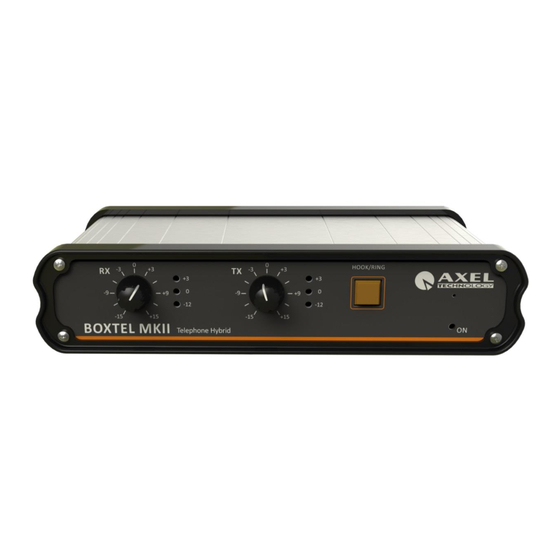

2 DESCRIPTION BoxTel MKII BoxTel MKII GSM COMPACT TELEPHONE HYBRID REL2.4 HIGHLIGHTS 1. Compact telephone hybrid 2. management of a POTS/PSTN telephone line or GSM DualBand line 3. Control and display of the Send/Receive audio levels 4. Backlit Hook/Ring key 5. -
Page 5: General Features
The backlit Hook/Ring key on the front panel offers a fast management of the call; each time a call reaches the BoxTel MKII or BoxTel MKII GSM the Hook/Ring flashes, and when pressed the call is hooked and the light stays on for the entire period in which the call is hooked. BoxTel MKII features Line Detecting, that switches on the Hook/Ring key only when it detects a telephone line. -
Page 6: Front Panel
TEL.LINE: RJ11C telephone connector for the telephone line TEL.SET: RJ11C telephone connector for the external telephone OUTPUT: Male XLR connector for audio output INPUT: female XLR connector for audio input REMOTE CONTROL: SubD 9p female connector for remote control BOXTEL MKII GSM | DESCRIPTION... -
Page 7: Safety Warnings / Istruzioni Per La Sicurezza
3 SAFETY WARNINGS / ISTRUZIONI PER LA SICUREZZA SAFETY WARNINGS CONSIGNES DE SÉCURITÉ IMPORTANTES ISTRUZIONI IMPORTANTI PER LA SICUREZZA WICHTIGE SICHERHEITSHINWEISE INSTRUCCIONES IMPORTANTES DE SEGURIDAD (Rel. 1.5) 3.1 FOREWORD For your own safety and to avoid invalidation of the warranty all text marked with these Warning Symbols should be read carefully. -
Page 8: Safety Warnings
SAFETY WARNINGS The installation and servicing instructions in this manual are for use by qualified personnel only. Read All Instructions. All safety and operating instructions must be read before operating the product. They also must be retained for future reference, as it contains a number of useful hints for determining the best combination of equipment settings for Yr particular application. -
Page 9: Consignes De Sécurité Importantes
CONSIGNES DE SÉCURITÉ IMPORTANTES Lire ces consignes Conserver ces consignes Observer tous les avertissements Suivre toutes les consignes Ne pas utiliser cet appareil à proximité de l’eau Ne pas obstruer les ouvertures de ventilation. Installer en respectant les consignes du fabricant Ne pas installer à... -
Page 10: Istruzioni Importanti Per La Sicurezza
6 ISTRUZIONI IMPORTANTI PER LA SICUREZZA Leggere le presenti istruzioni Conservare queste istruzioni Osservare tutte le avvertenze Seguire scrupolosamente tutte le istruzioni Non usare questo apparecchio in prossimità di acqua Non ostruire alcuna apertura per il raffreddamento. Installare l’apparecchio seguendo le istruzioni Non installare l'apparecchio accanto a fonti di calore quali radiatori, aperture per l'afflusso di aria calda, forni o altri apparecchi (amplificatori inclusi) che generino calore Non rimuovere il terminale di connessione a terra sul cordone di alimentazione: esso ha lo scopo di tutelare... -
Page 11: Wichtige Sicherheitshinweise
7 WICHTIGE SICHERHEITSHINWEISE Diese Hinweise LESEN Diese Hinweise AUFHEBEN Alle Warnhinweise BEACHTEN Alle Anweisungen BEFOLGEN Dieses Gerät NICHT in der Nähe von Wasser verwenden KEINE Lüftungsöffnungen verdecken. Gemäß den Anweisungen des Herstellers einbauen Nicht in der Nähe von Wärmequellen, wie Heizkörpern, Raumheizungen, Herden oder anderen Geräten (einschließlich Verstärkern) installieren, die Wärme erzeugen Die Schutzfunktion des Schukosteckers NICHT umgehen. - Page 12 Inpoliger Netzschalter. In Notfälle oder für Wartungsarbeiten Netzkabel trennen. Der Netzstecker fungiert auch als Trennelement muss deshalb zugänglich bleiben | WICHTIGE SICHERHEITSHINWEISE...
-
Page 13: Instrucciones Importantes De Seguridad
8 INSTRUCCIONES IMPORTANTES DE SEGURIDAD LEA estas instrucciones CONSERVE estas instrucciones PRESTE ATENCION a todas las advertencias. SIGA todas las instrucciones NO utilice este aparato cerca del agua NO obstruya ninguna de las aberturas de ventilación. Instálese según lo indicado en las instrucciones del fabricante No instale el aparato cerca de fuentes de calor tales como radiadores, registros de calefacción, estufas u otros aparatos (incluyendo amplificadores) que produzcan calor... - Page 14 El interruptor de alimentación es unipolar. En el caso de peligro, desconecte el cable de alimentación. Porque la clavija de conexion a red sirve por la desconection de la unidad, la clavija debe ser ubicada en proximidad de la unidad | INSTRUCCIONES IMPORTANTES DE SEGURIDAD...
-
Page 15: Unpacking And Inspection
UNPACKING AND INSPECTION 9 UNPACKING AND INSPECTION Your equipment was packed carefully at the factory in a container designed to protect the unit during shipment. Nevertheless, we recommend making a careful inspection of the shipping carton and the contents for any signs of physical damage. -
Page 16: First Installation Recommendations
FIRST INSTALLATION RECOMMENDATIONS 10 FIRST INSTALLATION RECOMMENDATIONS 10.1 POWER SUPPLY CABLE A power supply cable of approx. 2 mt length is supplied with the device, which has a moulded IEC plug attached – this is a legal requirement. The type of plug for the power supply depends on the country in which it is delivered. If for any reason, you need to use this appliance with a different plug, you should use the following wiring guidelines in replacing the exsisting plug with the new one: Earth... -
Page 17: Fuse Replacement
FIRST INSTALLATION RECOMMENDATIONS 10.1 FUSE REPLACEMENT The power supply socket has an integral fuse drawer containing the AC power fuse and a spare, both of the same value. BEFORE REPLACING THE POWER FUSE, MAKE SURE YOU HAVE THE RIGHT TYPE OF FUSE FOR THE VOLTAGE TO BE PROTECTED. - Page 18 FIRST INSTALLATION RECOMMENDATIONS Replace the fuse located at the internal position with the same retarded 500 mA Perform the set-up under static control conditions. Static charges are likely to completely destroy one or more of the CMOS semiconductors employed in the unit. Static damage will not be covered under warranty.
-
Page 19: Protection Against Lightning
FIRST INSTALLATION RECOMMENDATIONS 10.2 PROTECTION AGAINST LIGHTNING Should the device be put out of action due to being struck by lightning or excess voltage, disconnect it from the power supply without delay. Do not reconnect until the device has been checked. If in doubt contact the technical support service. -
Page 20: Boxtel Mkii General Description
BOXTEL MKII GENERAL DESCRIPTION 11 BOXTEL MKII GENERAL DESCRIPTION 11.1 BOXTEL MKII BLOCK DIAGRAM | BOXTEL MKII GENERAL DESCRIPTION... -
Page 21: Boxtel Mkii Front Panel
BOXTEL MKII GENERAL DESCRIPTION 11.2 BOXTEL MKII FRONT PANEL N° FUNCTION NAME RX KNOB Knob to adjust the audio level received from the telephone + LED signal interlocutor. Maximum range: 30dB, from -15dB to +15dB. o the side of the knob there is a three LED indicator, that indicates the level at - 12dB, 0dB and +3dB TX KNOB Knob to adjust the audio level sent to the telephone interlocutor. -
Page 22: Boxtel Mkii Rear Panel
• Incoming call signal The interface has been designed for rapid connection to the Oxygen 5 and Oxygen 7 consoles by Axel Technology, but it can also be interfaced with any Telco module on the market. For the pinout see the next chapter. -
Page 23: Boxtel Mkii Connection Procedure
BOXTEL MKII CONNECTION PROCEDURE 12 BOXTEL MKII CONNECTION PROCEDURE 12.1 HYBRID TELEPHONE THEORY The telephone hybrid is a device capable of interfacing a telephone line with audio lines. In other words, the audio signals sent to the hybrid are received by the phone and vice versa. The telephone hybrid is widely used in radio and television broadcasting ad it makes it possible to make simple audio connections with remote workstations at a very low cost. -
Page 24: Connection Of Boxtel Mkii To The Pots / Pstn Telephone Line
BOXTEL MKII CONNECTION PROCEDURE 12.3 CONNECTION OF BOXTEL MKII TO THE POTS / PSTN TELEPHONE LINE CHECK that this device is connected to POTS / PSTN lines (analog) DO NOT CONNECT this device to digital VoIP telephone lines DO NOT CONNECT this device to ADSL lines, even if fitted with filter. To avoid any type of hum at 50 Hz and to comply with EMC requirements, the device must be connected to earth by means of the earthing screw on the rear panel or via the power supply cable. -
Page 25: Connection Of Boxtel Mkii With Broadcast Console
BOXTEL MKII CONNECTION PROCEDURE 12.4 CONNECTION OF BOXTEL MKII WITH BROADCAST CONSOLE In this mode the BoxTel MKII device is connected to the audio console (mixer) using an analog audio line. The audio signal from the Telco N-1 SEND output of the Mixer is sent to the input of BoxTel MKII. The BoxTel MKII Audio Output is sent to the relevant Telco RECEIVE module. -
Page 26: Audio Connection To Boxtel Mkii Without Broadcast Console
NOT be sent. The reason for this is that it could generate an unpleasant Larsen effect and loops. In any case, Axel Technology is not responsible for damage caused to third parties for the improper use of non- broadcast mixing consoles. Broadcast solutions such as mixing consoles can be found in the Axel Technology catalogue. -
Page 27: Connection Of Boxtel Mkii Gsm With Broadcast Console
BOXTEL MKII CONNECTION PROCEDURE 12.6 CONNECTION OF BOXTEL MKII GSM WITH BROADCAST CONSOLE BoxTel MKII GSM connection by means of GSM Gateway supplied with the purchase of a BoxTel MKII GSM. The example below shows how to connect the devices. -
Page 28: Connection Of Boxtel Mkii Gsm With Non-Broadcast Console
12.7 CONNECTION OF BOXTEL MKII GSM WITH NON-BROADCAST CONSOLE BoxTel MKII GSM connection by means of GSM Gateway supplied with the purchase of a BoxTel MKII GSM. The example below shows how to connect the devices. As the console is of the NON-broadcast type it is important to follow the instructions described above as regards AUX and N-1 generation. -
Page 29: Connection Of Boxtel Mkii To A Digital Or Voip -1 Line
BOXTEL MKII CONNECTION PROCEDURE 12.8 CONNECTION OF BOXTEL MKII TO A DIGITAL OR VOIP -1 LINE It is not technically possible to connect a VoIP PBX directly to the telephone hybrid. You must add an ATA What is an ATA? 12.8.1 An Analog Telephone Adapter (ATA) is a device used to connect one or more standard analog phones in order to use them with other systems such as voice over IP (VoIP). -
Page 30: Connection To A Digital Or Voip -2 Line
BOXTEL MKII CONNECTION PROCEDURE An ATA typically has at least one port to connect a telephone (normally a RJ11) and an Ethernet network port (normally a RJ45) to connect it to a LAN connected to the Internet. More complex models can have multiple telephone ports also for ISDN phones or PBX and an additional Ethernet port to connect other network objects. -
Page 31: Connection To Telco Modules Or Remote Devices (Gpio Remote)
12.10 CONNECTION TO TELCO MODULES OR REMOTE DEVICES (GPIO REMOTE) The remote interface of BoxTel MKII and BoxTel MKII GSM is based on a 9 pin SubD connector and features the following functions: Remote telephone line hooking Incoming call signal The interface has been designed for rapid connection to the Oxygen 5 and Oxygen 7 consoles by Axel Technology. -
Page 32: Line Hook Via Telco
BOXTEL MKII CONNECTION PROCEDURE Line hook via Telco 12.10.2 Pins 5 and 4 allow the line to be hooked via remote control (supplied via a clean contact or an optocoupler). For this purpose it is necessary to supply + 6V DC voltage to pin 6 of the interface. SubD –... -
Page 33: Installation And Use Of The Control Software
13 INSTALLATION AND USE OF THE CONTROL SOFTWARE The installation procedure of the BoxTel MKII and BoxTel MKII GSM control software is described below. The program runs on all Windows platforms, including Windows Xp sp3, Windows Vista and Windows 7 32-bit and Windows 7 64-bit and Windows 8 Pro 64bit. - Page 34 INSTALLATION AND USE OF THE CONTROL SOFTWARE Software installation will start automatically InstallShield will start automatically the installation, at the end this message will be displayed. The software will display A new icon will be presented 10. At this point you can use the application to manage BoxTel MKII and MKII BoxTel GSM. In the following chapters there are explanations on how to connect, and the potential of the product.
-
Page 35: Use "Remoter" Software
Press the CONNECT button you can interact with the device and is configured to handle that. Check button Com is inherent to a refresh of devices and COM ports or virtual coma VCOM which BoxTel MKII or MKII BoxTel MKII GSM are connected | USE “REMOTER” SOFTWARE... - Page 36 USE “REMOTER” SOFTWARE When SETTINGS button is pressed the connection will be established with the device under control: | USE “REMOTER” SOFTWARE...
- Page 37 Keypad Dialer allows you to run through this keyboard mouse contact number. The Settings button lets you open the page setup of the apparatus BoxTel MKII and MKII BoxTel MKII GSM. In the next section are explained all the functions of setting. EXIT button, to terminate the application.
-
Page 38: Settings" Section
USE “REMOTER” SOFTWARE 14.2 “SETTINGS” SECTION Pressing the "Settings" allows you to open the page regarding the configuration of the apparatus. TASTO FUNZIONE LOAD DEFAULT SETTINGS By pressing this button all default settings are re set to the initial factory DISCONNECT By pressing this button the unit is disconnected from the computer that is controlling the apparatus. - Page 39 USE “REMOTER” SOFTWARE RX HIGH PASS FILTER If this control has been set to ON, insert a high-pass filter following these characteristics: - 12 dB / oct - f = 150 Hz In the ON position is then inserted on the line Receiving an audio filter that removes all frequencies below 150 Hz.
-
Page 40: Boxtel Mkii Gsm - Gateway Gsm
BOXTEL MKII GSM – GATEWAY GSM 15 BOXTEL MKII GSM – GATEWAY GSM Before you do the following function settings, Lift handset or press hands free key of telephone set, then you can press the buttons according to the following instructions to finish setting, you will hear 2 beeps when you finish, this testify setting successfully. -
Page 41: Making Calls
Calls When some calls are coming in, if the connected telephone has the function of displaying incoming calls, the telephone rings and displays the incoming telephone numbers. Now users can lift the handset or press “hand-free” to answer it. | BOXTEL MKII GSM – GATEWAY GSM... -
Page 42: Technical Appendix
Always refer to this technical appendix for connections and connection procedures. In case of differences between the documentation below and the hardware device please contact Axel Technology at the numbers and e-mail addresses shown at the end of this manual. Our technical and assistance department will be pleased to help you! 16.1 APPENDIX A –... -
Page 43: Appendix C - Direct Connection To Axel Technology Mixer
TECHNICAL APPENDIX 16.3 APPENDIX C – DIRECT CONNECTION TO AXEL TECHNOLOGY MIXER | TECHNICAL APPENDIX... -
Page 44: Technical Specification Boxtel Mkii - Boxtel Mkii Gsm
TECHNICAL SPECIFICATION BOXTEL MKII – BOXTEL MKII GSM 17 TECHNICAL SPECIFICATION BOXTEL MKII – BOXTEL MKII GSM GENERAL VALUE Dimension LxHxD 22x5x13cm AC Rate 230Vac / 110Vac 50 Hz / 60 Hz 30VA Type of power supply Switching power supply, worldwide ≈... -
Page 45: Weee Directive - Informativa Raee
WEEE Directive – Informativa RAEE 18 WEEE Directive – Informativa RAEE In line with EU Directive 2002/96/EC for waste electrical and electronic equipment (WEEE), this electrical product must not be disposed of as unsorted municipal waste. Please dispose of this product by returning it to the point of sale or to your local municipal collection point for recycling. -
Page 46: Guarantee
Lead (Pb) Hexavalent Chromium (CrVl) Mercury (Hg) PBB (Flame Retardant) PBDE (Flame Retardant) Cadmium (Cd) Product Description: BoxTel MKII – BoxTel MKII GSM Authorized Company Representative: Title of Signatory: Date: Christian Sighinolfi – 27 January 2014 Technical Manager | GUARANTEE... -
Page 47: Final Notes And Axel Technology Contact Details
FINAL NOTES AND AXEL TECHNOLOGY CONTACT DETAILS 21 FINAL NOTES AND AXEL TECHNOLOGY CONTACT DETAILS ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________...
