Current Clamp CC-80

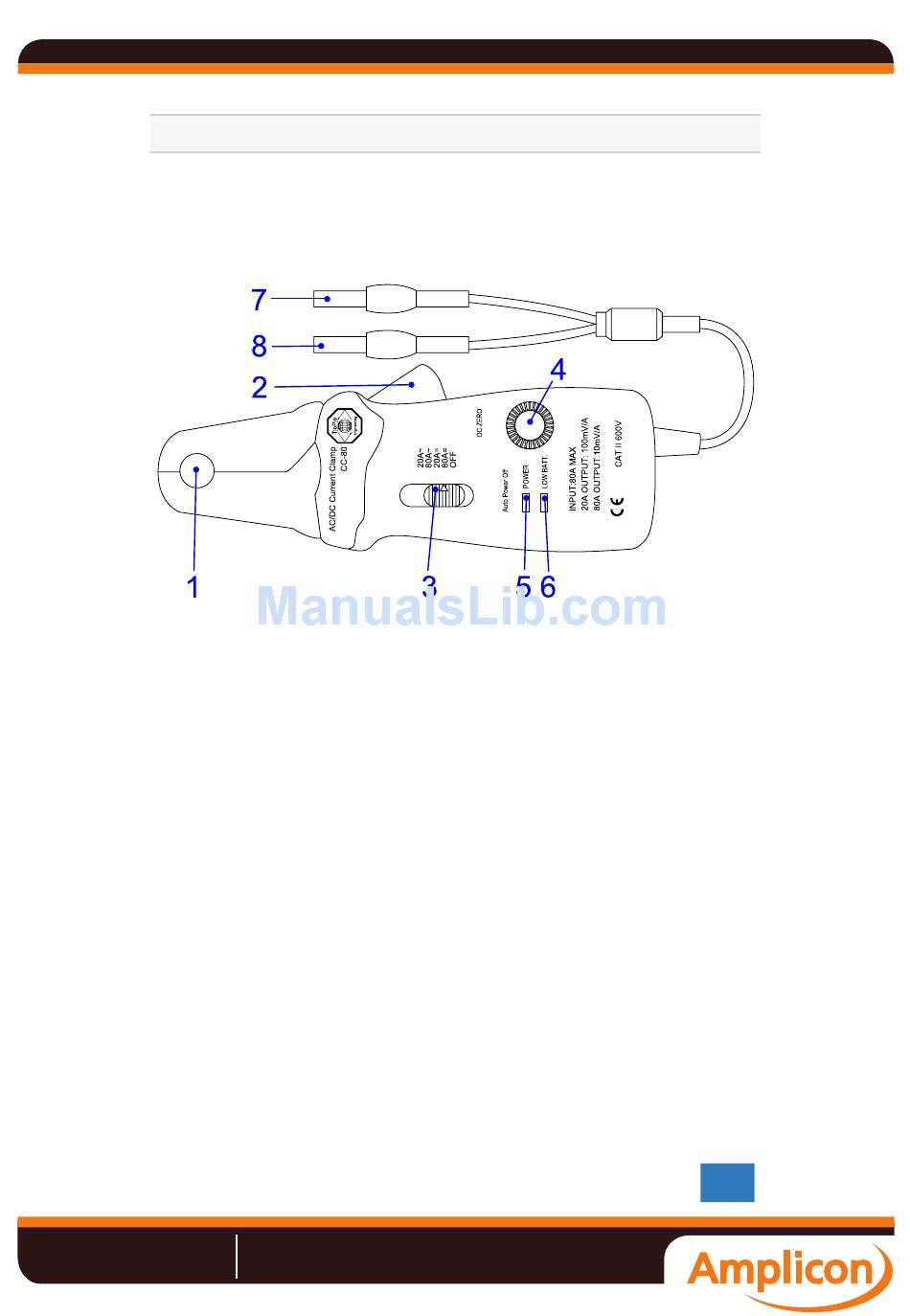

Description

1. Transformer jaw
Used to pick up the current signal. To measure current, the
jaw must be firmly closed, leaving no air gap.
2. Transformer trigger
Used to open the jaw.
3. Range selector switch
Used to select the input range or switch the unit off.
4. Zero button
This buton sets the current readout to zero. This function
is also used when measuring DC current to remove an offset
value casued by residual magnetism in the core of the jaw.
5. Power ON/OFF led.
6. Low battery incidator
When the indicator lights, the battery should be replaced
7. Output terminal – (black)
This terminal is used as output for DCA – polarity and ACA.
8. Output terminal + (red)
This terminal is used as output for DCA + polarity and ACA.
Amplicon.co.uk
Sales:
+44 (0) 1273 570 220
IT and Instrumentation for industry
Website:
www.amplicon.co.uk
Current Clamp CC-80
Email:
sales@amplicon.co.uk
