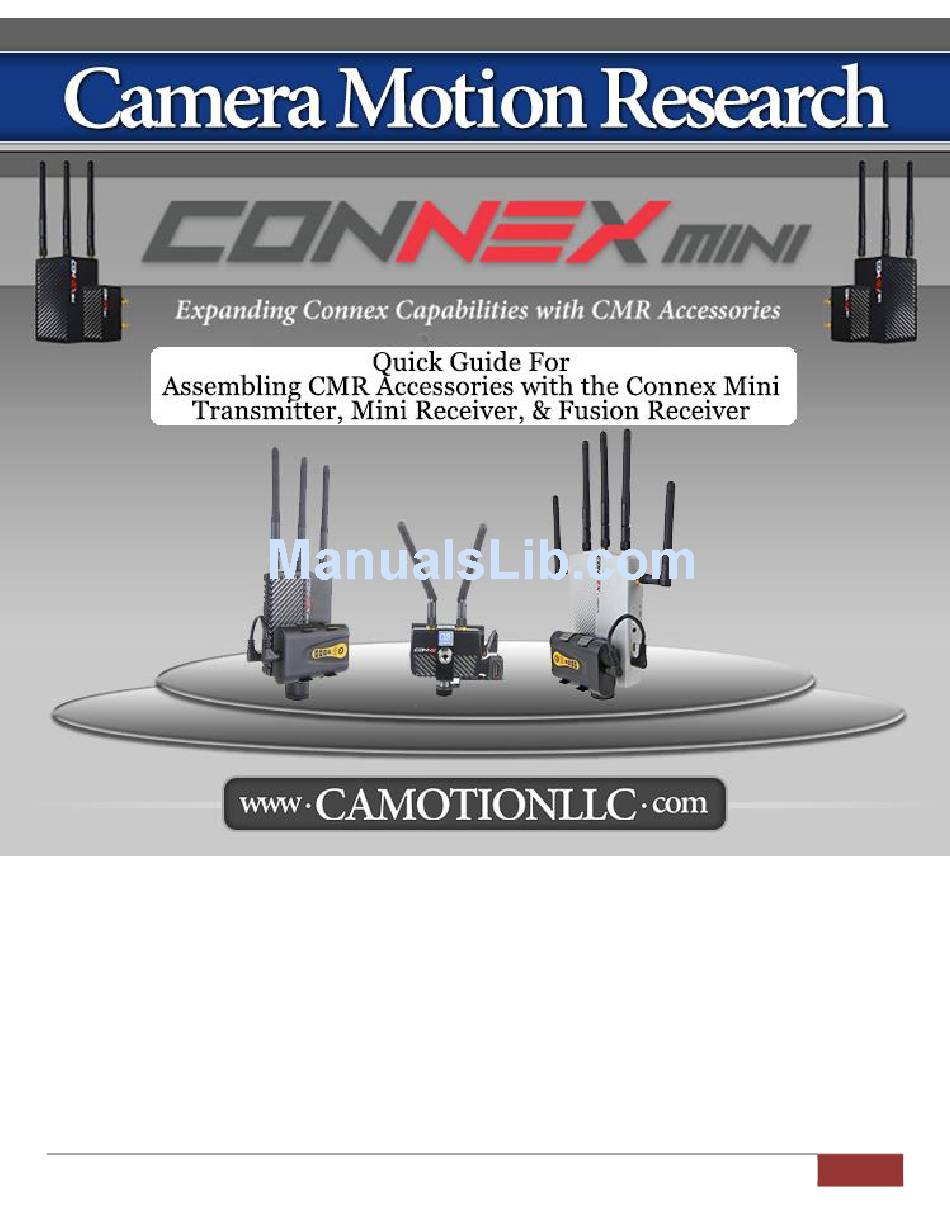

Camera Motion Research Connex Mini Quick Manual

For assembling cmr accessories with the connex mini transmitter, mini receiver, & fusion receiver

Hide thumbs

Accessory Quick Guide

Table of Contents

Need help?

Do you have a question about the Connex Mini and is the answer not in the manual?

Questions and answers

Summary of Contents for Camera Motion Research Connex Mini

Page 2 A. Installing the Connex Mini transmitter CMR battery support and mounting cage Step 1. The Connex Mini transmitter cage ships assembled, and must be dis-assembled to install the transmitter. To dis-assemble, remove the top two screws from the shipped assembled Connex Mini Cage as shown below.
Page 3 Step 4. Attach the provided rod antennas to the Connex Mini transmitter by screwing them on. Step 5. Insert the battery with the battery power port and the transmitter power port on the same side. Step 6. Insert the JST connector on the power cable into the power port of the transmitter (note it will click when fully inserted) , and insert the barrel plug into the battery.
Page 4 Insert the micro HDMI to standard HDMI converter and locking bar assembly into the transmitter Step 7. micro HDMI input port as shown below. Secure the locking bar with the ¼-20 nut, and tighten securely. Note: the HDMI locking bar nut also has a ¼-20 tapped hole for mounting the transmitter. Accessory Quick Guide...
Page 5 B1. Installing the Connex Mini Receiver CMR Battery Support Step 1. Screw the battery cage captive thumb screw into the bottom of the ¼-20 tapped hole on the receiver. (Mount the receiver assembly to your gear such as monitor yoke, light stand, etc. using the ¼-20 tapped hole on the bottom of the thumb screw.)
Page 6 Step 2. Insert the battery into the receiver battery cage as shown in picture, so that the power ports are on the same side. Insert the power cable. C. Removing the Batteries This applies to both the transmitter and the receiver. Hold the cage in your hands so that you have a grasp of the cage and the battery.
Page 7 F. Lithium Battery Operation The Connex Mini transmitters and receivers do not have power (on/off) switches, so they power up whenever voltage is applied. The lithium batteries have a power button to turn them on and off. You must press and hold the button for about 2 seconds to either turn on, or turn off the battery.
Page 8  The Connex Mini can transmit to up to 4 receivers simultaneously.  Refer to the Amimon Connex/Connex Mini User Guide for information about how the two LEDs (video and network) on the transmitter and receiver show the status of a connection and video input.
