Ultrakeet WNTD WiFi Gateway Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

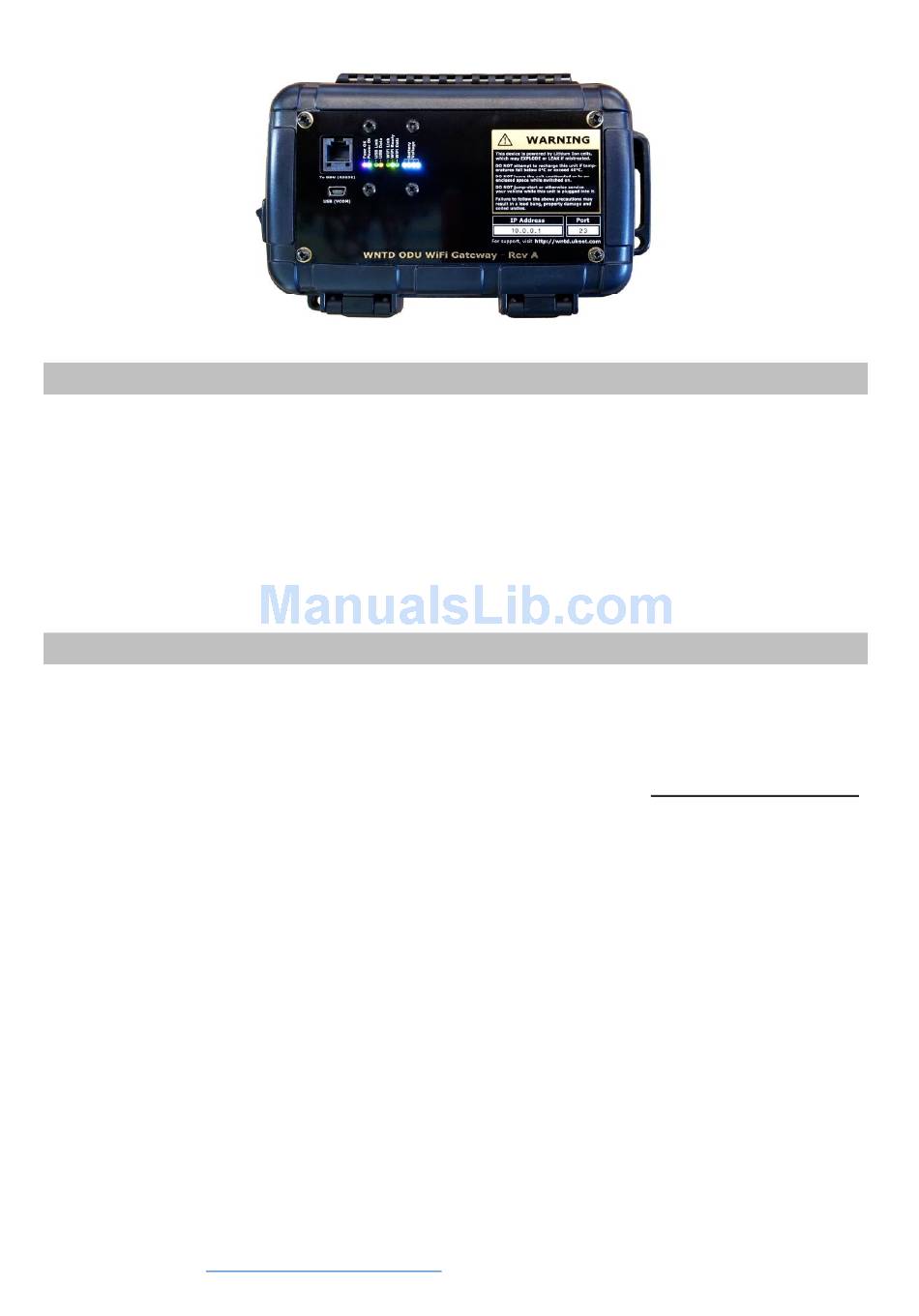

WNTD WiFi Gateway – A (very) Quick Start Guide
I usually avoid reading User Guides until something catches fire (after which I try and shift
the blame to the supplier and/or manufacturer)
Now I'm the supplier and manufacturer, I have to write the guide, and somehow convince
you to read it.
Shit.
The Gateway comes bundled with a 12-volt Car Charger and 12-volt Wall Charger. Both
attach to a small DC socket next to the power switch.
To charge the unit, plug one of the chargers in while the unit is off, then turn the unit on.
The unit must be switched on for the batteries to
completely isolates the batteries. A full charge from a completely empty pack will take up to
six hours
The gateway cannot be used while charging is in progress - This is a safety feature,
implemented (in part) due to paranoia after many years of cannabis abuse (also, exploding
batteries give me a bit of a fright)
The current battery voltage is displayed using four 'Battery Voltage' indicator LEDs – If the
first LED is blinking, the battery pack is critically low and should be recharged immediately.
An animation will be displayed by the battery LEDs if the unit is currently charging. Once the
battery is fully charged, all the LEDs will remain on solid. Ideally, you should place the unit
on charge every couple of days to ensure little downtime.
Please follow all the precautions printed on the front panel of the unit for your own safety;
Keep a spare pair of undies on-hand just in case.
Feel free to email
Ahmad@UltraKeet.com.au
Introduction
Charging the Gateway
for moral support if something explodes.
charge. Turning the switch off

Advertisement

loading
Need help?

Need help?

Do you have a question about the WNTD WiFi Gateway and is the answer not in the manual?

Questions and answers

Summary of Contents for Ultrakeet WNTD WiFi Gateway

  • Page 1 WNTD WiFi Gateway – A (very) Quick Start Guide Introduction I usually avoid reading User Guides until something catches fire (after which I try and shift the blame to the supplier and/or manufacturer) Now I’m the supplier and manufacturer, I have to write the guide, and somehow convince you to read it.

  • Page 2: Performing A Self-Test

    I forgot to fix this issue before manufacture. It won’t cause any harm, though. If any of the above LEDs are not on, please abuse email Ahmad@UltraKeet.com.au Smartphone/Tablet connection (WiFi) With the device still unplugged from everything, switch it on, and try and connect to it via WiFi using your Smartphone/Tablet.
  • Page 3 Smartphone/Tablet connection (continued) Your WiFi Key is printed on an adhesive label, which is attached to the bottom of the Gateway. We tried to ensure the keys are secure while still being somewhat memorable: Once you’re connected via WiFi, the WiFi Link LED on the front of your device should turn blue, and it’s time to launch your favorite Terminal Emulator application.
  • Page 4 Smartphone/Tablet connection (continued) Click the three-dots to the top right, and tap Settings from the drop-down menu: Scroll down to the Terminal Emulation section, and tap Emulation Mode:...
  • Page 5 Smartphone/Tablet connection (continued) Select vt100 from the list of Emulation modes, this will ensure data is displayed correctly: Note: If you have an option for Width and Height on the settings page in your app (ConnectBot doesn’t, vSSH does), enter 80 for the width, and 25 for the height. Press the back button on your device to exit, then tap ssh (bottom left):...
  • Page 6 Smartphone/Tablet connection (continued) Tap on telnet from the list of protocols: Tap on the address bar to open the address dialog:...
  • Page 7 Smartphone/Tablet connection (continued) Enter the IP Address printed on your device (typically 10.0.0.1), then tap DONE: The App should connect to the Gateway, and display the following splash screen: This page is usually displayed when the ODU cable is unplugged or faulty, or if the WNTD antenna hasn’t sent any data for a while (or occasionally if you’re in a no-signal area).
  • Page 8 Smartphone/Tablet connection (continued) If the data on the page appears to be garbled (ie: not quite fitting on the screen, or wrapping onto multiple lines), you may have to adjust the display size. In vSSH on IOS, this is done by changing the Width and Height parameters to 80 and 25 in the settings menu, as discussed previously.
  • Page 9 Try a USB connection if all else fails. USB should always work, as the data shit out by the WNTD Antenna is essentially passed onto the USB port unmodified. Please email Ahmad@UltraKeet.com.au if you’re able to connect via USB, but not WiFi.
  • Page 10 USB/Laptop connection (Continued) To connect via USB, plug the mini-USB cable (supplied) into both the USB port on the front of the gateway, and a free USB port on your laptop. The WNTD antenna should not be plugged in at this point. The USB Link LED on the front of the unit should be blue, and the USB Data LED may flicker yellow for a few moments.
  • Page 11 USB/Laptop connection (Continued) Ensure that your settings match the following screenshot, then click OK: Now, click Setup, then Serial Port:...
  • Page 12 USB/Laptop connection (Continued) Select your Port from the drop-down list, ensure the remaining settings match the screenshot below, then click OK. Your port number will likely be different to the one in the screenshot; If there’s more than one port in the list, pick the highest number: Plug the WNTD antenna into the RJ12 socket on the front of the gateway, and after about a minute of boot garbage, you should see the RF Qualification page: Depending on the font size, you may need to resize the window a little with your mouse to...

  • Page 13: General Troubleshooting

    USB/Laptop Troubleshooting We’ve yet to experience any issues with USB – Please let us know if you experience any. At worst, we can help you set-up your gateway remotely using Remote Desktop. General Troubleshooting Symptom: The Fuse OK LED is not on If the Fuse OK LED is no longer on, but all other LEDs act normally, the fuse is blown, possibly due to a faulty WNTD or interconnecting lead.
  • Page 14 Ericsson have likely updated the firmware on the WNTD antennas to ‘talk’ at a higher speed on the console port. Try connecting via USB instead of WiFi momentarily. If USB works as intended, please email Ahmad@UltraKeet.com.au urgently with a screenshot of the issue, as well as a screenshot of everything working via USB (such that...
