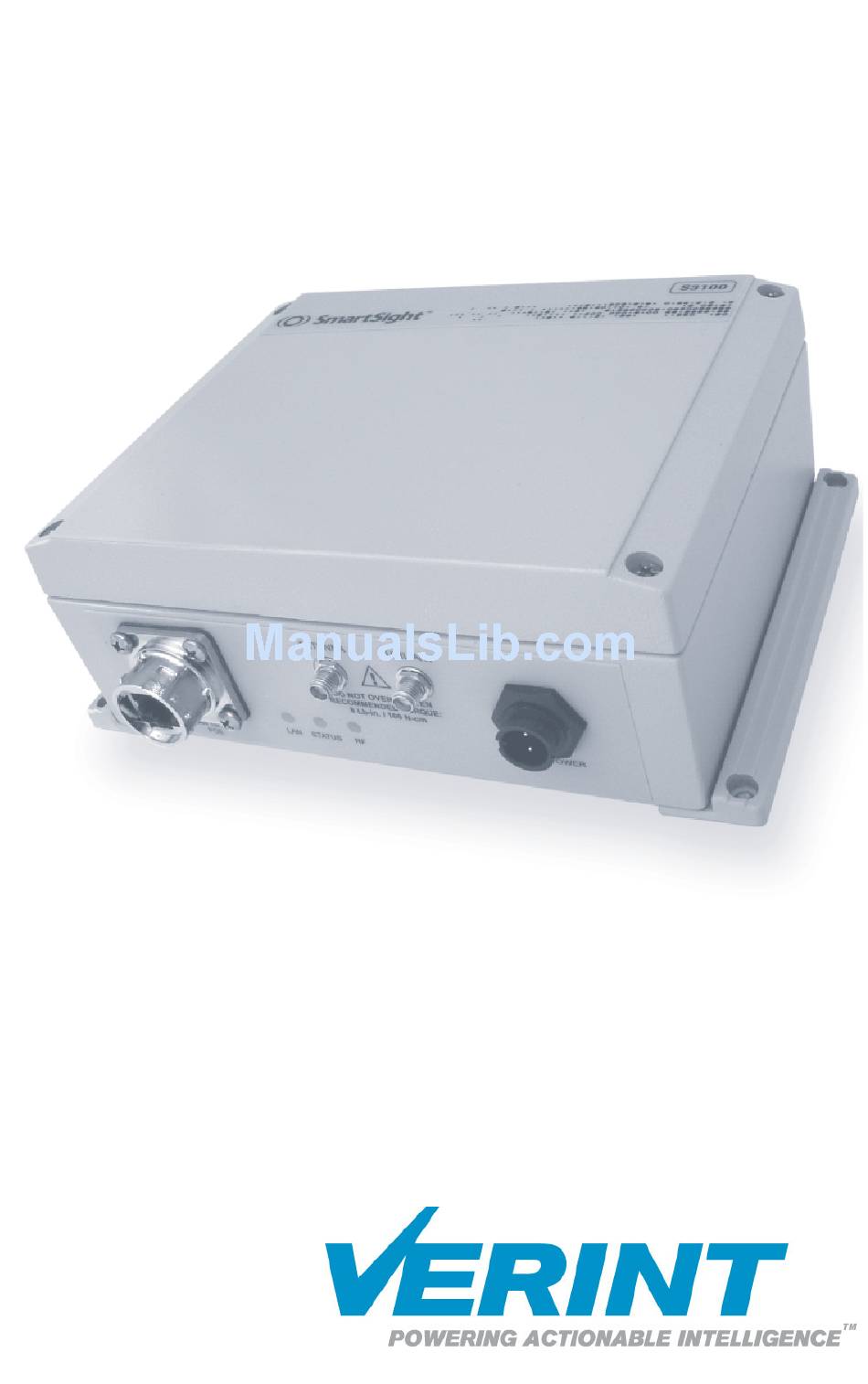

  • Page 1 S3100 User Manual...

  • Page 3: User Manual

    S3100 Firmware Release 3.30 User Manual Verint Video Solutions...
  • Page 4 HealthCheck, Lanex, Loronix, Loronix Video Manager, MotionTrack, microDVR, nDVR, netDVR, Powering Actionable Intelligence, SmartSight, and Video Manager are trademarks of Verint Systems Inc., its subsidiaries or affiliates. All other registered trademarks, trademarks, and any associated logos are the properties of their respective owners.

  • Page 5: Table Of Contents

    Who Should Read this Manual ........viii How to Use this Manual ..........viii Contents ............viii Conventions ............ix Related Documentation ..........x Related Verint Video Solutions Products ....x About Us ..............x Warranty ..............xii Chapter 1 Overview ........... 1 About the S3100 ............2 Shipment ..............
  • Page 6 Installation of the Repeater Units ......52 Installation of the Single Unit .......52 Installation of the Antenna ........54 LEDs ...............55 Duplicate Master Detection ........57 Finding a “Lost” S3100 ..........57 Chapter 4 Setting Parameters with the CLI ....59 Getting Started ............60 Access Management ..........61 User Accounts ............62...
  • Page 7 S3100 User Manual Appendix C Pole Mounting of the Antennas ....77 Appendix D DHCP Support and APIPA Service... 79 Appendix E Surge Protection........81 Appendix F RF Contact between Masters....83 Appendix G Separation Between Units Using Adjacent Channels ..........87 Appendix H Technical Specifications ......
  • Page 8 Verint Video Solutions...

  • Page 9: Preface

    Preface The S3100 User Manual presents the information and ® procedures on installing and configuring the SmartSight S3100 outdoor wireless bridge. Verint Video Solutions...

  • Page 10: Who Should Read This Manual

    This manual contains all the information needed to install and configure an S3100 unit. Contents The S3100 User Manual is divided into the following chapters: 1. Overview—Provides a brief description of the features of the S3100 unit and illustrations of its casing.

  • Page 11: Conventions

    B. RJ-45 Ethernet Cables—Presents the pinouts of the straight-through and crossover Ethernet cables. C. Pole Mounting of the Antennas—Shows how to install on a pole the antennas supplied by Verint Video Solutions. D. DHCP Support and APIPA Service—Explains how the dynamic host configuration protocol server and the Microsoft APIPA service work.

  • Page 12: Related Documentation

    Related Verint Video Solutions Products You can use the S3100 units with the S1100 wireless systems, the S1100w wireless video transmitters, and the S1500e series and S1600e Ethernet video servers. For more details about any of these products, visit our web site.

  • Page 13: Web Site

    Support If you encounter any type of problem after reading this manual, contact your local distributor or Verint Video Solutions representative. You can also use the following sections on our web site to find the answers to your questions:...

  • Page 14: Warranty

    Product is not defective within the terms of the warranty, Buyer shall pay all handling and transportation costs. Verint Systems may, at its option, elect to correct any warranty defects by sending its supervisory or technical representative, at its expense, to customer’s plant or location.

  • Page 15: Chapter 1 Overview

    Overview The S3100 is the latest addition to the SmartSight family of outdoor, wireless, digital video bridging products. It covers the 2.4 GHz and 5 GHz frequency bands in North America and Europe. Note: The S3100 units require professional installation.

  • Page 16: About The S3100

    S3100-RP: A repeater device made up of two units S3100: A single unit for the other applications Unless otherwise specified, the word S3100 refers to any of these units. Every S3100 unit comes with the following security features: SSL—Every unit is shipped with a unique SSL (secure...

  • Page 17: Shipment

    One or two 24V AC external power supplies (PS2440) Note: If you are using power supplies other than those supplied by Verint Video Solutions, you need to ensure that they have a minimum capacity of 30 VA. Verint Video Solutions...

  • Page 18: Casing Description

    1: Overview Casing Description The S3100 electronics are enclosed in a weather-tight cast aluminum module. All cable entries are mounted on the underside of the unit to maintain its weatherproof properties. Here is the S3100 casing: S3100 Ground lug Side brackets...

  • Page 19: System And Rf Planning

    Planning is especially required if you want to install many systems in the same area, in order to prevent radio interference between the colocated units and to select the appropriate antennas. In all cases, follow the recognized RF installation practices. Verint Video Solutions...

  • Page 20: Available Frequency Bands And Channels

    2: System and RF Planning Available Frequency Bands and Channels The S3100 supports communications in the following frequency bands, in North America and Europe: 2.4 GHz OFDM, also known as 802.11g 5 GHz OFDM, also known as 802.11a 2.4 GHz Band The 2.4 GHz band provides 11 channels in North America and...

  • Page 21: Wireless Cells

    S3100 User Manual In North America, nine channels are available in the 5 GHz band, all non-overlapping and for indoor or outdoor use. The center frequencies of these channels are: Channel Frequency (GHz) Channel Frequency (GHz) 5.26 5.745 5.28 5.765 5.30...

  • Page 22: Roles

    The other wireless units (S1100, S1100w) that are connected to S3100 bridges are clients. Clients always connect to a master S3100. In this first example of a wireless cell, two S3100 units, a master and a slave, form a wireless bridge: Slave...

  • Page 23: Compatibility Issues

    When planning your wireless systems, you have to take into account the firmware versions of the involved units. It is recommended that the S3100 units have the same firmware versions as their associated slaves and clients. Use the following matrix to ensure complete compatibility between your...

  • Page 24: Video Bit Rate And Data Throughput

    1. S1100w 1—You then lose contact with S1100w 1. 2. S1100w 2—You then lose contact with S1100w 2. 3. S3100 1—You can then reach all units. 4. S3100 2—You then lose contact will all units except master S3100 3. 5. S3100 3—You can then reach all units.
  • Page 25 10.7 Mbps For the bit rate requirements of the video servers to which the cameras are connected, consult the Bit Rate Settings for Video Servers document located on the Verint Video Solutions web site (Tools & Demo section). Verint Video Solutions...

  • Page 26: System Planning

    For more information about the RF line of sight, see page 26. MAC Protocols Depending on the type of applications, an S3100 unit uses one of the two proprietary MAC protocols that solve problems inherent to 802.11 wireless networking products.

  • Page 27: Tpc

    Master SPCF Master If the country of operation of the S3100 unit requires conformity to the TPC (transmit power control) regulations, the transmission power of its radio is automatically reduced by 3 dB before leaving the Verint Video Solutions factory. However, in...
  • Page 28 2. The starting order delay ensures that colocated masters will not select a frequency channel at the same time, therefore minimizing the possibility that they choose the same one. For more information about the starting order, see page 69. Verint Video Solutions...

  • Page 29: Application Types

    3. When the master is located, the client or slave unit runs normally on the selected frequency channel. Application Types The S3100 units are used in many types of applications, including: Point-to-multipoint application—One S3100 bridge linking multiple S1100w units to a LAN Point-to-point repeater—Two S3100 units acting as a range...

  • Page 30: Point-To-Multipoint

    Point-to-Multipoint A point-to-multipoint application is a wireless cell made up of an S3100 bridge (the S3100 product code, called the master) and several S1100w transmitters (the clients). The MAC protocol for the master unit is SPCF. Here is a typical...
  • Page 31 3. Set the MAC mode of the S3100 in Cell1 to SPCF. 4. Set the MAC mode of the two S3100 units in Cell2 to SDCF. 5. In a non-DFS context, assign a frequency channel to the master S3100 unit in each cell.

  • Page 32: Point-To-Point Repeater

    The wireless passkey must be different from that of the other cell. 2. Set the MAC mode of the two S3100 units to SPCF. 3. In a non-DFS context, assign a frequency channel to the master S3100 unit in each cell. For better isolation, use different frequency bands.

  • Page 33: Wireless Bridge

    S3100 unit. 3. Set the MAC mode of the two S3100 units to SDCF. 4. Install the S3100 units such that there is a clear RF line of sight between the two antennas. For the complete configuration and installation procedures, see page 36.

  • Page 34: Colocated Cells

    Two SDCF cells can use the same frequency channel. They will share the available bandwidth. The wireless passkeys of colocated cells must be different from one another, regardless of their MAC protocols or frequency channels. Verint Video Solutions...

  • Page 35: Ghz Band In North America And 2.4 Ghz Band

    PUK98rewq4123qzx S1100w_B2 PUK98rewq4123qzx S1100w_B3 PUK98rewq4123qzx S3100_C 987123jkl456wert S1100w_C1 987123jkl456wert S1100w_C2 987123jkl456wert S1100w_C3 987123jkl456wert 3. In each cell, install the S1100w units such that each one has a clear RF line of sight with its associated S3100 bridge. Verint Video Solutions...

  • Page 36: Ghz Band In Europe

    You have to: 1. Assign a different wireless passkey to each cell. 2. Ensure that all S3100 masters “see” one another. For the procedure, see Appendix F on page 83. Verint Video Solutions...
  • Page 37 Supported Setups The following colocated systems are supported in the 5.40–5.725 GHz band: A point-to-point repeater for one or more pairs of S1100 units, with or without hidden nodes. The two S3100 master units see each other. S3100 S3100 Repeater...
  • Page 38 2: System and RF Planning Two point-to-multipoint applications, in which the transmitters from one system do not see the transmitters from the other cell. The two S3100 master units see each other. S3100 S3100 A point-to-multipoint repeater. The two S3100 master units see each other.
  • Page 39 S3100 1 S3100 2 Repeater Point-to-point Point-to-multipoint applications with hidden masters. In this context, the two S3100 masters do not see each other, while transmitters 2 and 3 do. S3100 S3100 Multiple point-to-point repeaters. The S3100 2 and S3100 3 masters do not see each other, while the two receivers do.

  • Page 40: Rf Planning

    Because the reliability of such an installation is highly unpredictable, Verint Video Solutions does not recommend it. A path free of any obstacle is called an RF line-of-sight path. To establish an RF line-of-sight path, you must take into account the beam width of the radio signal transmitted between the two antennas.
  • Page 41 RF line of sight between them (that is, 53 feet for the Fresnel zone plus 29 feet for the earth curvature effect). For help, consult the Verint Video Solutions project engineering group. A common problem encountered in the field and related to the 0.6 F1 clearance rule is building obstruction.

  • Page 42: Antenna Requirements

    2: System and RF Planning Antenna Requirements Verint Video Solutions offers many antennas to meet various distance requirements. You have to consider many factors when choosing an antenna, including the distance to cover, the RF bit rate, the radiated power (EIRP), and the frequency band used. For systems located in North America on the 5 GHz band, you can use the Wireless Distance Calculator located on our web site (Tools &...

  • Page 43: Interference

    Fortunately, you have ways of adapting your setup to avoid interference: RF channel selection—In the 2.4 GHz band, the S3100 has 11 or 13 channels to choose from. In case of interference, it is recommended to change channel until you find a clean one.
  • Page 44 Verint Video Solutions...

  • Page 45: Configuring And Installing The Unit

    Configuring and Installing the Unit You can set up the S3100 units for point-to-multipoint, repeater, or wireless bridge applications. Verint Video Solutions...

  • Page 46: Computer Requirements

    A point-to-point repeater is used as a range extender for wireless links, when you need a device to retransmit the signals coming from one or many S1100 transmitters to their corresponding receivers. A repeater is made up of two S3100 units. Repeater...

  • Page 47: Point-To-Multipoint Application

    S3100 User Manual 3. Configuring the two S3100 units, one at a time (see page 39). You have to shut down the first unit when configuring the second one. The wireless parameters to apply are: Parameter S3100_1 S3100_2 MAC mode...

  • Page 48: Point-To-Multipoint Repeater Application

    3: Configuring and Installing the Unit 3. Configuring the S3100 unit (see page 39). The wireless parameters to apply are: Parameter S3100 MAC mode SPCF Role Master Band Manual selection (the same as in the S1100w units) Channel In a non-DFS context: manual selection...
  • Page 49 1. Assembling the power devices (see page 37 for the slave and page 39 for the two repeater units). 2. Configuring the two S3100 units part of the repeater, one at a time (see page 39). You have to shut down the first unit when configuring the second one.

  • Page 50: Wireless Bridge Application

    1. Connecting power and Ethernet on the two units (see page 37). 2. Configuring the two S3100 units one at a time; always start with the master (see page 39). You have to shut down the first unit when configuring the second one.

  • Page 51: Power And Ethernet Connections

    (50 meters). The maximum length of indoor cables is 82 feet (25 meters). Power over Ethernet With the S3100 model, you use the supplied PoE kit to power the unit and establish the Ethernet connection. In addition to the kit, your shipment includes an Ethernet cable with a weatherproof connector at one end that will go directly on the unit.
  • Page 52 PoE injector Power cord 1. Plug the supplied outdoor Ethernet cable (the end with the weatherproof connector) into the PoE receptacle of the S3100 unit. Lock the weatherproof connector by pushing forward the locking ring. Locking ring of the weatherproof connector You unlock the connector by pulling back the locking ring, then withdrawing the plug.

  • Page 53: Power Devices For The Repeater

    DATA port of the PoE injector, and not in the DATA & PWR port. 5. Power the S3100 unit by connecting the electric plug of the power cord into the outlet. Power Devices for the Repeater...

  • Page 54: Changing The Ip Address Of The Computer

    S3100 Installation Guide. Changing the IP Address of the Computer To change the parameters of the S3100 units in a point-to-point repeater context, you need to temporarily change the IP address of your computer. The temporary address must be in the 192.168.135.255 subnet.
  • Page 55 S3100 User Manual 3. Click Properties. The Local Area Connection Properties window appears. 4. In the component list, select Internet Protocol (TCP/IP), then click Properties. The Internet Protocol (TCP/IP) Properties window appears. Verint Video Solutions...
  • Page 56 2. If the classic view is enabled, choose Network Selection. In the category view, select Network and Internet Connections, then Network Connections. 3. Double-click your active LAN or Internet connection. 4. Click Properties. A Properties window appears. Verint Video Solutions...
  • Page 57 S3100 User Manual 5. In the General tab, select the Internet Protocol (TCP/IP) item, then click Properties. The Internet Protocol (TCP/IP) Properties window appears. 6. If Use the following IP address is selected, write down the information displayed in the box: the IP address, the subnet mask, and the default gateway.

  • Page 58: Unit Preparation

    3. Connect the unit to the network or a computer using the proper Ethernet cable. IP Parameters Before installing the S3100 unit, you need to change its IP address to ensure compatibility with an existing network. The default IP addresses of all units are based on the APIPA service and will be in the range 169.254.X.Y, where X and Y are relative...
  • Page 59 S3100 User Manual 2. From the General tab, click Program Options. The Program Options window appears. 3. Check Detect All Units on LAN. 4. Ensure that the VSIP Port value is 5510; otherwise, click Default. 5. Ensure that the Discovery IP Address is 255.255.255.255;...
  • Page 60 Reconfigure unit? confirmation window, click Yes. The New Network Configuration window appears. 9. Enter the IP information for the unit. For an S3100 in a point-to-point repeater, enter the following information: Use DHCP: do not check this box IP address: 192.168.135.51 for the S3100 on the transmitter side and 192.168.135.52 for the S3100...

  • Page 61: Country Selection And Unit Name

    10. Click OK. The S3100 unit reboots with its new network configuration. 11. In SConfigurator, choose the Units tab, then click Discover. The new outdoor wireless bridge appears in the Units list.

  • Page 62: Wireless Parameters

    Depending on the type of application involved, you have to assign a different set of parameters. Furthermore, the configuration steps vary with the MAC role (master or slave). Use the values supplied in the description of the applications (from page 32 to page 36). Verint Video Solutions...
  • Page 63 S3100 User Manual To set the wireless parameters for a master unit: 1. In the parameter tree of the Unit Configuration window, expand the Network structure, then click Wireless. 2. Set the parameters, as required. For the wireless passkey procedure, see page 50.
  • Page 64 Furthermore, do not disclose the passkey. The connection security is based on the secrecy and uniqueness of the passkey. 4. In the Confirmation field, enter again the passkey. 5. Clear Apply Changes to Connected Stations. 6. Click OK. Verint Video Solutions...

  • Page 65: Communication Checking

    2. In the Units tab, the associated units should be hierarchically positioned under the S3100. 3. In the Link Status pane of the S3100, the units should be in the Clients/Slaves list. 4. Ensure that there is end-to-end video transmission in the lab before installing the units in their final location.

  • Page 66: Installation Of The Repeater Units

    Use a large diameter wire (minimum AWG 10), and make it as short as possible. 3. If the S3100 units will be directly exposed to the sun in an environment likely to reach 122°F (50°C), install sun shields.
  • Page 67 Use a large diameter wire (minimum AWG 10), and make it as short as possible. 6. If the S3100 unit will be directly exposed to the sun in an environment likely to reach 122°F (50°C), install a sun shield.

  • Page 68: Installation Of The Antenna

    3: Configuring and Installing the Unit Installation of the Antenna You install the antenna after the S3100 unit is in place. The antennas provided by Verint Video Solutions are designed to be mounted on a mast or pole of 2–3 inch (5–7.5 cm) diameter.

  • Page 69: Leds

    S3100 User Manual LEDs The S3100 unit comes with three bicolor (green-red) LEDs that provide detailed information on the unit activity. LAN—For the Ethernet network (802.3) status: Condition Indication Steady green The unit is connected to the Ethernet network. Flashing green (1-sec.
  • Page 70 The following power-up conditions on the system status LED are abnormal: LED not lit—Check the power supply and cabling. If power is available and the LED stays off, call Verint Video Solutions technical support for assistance. Steady red LED—There is an internal error that prevents the unit from starting normally.

  • Page 71: Duplicate Master Detection

    The already running master will not change its behavior. Finding a “Lost” S3100 Since the S3100 does not have a serial port, you may have difficulty accessing it if you do not remember its IP address or VSIP port. For instance, if you enabled security on the unit, you cannot access it with Telnet;...
  • Page 72 5. Click Discover. All units on the network, regardless of their configurable VSIP ports, appear in the Units list. Locate the lost S3100 and write down its VSIP port and IP address in the form located at the end of the S3100 Installation Guide.

  • Page 73: Chapter 4 Setting Parameters With The Cli

    Setting Parameters with the CLI The S3100 units come with a simple command line interface (CLI) for configuration purposes. The CLI is hierarchically organized, with menus, sub-menus, and individual options representing configuration parameters. Only the parameters that you are likely to change are described.

  • Page 74: Getting Started

    Getting Started You can use the Telnet utility, through SConfigurator, to open the command line interface of the unit. Note: Ensure that your computer and the S3100 unit are in the same IP subnet. To enter the CLI with Telnet: 1.

  • Page 75: Access Management

    Enter. Depending on the changed settings, the unit may perform a soft boot. Close the Verint Console window. Warning: Do not use the Disconnect button to exit the CLI. Clicking it does not free the RS-232 connection and does not save your settings.

  • Page 76: User Accounts

    IP network. By default, this type of update is allowed. Be aware that it is the only available update method for the S3100, since it does not have a serial port. For more information about firmware updates, refer to the SConfigurator User Manual.

  • Page 77: System Status

    It is recommended to perform this operation in SConfigurator (version 2.55 or higher for the tool and the unit). System Status The system status information indicates the current values of internal S3100 parameters, including the firmware version. Verint Video Solutions...

  • Page 78: Network

    For more information about DHCP, see Appendix D on page 79. You can set this option only if the S3100 is connected to a network that uses a DHCP server. Local IP Address The IP address is the identifier of the S3100 on the network.

  • Page 79: Wireless Communication

    S3100 User Manual Subnet Mask The subnet mask is the binary configuration specifying in which subnet the IP address of the unit belongs. A subnet is a portion of a network that shares a common address component. On TCP/IP networks, a subnet is defined as a group of devices whose IP addresses have the same prefix.

  • Page 80: Basic Parameters

    The MAC role represents the function of the unit in the wireless system. Possible values are: Master (default) and Slave. For more information, see page 8. RF Band The following frequency bands are available: 802.11a (5 GHz OFDM) 802.11g (2.4 GHz OFDM) Verint Video Solutions...
  • Page 81 A high bit rate reduces the effective distance between two functional units. You can set the bit rate in slave S3100 units only. When a slave unit connects to its master for the first time, it automatically receives the best possible value (the Auto value), with a default RF margin set to 15 dB (to change the margin, see page 70).

  • Page 82: Advanced Parameters

    4: Setting Parameters with the CLI The available bit rates for the slave S3100 unit are 6, 9, 12, 18, 24, 36, 48, and 54 Mbps. Antenna Gain If you enter the gain of the antenna you install on the unit, the...
  • Page 83 S3100 User Manual Tx Power Scale The transmission power scale indicates the level of emitting power of the unit radio. The available values are: Maximum—The maximum allowed. 50%—The power is reduced by 3 dB. 25%—The power is reduced by 6 dB.
  • Page 84 The two S3100 units making up an SDCF wireless cell must have the same value for this parameter. Possible values are: 3 miles (5 km) 6 miles (10 km)—default...

  • Page 85: Advanced

    Verint Video Solutions technical support. Some of these parameters are available through SConfigurator or a video management software. To recognize an S3100 among a large set of units, you can make its three LEDs flash red rapidly. Verint Video Solutions...

  • Page 86: Load Default Configuration

    Reboot System The Reboot System command, located in the main menu, performs a soft boot on the S3100. A system reboot clears all unsaved changes in the CLI and returns to your preset configuration. Verint Video Solutions...

  • Page 87: Appendix A Factory Default Configuration

    Factory Default Configuration Verint Video Solutions...
  • Page 88 A: Factory Default Configuration The S3100 is programmed at the factory with the following configuration: Type Configuration Access User name: USERNAME management Password: PASSWORD User accounts: Disabled Telnet sessions: Enabled IP firmware update: Enabled Global security profile: Disabled SSL passkey: <empty>...

  • Page 89: Appendix Brj-45 Ethernet Cables

    RJ-45 Ethernet Cables Verint Video Solutions...
  • Page 90 B: RJ-45 Ethernet Cables Depending on whether the S3100 unit is integrated on a network or not, the Ethernet cable varies: If on a network, use a straight-through cable. To link it directly to a computer, use a crossover cable.

  • Page 91: Appendix C Pole Mounting Of The Antennas

    Pole Mounting of the Antennas The installation procedure for the external antenna varies depending on the model. Verint Video Solutions...
  • Page 92 C: Pole Mounting of the Antennas ANT-WP13-5x/S Antenna Here is the way to install the 13-dBi antenna to be used in the 5 GHz band: Verint Video Solutions...

  • Page 93: Appendix Ddhcp Support And Apipa Service

    IP configuration from a dedicated server. The APIPA (automatic private IP addressing) service, available on the Windows operating systems, enables a device to assign itself a temporary IP address. Verint Video Solutions...
  • Page 94 The first time it boots up After receiving a duplicate IP address After a factory reset When the DHCP server does not have any available IP addresses DHCP configuration is disabled: After a firmware upgrade After a factory reset Verint Video Solutions...

  • Page 95: Appendix E Surge Protection

    Voltage and current surges can be induced by lightning strikes or power line transients. In the real world, under the right circumstances, these surges can reach sufficiently high levels to damage almost any electronic equipment. Therefore you need to add protection to your units. Verint Video Solutions...
  • Page 96 6.6 feet (2 meters). If you are installing an S3100 unit (S3100 model) in a heavy lightning environment, or in a site where large AC mains power fluctuations are a common occurrence, Verint Video Solutions recommends that you add surge protection on the DATA &...

  • Page 97: Appendix Frf Contact Between Masters

    RF Contact between Masters If the country of operation of your units requires DFS compliance, you must ensure that the master units (S3100 and S1100-R) in colocated cells “see” one another in their permanent location. Such a contact means that RF...
  • Page 98 MasterB. You will have to access the command line interface (CLI) of at least one master. For more information about the CLI, refer to Chapter 4 in the S3100 User Manual or to Chapter 4 in the S1100 User Manual.
  • Page 99 S3100 User Manual If MasterB is an S1100, go in the Wireless Status window of the Configuration Assistant. Wait until the connection status is Not Connected or Connected; these statuses occur after Radar Detection. If you do not have access to the connection status of MasterB, wait for the following time period: (starting order of MasterB - 1) multiplied by 80 seconds.
  • Page 100 Verint Video Solutions...

  • Page 101: Channels

    Separation Between Units Using Adjacent Channels Verint Video Solutions...
  • Page 102 The guidelines apply to the S1100, S1100w, and S3100 units. In the 2.4 GHz band, the adjacent channel term applies only to the three non-overlapping channels (1, 6, and 11).
  • Page 103 S3100 User Manual To help you plan your systems, here are installation scenarios that respect the limitations. These scenarios include the frequency band and channel. Using only 5 GHz channels, all on the same side of a building: 5.8 GHz 5.3 GHz...
  • Page 104 There is no minimum separation between any two adjacent units sharing a pole, since they do not use adjacent channels: 5.8 GHz 5.3 GHz 5.3 GHz 5.8 GHz 5.8 GHz 5.3 GHz 5.8 GHz 5.3 GHz 5.8 GHz 43 feet (13m) Verint Video Solutions...
  • Page 105 S3100 User Manual Using only 5 GHz channels, all on the same side of a tower. The minimum separation between units using adjacent channels—for example, 56 and 60—is the prescribed 13 feet (4m): 5.8 GHz 5.3 GHz 5.8 GHz 5.3 GHz 13 feet (4m) 5.8 GHz...
  • Page 106 The minimum separation of 7.8 feet (2.4m) between back-to-back units is respected: 5.8 GHz 5.8 GHz 5.3 GHz 5.8 GHz 5.3 GHz 5.3 GHz 5.8 GHz 5.3 GHz 5.8 GHz 7.8 feet (2.4m) Verint Video Solutions...

  • Page 107: Appendix H Technical Specifications

    Technical Specifications Verint Video Solutions...
  • Page 108 H: Technical Specifications Here are the S3100 technical specifications: Network RF interface SmartSight SPCF and SDCF Modulation OFDM Encryption 128-bit AES Data rate 6, 9, 12, 18, 24, 36, 48, and (max. burst rate) 54 Mbps Ethernet connector Weatherproof 10/100Base-T...

  • Page 109: Glossary

    Glossary This glossary is common to the SmartSight line of products. Verint Video Solutions...
  • Page 110 Also known as AutoIP. Bridge A unit linking a wireless network to a wired Ethernet network. The newest SmartSight bridge is the S3100. CCTV (Closed Circuit Television) A television system in which signals are not publicly distributed; cameras are connected to television monitors in a limited area such as a store, an office building, or on a college campus.
  • Page 111 S3100 User Manual DVR (Digital Video Recorder) A device (usually a computer) that acts like a VCR in that it has the ability to record and play back video images. The DVR takes the feed from a camera and records it into a digital format on a storage device which is most commonly the hard drive.
  • Page 112 Receiver A device converting a digital video signal into an analog form. Also called decoder. Repeater A range extender for wireless links. The SmartSight repeater is made up of two S3100 bridges. RF (Radio Frequency) Any frequency within the electromagnetic spectrum associated with radio wave propagation.
  • Page 113 The transmitters in the series offer 8, 12, or 24 video inputs. S3100 The outdoor, wireless, digital SmartSight video bridging unit. It has many uses, including linking video servers (wireless or wired) to an Ethernet LAN and acting as a range extender.
  • Page 114 Wireless Cell A group of wireless devices that communicate together on the same radio frequency channel and share the same wireless passkey. Wireless Transmission A technology in which electronic devices send information to receivers using radio waves rather than wiring. Verint Video Solutions...

  • Page 115: Index

    See frequency computer, changing the IP band. address 40 bit rate configuration RF 67 default 72 video 10 order, in the wireless cell 9 boot sequence 13 – unit 39 boot, soft 72 bridge application, wireless 19 Verint Video Solutions...
  • Page 116 DFS (dynamic frequency DFS 13 selection). available 6 manual selection 49 selecting the location 71 usage, in relation to the MAC EIRP 28 protocol 20 emitting power. See transmission Fresnel zone 26 power. enclosure of the unit 4 Verint Video Solutions...
  • Page 117 S3100 User Manual loading default configuration 72 gain of an antenna 28 location evaluation 26 gateway 65 login name. See user name. global security profile 63 lost unit 57 grounding connection 53 MAC protocol 12 hidden node problem 12 MAC role 8...
  • Page 118 (PoE) master 51 – injector 37 compatibility with S3100 9 power-up condition, abnormal 56 maximum number in a cell 10 preparation of the unit 44 role in a wireless cell 8 preventing, firmware update 62...
  • Page 119 51 Utilities CD x defined 8 maximum number in a cell 10 SmartSight Utilities CD x soft reboot 72 Verint Video Solutions web site xi software reset 72 version of firmware SPCF 12 compatibility between units 9 –...
  • Page 120 Verint Video Solutions...

  • Page 121: Compliance

    Compliance Verint Video Solutions...
  • Page 122 (EIRP) is not more than that required for successful communication. Note: The S3100 units require professional installation. They should be installed in a location that would prevent the general population from approaching from 3 feet (1 meter) of the radiating element.
  • Page 123 S3100 User Manual Canada Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the...

  • Page 124: Declaration Of Conformity

    H7L 4S4 Canada Declares under sole responsibility that the product: Product name: Outdoor wireless bridge Model number: S3100-CE, S3100-CE-RP To which this declaration relates is in conformity with the following standards or other documents: R&TTE Directive 1999/5/EC EN 300 328-2 V1.2.1 (2001-12) EN 301 893 V1.2.3 (2003-08)
  • Page 125 H7L 4S4 Canada Declares under sole responsibility that the product: Product name: Outdoor wireless bridge Model number: S3100-TR-24, S3100-TR-RP-24 To which this declaration relates is in conformity with the following standards or other documents: R&TTE Directive 1999/5/EC EN 300 328-2 V1.2.1 (2001-12) EN 301 489-01 V1.4.1 (2002-08)
  • Page 126 Verint Video Solutions...
  • Page 127 Verint Video Solutions 1800 Berlier Street Laval (Quebec) Canada H7L 4S4...

Table of Contents
