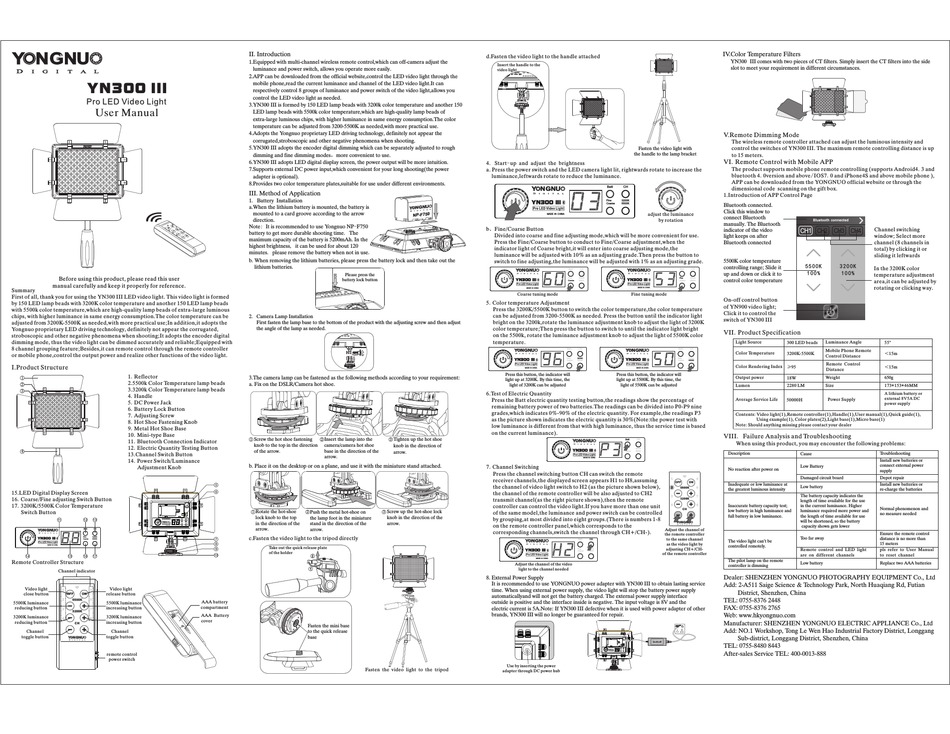

Yongnuo YN300 III User Manual

YN300 III
User Manual
Before using this product, please read this user
manual carefully and keep it properly for reference.
Summary
First of all, thank you for using the YN300 III LED video light. This video light is formed
by 150 LED lamp beads with 3200K color temperature and another 150 LED lamp beads
with 5500k color temperature,which are high-quality lamp beads of extra-large luminous
chips, with higher luminance in same energy consumption.The color temperature can be
adjusted from 3200K-5500K as needed,with more practical use;In addition,it adopts the
Yongnuo proprietary LED driving technology, definitely not appear the corrugated,
stroboscopic and other negative phenomena when shooting;It adopts the encoder digital
dimming mode, thus the video light can be dimmed accurately and reliable;Equipped with
8 channel grouping feature;Besides,it can remote control through the remote controller
or mobile phone,control the output power and realize other functions of the video light.

I.Product Structure

1 Reflector .
1
2.5500k Color Temperature lamp beads
2
3.3200k Color Temperature lamp beads
3
4 Handle .
5 DC Power Jack .
6 Battery Lock Button .
7 Adjusting Screw .
8 Hot Shoe Fastening Knob .
9 Metal Hot Shoe Base .
10 Mini-type Base .
11 Bluetooth Connection Indicator .
12 Electric Quantity Testing Button .
4
13.Channel Switch Button
14 Power Switch/Luminance .
Adjustment Knob
15.LED Digital Display Screen
.
16 Coarse/Fine adjusting Switch Button
17 3200K/5500K Color Temperature .
Switch Button
Batt CH
YN300 III Fine 3200K
Coarse 5500K
MADE IN CHINA
Batt CH
YN300 III Fine 3200K
Coarse 5500K
MADE IN CHINA
Remote Controller Structure
Channel indicator
Video light Video light
close button OFF ON release button
5500K
5500K luminance 5500K luminance
reducing button increasing button
3200K
3200K luminance 3200K luminance
reducing button increasing button
CH
Channel Channel
toggle button toggle button
remote control
power switch

II Introduction

.
1.Equipped with multi-channel wireless remote control,which can off-camera adjust the
luminance and power switch, allows you operate more easily.
2.APP can be downloaded from the official website,control the LED video light through the
mobile phone,read the current luminance and channel of the LED video light.It can
respectively control 8 groups of luminance and power switch of the video light,allows you
control the LED video light as needed.
3.YN300 III is formed by 150 LED lamp beads with 3200k color temperature and another 150
LED lamp beads with 5500k color temperature,which are high-quality lamp beads of
extra-large luminous chips, with higher luminance in same energy consumption.The color
temperature can be adjusted from 3200-5500K as needed,with more practical use.
4.Adopts the Yongnuo proprietary LED driving technology, definitely not appear the
corrugated,stroboscopic and other negative phenomena when shooting.
5.YN300 III adopts the encoder digital dimming which can be separately adjusted to rough
dimming and fine dimming modes more convenient to use.
，
6.YN300 III adopts LED digital display screen, the power output will be more intuition.
7.Supports external DC power input,which convenient for your long shooting(the power
adapter is optional).
8.Provides two color temperature plates,suitable for use under different environments.

I . Method of Application

II

1 Battery Installation

.
a.When the lithium battery is mounted, the battery is
mounted to a card groove according to the arrow
direction.
: -
Note It is recommended to use Yongnuo NP F750
battery to get more durable shooting time The .
maximum capacity of the battery is 5200mAh. In the
highest brightness it can be used for about 120 ,
. .
minutes please remove the battery when not in use
b. When removing the lithium batteries, please press the battery lock and then take out the
lithium batteries.
Please press the
battery lock button

2 Camera Lamp Installation

.
First fasten the lamp base to the bottom of the product with the adjusting screw and then adjust
the angle of the lamp as needed
.
3.The camera lamp can be fastened as the following methods according to your requirement:
a. Fix on the DSLR/Camera hot shoe.
1 Screw the hot shoe fastening 2 Insert the lamp into the
knob to the top in the direction camera/camera hot shoe
of the arrow. base in the direction of the
arrow.
b. Place it on the desktop or on a plane, and use it with the miniature stand attached.
1 Rotate the hot-shoe 2 Push the metal hot-shoe on
lock knob to the top the lamp foot in the miniature
in the direction of the stand in the direction of the
arrow. arrow.
c.Fasten the video light to the tripod directly
Take out the quick release plate
of the holder
AAA battery
compartment
AAA Battery
cover
Fasten the mini base
to the quick release
base
Fasten the video light to the tripod
d.Fasten the video light to the handle attached
Insert the handle to the
video light
4 Start up and adjust the brightness . -
a. Press the power switch and the LED camera light lit, rightwards rotate to increase the
luminance,leftwards rotate to reduce the luminance.
YN300 III
MADE IN CHINA
b Fine/Coarse Button
、
Divided into coarse and fine adjusting mode,which will be more convenient for use.
Press the Fine/Coarse button to conduct to Fine/Coarse adjustment,when the
indicator light of Coarse bright,it will enter into coarse adjusting mode,the
luminance will be adjusted with 10% as an adjusting grade.Then press the button to
switch to fine adjusting,the luminance will be adjusted with 1% as an adjusting grade.
YN300 III
MADE IN CHINA
Coarse tuning mode
5 Color temperature Adjustment .
Press the 3200K/5500K button to switch the color temperature,the color temperature
can be adjusted from 3200-5500K as needed. Press the button until the indicator light
bright on the 3200k,rotate the luminance adjustment knob to adjust the light of 3200K
color temperature;Then press the button to switch to until the indicator light bright
on the 5500k, rotate the luminance adjustment knob to adjust the light of 5500K color
temperature.
YN300 III
MADE IN CHINA
Press this button, the indicator will
light up at 3200K. By this time, the
light of 3200K can be adjusted
6.Test of Electric Quantity
Press the Batt electric quantity testing button,the readings show the percentage of
remaining battery power of two batteries.The readings can be divided into P0-P9 nine
grades,which indicates 0%-90% of the electric quantity. For example,the readings P3
as the picture shown indicates the electric quantity is 30%(Note:the power test with
low luminance is different from that with high luminance, thus the service time is based
on the current luminance).
3 Tighten up the hot shoe
knob in the direction of
arrow.
7 Channel Switching .
Press the channel switching button CH can switch the remote
receiver channels,the displayed screen appears H1 to H8,assuming
the channel of video light switch to H2 (as the picture shown below),
the channel of the remote controller will be also adjusted to CH2
transmit channel(as the right picture shown),then the remote
controller can control the video light.If you have more than one unit
3 Screw up the hot-shoe lock
of the same model,the luminance and power switch can be controlled
knob in the direction of the
by grouping,at most divided into eight groups.(There is numbers 1-8
arrow.
on the remote controller panel,which corresponds to the
corresponding channels,switch the channel through CH+/CH-).
YN300 III
MADE IN CHINA
Adjust the channel of the video
light to the channel needed
8. External Power Supply
It is recommended to use YONGNUO power adapter with YN300 III to obtain lasting service
time. When using external power supply, the video light will stop the battery power supply
automaticallyand will not get the battery charged. The external power supply interface
outside is positive and the interface inside is negative. The input voltage is 8V and the
electric current is 5A.Note: If YN300 III defective when it is used with power adapter of other
brands, YN300 III will no longer be guaranteed for repair.
Use by inserting the power
adapter through DC power hub
IV.Color Temperature Filters
YN3 00
slot to meet your requirement in different circumstances.

V.Remote Dimming Mode

The wireless remote controller attached can adjust the luminous intensity and
Fasten the video light with control the switches of YN300 III. The maximum remote controlling distance is up
the handle to the lamp bracket
to 15 meters.
.

VI Remote Control with Mobile APP

The product supports mobile phone remote controlling (supports Android4 3 and
bluetooth 4 0version and above IOS7 0 and iPhone4S and above mobile phone ),
APP can be downloaded from the YONGNUO official website or through the
Batt CH
dimensional code scanning on the gift box.

1.Introduction of APP Control Page

Fine 3200K
Coarse 5500K Bluetooth connected.
Click this window to
adjust the luminance
connect Bluetooth
by rotation
manually. The Bluetooth
indicator of the video
light keeps on after
Bluetooth connected
5500K color temperature
controlling range; Slide it
Batt CH Batt CH
up and down or click it to
Fine 3200K YN300 III Fine 3200K
control color temperature
Coarse 5500K Coarse 5500K
MADE IN CHINA
Fine tuning mode
On-off control button
of YN900 video light;
Click it to control the
switch of YN300 III

VII Product Specification

.
Light Source
Batt CH Batt CH
Color Temperature
Fine 3200K YN300 III Fine 3200K
Coarse 5500K Coarse 5500K
Color Rendering Index
MADE IN CHINA
Press this button, the indicator will
Output power
light up at 5500K. By this time, the
light of 5500K can be adjusted Lumen
Average Service Life
Contents: Video light(1),Remote controller(1),Handle(1),User manual(1),Quick guide(1),
Note: Should anything missing please contact your dealer

VIII Failure Analysis and Troubleshooting

.
Batt CH
When using this product, you may encounter the following problems:
Fine 3200K
YN300 III
Coarse 5500K
Description
MADE IN CHINA
No reaction after power on
OFF ON
Inadequate or low luminance at
5500K
the greatest luminous intensity
3200K
Inaccurate battery capacity test;
CH low battery in high luminance and
full battery in low luminance.
Adjust the channel of
the remote controller
to the same channel
Batt CH
The video light can't be
as the video light by
controlled remotely.
Fine 3200K adjusting CH+/CH-
Coarse 5500K
of the remote controller
The pilot lamp on the remote
controller is dimming
Dealer: SHENZHEN YONGNUO PHOTOGRAPHY EQUIPMENT Co., Ltd
Add: 2-A511 Saige Science & Technology Park, North Huaqiang Rd, Futian
District, Shenzhen, China
TEL: 0755-8376 2448
FAX: 0755-8376 2765
Web: www.hkyongnuo.com
Manufacturer: SHENZHEN YONGNUO ELECTRIC APPLIANCE Co., Ltd
Add: NO.1 Workshop, Tong Le Wen Hao Industrial Factory District, Longgang
Sub-district, Longgang District, Shenzhen, China
TEL: 0755-8480 8443
Batt CH
YN300 III Fine 3200K
Coarse 5500K
After-sales Service TEL: 400-0013-888
MADE IN CHINA
III comes with two pieces of CT filters. Simply insert the CT filters into the side
.
. / .
Bluetooth connected
Channel switching
window; Select more
channel (8 channels in
total) by clicking it or
sliding it leftwards
5 5 00 K 3 2 00 K
In the 3200K color
1 00 % 1 00 %
temperature adjustment
area,it can be adjusted by
rotating or clicking way.
Luminance Angle
300 LED beads 55°
Mobile Phone Remote
3200K-5500K ＜15m
Control Distance
Remote Control
≥95 ＜15m
Distance
18W Weight 650g
2280 LM Size 173 153 46MM * *
A lithium battery or
external 8V5A DC
50000H Power Supply
power supply
Using example(1), Color plates(2),Light base(1),Micro base(1)
Cause Troubleshooting
Install new batteries or
connect external power
Low Battery
supply
Damaged circuit board Depot repair
Install new batteries or
Low battery
re-charge the batteries
The battery capacity indicates the
length of time available for the use
in the current luminance. Higher
Normal phenomenon and
luminance required more power and
no measure needed
the length of time available for use
will be shortened, so the battery
capacity shown gets lower
Ensure the remote control
Too far away distance is no more than
15 meters
Remote control and LED light pls refer to User Manual
are on different channels to reset channel
Replace two AAA batteries
Low battery
