Summary of Contents for Raidon eSATA PCI Express Card

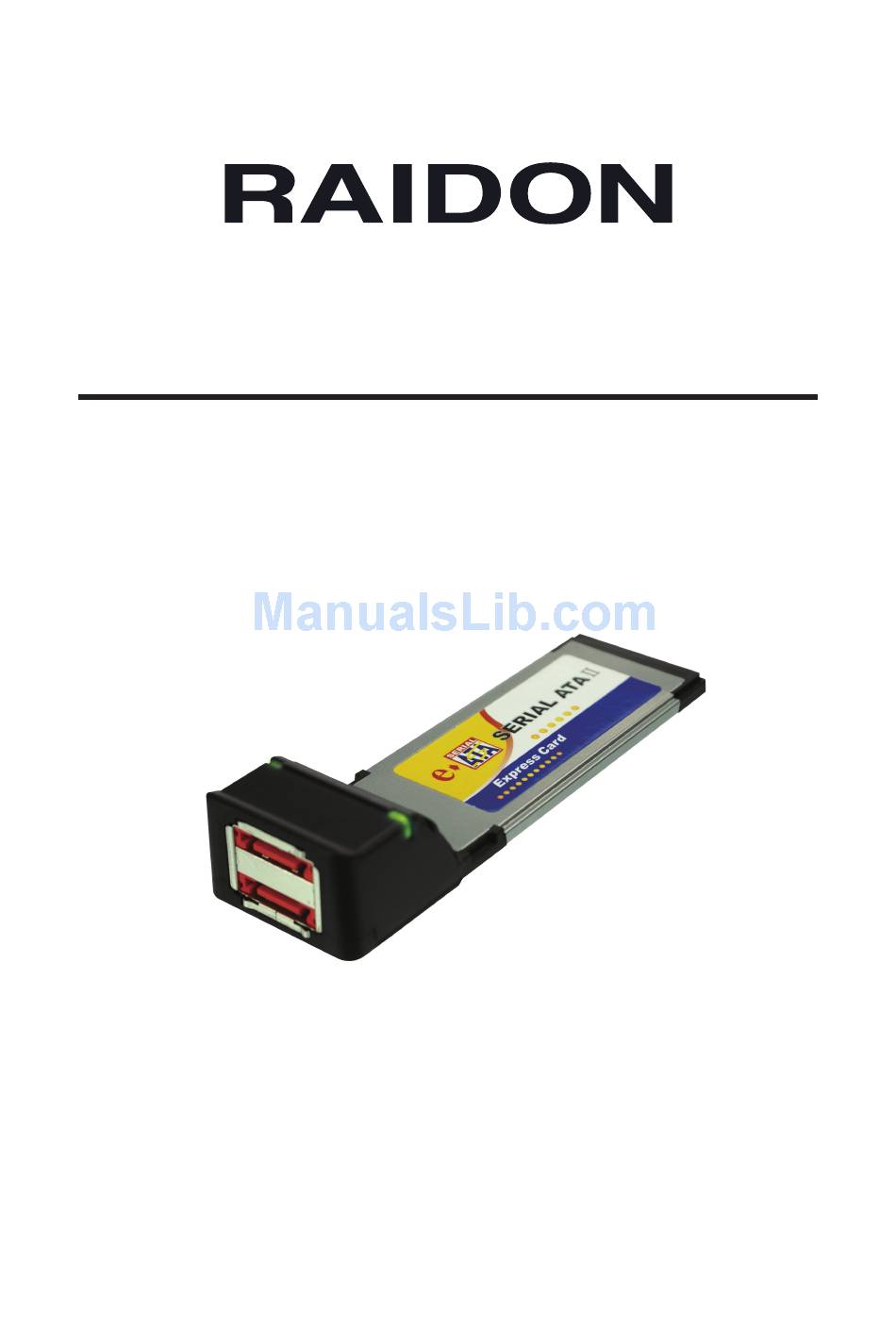

- Page 1 e-SATA PCI Express Card User Manual Version : 1.0 (May, 2008)
-
Page 2: Hardware Description
Hardware Description eSATA Port Access LED Product Specifications Product Model : eSATA PCI Express Card(34mm) Transmission Interface : PCI Express Extension Interface : SATA II(3Gb/s) Number of Extension Ports : Chipset : Silicon Image Sil 3132 Hot-Swap Support : LED Indicator :... - Page 3 Installation(For Windows) 1. Insert the eSATA PCI Express Card in the PCI Express Card slot of the Notebook. 2. Place the supplied CD in the CD-ROM, and click “English”...
- Page 4 Click “Other Information” Click “Drive”...
- Page 5 You will see the following image. Please open file “Sil3132-PCI-E” Select file “SIL3132”...
- Page 6 Please select the file compatible with your operating system. Following is the example of Windows XP, So click file “Windows 2000 XP” and you will see the zip file “NON-RAID.ZIP”. Unzip it and use it to install the drive of SATA PCI Express Card.
- Page 7 CD. Notice 1. If the eSATA PCI Express Card does not fit the PCI Express Card slot of your Notebook, make sure that this is a PCI Express slot. 2. If the driver in the supplied CD cannot be installed, please download the latest driver from www.siliconimage.com.
- Page 8 For end users or those who do not buy products directly from us, please contact your distributor for prompt and better responses. If your product is not purchased directly from RAIDON, please do not contact us since you may not get any reply.
