Instruction Manual
Model No. FORECUM 8
Before using the product for the first time, please read the instructions for use
below and retain them for later reference.

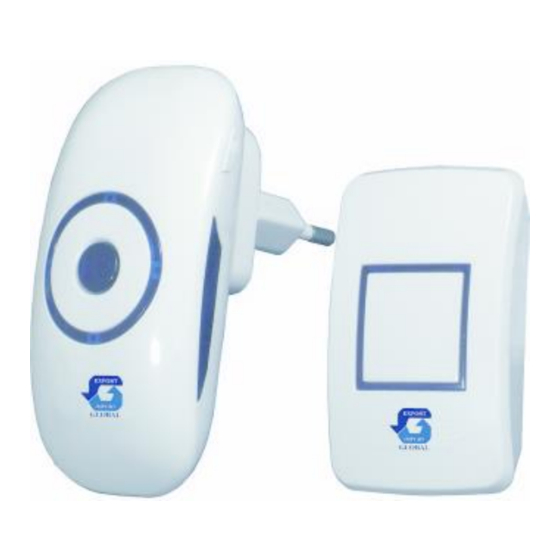

Product name: smart home wireless digital doorbell
Receiver indicating diagram:
Transmitter indicating diagram:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FORECUM 8 and is the answer not in the manual?

Questions and answers

Summary of Contents for GLOBAL Export Import FORECUM 8

  • Page 1 Instruction Manual Model No. FORECUM 8 Before using the product for the first time, please read the instructions for use below and retain them for later reference. Product name: smart home wireless digital doorbell Receiver indicating diagram: Transmitter indicating diagram:...
  • Page 2 INSTALLATION: BELLPUSH: With a flat headed screwdriver fold pen the bell push. According to the given polarity input an LR 23A (12V) alkaline battery. 2. Receiver: Connect the bell to a 90-260V network. 3. 4 levels adjustable volume 4. 36 varied style of tunes for optional Installation Notes: 1.Transmitter:clean the case first and paste the double sticker,then put the transmitter on the wall.In order to make it work properly,the height should be >1.5m.
  • Page 3 Unbing: Please hold press volume button before plug into socket, then will remove all been paired receivers. (Attention: only pairing errors happen, then use this way.) Receiver Working voltage: 90-260V Standby current: 7mA Working current: 60mA Working Frequency: 433MHZ Transmitter Working voltage: 12V 12V23A*1pcs Working Frequency: 433MHZ Standby current: 1μA...
