Summary of Contents for Vaisala MOG100
-
Page 1: User Guide
M211951EN-B User Guide Vaisala Multi-Observation Gateway MOG100... - Page 2 Street address: Vanha Nurmijärventie 21, FI-01670 Vantaa, Finland Mailing address: P.O. Box 26, FI-00421 Helsinki, Finland Phone: +358 9 8949 1 Visit our Internet pages at www.vaisala.com. © Vaisala Oyj 2018 obligations and agreements are No part of this manual may be...
-
Page 3: Table Of Contents
Overview to Configuration and Installation.........9 Configuration....................10 Installing SIM Card..................10 Installing AQ Tool....................11 Establishing Maintenance Connection............12 Configuring Wireless Communication............12 Registering MOG100 in Beacon View............13 Installation......................14 Installing MOG100................... 14 5.1.1 Installing Mounting Bracket on 60 ... 100 mm Mast......15 5.1.2 Installing Mounting Bracket on Sensor Support Arm or 35 ... - Page 4 MOG100 User Guide M211951EN-B...
-
Page 5: About This Document
Chapter 1 – About This Document 1. About This Document 1.1 Version Information This document provides information about the installation and operation of Vaisala Multi- Observation Gateway MOG100. Table 1 Document Versions Document Date Description Code M211951EN-B February 2018 • MOG100 registration instructions updated. -
Page 6: Trademarks
Lists tools needed to perform the task. Indicates that you need to take some notes during the task. 1.4 Trademarks Vaisalaâ is a registered trademark of Vaisala Oyj. Microsoftâ and Windowsâ are either registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. -
Page 7: Product Overview
• Battery regulator for solar panel and battery input • Memory for data logging and local buffering MOG100 sends the measuring data from the air quality or weather transmitters to Vaisala Beacon View cloud service, Vaisala Observation Network Manager NM10, and third-party servers, using the integrated 3.5G (4‑band GSM) cellular modem. -
Page 8: Safety
Vaisala assumes no liability for the customer's failure to comply with these requirements. WARNING! If the equipment is used in a manner not specified by Vaisala, the protection provided by the equipment may be impaired. -
Page 9: Esd Protection
Chapter 2 – Product Overview 2.2.1 ESD Protection Electrostatic Discharge (ESD) can damage electronic circuits. Vaisala products are adequately protected against ESD for their intended use. However, it is possible to damage the product by delivering electrostatic discharges when touching, removing, or inserting any objects in the equipment housing. -
Page 10: Fcc Compliance
2.3.2 FCC Compliance This product contains a transmitter module FCC ID RI7HE910. MOG100 complies with FCC Chapter 47 Part 15, 22H, 24E and 27. Operating is subject to the following two conditions: • This device may not cause harmful interference, and •... -
Page 11: Overview To Configuration And Installation
Chapter 3 – Overview to Configuration and Installation 3. Overview to Configuration and Installation First set up MOG100 configuration and verify that it is sending data. Next, install MOG100 to the selected location. In configuring MOG100 you need: • Laptop computer •... -
Page 12: Configuration
1. Insert the SIM card in a mobile phone or a similar device and disable the PIN code query (SIM card lock). Remove the SIM card from the phone. 2. Remove the 6 screws that hold the cover of MOG100. 3. To unlock the SIM card holder, push and lift it. -
Page 13: Installing Aq Tool

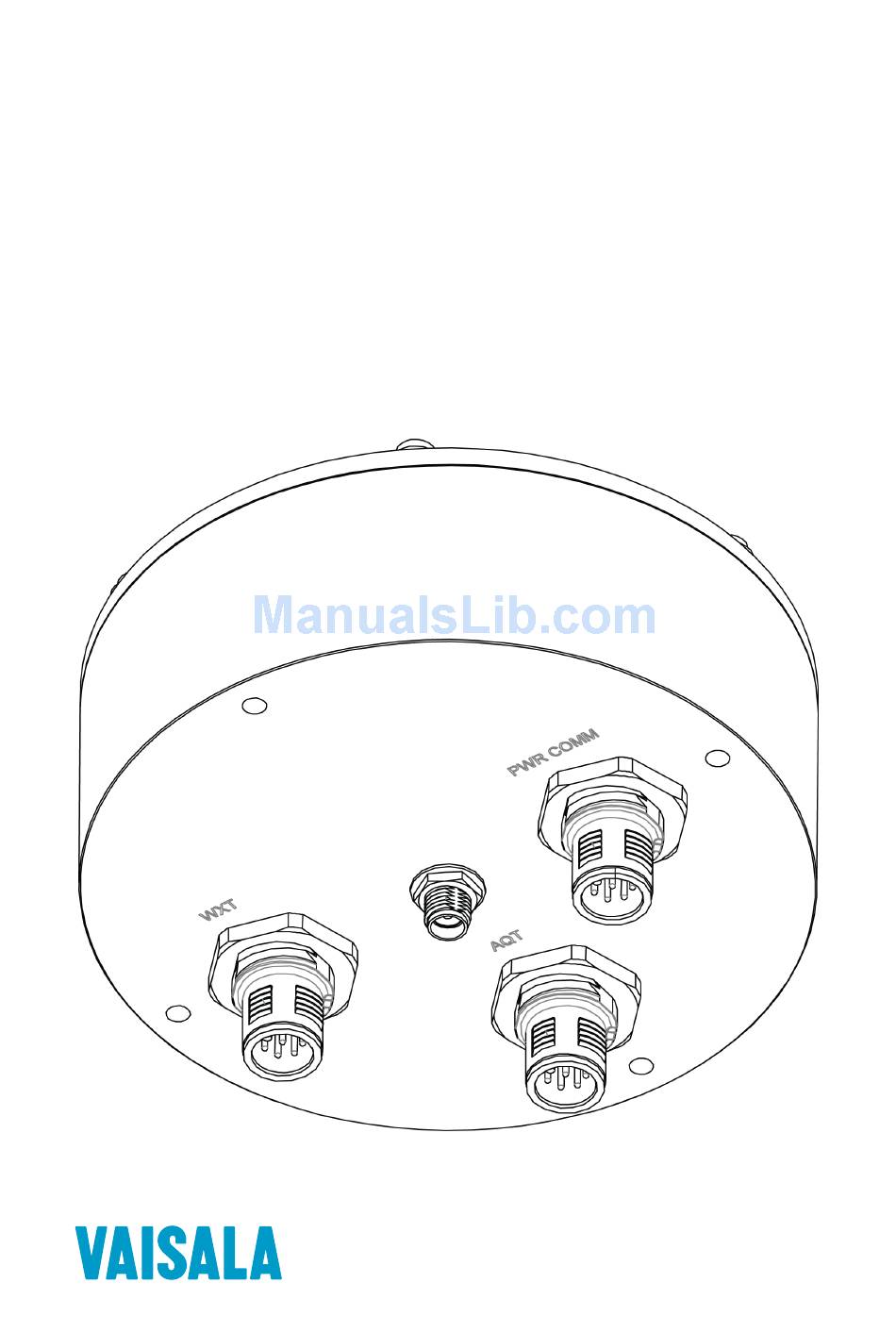

Chapter 4 – Configuration 7. Connect the GSM antenna to the antenna connector in the middle. Figure 1 MOG100 Connectors M12 connector for WXT530 M12 connector for AQT400 SMA connector for GSM antenna M12 connector for power and maintenance 4.2 Installing AQ Tool You need a computer with one of the following operating systems: •... -
Page 14: Establishing Maintenance Connection
MOG100 User Guide M211951EN-B 4.3 Establishing Maintenance Connection To change and check MOG100 settings, establish a maintenance connection with RS-232 and AQ Tool. 1. Connect the M12 female‑power/maintenance cable to the PWR COMM connector in MOG100. Leave the protective caps on the connectors in MOG100 that you are not going to use. -
Page 15: Registering Mog100 In Beacon View
Beacon View confirms whether the registration was successful. 5. In Overview in Beacon View, check that MOG100 is listed and its status is Active. If you have multiple devices, repeat the procedure using the QR code or in Beacon View, select Overview >... -
Page 16: Installation
5. Installation 5.1 Installing MOG100 Install MOG100 to a different height and away from the air quality transmitter. First attach the mounting bracket on a mast, sensor support arm, or wall, depending on your choice of installation, and then attach MOG100 on the mounting bracket: •... -
Page 17: Installing Mounting Bracket On 60
Chapter 5 – Installation 5.1.1 Installing Mounting Bracket on 60 ... 100 mm Mast • 5‑mm Allen key For optimum installation, the material of the tube or mast is a minimum of 3 mm (0.12 in) thick and the outside diameter of the tube or mast is 60 … 100 mm (2.36 ... - Page 18 MOG100 User Guide M211951EN-B For optimum installation, the material of the tube or mast is a minimum of 3 mm (0.12 in) thick and the outside diameter of the tube or mast is 35 … 40 mm (1.38 ... 1.57 in).
-
Page 19: Installing Mounting Bracket On Wall
1. Drill holes into the wall. Use the mounting bracket as a guide. Hole for wall mounting (2 pcs) Mounting bracket 2. Attach the mounting bracket on a wall. Use wall plugs if necessary, and screws that are suitable for the wall material. 5.1.4 Installing MOG100 on Mounting Bracket • Crosshead screwdriver... - Page 20 MOG100 User Guide M211951EN-B Figure 3 Mounting Bracket Installation Accessories Flat washer A4,3 DIN125 A4 (3 pcs) Crosshead screw M4×8 DIN7985 PZ A4 (3 pcs) 1. Insert 2 screws and washers in the holes next to the WXT and PWR COMM connectors.
- Page 21 Chapter 5 – Installation 2. With the AQT connector facing the mounting kit, push the screws to the corresponding slots in the mounting bracket. Make sure that the hole in the mounting bracket aligns with the hole next to the AQT connector.
-
Page 22: Installing Aqt400/Wxt530
3. Insert the third screw and washer in the hole in the mounting bracket and attach it to MOG100. Tighten the screw. 4. Tighten the other 2 screws and make sure that MOG100 is firmly attached to the mounting bracket. - Page 23 3. Connect the GSM antenna to the antenna connector in the middle, if you have not already done so. 4. Connect the blue (-) and red (+) wires to the 8 ... 30 VDC power input. Connect the sensor cable to the PWR COMM connector in MOG100. Manually tighten the outer sleeve. M12 Pin Wire Color...
-
Page 24: Verifying Installation
2. To log in to Beacon View, type your Username and Password, and select Log in. 3. To view measurement data and manage your devices, select Devices. 4. For more information, see Vaisala Air Quality Transmitter AQT400 Series User Guide. -
Page 25: Troubleshooting
Chapter 6 – Troubleshooting 6. Troubleshooting If the product does not work as it should, check all cables and connectors for continuity, bad contacts, or corrosion. If failure persists, contact Vaisala technical support. Table 4 Troubleshooting MOG100 Problem Probable Cause Remedy GSM communication does not PIN code checking is enabled. -
Page 26: Mog100 Specifications
MOG100 User Guide M211951EN-B 7. MOG100 Specifications Table 5 Operating Environment Property Description/Value Operating temperature −30 ... +50 °C (−22 ... +122 °F) Operating humidity 0 ... 100 %RH Table 6 Inputs and Outputs Property Description/Value Operating voltage 8 … 30 VDC Power consumption... - Page 27 Chapter 7 – MOG100 Specifications Table 9 Compliance Property Description/Value EN/IEC 61326-1 EN 55032 Class B IP rating IP66 Table 10 Telit Radio Module Specifications Property Description/Value Model HE910-GL Frequency bands 800/850, 900, AWS 1700, 1900, 2100 MHz SIM card type Micro-SIM...
- Page 28 MOG100 User Guide M211951EN-B...
-
Page 29: Warranty
Please see the applicable supply contract or Conditions of Sale for details of the warranty for each product. Technical Support Contact Vaisala technical support at helpdesk@vaisala.com. Provide at least the following supporting information: • Product name, model, and serial number •... - Page 30 MOG100 User Guide M211951EN-B...
- Page 32 www. v aisala.com...
