Level 3 Repair
8-3. Flow Chart of Troubleshooting

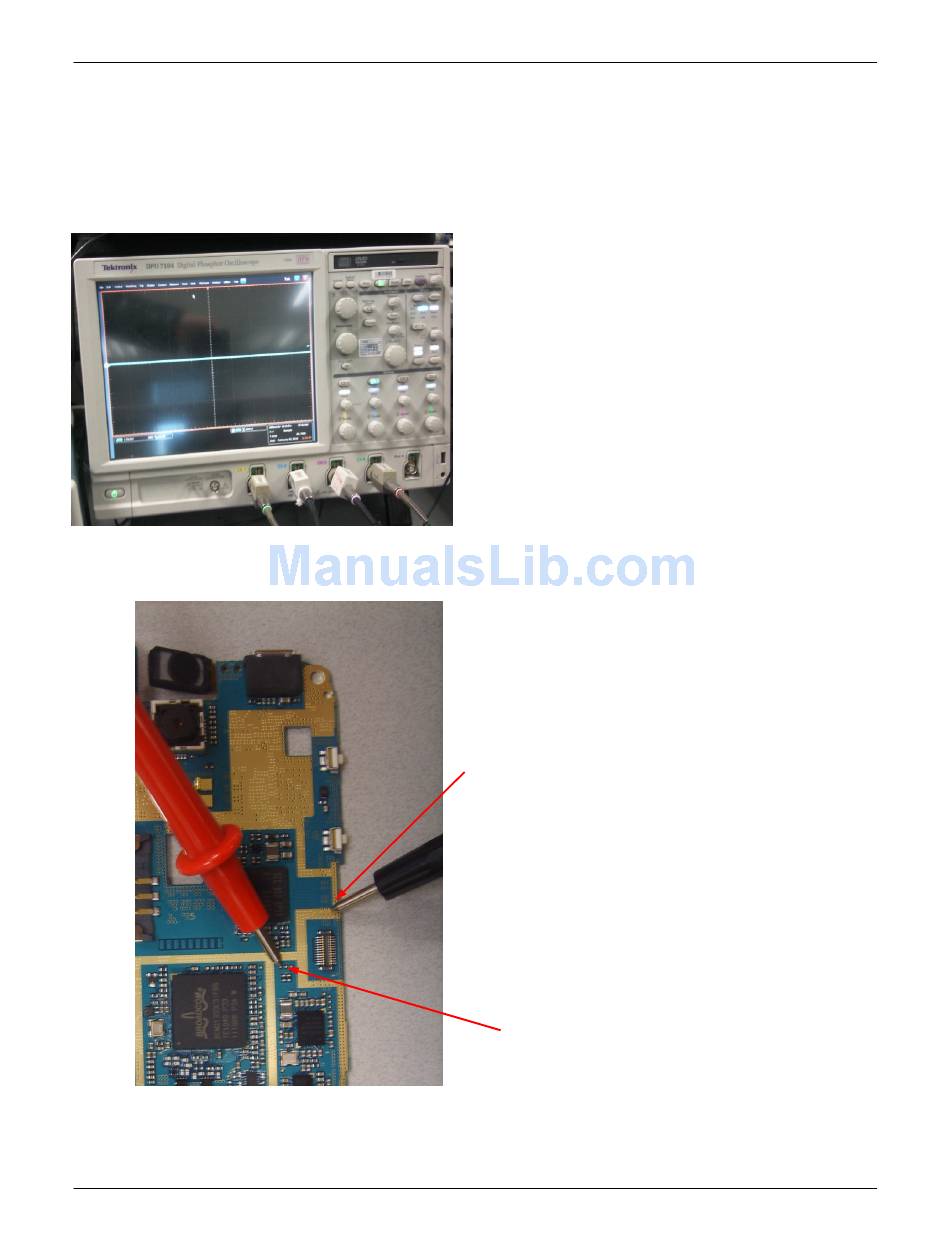

※ presetting methods for checking TP
- GND & TP(exp. VBAT=C302 , C303) using Oscilloscope
- look over the coming out signal.
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
← Oscilloscope
GND
TP (Test Point)
8-4
