PMC-DVI
DVI-Graphics Card
Hardware Manual
PMC-DVI Hardware Manual Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMC-DVI and is the answer not in the manual?

Questions and answers

Summary of Contents for ESD electronic PMC-DVI

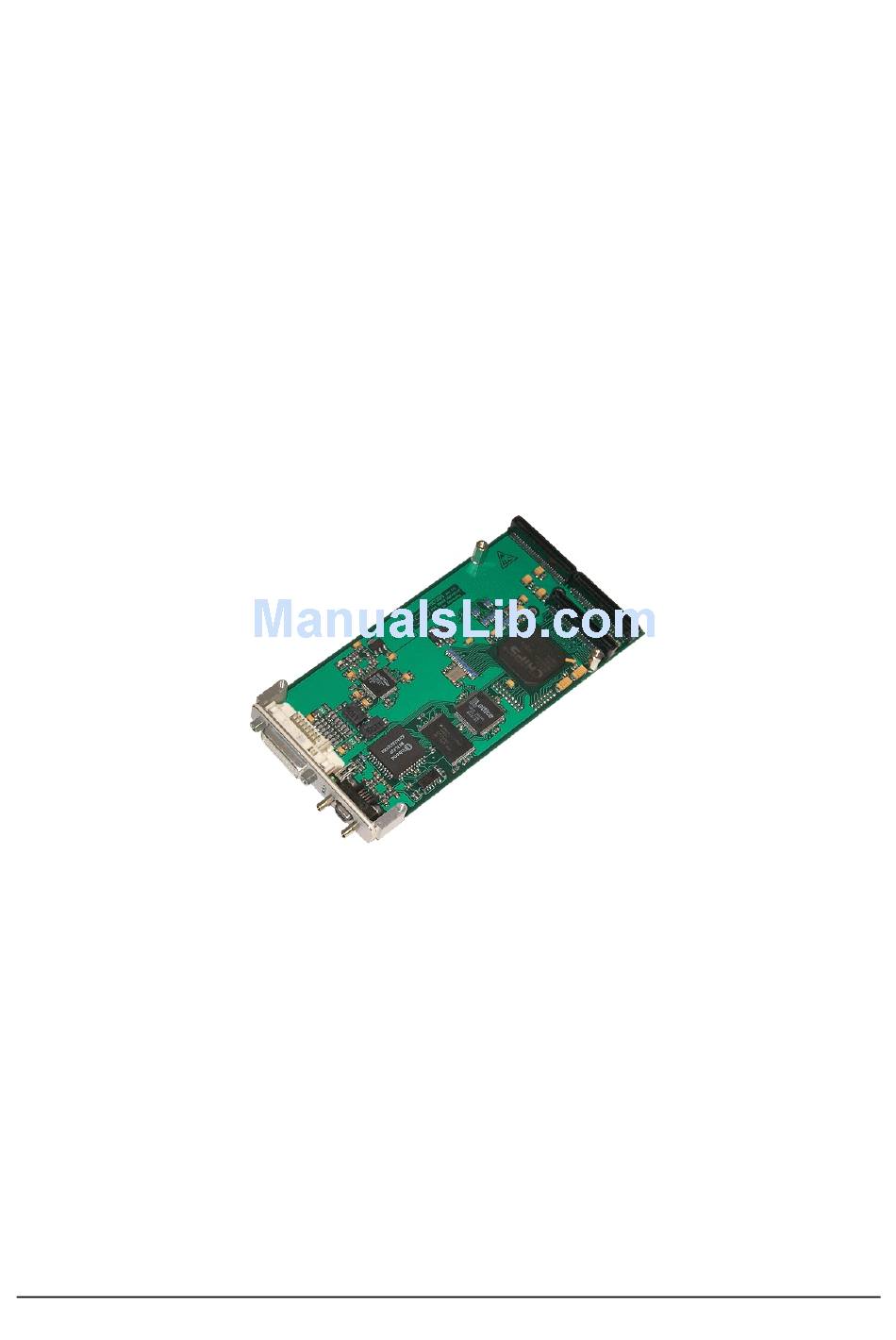

  • Page 1 PMC-DVI DVI-Graphics Card Hardware Manual PMC-DVI Hardware Manual Rev. 1.0...
  • Page 2 The changes in the user’s manual listed below affect changes in the hardware, as well as changes in the description of the facts only. Chapter Changes versus previous version First version Further technical changes are subject to change without notice. PMC-DVI Hardware Manual Rev. 1.0...
  • Page 3 Vahrenwalder Str. 207 30165 Hannover Germany Phone: +49-511-372 98-0 Fax: +49-511-372 98-68 E-mail: info@esd-electronics.com Internet: www.esd-electronics.com USA / Canada PMB 292 20423 State Road 7 #F6 Boca Raton, Florida 33498-6797 Phone: +1-800-732-8006 Fax: +1-800-732-8093 E-mail: sales@esd-electronics.com PMC-DVI Hardware Manual Rev. 1.0...

  • Page 4: Table Of Contents

    1.1 Description of the PMC-DVI Module ........
  • Page 5 This page is intentionally left blank. PMC-DVI Hardware Manual Rev. 1.0...

  • Page 6: Overview

    Connector Fig. 1.1: Block-circuit diagram of PMC-DVI Module The PMC-DVI is a graphics card in ‘Single’ PCI Mezzanine Card format. Keyboard and mouse can be connected via a PS2-port on a DSUB-Micro socket. The PMC-DVI module is equipped with a powerful graphics controller 69030 which offers frame rates from 85 Hz at a resolution of 640x480 (True Colour) to 60 Hz at a resolution of 1600x1200 (16 bit colours).

  • Page 7: Summary Of Technical Data

    X200 (8-pole socket, e.g.: CLT-104-02-G-D-BE-A by Samtec) - only for programming and testing (ISP-programming) Dimensions 148.33 mm x 74.04 mm Fixing four screws M2.5 x 6 mm and distance bolts Weight 90 g Table 1.1: General technical data PMC-DVI Hardware Manual Rev. 1.0...

  • Page 8: Pci-Bus

    UXGA (1600x1200) with 16-bit Colour at 60 Hz Table 1.3: Graphics card 1.2.4 Software Support Graphics drivers for VxWorks, RTOS/UH, Linux and QNX are available for the CPCI-DVI module. Windows98/NT/2000 is supported as well. Further drivers are available on request. PMC-DVI Hardware Manual Rev. 1.0...

  • Page 9: Order Information

    1*) The manual is free, if it is ordered together with the product. 2*) This manual is liable for costs, please contact our support. Table 1.4: Order information PMC-DVI Hardware Manual Rev. 1.0...

  • Page 10: Hardware Installation

    Installation 2. Hardware Installation Because the PMC-DVI module can be inserted to various circuit boards, the carrier system is described as ‘computer’ in the following. Attention! Electro-static discharges may cause damage to electronic components. In order to avoid this please make sure to follow the steps below before touching the CAN-module: Switch off the power supply of your computer, but leave it connected to mains.

  • Page 11: Front Panel View With Led-Display

    X300 DVI-I-socket Fig. 3.1: Front panel view Colour Name Display function (LED on) LEDD400A green Access to 69030 graphics controller LEDD400B green Mouse, interrupt LEDD400C green Keyboard, interrupt Table 3.1: Display functions of the LEDs PMC-DVI Hardware Manual Rev. 1.0...

  • Page 12: Connector Assignment

    DATA VSYNC GREEN TX2- TX2+ DVI_ DVI_ DVI_ Signal Signal n.c. n.c. n.c. S1/3_ XVCC1 XGND1 TX1- TX1+ BLUE HSYNC DVI_ DVI_ DVI_ DVI_ DVI_ DVI_ Signal n.c. n.c. S0/5_ CLK_ TX0- TX0+ TXC+ TXC- PMC-DVI Hardware Manual Rev. 1.0...

  • Page 13: Dsub-Micro Socket X500, Ps2-Mouse And -Keyboard

    9-pole DSUB-Micro connector Signal Description: XK_DATA, XK_CLK... keyboard signal lines XM_DATA, XM_CLK... mouse signal lines XVCC2 ... power supply XGND2 ... reference potential An adapter for the connection of customary PS2-connectors of mouse and keyboard is available. PMC-DVI Hardware Manual Rev. 1.0...

  • Page 14: Assignment Of The 64-Pole Pmc-Connector P11 (Pn1/Jn1 32 Bit Pci)

    Signal Signal n.c. -12V INTA# INTB# INTC# INTD# n.c. n.c. PCLK n.c. n.c. V IO AD31 AD28 AD27 AD25 C/BE3# AD22 AD21 AD19 AD17 FRAME# IRDY# DEVSEL# n.c. n.c. n.c. AD15 AD12 AD11 C/BE0# n.c. PMC-DVI Hardware Manual Rev. 1.0...

  • Page 15: Assignment Of The 64-Pole Pmc-Connector P12 (Pn2/Jn2 32 Bit Pci)

    AD30 AD29 AD26 AD24 +3,3V IDSEL AD23 +3,3V AD20 AD18 AD16 C/BE2# n.c. TRDY# +3,3V STOP# PERR# +3,3V SERR# C/BE1# AD14 AD13 AD10 +3,3V n.c. +3,3V n.c. n.c. n.c. n.c. n.c. n.c. +3,3V n.c. PMC-DVI Hardware Manual Rev. 1.0...

  • Page 16: Assignment Of The 64-Pole Pmc-I/O Connector P14 (Pn4/Jn4 32 Bit Pci)

    Connector Assignment 4.5 Assignment of the 64-pole PMC-I/O Connector P14 (Pn4/Jn4 32 Bit PCI) Signal Signal M_CLK M_DATA K_CLK K_DATA n.c. n.c. PMC-DVI Hardware Manual Rev. 1.0...
