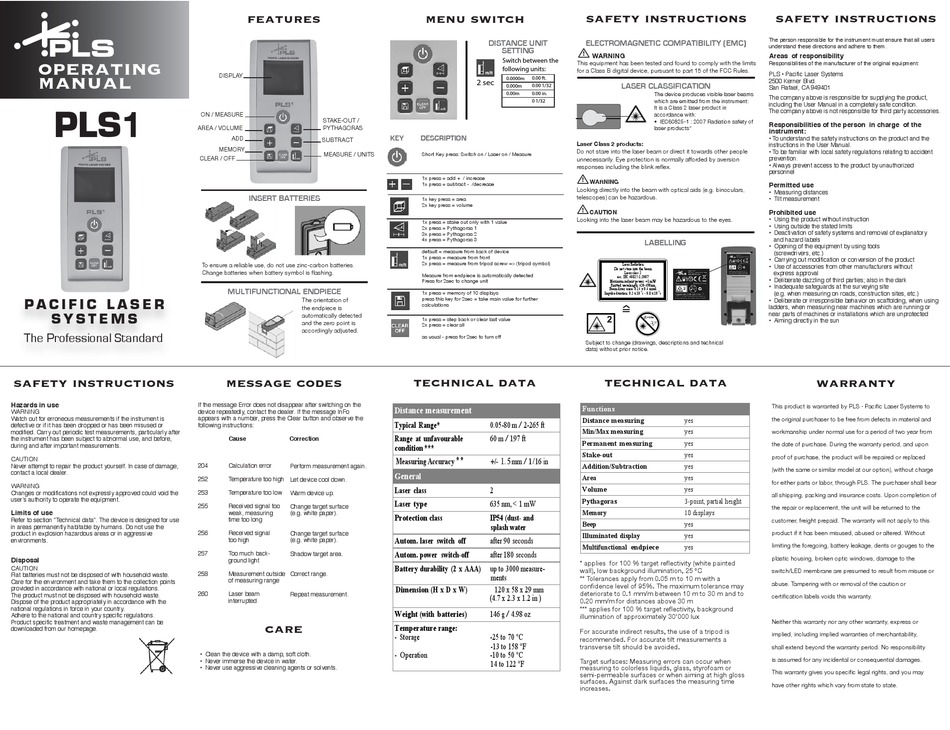

Pacific Laser Systems PLS1 Operating Manual

operating
manual
1
PLS
P A C I F I C L A S E R
S Y S T E M S
The Professional Standard
safety instructions
Hazards in use
WARNING
Watch out for erroneous measurements if the instrument is
defective or if it has been dropped or has been misused or
modified. Carry out periodic test measurements, particularly after
the instrument has been subject to abnormal use, and before,
during and after important measurements.
CAUTION
Never attempt to repair the product yourself. In case of damage,
contact a local dealer.
WARNING
Changes or modifications not expressly approved could void the
user's authority to operate the equipment.
Limits of use
Refer to section "Technical data". The device is designed for use
in areas permanently habitable by humans. Do not use the
product in explosion hazardous areas or in aggressive
environments.
Disposal
CAUTION
Flat batteries must not be disposed of with household waste.
Care for the environment and take them to the collection points
provided in accordance with national or local regulations.
The product must not be disposed with household waste.
Dispose of the product appropriately in accordance with the
national regulations in force in your country.
Adhere to the national and country specific regulations.
Product specific treatment and waste management can be
downloaded from our homepage.
features
DISPLAY
ON / MEASURE
STAKE-OUT /
PYTHAGORAS
AREA / VOLUME
ADD
SUBTRACT
MEMORY
MEASURE / UNITS
CLEAR / OFF
INSERT BATTERIES
To ensure a reliable use, do not use zinc-carbon batteries.
Change batteries when battery symbol is flashing.
MULTIFUNCTIONAL ENDPIECE
The orientation of
the endpiece is
automatically detected
and the zero point is
accordingly adjusted.
message codes
If the message Error does not disappear after switching on the
device repeatedly, contact the dealer. If the message InFo
appears with a number, press the Clear button and observe the
following instructions:
Cause Correction
204 Calculation error Perform measurement again.
252 Temperature too high Let device cool down.
253 Temperature too low Warm device up.
255 Received signal too Change target surface
weak, measuring
(e.g. white paper).
time too long
256 Received signal Change target surface
too high
(e.g. white paper).
257 Too much back- Shadow target area.
ground light
258 Measurement outside
Correct range.
of measuring range
260 Laser beam Repeat measurement.
interrupted
care
• Clean the device with a damp, soft cloth.
• Never immerse the device in water.
• Never use aggressive cleaning agents or solvents.
menu switch
DISTANCE UNIT
SETTING
Switch between the
following units:
0.0000m 0.00 ft.
2 sec
0.000m 0.00 1/32
0.00m 0.00 in.
0 1/32
KEY DESCRIPTION
Short Key press: Switch on / Laser on / Measure
1x press = add + / increase
1x press = subtract - /decrease
....
1x key press = area
2x key press = volume
.....
1x press = stake out only with 1 value
2x press = Pythagoras 1
3x press = Pythagoras 2
4x press = Pythagoras 3
default = measure from back of device
1x press = measure from front
2x press = measure from tripod screw => (tripod symbol)
Measure from endpiece is automatically detected
Press for 2sec to change unit
1x press = memory of 10 displays
press this key for 2sec = take main value for further
calculations
1x press = step back or clear last value
2x press = clear all
as usual - press for 2sec to turn off
technical data
Distance measurement
Typical Range* 0.05-80 m / 2-265 ft
Range at unfavourable
60 m / 197 ft
condition ***
Measuring Accuracy +/- 1. 5
* * *
mm / 1/ in 16
General
Laser class 2
Laser type 635 nm, < 1 mW
Protection class IP54 (dust- and
splash water
seconds
Autom. laser switch off after 90
seconds
Autom. power switch-off after 180
Battery durability (2 x AAA) up to 3000 measure-
ments
Dimension (H x D x W) 120 x 58 x 29 mm
(4.7 x 2.3 x 1.2 in )
Weight (with batteries) 146 g / 4.98 oz
Temperature range:
- Storage -25 to 70 °C
-13 to 158 °F
- Operation -10 to 50 °C
14 to 122 °F
safety instructions
ELECTROMAGNETIC COMPATIBILITY (EMC)
!
WARNING
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
LASER CLASSIFICATION
The device produces visible laser beams
which are emitted from the instrument:
It is a Class 2 laser product in
accordance with:
• IEC60825-1 : 2007 Radiation safety of
laser products"
Laser Class 2 products:
Do not stare into the laser beam or direct it towards other people
unnecessarily. Eye protection is normally afforded by aversion
responses including the blink reflex.
!
WARNING
Looking directly into the beam with optical aids (e.g. binoculars,
telescopes) can be hazardous.
!
CAUTION
Looking into the laser beam may be hazardous to the eyes.
LABELLING
Laser Radiation
Do not stare into the beam
Laser class 2
acc. IEC 60825-1:2007
Maximum radiant power: <1mW
Emitted wavelength: 620-690nm
Beam diver ence: 0.16 x 0.6 mrad
-9 -9
Impulse duration: 0.2 x 10 s - 0.8 x 10 s
Subject to change (drawings, descriptions and technical
data) without prior notice.
technical data
Functions
Distance measuring yes
Min/Max measuring yes
Permanent measuring yes
Stake-out yes
Addition/Subtraction yes
Area yes
Volume yes
Pythagoras 3-point, partial height
Memory 10 displays
Beep yes
Illuminated display yes
Multifunctional endpiece yes
* applies for 100 % target reflectivity (white painted
wall), low background illumination, 25 ºC
** Tolerances apply from 0.05 m to 10 m with a
confidence level of 95%. The maximum tolerance may
deteriorate to 0.1 mm/m between 10 m to 30 m and to
0.20 mm/m for distances above 30 m
*** applies for 100 % target reflectivity, background
illumination of approximately 30'000 lux
For accurate indirect results, the use of a tripod is
recommended. For accurate tilt measurements a
transverse tilt should be avoided.
Target surfaces: Measuring errors can occur when
measuring to colorless liquids, glass, styrofoam or
semi-permeable surfaces or when aiming at high gloss
surfaces. Against dark surfaces the measuring time
increases.
safety instructions
The person responsible for the instrument must ensure that all users
understand these directions and adhere to them.
Areas of responsibility
Responsibilities of the manufacturer of the original equipment:
PLS • Pacific Laser Systems
2500 Kerner Blvd.
San Rafael, CA 949401
The company above is responsible for supplying the product,
including the User Manual in a completely safe condition.
The company above is not responsible for third party accessories.
Responsibilities of the person in charge of the
instrument:
• To understand the safety instructions on the product and the
instructions in the User Manual.
• To be familiar with local safety regulations relating to accident
prevention.
• Always prevent access to the product by unauthorized
personnel
Permitted use
• Measuring distances
• Tilt measurement
Prohibited use
• Using the product without instruction
• Using outside the stated limits
• Deactivation of safety systems and removal of explanatory
and hazard labels
• Opening of the equipment by using tools
(screwdrivers, etc.)
• Carrying out modification or conversion of the product
• Use of accessories from other manufacturers without
express approval
• Deliberate dazzling of third parties; also in the dark
• Inadequate safeguards at the surveying site
(e.g. when measuring on roads, construction sites, etc.)
• Deliberate or irresponsible behavior on scaffolding, when using
ladders, when measuring near machines which are running or
near parts of machines or installations which are unprotected
• Aiming directly in the sun
warranty
This product is warranted by PLS · Pacific Laser Systems to
the original purchaser to be free from defects in material and
workmanship under normal use for a period of two year from
the date of purchase. During the warranty period, and upon
proof of purchase, the product will be repaired or replaced
(with the same or similar model at our option), without charge
for either parts or labor, through PLS. The purchaser shall bear
all shipping, packing and insurance costs. Upon completion of
the repair or replacement, the unit will be returned to the
customer, freight prepaid. The warranty will not apply to this
product if it has been misused, abused or altered. Without
limiting the foregoing, battery leakage, dents or gouges to the
plastic housing, broken optic windows, damage to the
switch/LED membrane are presumed to result from misuse or
abuse. Tampering with or removal of the caution or
certification labels voids this warranty.
Neither this warranty nor any other warranty, express or
implied, including implied warranties of merchantability,
shall extend beyond the warranty period. No responsibility
is assumed for any incidental or consequential damages.
This warranty gives you specific legal rights, and you may
have other rights which vary from state to state.
