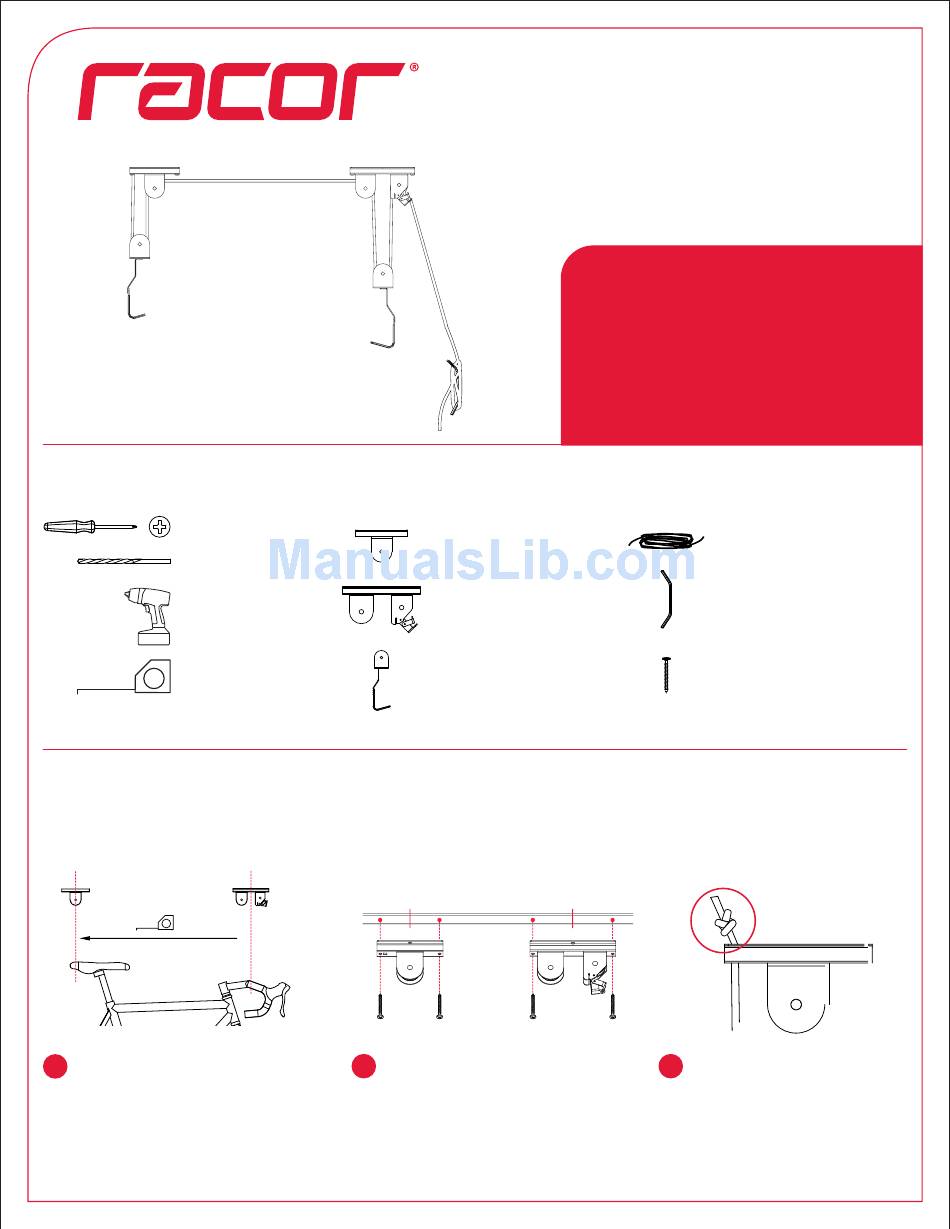

RACOR PBH-1R Instructions

H O M E S T O R A G E

TOOLS REQUIRED

Phillips driver
1/8" Drill bit
Drill
Tape Measure
WARNING
Please read installation instructions carefully prior to installing. Before using the product thoroughly test the fully-weighted
product (with equipment in place) to ensure the product has been installed properly. Do not allow children to play on
product. ITW Brands is not responsible for any damage resulting from improper installation, overloading or product failure.
1 Measure the distance between the
handle bars and seat of the bike.
Mark that distance on ceiling
joist(s).
P R O D U C T S
PARTS LIST
MARK
2
Use two wood screws each to
mount the back pulley and the
front pulley to the ceiling, ensuring
the distance between the two
matches the measurement made in
step 1. Predrilling 1/8 in. pilot holes
in the ceiling will make mounting
the pulleys easier.
BIKE LIFT | PBH-1R
INSTRUCTIONS
WWW.RACORSTORAGESOLUTIONS.COM

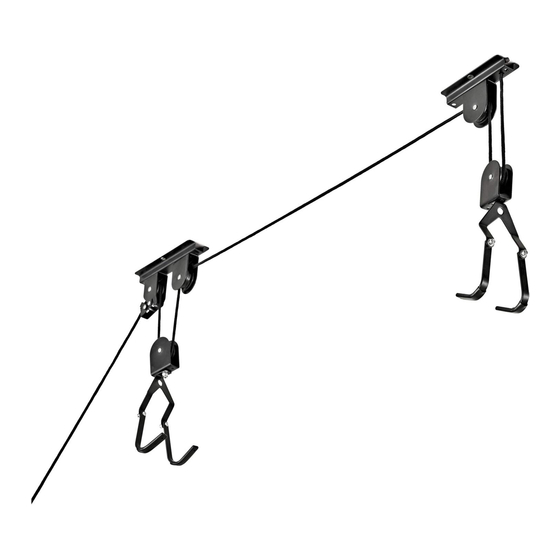

x1 Back lift Assembly
x1 Front lift Assembly
x2 Hook Pulleys
MARK
x1 48 foot (14.6m) rope
x1 Rope Cleat
x6 2'' (5 cm) wood screws
KNOT
3 Feed rope through square hole on
the back lift assembly. Tie a double
knot as shown. The knotted end
will be between joist/ceiling and
lift assembly.
