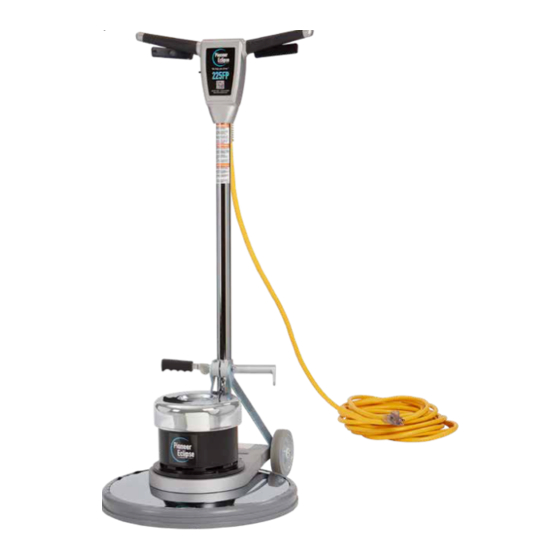

Pioneer Eclipse PE225FP Operator's Manual

Floor polisher

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Floor Polisher

PE225FP

Operator's Manual

Table of Contents

Need help?

Do you have a question about the PE225FP and is the answer not in the manual?

Questions and answers

Summary of Contents for Pioneer Eclipse PE225FP

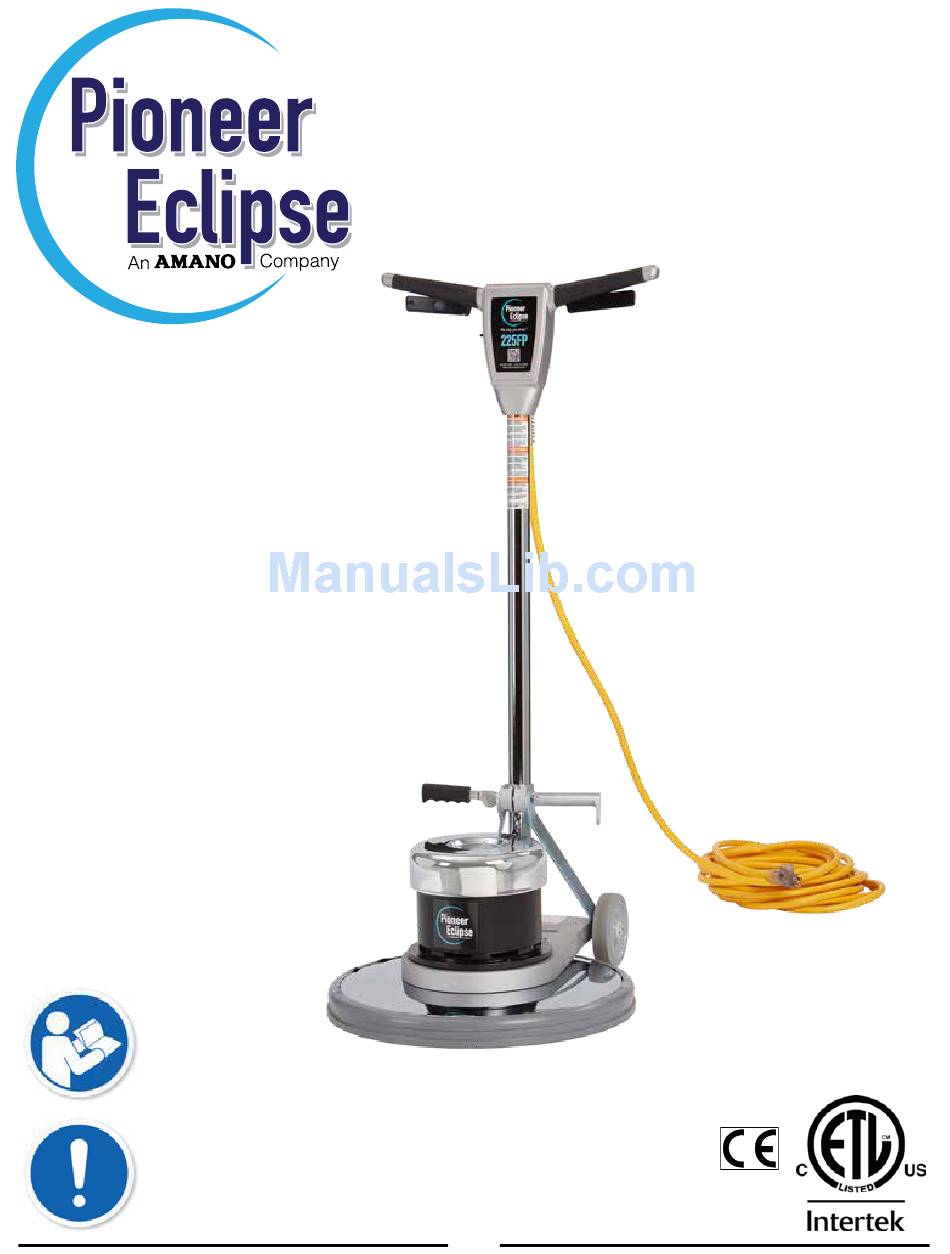

Page 1 Floor Polisher PE225FP Operator’s Manual...
Page 2 FOR YOUR SAFETY DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Record This Important Information Date of Purchase Purchased From Address City State Phone Contact Machine Model Machine Serial Number Important Phone Numbers Medical Emergency...
Page 3: Table Of Contents
Table of Contents Safety Precautions..............4 How to Operate the Machine..........11 Technical Specifications............5 Installing the Pad Driver........11 Operator Responsibility............6 Operation..........11 Machine Preparation............6 After Use...............11 Unpacking the Machine..........6 Scheduled Maintenance...........12 Transporting the Machine........6 Machine Troubleshooting..........12 Grounding Instructions..........7 Parts Manual & Warranty...........13 Extension Cords.............7 Electrical Schematic..........14 Machine Components............9 Main Assembly............16...
Page 4: Safety Precautions
Amano CAUTION! The machine is heavy. Get assistance before attempting Pioneer Eclipse assumes no liabilities for injury or damage resulting to transport or move it. from an unauthorized modification or alteration to the machine. Any...
Page 5: Technical Specifications
Technical Specifications: Description 225FP17 225FP20 225FP20DS Voltage (V) Frequency (Hz) Current (A) 15/15 Pad / Brush Speed 175 rpm 175 rpm 175 rpm / 300 rpm Power 1.5 hp (1.1 kW) 1.5 hp (1.1 kW) 1.5 hp (1.1 kW) Gearbox 3-Planet 3-Planet 3-Planet...
Page 6 Technical Specifications: Description 225FP17E6 225FP20E6 Voltage (V) Frequency (Hz) Current (A) Pad / Brush Speed 175 rpm 175 rpm Power 1.5 hp (1.1 kW) 1.5 hp (1.1 kW) Gearbox 3-Planet 3-Planet Pad/Brush Size 17” (43 cm) 20” (51 cm) Cord HO5VVF3G1.5mm sq HO5VVF3G1.5mm sq Cord Length...
Page 7: Operator Responsibility
Order parts and technique. Always use two people when lifting this supplies only from an Authorized Amano Pioneer Eclipse machine. Distributor. Use the parts illustration section of your manual when ordering parts.
Page 8: Grounding Instructions
Grounding Instructions WARNING: To prevent possible electric shock, protect 120 Volt Machines the machine from rain. Keep the machine in a dry This product must be grounded while in use to protect building. the operator from electrical shock. The machine is WARNING: To prevent possible electric shock, always provided with a three-conductor cord and a three contact use a 3-wire electrical system connected to the electrical...
Page 9 Instructions for Connection to the Power Supply (230V) CAUTION: This machine will operate only on the AC frequency and electrical voltage shown on the nameplate. Make sure you have the correct frequency and voltage before connecting the power cord to an outlet. This machine must be connected to the electrical ground to protect the operator from electric shock.
Page 10: Machine Components
Machine Components Operator Handle Grips Switch Levers Switch Lever Safety Lock Water Tank Cord Hook Water Release Handle Handle Release Lever Power Cord...
Page 11: Switch Lever Safety Lock
Operator Handle Grips Handle Release Lever Use the operator handle grips to operate and move This handle is used to release or lock the operators the machine. The switch levers on the underside of handle. Pulling up on the lever will allow the handle to the handle grips, turn the motor on and off.
Page 12: How To Operate The Machine
How to Operate the Machine Note: When the switch levers (3) are released, the Installing the Pad Driver machine shuts off immediately. WARNING! Drain the water from the tank before 5. To release water from the water tank, pull up on the tilting the machine back.
Page 13: Scheduled Maintenance
Scheduled Maintenance Machine Troubleshooting...
Page 14: Parts Manual & Warranty
PE225FP Floor Polisher Parts Manual Notes: ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...
Page 15: Electrical Schematic
Electrical Schematic - 120V Electrical Schematic - 127V & 230V RF068800...
Page 16: Main Assembly
Main Assembly RF050600 111814...
Page 17 MOTOR, GEARBOX (120V) 10687A MODULE, INTERLOCK 53652A MOTOR, GEARBOX (230V) 21074A FRONT, HANDLE AS001900 MOTOR, GEARBOX, 120V, 2SPD MP499200 DECAL, PE225FP, HANDLE 61716A COVER, DRIP, MOTOR 80284A SCREW, #10 X 3/4” 21088A FRAME, MAIN 61373A TUBE, HANDLE MP481100 DRIVER, PAD, 16”...
Page 18 Main Assembly - 225FP17E6 & 225FP20E6 RF072800 080117...
Page 19 Main Assembly - 225FP17E6 & 225FP20E6 Parts List ITEM PART NUMBER DESCRIPTION 53833A PIN SPLIT 1/2 X 2.00 ZINC 56109699 CAM ASSY WITH GRIP 920342 NUT LK 3/8 -16 REG MP481100 PAD DRIVER 17 MP478400 PAD DRIVER 20 980349 WASHER WEAR CAM MP511000 HANDLE, ALUMINUM, EXPORT, ASM.
Page 20: Handle Assembly
Handle Assembly - 225FP E & E6 Models RF071600 060917...
Page 21 Handle Assembly - 225FP E & E6 Models Parts List ITEM PART NUMBER DESCRIPTION 80290A SCREW, 10-32 UNF X .375 AS018000 CORD, INTERCONNECT, EXPORT 50781A CLAMP HANDLE C2K 61373A HANDLE TUBE 21075A HANDLE, REAR - CFP 21074A HANDLE, FRONT - CFP 10687A INTERLOCK ASM.
Page 22 HANDLE ASSEMBLY - 225FP17EB AND 225FP20EB MODELS RF066700...
Page 23 DECAL “N” 80290A SCREW, 10-32 UNF X .375 MP506300 CORD, POWER SUPPLY, BRAZIL (EB) AS018800 CORD, POWER SUPPLY, CE (E) AS017400 HANDLE, TUBE, WELDMENT AS018000 CORD, INTERCONNECT, EXPORT 50781A CLAMP HANDLE C2K DECAL, PE225FP, HANDLE, MP500900 EXPORT (NOT SHOWN) RF066700...
Page 24 Motor & Gearbox Assembly Item Ref. No. Description Item Ref. No. Description 40694A CAPACITOR, START 53848A PLATE, MOUNTING 53191A CAPACITOR, RUN 40698A ENDBELL 53360A COVER, CAPACITOR 41053A CORD, IEC 53190A SWITCH, START 747553 RELIEF, STRAIN 902550 BEARING, BALL, 6203...
Page 25: Gearbox Assembly
Gearbox Assembly Note: Use 8 ounces of grease in Gearbox 53647A Item Ref. No. Description Item Ref. No. Description 53646A GEARBOX, ASM. 58520A SPACER, SLEEVE 53647A GREASE, TUBE, 14OZ 69195A COUPLING, SHAFT 54408A GEAR, PLANET 80141A SCREW, SH, #10 X 1” 54856A GEAR, RING 902606...
Page 26: 2-Speed Motor Assembly
2-Speed Motor Assembly ELECTRICAL SCHEMATIC (120V) 2-SPEED Note: Use 8 ounces of grease in Gearbox 53647A Item Ref. No. Description Item Ref. No. Description 53647A GEARBOX 902654 BEARING, BALL 6204 503802 GREASE, 14oz TUBE 902736 BEARING, BALL 6010 (NOT SHOWN) 54408A GEAR, PLANET 902737...
Page 27: Limited Warranty
INCIDENTAL OR CONSEQUENTIAL DAMAGE EXCEPT AS STATED IN THE WARRANTY APPLICABLE TO EACH MACHINE. (2) Warranty repairs will be made by your Amano Pioneer Eclipse EXCEPT AS STATED IN SUCH WARRANTIES, THE COMPANY Corporation Distributor without charge for parts and labor. They DOES NOT OTHERWISE WARRANT ANY MACHINE AND NO will be compensated with a warranty labor rate of $45.00 per...
Page 28 1 Eclipse Rd l PO Box 909 Sparta, North Carolina 28675 l USA www.pioneereclipse.com +1-336-372-8080 1-800-367-3550 Fax +1-336-372-2913 Machinery Directive 2006/42/EC ROHS Directive 2011/65/EU EMC Directive 2014/30/EU Harmonized Standards Applied: EN ISO 12100:2010, EN 60335-2-67:2012 LT071200 © 2017 Amano Pioneer Eclipse Corporation 225FP_G...
