Summary of Contents for Ethernet Direct HUSKY HUE-500SN

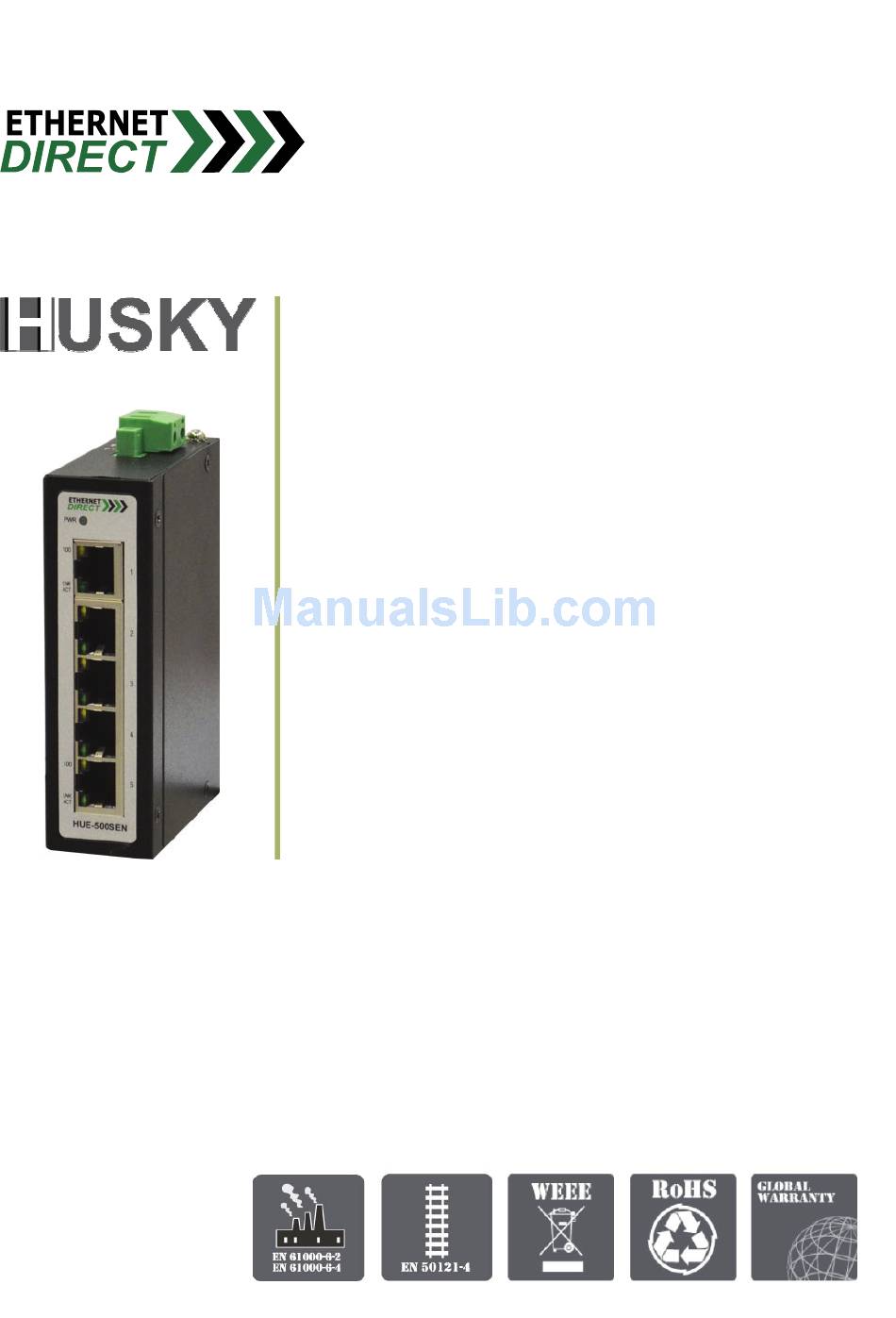

- Page 1 HUE-500SN HUE-500SEN Industrial 5 x 10/100Base-T(X) Slim Unmanaged Ethernet Switch User’s Manual V1.0 03-28-2017...
- Page 2 Husky Series Industrial Ethernet Switch Solutions HUE-500SN & HUE-500SEN Industrial Slim Unmanaged Ethernet Switch User’s Manual Copyright Notice Copyright © 2017 Ethernet Direct Corp. All rights reserved. Reproduction in any form or by any means without Ethernet Direct prior written permission is prohibited.
-
Page 3: Table Of Contents
2-2 LED Indicators ..........................2-2 2-3 RJ-45 Ports ............................ 2-2 2-3.1 RJ-45 Pin Assignments ....................... 2-2 2-4 Installing Your Ethernet Direct Switch.................... 2-3 2-4.1 Mounting The Switch ......................2-3 2-4.2 Wiring The Power Inputs ..................... 2-4 2-4.3 Wiring the Earth Ground...................... 2-4 2-4.4 Ethernet Cabling........................ -
Page 4: Introduction
Introduction Welcome to Husky Series HUE-500SN & HUE-500SEN Industrial Slim Unmanaged Ethernet Switch. This chapter includes the following topics: Overview Product Features Package Checklist 1-1 Overview The new and more powerful Husky Series HUE-500SEN is an Industrial 5-ports Slim Unmanaged Ethernet Switch that which supports IEEE 802.3/802.3u/802.3x with 10/100Mbps, full/half duplex and MDI/MDI-X auto-sensing RJ-45 ports. -
Page 5: Chapter 2
This chapter contains information on HUE-500SN & HUE-500SEN’s appearance and hardware installation. Topics include: Panel Layout LED Indicators RJ-45 Ports Installing Your Ethernet Direct Switch 2-1 Panel Layout Panel Layout of HUE-500SN & HUE-500SEN Industrial Slim Unmanaged Ethernet Switch Front Panel Top Panel... -
Page 6: Led Indicators
Hardware Installations 2-2 LED Indicators There are diagnostic LEDs located on the front panel of HUE-500SN & HUE-500SEN. They provide primary information on switch status as described in the table below. LED Name LED Color Status Definition Lit if power is connected and active. Green Power is not connected. -
Page 7: Installing Your Ethernet Direct Switch
Hardware Installations “+” and “-” signs represent the polarity of the wires that make up each wire pair. 2-4 Installing Your Ethernet Direct Switch Unpack the HUE-500SN or HUE-500SEN from the packing box. Please refer to Package Checklist section to see if any item is missing or damaged. The installation steps include:... -
Page 8: 2-4.2 Wiring The Power Inputs
Hardware Installations 2-4.2 Wiring The Power Inputs HUE-500SN & HUE-500SEN are powered up by an external power supply. On the top panel, a removable 2-pin terminal block (See Panel Layout – Top Panel) is provided for DC power connection. To connect to the power supply, insert V+ and V- wire into power contacts. - Page 9 Hardware Installations Before connecting any network device, make sure network devices support auto MDI/MDI-X. If not support, use the cross over Category 5 /5ecables. After all wiring and connection are done and the LED lights on the switch’s front panel show normal status, the hardware installation is complete.
-
Page 10: Specifications
Specifications HUE-500SN & HUE-500SEN Product Specifications are as follows: Hardware Interface 5 x 10/100Base-T(X) auto-negotiation speed, Full/Half duplex mode, auto RJ-45 Ports MDI/MDI-X Per Unit PWR (Green) LEDs Per Port Link/ACT (Green), 100 (Yellow) Power Requirement Power Input 12 to 48VDC or 24VAC power input Power Protection Reverse polarity protection (DC only), overload current protection Power Consumption... - Page 11 Specifications Vibration IEC60068-2-6 Free Fall IEC60068-2-32 Environmental WEEE, RoHS MTBF 1,738,327 hours based on Mil-Hdbk-217F, GB Warranty 5 years...
-
Page 12: Troubleshooting
Troubleshooting Select the proper UTP cables to construct your network. Please check that you are using the right cables. Use unshielded twisted-pair (UTP) or shield twisted-pair (STP) cables for RJ-45 connections: 100Ω Category 3, 4 or 5 cables for 10Mbps connections, 100Ω Category 5/5e cables for 100Mbps, Also be sure that the length of any twisted-pair connection does not exceed 100 meters (328 feet).
