ironLogic CP-Z User Manual

CP-Z
ACS RFID EM-Marine reader (125 kHz)

1. OVERVIEW

CP-Z RFID reader is used in Access Control Systems (ACS) to transmit into controllers the code of
presented EM-Marine contactless tokens (card, key fob, etc.) via iButton protocol. The reader
supports concealed installation both indoors and outdoors. Device specifications and casing
design assure the device operation even through a layer of plaster or plasterboard.

2. MOUNTING AND CONNECTION

The reader should be mounted on a flat surface in a location allowing easy approaching by the
tokens.
To mount the reader, please perform the following steps:
- Unscrew and remove the top lid;
- Mark and drill mounting holes of the same size as the mounting holes in reader casing
(Figure 2);
- Fix the casing lid without PCB at the correct reader installing place;
- Connect the wires to reader socket per connection scheme (Figure 1);
Close the reader casing lid and screw it in desired place.
Notes:
1.When powered on, the reader buzzer emits one beep.
2.Device supports concealed installation, either behind dielectric surfaces up to 1 cm thick, or
enclosed into a wall. However, the reading distance in this case is reduced, so please check the
reading quality before finishing the mounting.
3.Do not install readers within 10 cm from each other! Also, when the distance between two readers
is less than 30 cm, their working zone may be reduced.
To operate at the top of the specified line distance to controller, please use a UTP cable
One wire of the twisted pair should be connected to GND, another to D0. (See Figure 3).
To increase the built-in beeper volume,
please remove the paper sticker.
For shutdown of
please remove a jumper
User Manual
1. +12 V power
2. Common ground (-)
3. DATA 0 output
sound,
beeper

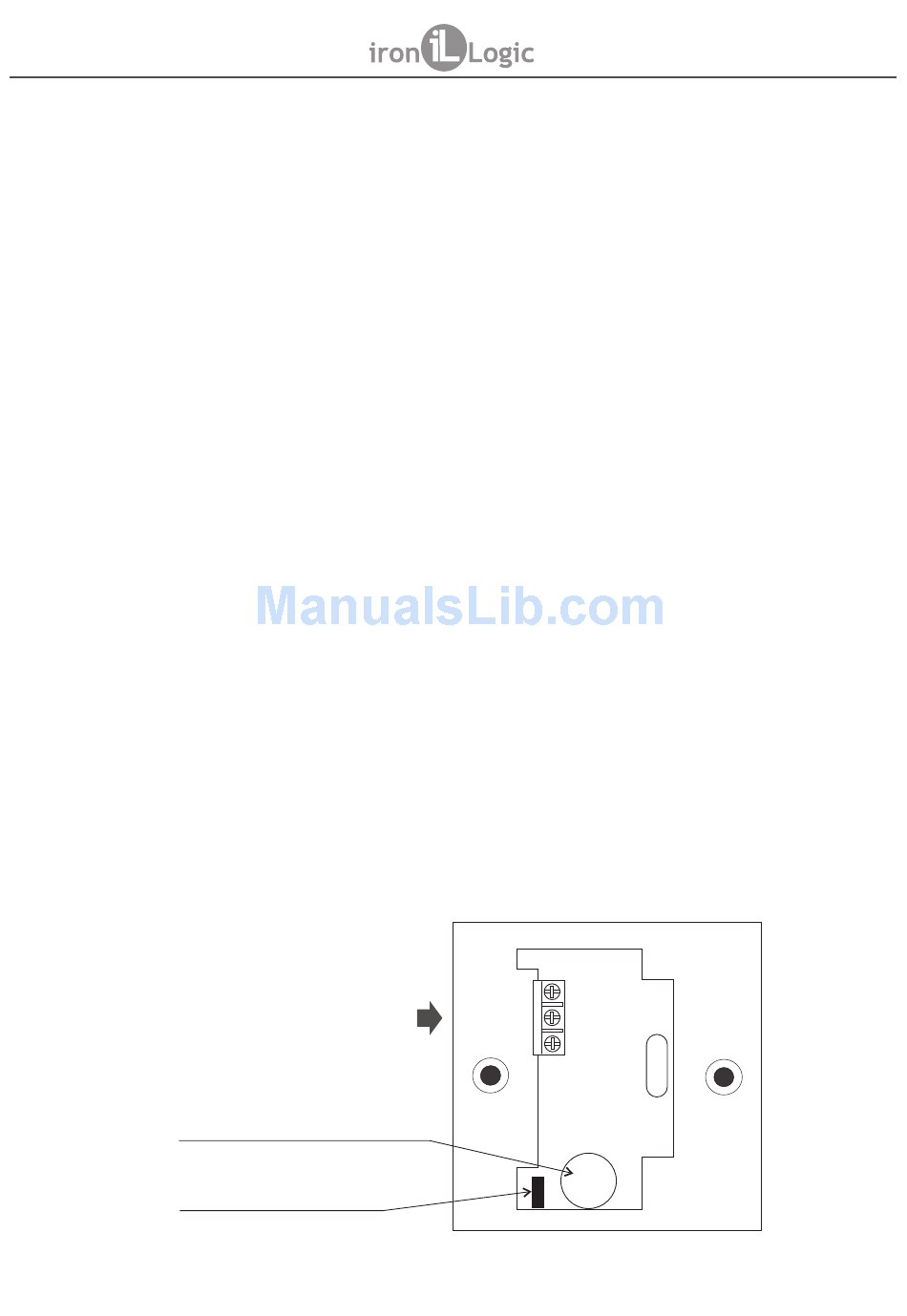

Figure 1. Connection layout.
CP-Z
www.ironlogic.me
+12V
GND
DATA 0
DATA 1
LED-G
LED-R
BEEP
CAT5e .
