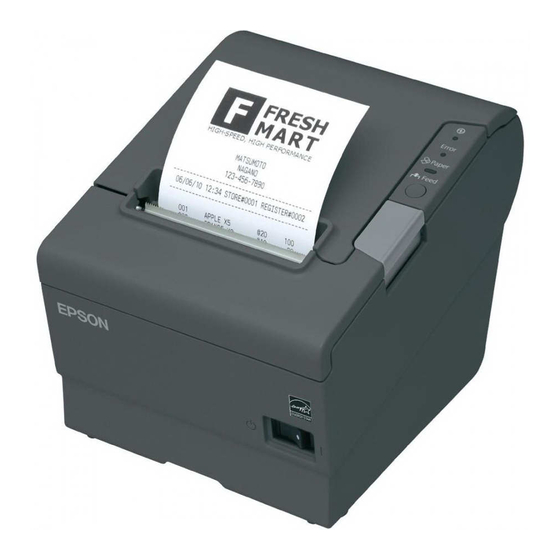

Epson TM-T88VI User Manual
  1. Manuals
  2. Brands
  3. Epson Manuals
  4. Printer
  5. TM-T88V-i
  6. User manual

Epson TM-T88VI User Manual

Hide thumbs Also See for TM-T88VI:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual

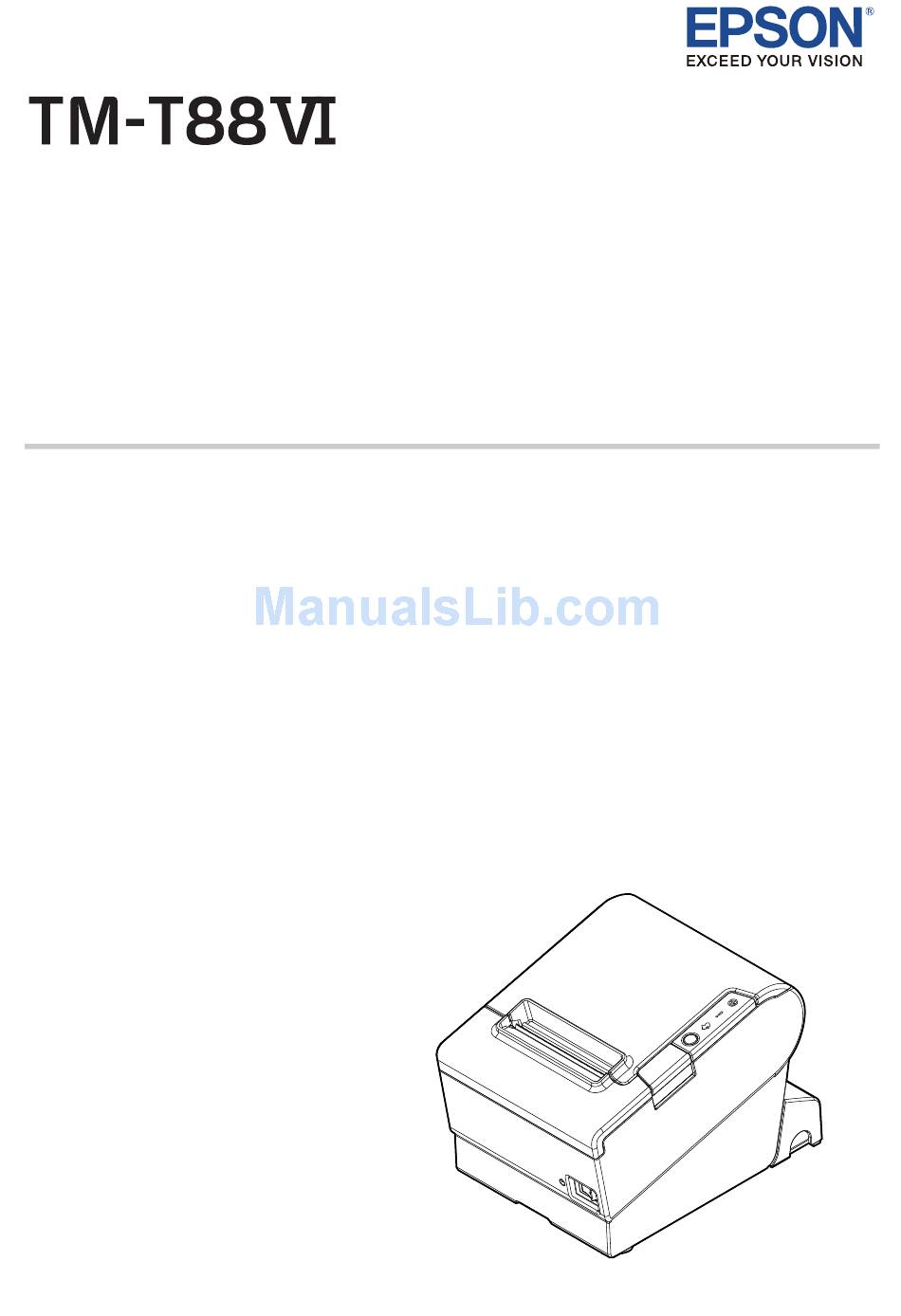

User's Manual
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Part Names and Functions . . . . . . . . . . . . . . . . . . . 4
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cleaning the Product . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Product Specifications . . . . . . . . . . . . . . . . . . . . . . 18
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
M00099100 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-T88VI and is the answer not in the manual?

Questions and answers

Related Manuals for Epson TM-T88VI

Summary of Contents for Epson TM-T88VI

  • Page 1: Table Of Contents

    User’s Manual Before Use ........2 Unpacking ........3 Part Names and Functions .

  • Page 2: Before Use

    English Before Use Please read this manual carefully before using this product. Keep this manual at hand for immediate reference whenever necessary. For details about the functions and operation procedure of this product and software, refer to Technical Reference Guide. Safety Precautions The symbols shown below are used in this manual in order to ensure safety and proper use of this product and to prevent danger to customers and other persons, and property damage.

  • Page 3: Unpacking

    ❑ Bottom cover for Connector cover ❏ Roll paper guide ❑ Power switch cover ❏ Screws ❑ AC adapter* ❏ AC cable* ❑ Warranty certificate* ❏ Setup Guide ❑ TM-T88VI Software & Documents Disc* * May not be included depending on the printer model.

  • Page 4: Part Names And Functions

    English Part Names and Functions Control panel NFC Tag A mark is printed here to indicate the position of the NFC tag. To establish communication with an NFC device, bring the device close to this mark. For details on functions that use the NFC tag, see the Technical Reference Guide.

  • Page 5: Control Panel

    English Control Panel (Power) LED This LED is on when the printer is on. (Error) LED This indicates an error. (Paper) LED On indicates a paper near end or out. Flashing indicates standby. Feed button Press this button once to feed the roll paper for one line. Hold down this button to continue feeding the roll paper.

  • Page 6: Setup

    English Setup Installing the Printer Horizontally or Vertically You can install the printer horizontally on a flat surface (with the paper exit on top) or vertically on a wall (with the paper exit at the front). For the vertical installation, the optional WH-10 hanging bracket set is necessary.

  • Page 7: Attaching The Connector Cover

    English 3. Connect the interface cable to the computer. 4. Connect the AC cable plug to a power outlet. Attaching the Connector Cover Follow the steps below to attach the connector cover to protect the cables. 1. Turn over the printer. 2.
  • Page 8 English Note: ❏ You can use the enclosed screw to fix the connector cover. ❏ To remove the connector cover, turn the printer over, remove the screw, and push the connector cover down while pushing both sides of the connector cover inward to detach the hooks from the printer case.

  • Page 9: Arranging The Cables

    English Arranging the Cables Pass the cables through cable exits in the connector cover. Some cables can be routed out from the front by passing them through the notch in the printer bottom. If you want to pass the USB cable through the cable exit on the back, fit the cable under the hook on the printer to prevent the cable from coming off.
  • Page 10 English Note: You can also attach bottom cover to hide connectors. After the cable arrangement, turn over the printer, and make sure the cables are not pinched.

  • Page 11: Attaching The Power Switch Cover

    English Attaching the Power Switch Cover By attaching the power switch cover, you can prevent accidental operations of the power switch. You can turn on and off the power switch by inserting a sharp-pointed object in the holes on the power switch cover.
  • Page 12 English Note: You can use the enclosed screw to fix the roll paper guide. 4. Install the roll paper correctly. 5. Close the roll paper cover. CAUTION: ❏ If you once use the printer with 58 mm paper roll, you cannot change it back to 80 mm. ❏...

  • Page 13: Installing/Replacing The Roll Paper

    English Installing/Replacing the Roll Paper Follow the steps below to install and replace the roll paper. 1. Open the roll paper cover. 2. Remove the used roll paper core if any. 3. Install the roll paper in the correct direction.
  • Page 14 English 4. Pull out some paper, and close the roll paper cover. 5. Tear off the paper.

  • Page 15: Cleaning The Product

    Cleaning the Thermal Head and the Platen Roller Epson recommends cleaning the thermal head to maintain receipt print quality. We recommend cleaning periodically (about once every 3 months). Depending on the roll paper used, paper dust may stick to the platen roller and the paper may not be fed correctly.

  • Page 16: Troubleshooting

    English Troubleshooting No lights on the control panel Check whether the power supply cable is correctly connected to the printer and the socket. (Error) LED on with no printing ❏ Check whether the roll paper cover is closed. If it is open, close the cover. ❏...
  • Page 17 English 2. Slide the cutter cover toward the front to open it. 3. Turn the knob until you see a triangle in the opening. This returns the cutter blade to the normal position. There is a label near the cutter to assist you. a.

  • Page 18: Product Specifications

    English Product Specifications Printing method Thermal line printing Roll paper Paper width 80 mm paper width setting: 79.5 mm ± 0.5 mm {3.13" ± 0.02"} 58 mm paper width setting: 57.5 mm ± 0.5 mm {2.26" ± 0.02"} External diameter Maximum 83 mm {3.27"} Core internal 12 mm {0.47"}...

  • Page 19: Appendix

    Trademark EPSON is a registered trademark of Seiko Epson Corporation. Exceed Your Vision is a registered trademark or trademark of Seiko Epson Corporation. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Seiko Epson Corporation is under license.
  • Page 20 English Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson...
