Dear Customers,

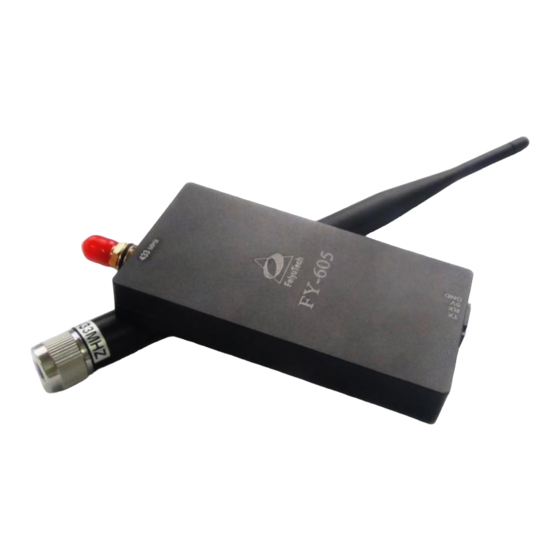

Thank you for purchasing the FY-605 data radio from FeiYu Tech.
In order to achieve full potential and safe operation of this product, please carefully read this
manual prior to installation.
1. Parameter Table
Index
1
Transmission Power
2
Receiving sensitivity
3
Work voltage
4
Transmitting current
Minimum Sleeping
5
current
6
Carrier Frequency
The conversion time
7
for transceiver
8
Transmission
GuiLin FeiYu Electronic Technology Co., Ltd
FY-605 Data Radio
User's Manual
Standard values
2000mW
-123dbm
DC5V
<1.5A
< 1mA
433MHz
<20ms
5Km~15Km
http://www.feiyu-tech.com
DC 5V Power, Current > 2A
ISM frequency range
Within the range of visibility, place the
antenna higher than 3m.
Page 1
Remark
E-mail: service@feiyu-tech.com
Advertisement
Table of Contents
Summary of Contents for FeiYu Tech FY-605
- Page 1 FY-605 Data Radio User’s Manual Dear Customers, Thank you for purchasing the FY-605 data radio from FeiYu Tech. In order to achieve full potential and safe operation of this product, please carefully read this manual prior to installation. 1. Parameter Table...
- Page 2 FeiyuTech FY-605 Data Radio User’s Manual distance Any false data generated in the air can be Transparent data filtrated automatically (What has been interface is offered, Transparent data received exactly what been which can be fit for transmission transmitted) nonstandard user...
- Page 3 Green-receive Data in Data out SMA antenna interface FY-605 is TTL level, interface default baud rate:19200bps Interface verify：None verification 5、 How To Use The Software To Search The Radio And Change The Parameters GuiLin FeiYu Electronic Technology Co., Ltd http://www.feiyu-tech.com E-mail: service@feiyu-tech.com...
- Page 4 FeiyuTech FY-605 Data Radio User’s Manual A. Connect FY-605 with the Computer and power, and choose the COM ports. B. Search the radio, when search it successfully (the software will clew it), then we can read and write the parameters.
- Page 5 FeiyuTech FY-605 Data Radio User’s Manual 431.4288MHZ 459.1250MHZ 431.7360MHZ 459.5250MHZ 430.5072MHZ 460.1250MHZ 434.6940MHZ 460.5250MHZ 434.2332MHZ 461.1250MHZ 433.1580MHZ 461.5250MHZ 433.9260MHZ 462.1250MHZ 6、The Conversion Between Transceiver Modules It needs 1 ms time delay after the user’s equipment received the data and then transferred the send data.
- Page 6 9600 1200 8、Interoperable Models FY-605 can communicate with all the FY-602 series models. Please kindly pay attention to the following points when transmitting: A. Select all the modules the same channels. B. All the modules with the same RF baud rate.
