Summary of Contents for Dieffematic ELIOT 800AC

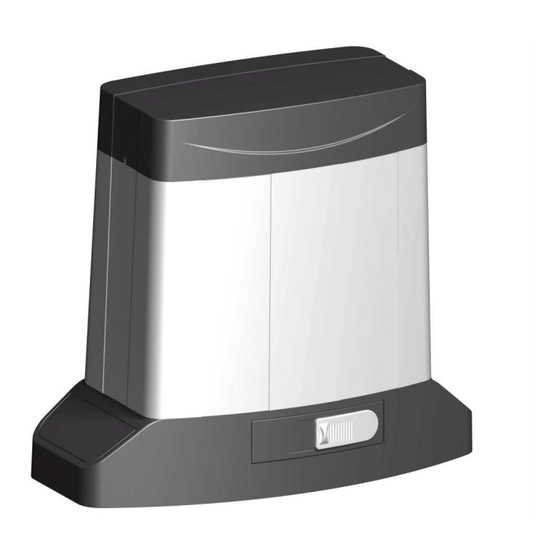

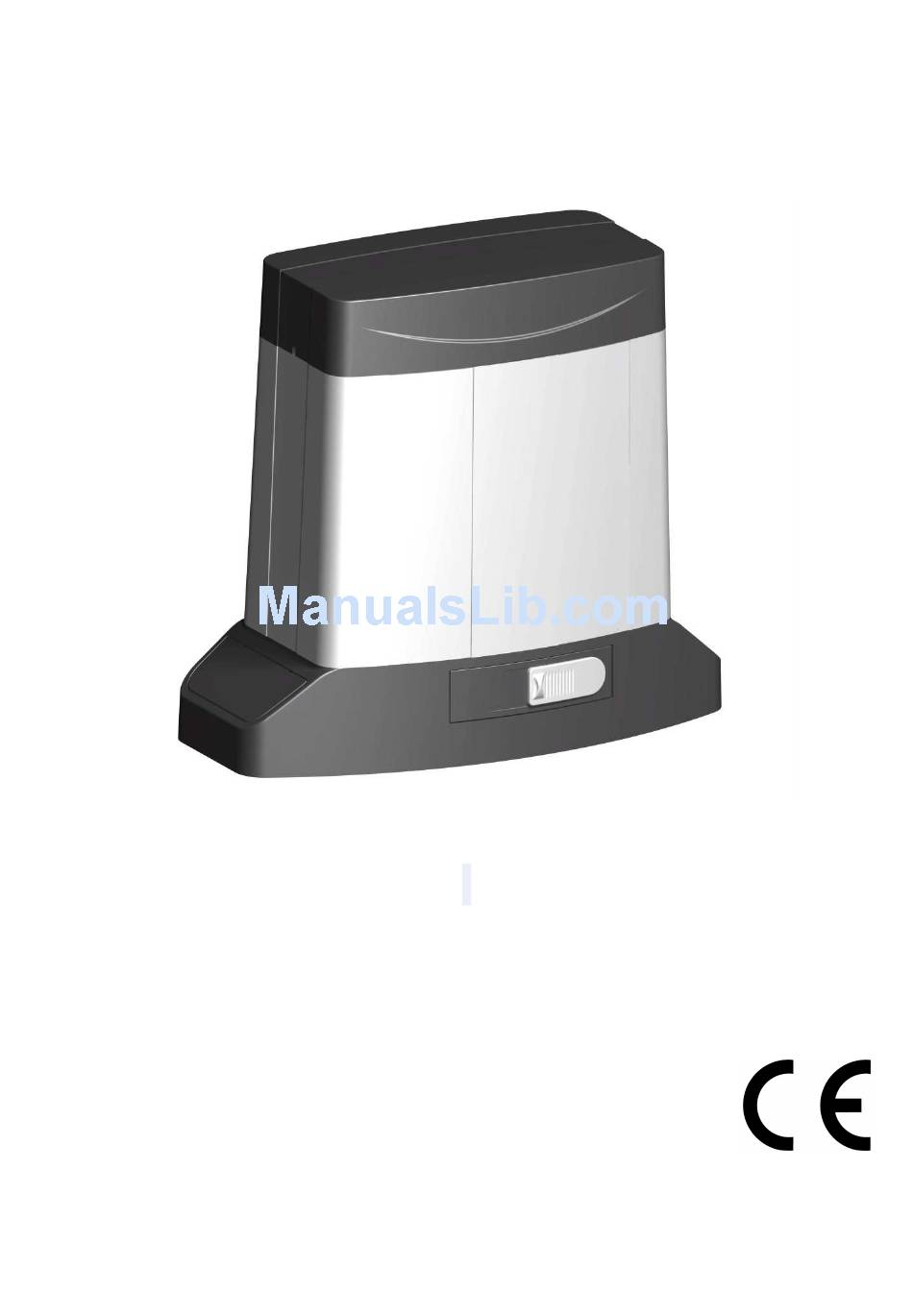

- Page 1 INSTRUCTION MANUAL SLIDING GATE AUTOMATION ELIOT Ed1. 14/12/09 (English)
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING! To reduce the risk of injury or death it is important to closely follow all of the following instructions. Incorrect installation or inappropriate use may cause serious personal injury. This installation manual and safety instructions are an integral part of the product and must be supplied to the user. -
Page 3: Technical Characteristics
TECHNICAL CHARACTERISTICS ELIOT 800AC Technical Characteristics NETWORK POWER SUPPLY 230 Vac 50Hz MOTOR POWER SUPPLY 230 Vac ABSORBED POWER 422W CONSUMPTION 1,85 A CONDENSER 10µf THERMAL POWER 130ºC ENCODER Optical REVOLUTIONES OF ELECTRIC MOTOR 1450 Rpm GATE SPEED 10,8 m/min. - Page 4 AUTOMATISM INSTALLATION Nº NAME Sliding door Reducer motor Rack M4 Nut M10 Washer M10 Leveling Nut 10 Base Plate Rod M10x150 *The B elevation indicates the distance from the centre of the rack to the door. The A elevation indicates the distance between the edge of the base plate and the door.
- Page 5 AUTOMATISM INSTALLATION...
- Page 9 STEP BY STEP INSTALLATION OF THE AUTOMATISM 1- General dimensions of the plate 2- Position the plate parallel to the door. Mark A- Distance from the door to the edge of the plate. Mark B- Distance from the centre of the rack to the door. 3- Positioning the motor on the right.
-
Page 10: Box Content
BOX CONTENT NAME Nº Ref. ELIOT800AC GEAR MOTOR 100058 SET OF WRENCHES 80934 BASE PLATE 70370 BAG OF FIXTURES FOR BENCH 95138 LIMIT SWITCH SET 95128 ELECTRONIC COVER 70392 ELECTRONIC PLATE E10035 ENCODER SET 95142 CONDENSATOR 15 mf (800AC) 70456 CABLE DUCT exterior 70388 ELECTRIC MOTOR 800...
