Summary of Contents for DAPAudio IPS-WPT

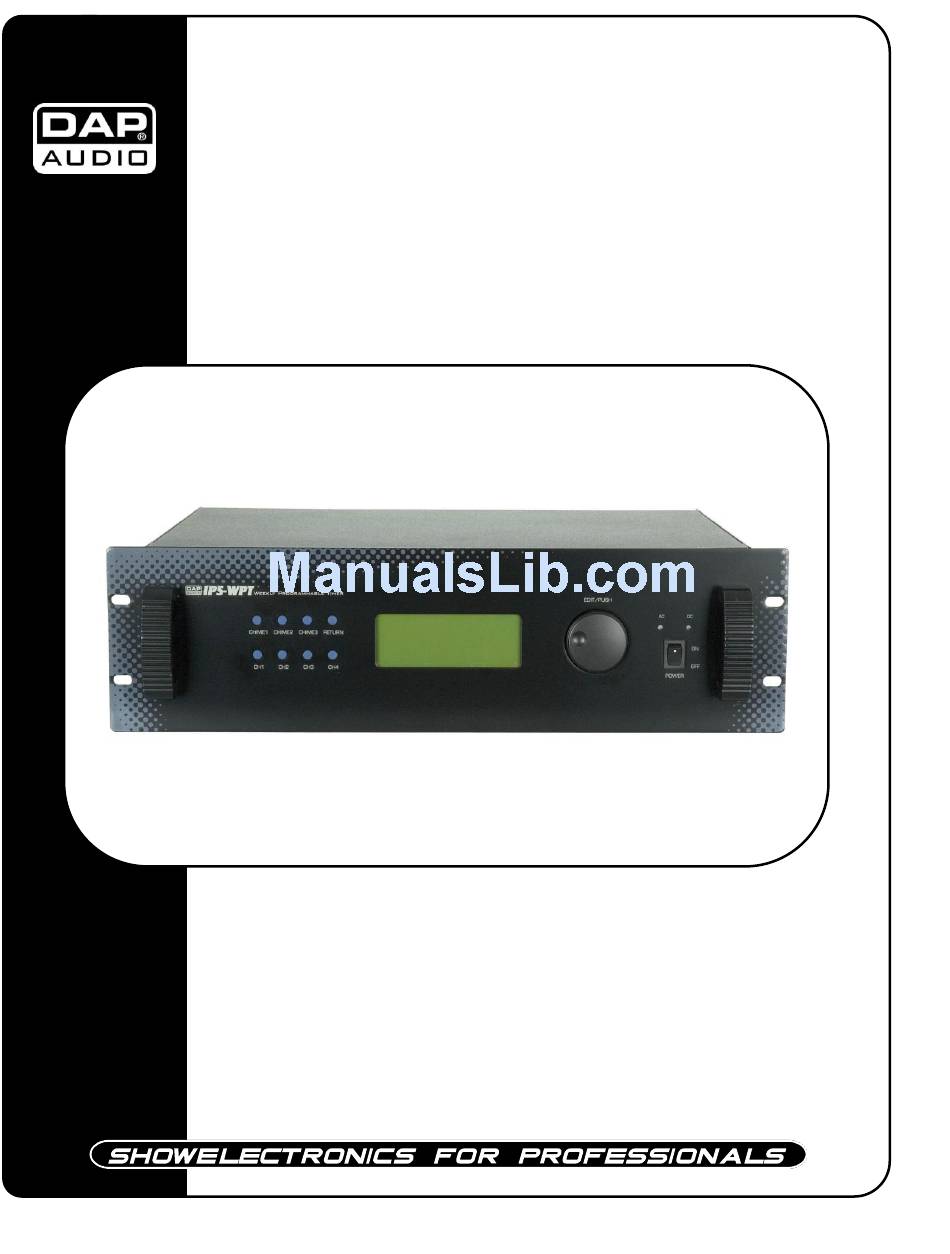

- Page 1 IPS-WPT ORDERCODE D6501...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio IPS-WPT brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio IPT-WPT Guide Warning..…...................……………………………………………….………. Safety-instructions………………….…………………………………………………………………………..…… Operating Determinations………………………………………………………………………………………... Connecting to the mains……………………………………………………………………………………..…… Description..…................……….…………………………………………..….. Features…………………………..……………………………………………….………………….………………. Overview Front panel..…………..………………………………………………………………………………… Overview Back panel..………….……………………………………………………………….………………… Operation..............……………………………..………………………………….….. Programming the device……………………………………………………………………………………………………. Time adjustment…………………………………………………………………………………………………….. Time programming…………………………………………………………………………………………………. Time copying………………………………………………………………………………………………………… Maintenance………......…........………..………….…….…………………….….… Troubleshooting………......…........………..………….…….………………………...….. Product Specifications..............……………….…….…………………..... -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The best way to avoid ground loops is connecting the electrical system ground to one central point ("star" system). In this case the mixer can act as a central point. Before changing the ground, always turn off your amplifier. Please read this manual carefully and keep it for future reference. Remember that the amplifier has a better value on the market, if you save the carton and all packing materials. -
Page 6: Description
Description of the device The IPS-WPT is a programmable timer unit that can be used to build your own intelligent public addressing system. In addition to a normal PA system, you can add much more control functions, such as timer control, priority control etc. - Page 7 Back panel 7.Manual Reset Switch 8.Power Cord 9.AC Sub Power Outlets: MAIN1, MAIN2 are active if one or more of the controlled mains outputs is active. The sub power outputs are always active if an alarm signal is received at either Alarm 1 in or Alarm 2 in. 10.
-
Page 8: Operation
Operation Installation Remove all packing materials from the IPS-WPT. Check that all foam and plastic padding is removed. Secure the equipment into a 19" rack. Connect all cables. Connecting the device NOTE: Always turn off and disconnect the amplifier from mains voltage before making any connections. -
Page 9: Programming The Device
Programming the device M/D/Y The present date. ■□□□ The status of CH1, CH2 , CH3,CH4 outputs on the rear panel. DAY H:M:S The present day and the time (24-hour system). NEXT TIME The programmed next day and the time (24-hour). An alarm signal is detected at ALM1 IN or ALM2 IN. -
Page 10: Time Programming
You can select the parameter you want to edit by rotating the jog wheel. If the cursor highlights the parameter to be edited, press the jog wheel. You’re now in edit mode, change the parameter by rotating the jog wheel. Pressing the jog wheel again will return to cursor mode. If all adjustments are made. Save the settings by selecting ENTER and pressing the jog wheel. -
Page 11: Time Copying
POWER 1 2 3 4 The status of controlled power CH1, CH2, CH3 , Ch4. For example, Power 1V 2X 3X 4X . indicates that the controlled power output CH1 is on, while CH2 , CH3 and CH4 are off. CHIME There are three chimes for selection. -
Page 12: Maintenance
You may want to check why the problem occurred, so you can prevent this in the future. Troubleshooting DAP Audio IPS-WPT This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. -
Page 13: Product Specifications
Product Specifications Output channel 4 channels (timer control)+2 channels (no timer) Rated output power MAIN 1: Max. 15A, MAIN 2: Max. 5A. OUT 1~4: Max. 1A Time format 24 hours Scheduled program 60 times /day DATA OUT 4 channels Controllable external drive compatible with CD player, tuner, cassette, digital recorder (maximum: 4 devices) Alarm input channel...
