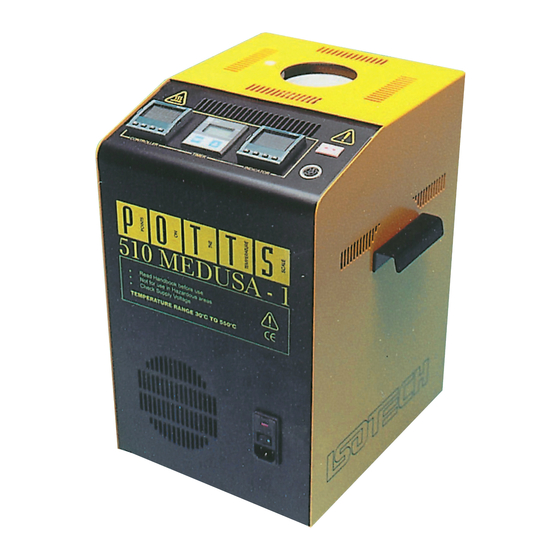

MEDUSA 510/511 SERIES
User Maintenance Manual/Handbook
Isothermal Technology Limited, Pine Grove, Southport, PR9 9AG, England
Tel: +44 (0)1704 543830 Fax: +44 (0)1704 544799 Internet: www.isotech.co.uk E-mail: info@isotech.co.uk
The company is always willing to give technical advice and assistance where appropriate. Equally, because of the programme of continual
development and improvement we reserve the right to amend or alter characteristics and design without prior notice. This publication is for
information only.
Page 1 of 41
Medusa 510/511 Series Iss.12 – 08/13
Advertisement
Table of Contents
Related Manuals for Isotech MEDUSA 510 Series
Summary of Contents for Isotech MEDUSA 510 Series
- Page 1 Isothermal Technology Limited, Pine Grove, Southport, PR9 9AG, England Tel: +44 (0)1704 543830 Fax: +44 (0)1704 544799 Internet: www.isotech.co.uk E-mail: info@isotech.co.uk The company is always willing to give technical advice and assistance where appropriate. Equally, because of the programme of continual development and improvement we reserve the right to amend or alter characteristics and design without prior notice.
-
Page 2: Table Of Contents
CONTENTS GUARANTEE....................................... 4 EMC INFORMATION ..................................5 ELECTRICAL SAFETY ..................................5 ENVIRONMENTAL RATINGS ................................ 5 HEALTH AND SAFETY INSTRUCTIONS ............................6 „DO‟S AND DON‟TS‟ ..................................7 CAUTIONARY NOTE ..................................8 TRANSIT CLAMP ....................................9 UNPACKING AND INITIAL INSPECTION ............................. 10 ELECTRICITY SUPPLY .................................. - Page 3 PROTOCOL ....................................31 DIAGNOSTIC ALARMS..................................32 CONTROLLER ERROR MESSAGES .............................. 32 INITIAL TESTING....................................33 MAINTENANCE ....................................34 FIGURE 2 ....................................... 35 FIGURE 3: 511 3 ZONE VERSION - 110V VERSION ........................36 APPENDIX 1: MEDUSA SERIES TROUBLE SHOOTING ........................ 37 Unit fails to operate..............................
-
Page 4: Guarantee
INTERFERENCE WITH OR FAILURE TO PROPERLY MAINTAIN THIS INSTRUMENT MAY INVALIDATE THIS GUARANTEE RECOMMENDATION The life of your ISOTECH Instrument will be prolonged if regular maintenance and cleaning to remove general dust and debris is carried out. We recommend that this instrument to be re-calibrated annually. -
Page 5: Emc Information
The Blue conductor should be connected to Neutral and the Brown conductor to Live (Line). Warning: Internal mains voltage hazard. Do not remove the panels. There are no user serviceable parts inside. Contact your nearest Isotech agent for repair. Voltage transients on the supply must not exceed 2.5kV. -
Page 6: Health And Safety Instructions
If cased, do not return the apparatus to its carrying case until the unit has cooled. There are no user serviceable parts inside. Contact your nearest Isotech agent for repair. Ensure materials, especially flammable materials are kept away from hot parts of the apparatus, to prevent fire risk. -
Page 7: 'Do's And Don'ts
‘DO’S AND DON’TS’ DO NOT handle the accessories when they are very hot or very cold. DO NOT place hot or cold accessories back in the carrying case DO NOT use the pocket designed for the black body source sensor to measure the temperature of the insert or surface calibrator. -
Page 8: Cautionary Note
CAUTIONARY NOTE ISOTECH PRODUCTS ARE INTENDED FOR USE BY TECHNICALLY TRAINED AND COMPETENT PERSONNEL FAMILIAR WITH GOOD MEASUREMENT PRACTICES. IT IS EXPECTED THAT PERSONNEL USING THIS EQUIPMENT WILL BE COMPETENT WITH THE MANAGEMENT OF APPARATUS WHICH MAY BE POWERED OR UNDER EXTREMES OF TEMPERATURE, AND ARE ABLE TO APPRECIATE THE HAZARDS WHICH MAY BE ASSOCIATED WITH, AND THE PRECAUTIONS TO BE TAKEN WITH, SUCH EQUIPMENT. -
Page 9: Transit Clamp
TRANSIT CLAMP EVERY EFFORT HAS BEEN MADE TO PACKAGE THIS UNIT FOR TRANSPORT AND TO ENSURE ITS GOOD CONDITION ON ARRIVAL AT ITS DESTINATION BEFORE COMMISSIONING IT IS NECESSARY TO REMOVE THE FURNACE CORE TRANSIT CLAMP. TO AVOID DAMAGE PLEASE FOLLOW INSTRUCTIONS Slacken the central nut using the required tube spanner;... -
Page 10: Unpacking And Initial Inspection
UNPACKING AND INITIAL INSPECTION Our Packing Department uses custom designed packaging to send out your unit, but as accidents can still happen in transit, you are advised, after unpacking the unit, to inspect it for any sign of shipping damage, and confirm that your delivery is in accordance with the packing note. -
Page 11: Introduction
INTRODUCTION The Medusa range of products allows unprecedented flexibility for the calibration of temperature sensors. The Medusa may be used with the following options: An ITS-90 Fixed Point Apparatus As a Metal Block Bath A Black Body Source A Surface Sensor Calibrator The Medusa is available in two variants. -
Page 12: Using External Standards
USING EXTERNAL STANDARDS Here a separate indicator and calibrated sensor are used to measure the inserts temperature. This can give the most accurate and reliable results, depending on the indicator. It means that the calibrator does not need calibrating only the indicator and its calibrated sensor need re-calibration, but this option is more bulky, expensive and less portable than 2). -
Page 13: Mode Of Operation
MODE OF OPERATION ITS-90 FIXED POINT CALIBRATION The ITS-90 fixed point function of the Medusa is well suited for fast, convenient, mess free calibration of thermometers to uncertainties as low at 0.001°C. The special cell is placed into the Medusa calibration well. The equipment incorporates a timer which can change temperatures to allow MELTING or FREEZING of a Cell. -
Page 14: Black Body Source
BLACK BODY SOURCE The black body function of the Medusa is well suited for fast, convenient, mess free calibration of infra-red temperature sensors. The Medusa black body target, see accessory page, is placed into the calibration well. The units under test should be aligned with the target. -
Page 15: Adjusting The Timer
ADJUSTING THE TIMER Page 15 of 41 Medusa 510/511 Series Iss.11 – 07/12... -
Page 16: Thermometric Fixed Points (A Tutorial Note)
THERMOMETRIC FIXED POINTS (a tutorial note) Temperature scales used in science and industry are defined by a series of "fixed points", which are realised by establishing thermal conditions under which pure materials exhibit equilibrium between two or three phases. A scale assigns numerical values to the temperatures at which these phase equilibria exist. -
Page 17: Hint On How To Measure The True Temperature Inside The Accessories Supplied With The Medusa Series
The Industrial thermometer is placed in the accessory or insert and is compared to the True Temperature as indicated by the reference thermometer. An insert will typically have a 1% immersion error. For more details see - Depths of Immersion. Tavener J. P. Volume 9.2. Isotech Journal of Thermometry pages 79-87. Page 17 of 41... -
Page 18: Specification
SPECIFICATION Voltage 230VAC (or 115VAC) see ratings plate Power 1800W Supply Frequency 50/60Hz Maximum Operating Temperature Medusa 1 - 550°C Medusa 2/Medusa 511 - 700°C Minimum Operating Temperature Medusa 1 - 30°C Medusa 2/Medusa 511 - 35°C Stability (Absolute over 30 Minutes) Metal Block Bath ±0.03°C Black Body Source... -
Page 19: Medusa 1 Performance Graphs
MEDUSA 1 PERFORMANCE GRAPHS Page 19 of 41 Medusa 510/511 Series Iss.11 – 07/12... -
Page 20: Medusa 2 Performance Graphs
MEDUSA 2 PERFORMANCE GRAPHS Page 20 of 41 Medusa 510/511 Series Iss.11 – 07/12... -
Page 21: Operating The Medusa
OPERATING THE MEDUSA FRONT PANEL LAYOUT THE TEMPERATURE CONTROLLER The controller has a dual display, the upper display indicates the nominal block temperature, and the lower display indicates the desired temperature or setpoint. ALTERING THE SETPOINT To change the setpoint of the controller simply use the UP and DOWN keys to raise and lower the setpoint to the required value. -
Page 22: Instrument Address
When the SPrr is active the controller display will show "RUN", the lower setpoint display will now automatically update with the current value, known as the working setpoint. The setpoint can be seen by pressing either the UP and DOWN key. The Setpoint ramp rate operates when the bath is heating and cooling. -
Page 23: Enabling / Disabling Custom Calibration
User calibration can make a significant difference to the accuracy of the instrument, and this REM beacon provides a clear and continuous indication of the calibration status. Isotech will configure and set user calibration when the Dry Block is ordered with a temperature sensor. -
Page 24: Monitoring The Indicator Status
The indicator can be configured with up to five custom calibration points; the points contain "data pairs". First the temperature (point) and secondly the Error (offset) at this temperature point. Isotech Dry Block calibration certificates will show the values to suit a particular sensor. -
Page 25: Calibration Data Example
CALIBRATION DATA EXAMPLE A maximum of five points may be entered, shown as Pnt 1 to Pnt 5 for the temperature point and Ofs 1 to Ofs 5 for the offset values. The Pnt values must be entered in ascending order. Set a Pnt to a value lower than the previous point to disable it. -
Page 26: Connecting A Current Transmitter (Up To 20Ma)
CONNECTING A CURRENT TRANSMITTER (UP TO 20MA) The transmitter should be powered externally, a 2.49Ω current sense resistor is fitted internally and this allows the indicator to read mA. From the input type menu select “mV”. Access configuration level. SELECTING CONFIGURATION LEVEL Page 26 of 41 Medusa 510/511 Series Iss.11 –... -
Page 27: Testing Thermostats
Testing Thermostats The Site model can be used the Isotech Cal Notepad software for the testing of thermostats and other thermal switches with volt free contacts. Cal Notepad can capture the temperature at which a switch opens or closes. It can also perform a hysteresis test. -
Page 28: Operating The Medusa 511
OPERATING THE MEDUSA 511 The Medusa 511 is a 3 Zone Block Bath used to create an even temperature profile along the part of the block in which fixed point cells will sit. The main heater is used to set the required temperature the top and bottom heaters are used to compensate for the end effect heat losses. -
Page 29: Using The Pc Interface
The Isotech conversion leads are suitable for maximum combined lead lengths of 10M that is adequate for most applications. CONNECTIONS For RS232 use simply connect the Isotech cable, a 9 to 25 pin converter is included to suit PCs with a 25 pin serial converter. RS422 Connections... -
Page 30: Cal Notepad
CAL NOTEPAD Cal Notepad can be used can be used to log and display values from the Dry Blocks and an optional temperature indicator such as the milliK or TTI-10. The software requires Windows 9X, XP, a minimum of 5Mb of free hard drive space and free serial ports for the instruments to be connected. -
Page 31: How To Install Cal Notepad
HOW TO INSTALL CAL NOTEPAD Download the ZIP from http://www.isotech.co.uk/downloads (7.6Mb) Extract the files to a temporary folder Run setup.exe Follow the prompts which will install the application, a user manual with setup information and the necessary LabVIEW run time support files. -
Page 32: Diagnostic Alarms
Display What it means What to do about it shows EE.Er Electrically Erasable Memory Error: For Controller: Contact Isotech The value of an operator or configuration For Indicator: Check Config Against Data in parameter has been corrupted Appendix S.br Sensor Break:... -
Page 33: Initial Testing
INITIAL TESTING This unit was fully tested before despatch to you but please check its operation as outlined below. After connecting the Medusa to the electricity supply, the temperature controller display will show the temperature of the block and the last set-point value. The controller and indicator both go through a self-test sequence first. Change the set-point to 100°C and observe that the block temperature rises and settles to this value. -
Page 34: Maintenance
MAINTENANCE Maintenance is limit to keeping the apparatus and the calibration volume clean and free from debris. There are no internal user serviceable parts. Repair and maintenance must be carried out by Isothermal Technology Limited or an approved agent. Page 34 of 41 Medusa 510/511 Series Iss.11 –... -
Page 35: Figure 2
FIGURE 2 Temperature controller Timer Temperature indicator PRT input socket T/C input socket Power entry module - comprising power input, fuse and switch Timer enable/disable Switch contact Note: Only connect a thermocouple or platinum resistance thermometer to the input connectors. Ensure that only one sensor is connected at any time. -
Page 36: Figure 3: 511 3 Zone Version - 110V Version
FIGURE 3: 511 3 ZONE VERSION - 110V VERSION Temperature controller Timer Temperature indicator PRT input socket T/C input socket RS 422 comms socket On/Off switch Cable entry gland Switch contact (thermostat) Timer enable/disable Top zone controller Bottom zone controller Note: Fuses and fuse carriers mounted internally. -
Page 37: Appendix 1: Medusa Series Trouble Shooting
APPENDIX 1: MEDUSA SERIES TROUBLE SHOOTING Unit fails to operate Check fuse. If fuse blows repeatedly consult Isotech or local agent. Indicator reads incorrectly Two sensors connected simultaneously. Indicator incorrectly configured - refer to „Operating the Medusa‟ section. Cannot establish PC Communications For RS232 you must use the Isotech adaptor cable. -
Page 38: Appendix 2: Accessories Parts List For Medusa 510
APPENDIX 2: ACCESSORIES PARTS LIST FOR MEDUSA 510 Standard Dry Block Insert 510-06-01 Blank Insert 510-06-02 Adjustable Equalising Block 510-06-04 Blackbody Target Kit 510-06-05 Surface Sensor Calibrator Kit 580-06-06 Surface Sensor Probe 935-14-49 Surface Sensor Insert 510-02-02 Slim Gallium Melting Point Cell M 17401M Slim Indium Fixed Point Cell M 17668M... -
Page 39: Appendix 2: Accessories Parts List For Medusa 511
APPENDIX 2: ACCESSORIES PARTS LIST FOR MEDUSA 511 Adjustable Equalising Block 511-06-04 Blackbody Target Kit 511-06-05 Surface Sensor Calibrator Kit 511-06-06 Surface Sensor Probe 935-14-49 Surface Sensor Insert 510-02-02C Slim Indium Fixed Point Cell M 17668M Slim Tin Fixed Point Cell M 17669M Slim Lead Fixed Point Cell M 17670M... -
Page 40: Appendix 3: Indicator Configuration (Reference Only)
APPENDIX 3: INDICATOR CONFIGURATION (Reference Only) Config.INST Name Description Value unit Instrument Units `C (0) dEcP Decimal Places in Display NN.NN CtrL Control Type PID (0) Control Action REV (0) COOL Cooling Type LIN (0) PwrF Power Feedback Enable OFF (0) Pdtr Manual/Auto Transfer PD NO (0) -
Page 41: Config.al
Config.AL Name Description Value AL_1 Alarm 1 Type OFF (0) Ltch1 Alarm 1 Latching NO (0) AL_2 Alarm 2 Type OFF (0) Ltch2 Alarm 2 Latching NO (0) AL_3 Alarm 3 Type OFF (0) Ltch3 Alarm 3 Latching NO (0) AL_4 Alarm 4 Type OFF (0)
