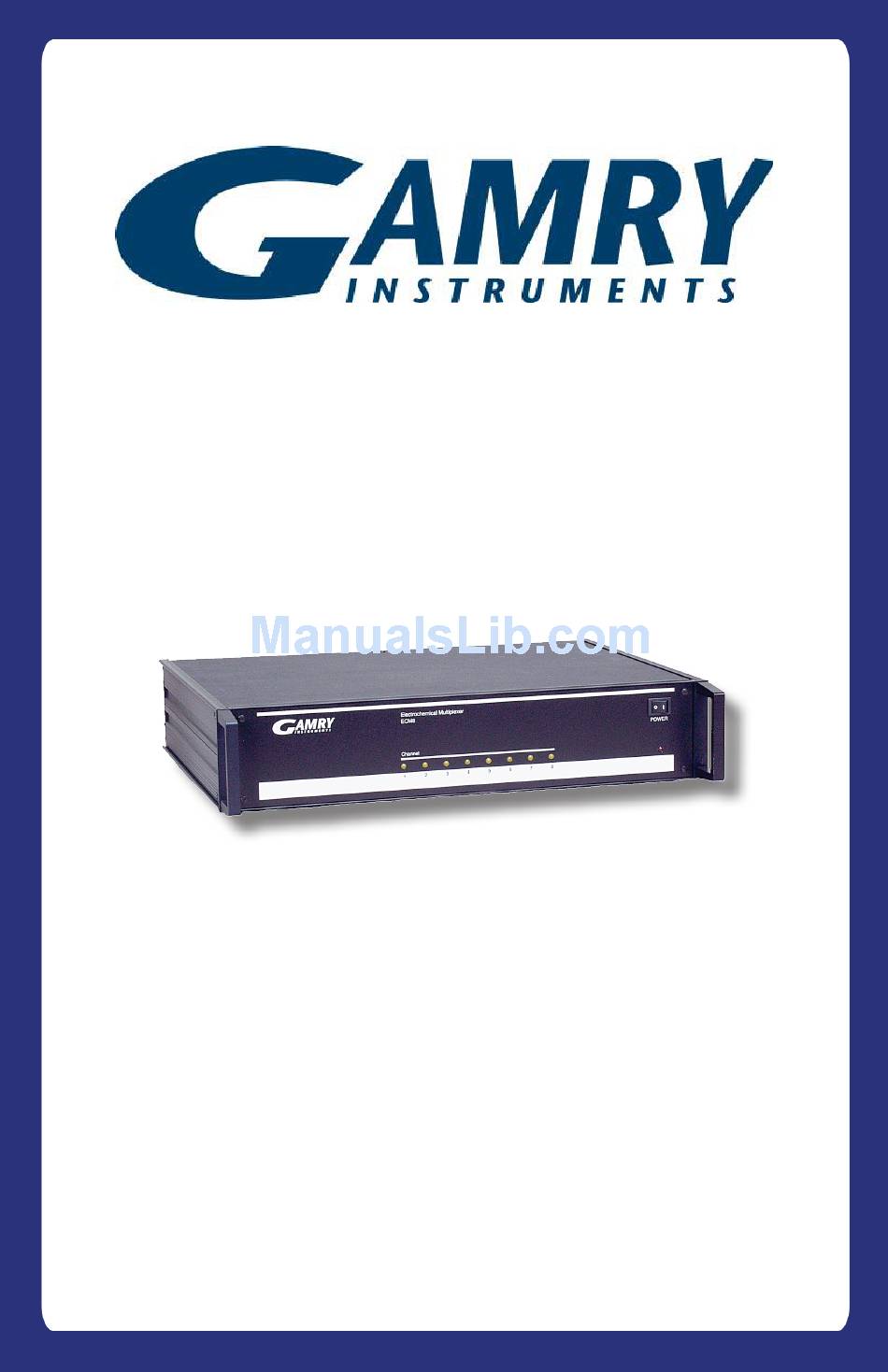

- Page 1 QUICK-START GUIDE Start-up Guide Electrochemical Multiplexer ECM8...
- Page 2 RS-232C connector on the back of the multiplexer. Attach the Potentiostat/ECM8 cable to the cell cable jack on your potentiostat. Attach the other end of the ECM8 cable to the multiplexer POTENTIOSTAT receptacle. NOTE: Reference 3000 potentiostats also require the...
- Page 3 AC supply (mains). Turn on the multiplexer via the POWER switch on the front of the unit. The power indicator LED illuminates red. On your host computer, open the Gamry Framework soft- ware. Choose Experi- ment > Utilities > Multiplexer Auto Detect.
- Page 4 A window informs you that the test will begin. Click the OK button, and watch the eight amber LEDs on the front of the multiplexer illuminate in sequence three times. Listen for the simultaneous clicks of the relays. A window asks you to restart Frame- work.
- Page 5 Activate the checkboxes corresponding to the active channels on the multiplexer. When a particular channel runs, the amber LED for that channel illuminates. NOTE: If you are running AC experiments (e.g., EIS), you must run AC calibration of your potentiostat with the multiplexer connected.
- Page 6 Feel free to visit our website to find out more information on: Application Notes - http://www.gamry.com/application-notes/ Technical Support - http://www.gamry.com/service-support/ Training Videos - http://www.youtube.com/gamryinstruments www.gamry.com 1-215-682-9330 techsupport@gamry.com Gamry Instruments, Inc. 734 Louis Drive Warminster, PA 18974 988-00037 Multiplexer Quick-Start Guide – Ver. 1.0 – Gamry Instruments © 2015...
