Summary of Contents for LUNA OPTICS LN-DM60-HD

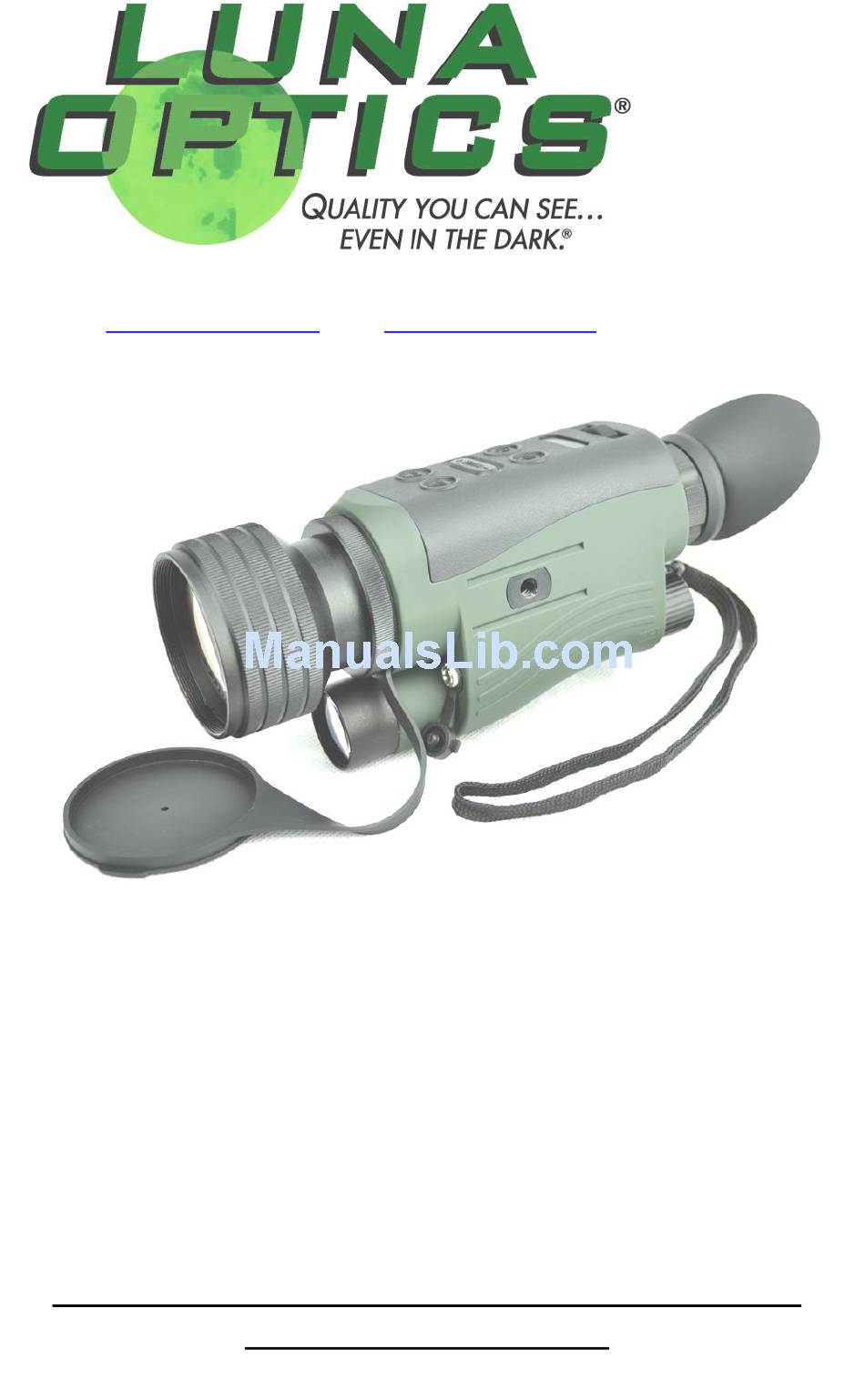

- Page 1 LUNA OPTICS, INC. 300 Hawthorn Dr., Fate, TX 75087 (USA) E-mail: info@lunaoptics.com Web: www.lunaoptics.com © 2017 LN-DM60-HD HIGH DEFINITION DIGITAL DAY & NIGHT VIEWER / RECORDER INSTRUCTION MANUAL IMPORTANT: Please read this manual in its entirety prior to using this device!
- Page 2 4. For more details on how to operate your viewer, please read this manual completely to ensure proper operation. YOUR SYSTEM INCLUDES THE FOLLOWING: 1. LN-DM60-HD Digital Night Vision Viewer/recorder 2. 8GB Micro SD-card (installed into the SD-card slot) 3. Color Enhancing Filter (Daylight use only for vivid colors) 4.
- Page 3 Please look below to identify all the parts of the unit.
- Page 4 Glossary: 1 – Objective Lens Focusing Wheel 9 – Video Recorder Button 2 – Ocular Focusing Wheel 10 – Still Image Button 3 – Battery Compartments 11 – Image / Zoom Button 4 – Accessory / Tripod Mount 12 – Power ON/OFF Button 5 –...
- Page 5 and does not affect the unit. If the flickering continues after 5-10seconds, please try to decrease the brightness of the image by gently pushing the Brightness Wheel (14) to the left. CONNECTING TO THE DC ADAPTER: Your digital viewer can also operate from a common wall outlet with the use of the plug adapter (included).
- Page 6 brightness down to avoid image flickering and to preserve the battery life. During nighttime you could increase the brightness all the way up, however when utilizing built-in or external IR illuminator, you may need to tone the brightness down a bit. ELECTRONIC IMAGE MAGNIFICATION ZOOM: Your unit is also equipped with electronic zoom function, which allows you to change image magnification from 6x to 30x.
- Page 7 8GB card by pressing onto its end. It will pop out of its slot (15) as shown on the image. Gently remove the card and replace it with the new one by pressing it straight forward until it is securely locked in the slot. Close the compartment door and lock it by sliding the latch to the left.
- Page 8 Video Output (5) and then connect to the TV/Recorder. . NOTE – if you live outside of the USA, you may need to switch the Video Output from NTSC to PAL by accessing the menu (Press IR Button for 2 seconds and when Menu appears select Video Format with Image button (11) and activate it with IR button (13).
