Coleman 2V9WP Instruction Manual

2V9WP Instruction Manual
IMPORTANT
- Do not open the battery door while submerged in water.
- Close the battery door properly for the best water-tight seal.
- Ensure that the latch on the battery door is correctly closed.
- Rinse with clean water after use.

1. Getting to Know Your Camera

Ultra Slim Waterproof Design
Waterproof up to 10 ft. / 3 meters
20.0 Mega Pixels Max Resolution
Wide Angle Lens
Digital Still Camera
Digital Video Camcorder
Built-in Flash Light
4X Digital Zoom
2.7"+1.8" TFT Color Display
Micro SD / SDHC Card Support
2x AAA Alkaline Batteries

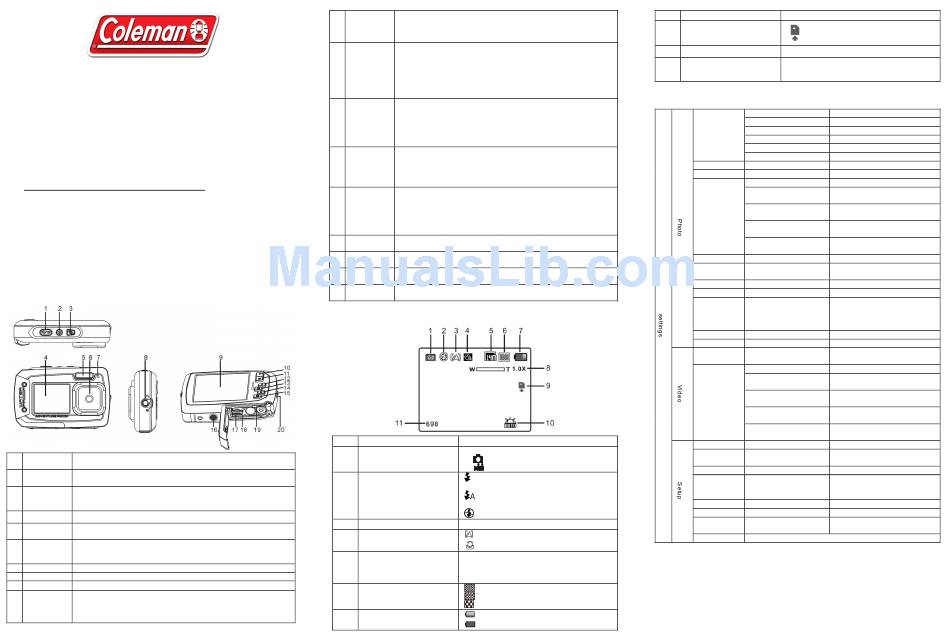

2. Functional Parts

Press this button to take photographs or to start /stop recording
1 Shutter
a video clip, or to confirm changes in menu mode
Power on/off Press this button for at least 2 seconds to switch on or off the camera，
2
button or press it to display or hide the status icon on LCD.
Monitor
Press this button to switch between the front monitor and the back
3 switching
monitor.
button
4 Front monitor Use the front monitor when taking self-portrait shots
Use the built-in flash to give the subject extra lighting when shooting in
5 Flash light
the dark (the best shooting distance is within 1.5m).
Capture the image.
6 Lens Note: Keep the lens clean. Dirt and fingerprints will affect the quality of
the picture.
7 Busy indicator When the indicator is blinking, the camera is busy.
8 Strap hook Hook for attaching the wrist strap to the camera.
9 Main Screen Display photographs, video clips, camera setting and menu.
In Preview mode: press this button for zooming in.
In Menu mode: press this button to move up the selection bar.
10 Up/Tele
In Image Playback mode: press this button for enlarging the photo.
In Video Playback mode: press it to start/pause the video.
In Shooting mode: press this button for zooming out.
In Menu mode: press this button to move down the selection bar.
11 Down/Wide
In Image Playback mode: press this button for reducing the photo size.
In Video Playback mode: press this button to enter the thumbnail mode
In Menu mode: press this button for the left selection;
In Playback mode: press this button to go back to the previous one;
In Photo Infinite Preview mode: press this button to switch to Flash
Left / Flash
12 mode;
light
When zooming in under Image Playback mode: press it to move to the
left portion of the photo.
In Video Playback mode: press it for fast rewind.
Press this button to enter Playback mode;
In Playback mode: press this button to move to the next one;
Right / In Menu mode: press this button for the right selection;
13
Playback When zooming in under Image Playback mode: press it to move to the
right portion of the photo.
In Video Playback mode: press it for fast forward.
Press this button to switch between movie and still capture mode;
In Playback mode: press this button to exit.
14 Mode Switch When zooming in under Image Playback mode: press it to move to the
upper portion of the photo. In Video Playback mode: press it to stop the
video.
In Preview mode: press it to enter the Settings Menu.
In Playback mode:
Press it for a short time to enter the"Delete single/ all files" mode;
15 Menu / Delete
Press it for a long time to enter the "File compiling and system settings
menu". When zooming in under Image Playback mode: press it to move
to the lower portion of the photo.
MicroSD card
16 MicroSD card storage location.
slot
You can download photographs and video clips to a computer when
17 USB interface
connecting with a USB cable. (not included)
Battery
18 Compartment for 2 x AAA alkaline batteries
compartment
Tripod
19 For fixing the camera on the tripod.
connector

3. Explanation of Status Icons

Item Function
Shows the current operating mode:
1 Mode Photo mode.
Videos mode.
Force flash: The flash will be on under any
environment.
2 Flash
Auto flash: The camera determines if
the flash should be used or not.
No flash: The flash is turned off.
3 Self-Timer Indicates the Self-timer is set
Mode (0.5m – infinity).
4 Normal / Macro Mode
Macro mode (11cm – 18cm).
Shows the selected picture's resolution:
20 M = 5184X3888;14M = 4320x3240;
5 Resolution
8M = 3264x2448; 5M = 2592x1944;
3M = 2048x1536; VGA = 640x480
Super fine
6 Picture quality
Fine
Normal
The batteries are full.
7 Battery indicator
The batteries are empty.
8 Zoom indicator
9
MicroSD card
10 White Balance
11 Photo/Video counter

4. Camera Settings Details

Resolution
Quality
Metering
White Balance
ISO
Exposure
Self Timer
Sharpness
Effect
Date Stamp
Quick View
Movie Size
White balance
Description
Sounds
Frequency
Power Save
Language
Date/Time
Format
Reset All
Version
Note: Turning off the camera will not erase the last settings.

5. Using the camera

5.1 Installing the batteries

1. Open the battery door.
2. Insert 2 x AAA alkaline batteries into the battery compartment.
3. Close the battery door.
Shows the zoom ratio during preview mode
Indicates the MicroSD card is inserted and
will be used as storage for PHOTO and
VIDEO
Shows the selected White-balance mode.
Photo mode: No. of pictures that can be taken.
Video mode: Recording time in seconds.
20M pixel resolution 5184X3888
14M pixel resolution 4320x3240
8.0M pixel resolution 3264x2448
5.0M pixel resolution 2592x1944
3.0M pixel resolution 2048 x 1536
VGA resolution 640 x 480
Super Fine/Fine/Normal Picture quality setting
Center/Multi/Spot Metering setting
Auto Automatic white balance
White balance for shooting under
Daylight
fine weather condition
White balance for shooting under
Cloudy
cloudy condition
White balance for shooting under
Tungsten
tungsten lighting
White balance for shooting under
Fluorescent
fluorescent lighting
Auto/100/200/400/800 Sensitivity selection
±2.0, ±5/3, ±4/3, ±
Exposure setting
1.0, ±2/3, ±1/3, 0
On/Off Self timer setting
Hard/ Normal/ Soft Sharpness setting
Normal/ B&W/ Sepia/
Negative/ Lomo/ Pencil
Effect setting
Sketch/ Red/ Green/
Blue/ Vivid
On/ Off Date stamp setting
On/ Off Quick view setting
VGA 640 x 480
Video resolution setting
QVGA 320 x 240
Auto Automatic white balance
White balance for shooting under
Daylight
fine weather condition
White balance for shooting under
Cloudy
cloudy condition
White balance selected for
Tungsten
shooting under tungsten lighting
White balance for shooting under
Fluorescent
fluorescent lighting
Off/On Sounds setting
Select power frequency in your
50Hz / 60Hz
location
Off / 1Minute / 3 Minutes Auto power off selection
English/ French/
Deutsch/Italian/Spanish/ Display language selection
Portuguese/Japanese
YY/MM/DD Date or time setting
Yes/No Format the MicroSD Card
Reset all settings to factory default
Yes/No
positions
Shows the firmware version
